D-Link DCS-2136L Manual de usuario

QUICK

INSTALLATION

GUIDE

WIRELESS AC DAY/NIGHT CAMERA WITH

COLOR NIGHT VISION

DCS -2136L

КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ

GUÍA DE INSTALACIÓN RÁPIDA

GUIA DE INSTALAÇÃO RÁPIDA

快速安裝指南

PETUNJUK PEMASANGAN CEPAT

快速安裝指南

ENGLISH

Package Contents

Minimum Requirements

Computer with:

• PC with 1.3 GHz or above and at least 128 MB RAM

• Windows® 8, Windows® 7, Vista® or XP (32-bit or 64-bit)

• Mac OS® X 10.6 or higher

Web Browser:

• Internet Explorer® 7, Firefox 12, Safari 4, or Chrome 20 and above

• Installed and enabled Java and ActiveX® controls

Network Device and Service:

• A router (A D-Link Cloud Router is recommended)

• An Internet connection

• An e-mail account (Required to register mydlink service)

CAT5 Ethernet Cable

DCS-2136L Wireless AC Day/Night Camera with

Color Night Vision

CD-ROM with User Manual and Software

If any of the above items are missing, please contact your reseller.

Power Adapter

ENGLISH

If you wish to connect your camera to your router with a wireless connection,

you can simply disconnect the Ethernet cable and move the camera to its

intended location.

From any computer, open a web browser, go to

http://www.mydlink.com and log in to your account.

Click on the device name when the new device

notication appears to add the camera to

your account.

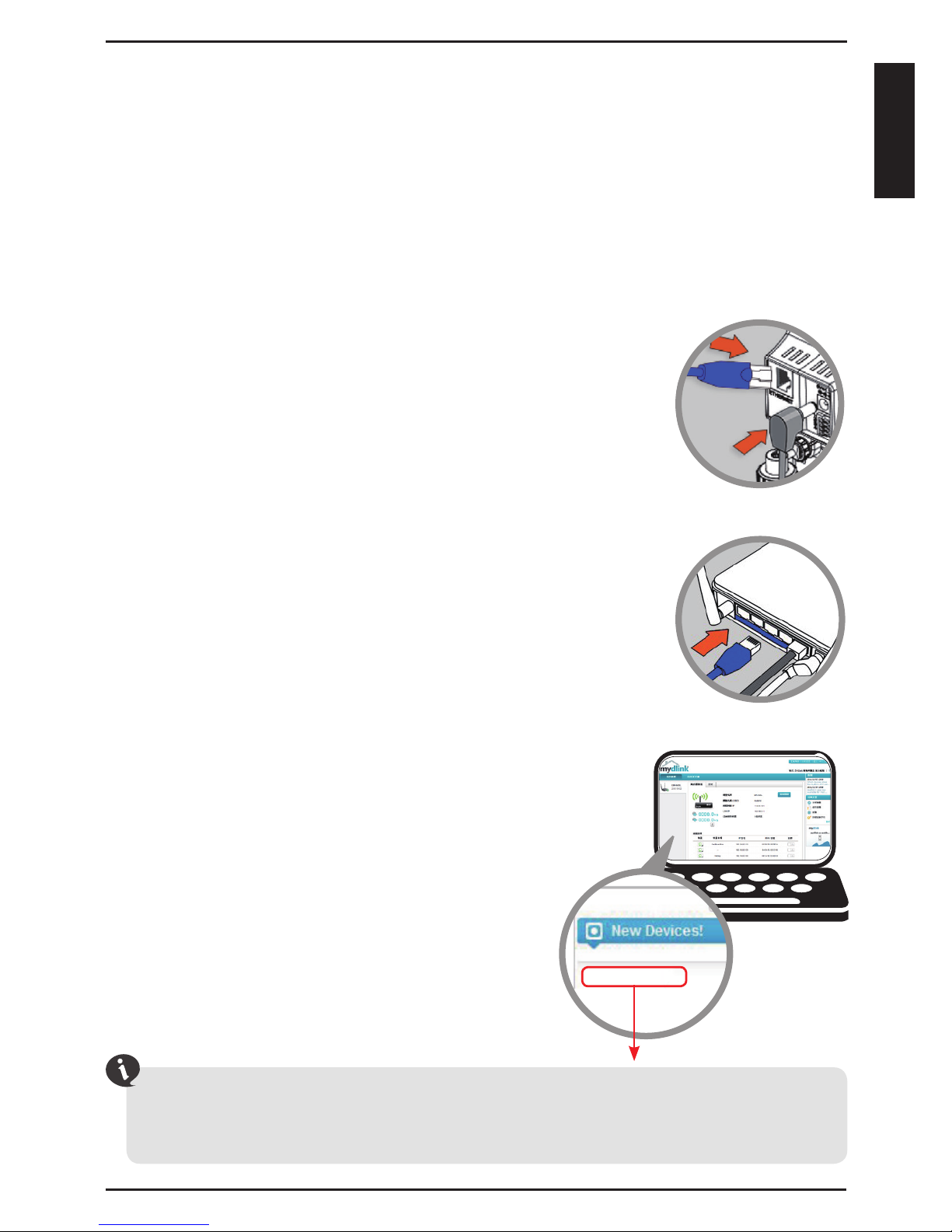

Connect the power cable and Ethernet cable to your

cloud camera.

Connect the other end of the Ethernet cable to

your D-Link Cloud Router and connect the camera’s

power adapter to a power outlet.

Setting up your Camera

Using a D-Link Cloud Router (Zero Conguration)

If you have a D-Link Cloud Router, you can take advantage of Zero

Conguration Setup. This feature automatically congures your camera’s

settings for you and adds it to your mydlink account automatically. If you

do not have a D-Link Cloud router, refer to the next page to install and

congure your camera.

DCS-2136L

ENGLISH

Using the Installation Wizard

If you do not have a D-Link Cloud Router, you can simply use any Windows

or Mac computer to go through the Installation Wizard from the CD, which

will guide you through the installation process from connecting your

hardware to conguring your camera.

• Windows Users – Insert the CD. Simply click Set up your Cloud

Camera to go through the Setup Wizard. If the Setup Wizard program

does not automatically start on your computer, go to Start > Run. In

the run box type D:\autorun.exe (where D: represents the drive letter

of your CD-ROM drive) and click OK.

• Mac Users – Insert the CD. On the desktop, open your CD drive,

double-click on the SetupWizard le, wait about 20-30 seconds, and

follow the instructions.

If you do not have a CD-ROM drive, or the CD is missing,

please download the Setup Wizard from

http://www.mydlink.com/support

ENGLISH

Getting Started with mydlink

mydlink is a web-based service which allows you to view and control your

mydlink-enabled devices through any computer connected to the Internet.

If you have cameras linked to your mydlink account, you will be able to see

their live views using the mydlink website. Follow the instructions below to

access your mydlink account.

• Open a web browser on any computer connected to the Internet.

• Type http://www.mydlink.com in the address bar and press Enter.

• Sign in using your mydlink account.

• From the home screen, you will be able to view all devices which have

been linked to your mydlink account.

• Ensure that your browser supports both Java and ActiveX, and that these

features have been installed and enabled.

• Windows does not have Java installed by default. You can download the latest

version from http://www.java.com.

• In Mac OS X 10.7.x, Java applets are disabled by default. To enable Java applets,

click the Finder > Applications > Utilities > Java Preferences and check the

Enable applet plug-in and Web Start applications option.

• The ActiveX® controls in IE will install automatically if needed. We suggest that

you make sure that you have enabled the related options in Tools > Internet

Options > Security > Custom Level.

ENGLISH

Mount the Camera

1. Place the mounting base where you want

to position the camera and use a pencil to

mark the holes.

4. Place the base cover on the base and

screw the camera stem clockwise into the

mounting base.

2. Depending on the material of the wall or

ceiling, use proper tools to drill two holes or

screws where you marked. If the wall is made

out of concrete, drill the holes rst, insert the

plastic anchors and then the screws.

3. Place the mounting base over the screw that

is mounted on the wall. Make sure to t the

screw-heads over the big holes and slide

it downward to lock rmly. Lightly pull the

base forward to make sure that it is locked.

Please refer to the steps below to assist you with mounting the camera.

The space between the camera and the screwheads should be 3mm.

We suggest that you congure the camera before mounting.

ENGLISH

Using the mydlink Lite Mobile App

The mydlink Lite app lets you conveniently manage all your mydlink-enabled

devices right from your mobile device.

You can download the free mydlink Lite app from the App Store or Google

Play. If you have a QR code scanning app, you can scan the corresponding

code below to go straight to the mydlink Lite app page.

5. Adjust the angle of the camera as desired,

then tighten the collar on the camera stem

to lock it in place.

ENGLISH

TECHNICAL SUPPORT

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-832-2856000

Toll Free 1800-233-0000

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

Saudi Arabia (KSA):

Tel: +966 01 217 0008

Fax: +966 01 217 0009

Saturday to Wednesday 9.30AM to 6.30PM

Thursdays 9.30AM to 2.00 PM

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street - City Lights Building

Nasrcity - Cairo, Egypt

Floor 6, ofce C2

Tel.: +2 02 26718375 - +2 02 26717280

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1 217 0008

Technical Support:

+966 1 2170009 / +966 2 6522951

General Inquiries: [email protected]

Tech Support: [email protected]

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

ENGLISH

TECHNICAL SUPPORT

Iran

Unit 5, 5th Floor, No. 20, 17th Alley, Bokharest

St., Argentine Sq.,

Tehran IRAN

Postal Code : 1513833817

Tel: +98-21-88880918,19

+98-21-88706653,54

General Inquiries: [email protected]

Tech Support: [email protected]

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca, Maroc

Phone: +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949

Türkiye Merkez İrtibat Ofisi

Ayazağa Maslak yolu

Erdebil Cevahir İş Merkezi No: 5/A Ayazağa /

Maslak İstanbul

Tel: +90 212 2895659

Ücretsiz Müşteri Destek Hattı: 0 800 211 00 65

Web:www.dlink.com.tr

Teknik Destek: [email protected]

073-796-2797

РУССКИЙ

Комплект поставки

Минимальные требования

Компьютер:

• ПК с частотой процессора 1.3 ГГц или выше, 128 МБ оперативной

памяти и более

• Windows® 8, Windows® 7, Vista® или XP (32- или 64-битная)

• Mac OS® X 10.6 или выше

Web-браузер:

• Internet Explorer® 7, Firefox 12, Safari 4 или Chrome 20 и выше

• Установленные и включенные элементы управления ActiveX® и

Java

Сетевое оборудование и сервисы:

• Маршрутизатор (рекомендуется маршрутизатор Cloud компании D-Link)

• Подключение к Интернет

• Учетная запись e-mail (требуется для регистрации на портале mydlink)

Ethernet-кабель 5 категории

CD-диск с руководством пользователя и программным

обеспечением

Если что-либо из перечисленного отсутствует, пожалуйста, обратитесь

к поставщику.

Адаптер питания

Беспроводная 802.11ac видеокамера с возможностью

цветной ночной съемки DCS-2136L

Otros manuales para DCS-2136L

Tabla de contenidos

Idiomas:

Otros manuales de Cámara de seguridad de D-Link

D-Link

D-Link DCS-4701E Manual de usuario

D-Link

D-Link DCS-2310L Manual de usuario

D-Link

D-Link SECURICAM DCS-6511 Manual de usuario

D-Link

D-Link DCS-6100LH/E Manual de usuario

D-Link

D-Link DCS-6004L? DCS-6005L Manual de usuario

D-Link

D-Link Air DCS-1000W Manual de usuario

D-Link

D-Link DCS-4625 Manual de usuario

D-Link

D-Link DCS-8525LH Manual de usuario

D-Link

D-Link DCS-2210L/UPA Manual de usuario

D-Link

D-Link DCS-4201 Manual de usuario

D-Link

D-Link DCS-8000LH Manual de usuario

D-Link

D-Link DCS-2310L Manual de usuario

D-Link

D-Link DCS 6210 Manual de usuario

D-Link

D-Link DCS-6500HLV2 Manual de usuario

D-Link

D-Link DCS-930L Manual de usuario

D-Link

D-Link DCS-6616 Manual de usuario

D-Link

D-Link DCS-820L Manual de usuario

D-Link

D-Link SECURICAM DCS-6110 Manual de usuario

D-Link

D-Link DCS-4701E Manual de usuario

D-Link

D-Link SECURICAM DCS-7110 Manual de usuario

D-Link

D-Link DCS-4705E Manual de usuario

D-Link

D-Link DCS-1130 - mydlink-enabled Wireless N Network... Manual de usuario

D-Link

D-Link DCS-930L Manual de usuario

D-Link

D-Link DCS-1130 - mydlink-enabled Wireless N Network... Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
