D-Link DCS-5020L Manual de usuario

DCS-5020L

Quick Install Guide

Pan & Tilt Day/Night Network Camera

Cloud Camera

If any of the above items are missing, please contact your reseller.

Minimum Requirements

DCS-5020L Pan & Tilt Day/Night Network Camera

Power Adapter

Ethernet Cable

Quick Install Guide

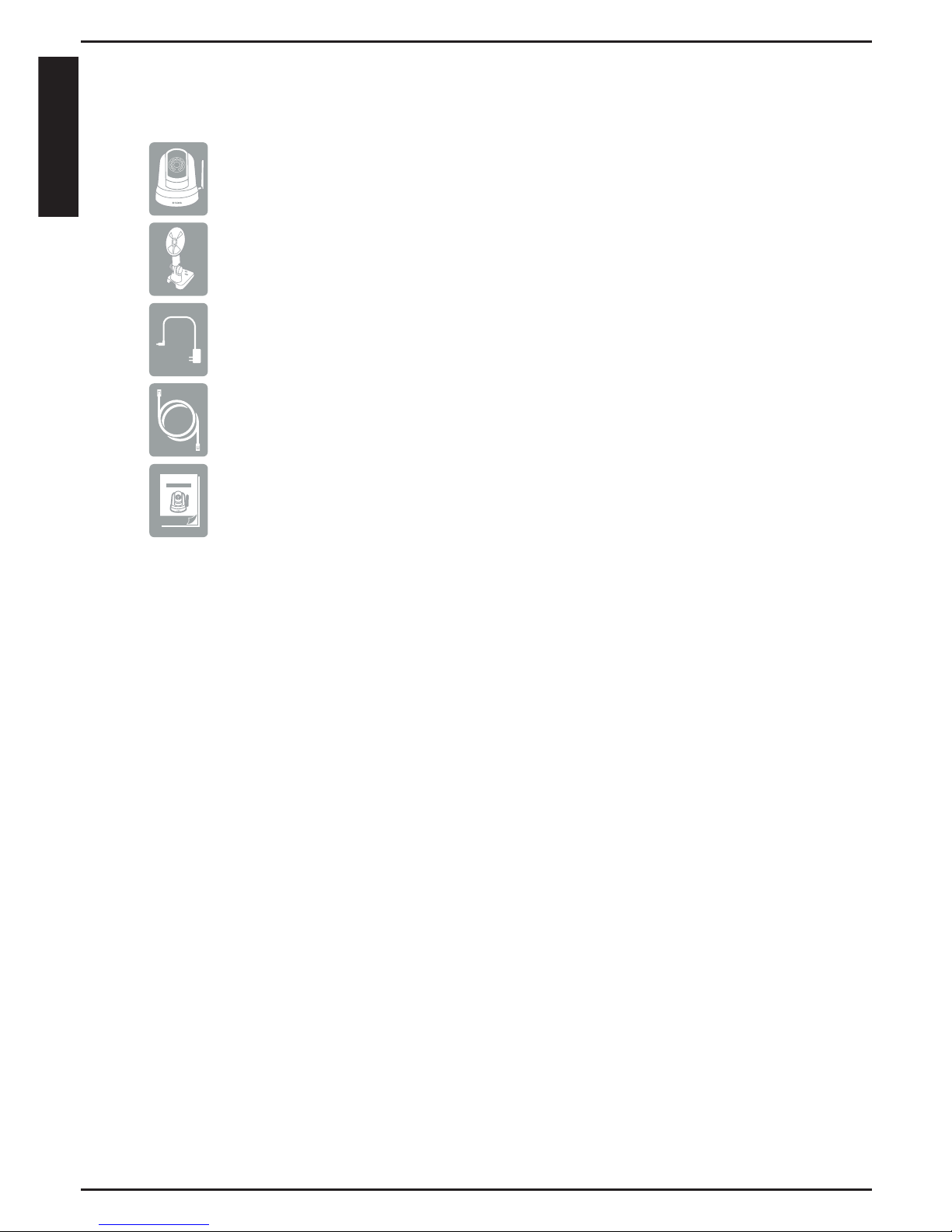

Package Contents

Computer with:

Web Browser

• PC with 1.3GHz or above and at least 128MB RAM

• Windows® 8, 7, Vista® or XP (32-bit or 64-bit)

• Mac OS® X 10.6 or higher

• Internet Explorer® 7, Firefox, Safari 4, or Chrome

• Installed and enabled Java and ActiveX® controls

• A router (D-Link Cloud Router is recommended)

• An Internet connection

• An e-mail account (required to create a mydlink account)

Network Device and Service

Mounting Bracket

ENGLISH

Product Overview

Camera Lens

Microphone

IR LED

Light Sensor

Power and Link LED

WPS LED

Manual Focus Bezel

Power Connector

Ethernet Port

Reset Button

WPS Button

Front

Back

ENGLISH

If you have a D-Link Cloud Router with an Internet connection, you can take

advantage of Zero Conguration. This feature automatically congures your

camera’s settings for you and adds it to your mydlink account automatically. If you

do not have a D-Link Cloud router, refer to the next page to install and congure

your camera.

If you wish to connect your camera to your router wirelessly, you can simply disconnect

the Ethernet cable and move the camera to its intended location after you have added

the camera to your account (step 3).

Zero Conguration Setup

From any computer, open a web browser,

go to http://www.mydlink.com and log into

your account.

Click on the device name when the notice

appears to add the camera to your account.

Connect the other end of the Ethernet cable to your

D-Link Cloud Router and connect the camera’s power

adapter to a power outlet.

Connect the Ethernet cable and power adapter to the

camera.

DCS-5020L

ENGLISH

Please download the Setup Wizard from http://www.mydlink.com/support.

Setup Wizard

If you do not have a D-Link Cloud Router, you can use any Windows or Mac

computer to go through the Setup Wizard, which will guide you through the

installation process from connecting your hardware to conguring your camera.

After about 20-30 seconds, the Setup Wizard will open, which will guide you

step-by-step through the installation process from connecting your hardware

to conguring your camera and registering it with your mydlink account.

Windows Users - Extract (“unzip”) the les to a folder on your computer and

then double-click the autorun.exe le.

Mac Users - Download the Mac OS Setup Wizard. Open the SetupWizard le

and launch the application.

ENGLISH

Start mydlink

Open a web browser on any computer connected to the Internet.

Enter http://www.mydlink.com in the address bar and press Enter.

• Windows does not have Java installed by default.

Please download it from http://www.java.com.

• In Mac OS X 10.7.x, Java applets are disabled by

default. Click the Finder > Applications > Utilities

> Java Preferences and check the Enable applet

plug-in and Web Start applications option.

• The ActiveX® controls in IE will install automatically

if needed. We suggest that you make sure that

you have enabled the related options in Tools >

Internet Options > Security > Custom Level.

mydlink Lite App (Free)

Search for “mydlink lite” to download and install the app on your smartphone or tablet

when connected to the Internet. You can also nd the app by scanning the QR code

below with a QR code scan app.

mydlink+ App (Paid - Tablet Only)

Search for the word “mydlink+” to download and install the app on your tablet when

connected to the Internet. You can also nd the app by scanning the QR code below

with a QR code scan app.

System Requirements: iOS version 4.3 or above. Android version 2.1 or above.

If your image is blurry, you can manually focus the camera by adjusting the focus bezel.

ENGLISH

Mount the Camera

Please refer to the steps below to assist you with mounting the camera.

We suggest that you congure the camera before mounting.

Do not overtighten the screws as this may crack the bracket.

2. Depending on the material of the wall or ceiling,

use proper tools to drill two holes or screws

where you marked. If the wall is made out of

concrete, drill the holes rst, then insert the

plastic anchors to support the screws.

1. Place the mounting bracket where you want to

position the camera and use a pencil to mark

the holes.

3. The power and Ethernet cables can be

concealed behind the mounting bracket. Run

the cables through the back of the mounting

bracket, securing them with the built-in

guides. Be sure to leave enough cable length

protruding from the top to allow connection to

the camera.

4. Fasten the mounting bracket to the wall using

the screws provided. 4

5. Using the supplied thumbscrew, fasten the

camera to the mounting bracket. Connect the

power and Ethernet cables to the camera.

6. Adjust the angle of the arm on the mounting

bracket as required. Tighten the thumbscrew to

lock the arm in place.

ENGLISH

Technical Support

This guide is only for the rst time conguration. Please refer to the user manual

to learn more or visit http://www.mydlink.com for more information. Also feel free

to contact us. U.S. and Canadian customers can contact D-Link Technical Support

through our website.

http://support.dlink.com

USA

http://support.dlink.ca

Canada

Version 1.1(NA)

July 15, 2013

6DCS5020LQD2G

subsidiaries. Other trademarks are the property of their respective owners. Maximum wireless signal rate derived from IEEE

Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental

factors, including volume of network trac, building materials and construction, and network overhead, lower actual

data throughput rate. Environmental factors will adversely aect wireless signal range. Product specications, size

and shape are subject to change without notice, and actual product appearance may dier from that depicted on the

packaging. Visit dlink.com (US) or dlink.ca (Canada) for more details.

Caméra réseau panoramique horizontal/

vertical à vision diurne et nocturne

Caméra Cloud

DCS-5020L

Guide d’installation rapide

Caméra réseau panoramique horizontal/

vertical à vision diurne et nocturne

Caméra Cloud

Contactez votre revendeur s'il manque l'un des éléments ci-dessus.

Exigences minimales

Caméra réseau panoramique horizontal/vertical à vision

diurne et nocturne DCS-5020L

Adaptateur secteur

Câble Ethernet

Guide d’installation rapide

Contenu de la boîte

Ordinateur avec:

Navigateur Web

• PC de 1,3GHz ou plus et au moins 128Mo de RAM

• Windows® 8, 7, Vista® ou XP (32-bit ou 64-bit)

• Mac OS® X 10.6 ou toute version supérieure

• Internet Explorer® 7, Firefox, Safari 4, ou Chrome

• Contrôles Activex® et Java installés et activés

• Un routeur (un routeur infonuagique de D-Link est recommandé)

• Une connexion Internet

• Un compte de messagerie (requis pour créer un compte mydlink)

Périphérique réseau et service

Support de xation

FRANCAIS
