D-Link DCS-2103/UPA Manual de usuario

HD Cube Network Camera

Сетевая HD-камера с

поддержкой PoE и ночной

съемки

DCS-2103/UPA

Quick Installation Guide

Краткое руководство по установке

D-Link DCS-2103/UPA Quick Install Guide

ENGLISH

DCS-2103/UPA Quick Install Guide

This installation guide provides basic instructions for installing the DCS-2103/UPA

Network Camera on your network. For additional information about how to use the

camera, please see the User’s Manual which is available from the D-Link support

website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. Hardware Installation

4. Conguration with Wizard

1. Package Contents

° DCS-2103/UPA Network Camera

° Camera Stand

° CAT5 Ethernet Cable

° Quick Install Guide

If any of the above items are missing, please contact your reseller.

D-Link DCS-2103/UPA Quick Install Guide

ENGLISH

Status LED

Indicates the camera's

current status

PIR

Passive Infrared

sensor for

motion detect

ICR Sensor

The IR-Cut Removable

sensor judges lighting

conditions and switches from

color to infrared accordingly

Infrared LED

Used to illuminate the camera's

eld of view at night

Microphone

Records audio from the

surrounding area

Speaker

Audio output

Camera Lens

Records video of the

surrounding area

Adjustment Ring

Tighten or loosen the

adjustment ring to adjust

the camera's position

Base Holes

Can be used with cable ties to

attach camera to a surface

Reset

Press and hold this button

for 10 seconds to reset

the camera

Ethernet

RJ-45 connector for Ethernet

which can also be used to

power the camera using

Power over Ethernet (PoE)

Power Connector

Connects to DC 5 V

power adapter (not

included in package)

I/O Connector

I/O connectors for

external devices

2. Hardware Overview

Rear Panel

Front Panel

D-Link DCS-2103/UPA Quick Install Guide

ENGLISH

Micro SD Card slot

Local storage for storing

recorded image and video

Left Panel

D-Link DCS-2103/UPA Quick Install Guide

ENGLISH

3. Hardware Installation

Connection Using a PoE Switch

If using a PoE switch or router, connect the network camera via Ethernet cable.

PoE will transmit both power and data over a single cable.

Note: Once power has been established, the LED will turn red. When the device has

obtained an IP address and is accessible, the LED will turn green.

D-Link DCS-2103/UPA Quick Install Guide

ENGLISH

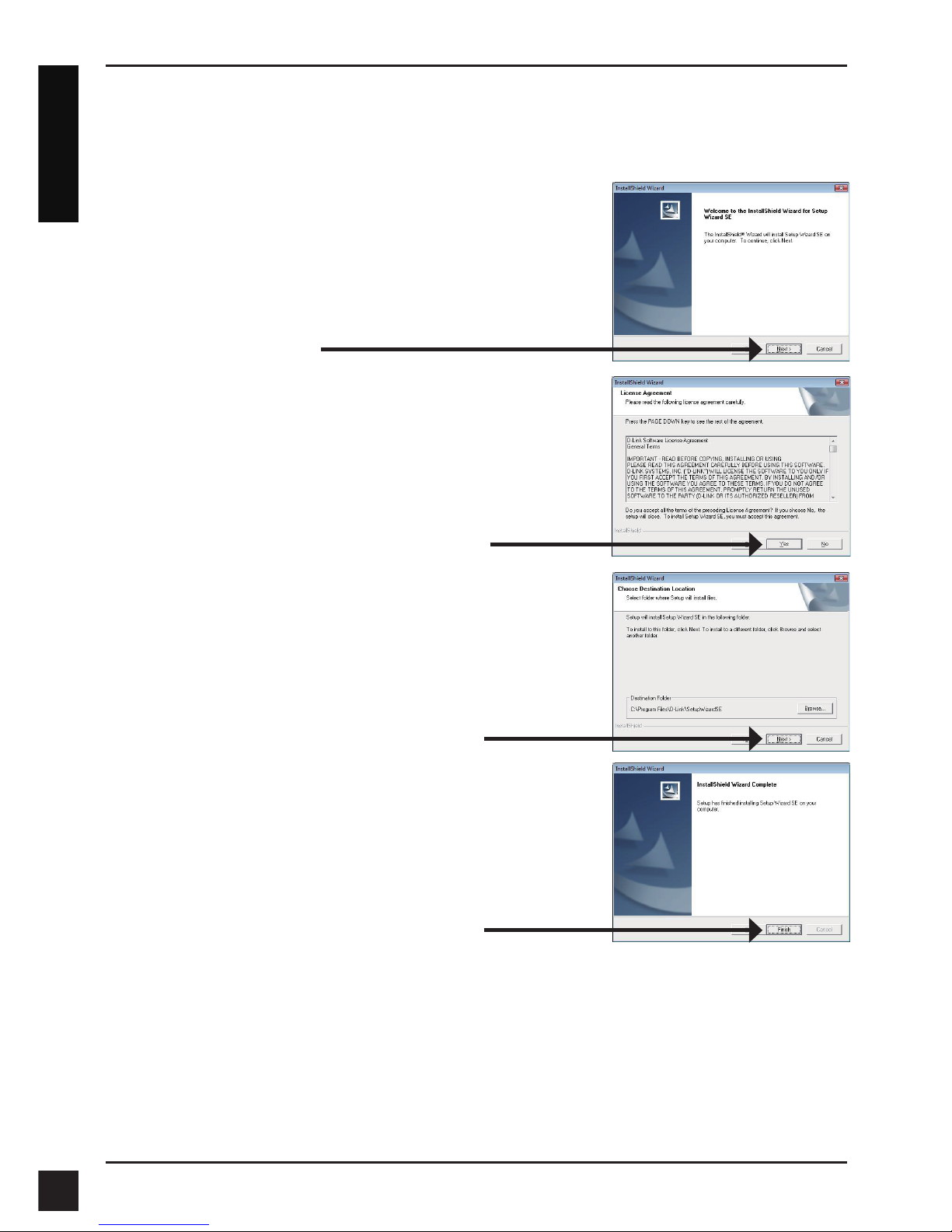

4. Conguration with Wizard

After clicking Setup Wizard, the following window

will open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes

to nish.

D-Link DCS-2103/UPA Quick Install Guide

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select static IP if the

camera will use the same IP address each time it is

started.

Click Next, to proceed to the next page.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click Next, to proceed to the next page.

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have

a DHCP server on your network, a valid IP Address

will be displayed. If your network does not use a

DHCP server, the network camera's default static IP

192.168.0.20 will be displayed.

Click the Wizard button to continue.

DCS-2103

D-Link DCS-2103/UPA Quick Install Guide

ENGLISH

Select the camera and click the button labeled "Link"

to access the web conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

DCS-2103

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Viewing Camera via Web Browser

This section shows your camera’s live video. You

can select your video prole and view or operate

the camera. For additional information about web

configuration, please refer to the user manual on the

D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

DCS-2103

D-Link DCS-2103/UPA Quick Install Guide

ENGLISH

TECHNICAL SUPPORT

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-832-2856000

Toll Free 1800-233-0000

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street - City Lights Building

Nasrcity - Cairo, Egypt

Floor 6, ofce C2

Tel.: +2 02 26718375 - +2 02 26717280

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1121 70008

Technical Support:

+966 1121 70009

General Inquiries: info.sa@ dlinkmea.com

Tech Support: support.sa@ dlinkmea.com

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

D-Link DCS-2103/UPA Quick Install Guide

ENGLISH

TECHNICAL SUPPORT

Iran

Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest

St. , Argentine Sq. ,

Tehran IRAN

Postal Code : 1513833817

Tel: +98-21-88880918,19

+98-21-88706653,54

General Inquiries: [email protected]

Tech Support: [email protected]

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca , Maroc

Phone : +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949

Türkiye

Büyükdere Cad. Ferro Plaza No:155

D: 1 K: 1 Zincirlikuyu / Istanbul

Tel: +90 (212) 289-56-59

Email: [email protected]
