D-Link DCS-4201 Manual de usuario

This document will guide you through the basic installation

process for your new D-Link Network Camera.

DCS-4201

Quick Installation Guide

Vigilance HD Wireless Camera

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

Installationsanleitung

Guide d’installation

Guía de instalación

Guida di Installazione

Краткое руководство по установке

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

D-Link DCS-4201 Quick Install Guide 1

ENGLISH

DCS-4201 Quick Installation Guide

This installation guide provides basic instructions for installing the DCS-4201 Network

Camera on your network. For additional information about how to use the camera, refer

to the User Manual which is available on the CD include in this package or from the

D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. Hardware Installation

4. Conguration with Wizard

1. Package Contents

° Vigilance HD Wireless Camera (DCS-4201)

° Camera Mounting Kit

° Manual and Software on CD-ROM

° Ethernet Cable

° Power Adapter

° Quick Installation Guide

If any of the above items are missing, please contact your reseller.

D-Link DCS-4201 Quick Install Guide

ENGLISH

Status LED

Indicates the camera's

current status

PIR

Passive Infrared

sensor for

motion detection

ICR Sensor

The IR-Cut Removable Sensor

judges lighting conditions and

switches from colour to infrared

accordingly

Infrared LED

Used to illuminate the camera's

eld of view at night

Microphone

Records audio from the

surrounding area

WPS LED

WPS status

indicator LED

Speaker

Audio output

Camera Lens

Records video of the

surrounding area

Adjustment Ring

Tighten or loosen the

adjustment ring to adjust

the camera's position

Base Holes

Can be used with cable ties to

attach camera to a surface

Reset

Press and hold for

10 seconds to reset

the camera back to

the factory default

settings

Ethernet

RJ45 connector for Ethernet

WPS button

Press this button, then press

the WPS button on your

router to set up a wireless

connection automatically

Power Connector

Connects to the included 5V

power adapter

I/O Connector

I/O connectors for

external devices

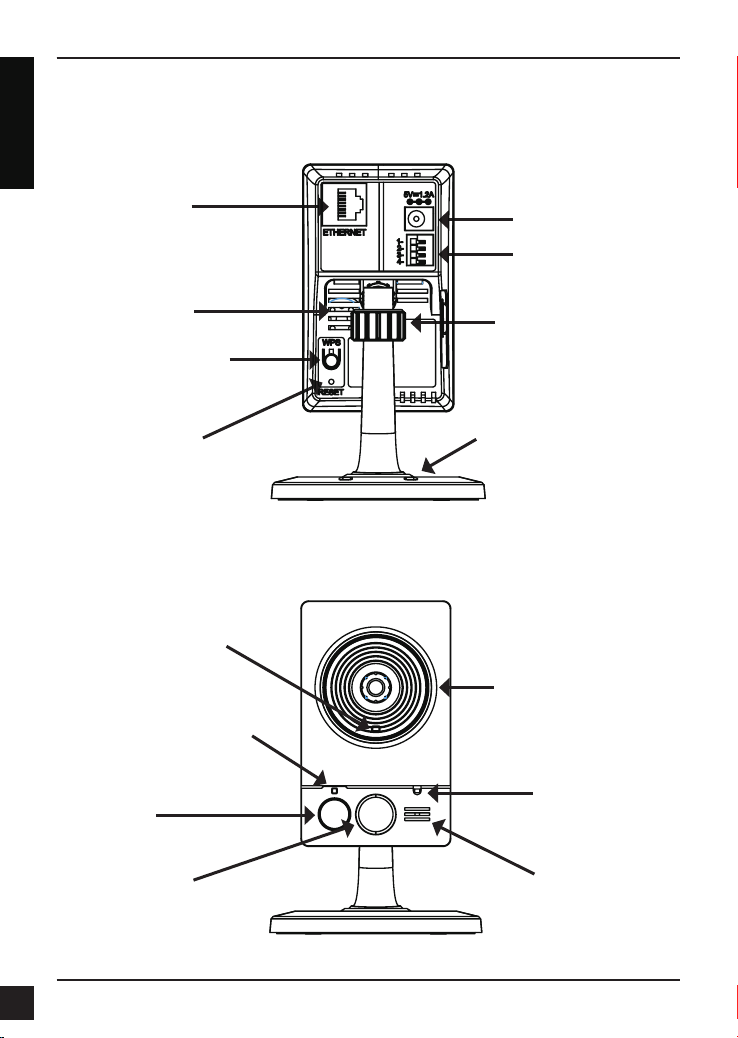

2. Hardware Overview

Rear Panel

Front Panel

D-Link DCS-4201 Quick Install Guide 3

ENGLISH

microSD Card slot

Local storage for storing

recorded images and video

Left Panel

D-Link DCS-4201 Quick Install Guide

ENGLISH

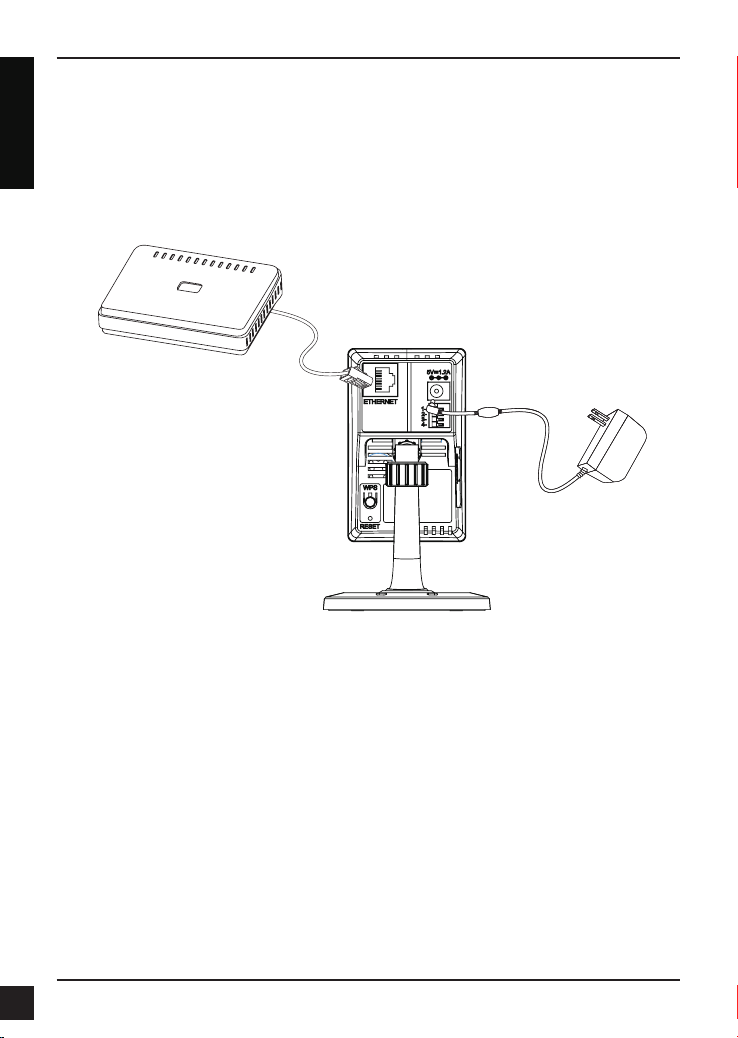

3. Hardware Installation

Basic Connection

Connect the camera to your switch or router via Ethernet cable.

Connect the supplied power cable from the camera to a power outlet.

Note: Once power has been established, the LED will turn red. When the device has

obtained an IP address and is accessible, the LED will turn green.

D-Link DCS-4201 Quick Install Guide 5

ENGLISH

4. Conguration with Wizard

Click Setup Wizard to begin the installation.

Insert the DCS-4201 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive

letter of your CD-ROM drive.

After clicking Setup Wizard, the following window

will open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

Click Next to start the installation process.

Note: The installation may take several minutes

to nish.

D-Link DCS-4201 Quick Install Guide

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically from a DHCP server (e.g., router). Select

Static IP if you want to manually enter the IP settings

for the camera.

Click Next to continue.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click Next to continue.

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have

a DHCP server on your network, a valid IP Address

will be displayed. If your network does not use a

DHCP server, the network camera's default static IP

192.168.0.20 will be displayed.

Click the Wizard button to continue.

D-Link DCS-4201 Quick Install Guide 7

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Viewing Camera via Web Browser

This section displays your camera’s live video. You

can select your video prole and view or operate

the camera. For additional information about web

conguration, please refer to the user manual included

on the CD-ROM or the D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Select the camera and click Link to access

the web conguration.

The Setup Wizard will automatically open your

web browser to the IP address of the camera.

D-Link DCS-4201 Quick Install Guide

ENGLISH

Additional Information

Additional help and product information is available online at http://www.dlink.com.

Warranty Information

Please visit http://warranty.dlink.com/ for warranty information for your region.
