D-Link DCS-6004L? DCS-6005L Manual de usuario

DCS-6004L/DCS-6005L

Quick Install Guide

HD Mini Dome Network Camera

Cloud Camera

If any of the above items are missing, please contact your reseller.

DCS-6004L HD PoE Mini Dome Network Camera or

DCS-6005L HD Wireless Mini Dome Network Camera

Power Adapter

Ethernet Extension (RJ-45 Coupler)

Quick Install Guide

Package Contents

Mounting Plate

Audio Out Cable

Collar*

Ethernet Cable

*Note: The DCS-6004L comes with the black collar attached. The DCS-6005L

comes with the white collar attached.

ENGLISH

Minimum Requirements

Computer with:

Web Browser

• PC with 1.3GHz processor or above and at least 128MB RAM

• Windows® 8, 7, Vista® or XP SP3

• Mac OS® X, 10.6 or higher

• Existing 10/100 Ethernet-based network (DCS-6004L/6005L) or

802.11g/n wireless network (DCS-6005L)

• Internet Explorer® 7, Firefox®, Safari® 6, or Chrome™

• A router (D-Link Cloud Router is recommended)

• A broadband Internet connection

• An e-mail account (required to create a mydlink account)

Network Device and Service

mydlink Requirements

• For mydlink and mydlink app requirements refer to:

http://www.mydlink.com

Hardware Overview

1 Status LED Indicates the camera’s current status

2 WPS Button Push to initialize WPS on the camera (only on DCS-6005L)

3 WPS LED Indicates the current status of WPS (only on DCS-6005L)

4 Reset Button Press and hold the reset button for six seconds to reset

5 microSD Card Slot Used to add storage for recording

6 IR LED Used to illuminate the camera’s eld of view at night

7 Camera Sensor HD-capable CMOS sensor

ENGLISH

What is mydlink™?

With a mydlink-enabled camera, you

can stay connected to everything

you love from anywhere, anytime.

The mydlink service can be accessed

by a web browser and also provides

an optional downloadable mydlink

app that allows you to have a better

experience on your mobile devices.

With the mydlink app, you can

quickly and easily view your camera

feed from anywhere using a Wi-Fi,

3G, or 4G connection.

Cloud Router

mydlink cloud service

DCS-6005L*

iPod

Smartphone

Tablet

Laptop

Desktop

mydlink app

Modem

mydlink Lite App (Free)

Search for “mydlink lite” to download and install the app on your smartphone

or tablet when connected to the Internet. You can also nd the app by

scanning the QR code below with a QR code reader.

mydlink+ App (Paid - Tablet Only)

Search for the word “mydlink+” to download and install the app on your

tablet when connected to the Internet. You can also nd the app by scanning

the QR code below with a QR code reader.

*Note: DCS-6005L is shown above. DCS-6004L

requires an Ethernet cable.

System Requirements: Refer to http://www.mydlink.com

ENGLISH

If you have a D-Link Cloud Router, you can take advantage of Zero Conguration

Setup. This feature automatically congures your camera’s settings for you and

adds it to your mydlink account. If you do not have a D-Link Cloud router, you can

use the Setup Wizard to install and congure your camera. (Refer to instructions

on the next page.)

Zero Conguration Setup

If you have the DCS-6004L and you will be using Power

over Ethernet, you can skip this step. Otherwise, attach

the external power supply to the power input connector

located on the inside of the camera, and connect it to a

wall outlet or power strip.

Connect the included Ethernet cable to the network cable

connector located on the camera, and attach it to the

network.

Remove the camera housing by squeezing housing

release buttons on both sides of the camera.

Reattach the camera housing by lining up the access

port on the housing with the access port on the camera

base. Firmly push down until the camera housing snaps

back onto the camera base.

ENGLISH

Setup Wizard

Please download the Setup Wizard from http://www.mydlink.com/support.

If you do not have a D-Link Cloud Router, use any Windows or Mac computer

to run the Setup Wizard, which will help you install and congure your camera.

When the Setup Wizard appears, it will guide you step-by-step through the

installation process from connecting your hardware to conguring your camera

and registering it with your mydlink account.

Windows Users - Extract (“unzip”) the les to a folder on your computer and

then double-click the autorun.exe le.

Mac Users - Download the Mac OS Setup Wizard. Open the SetupWizard le

and launch the application.

If you have the DCS-6005L and you wish to

connect your camera to your router wirelessly,

you can simply disconnect the Ethernet cable

and move the camera to its intended location

after you have added the camera to your

mydlink account.

From any computer, open a web browser, go

to http://www.mydlink.com and log into

your account.

Click on the device name when the notice

appears to add the camera to your account.

DCS-6004L

ENGLISH

Start mydlink

Open a web browser on any computer connected to the Internet.

Enter http://www.mydlink.com in the address bar and press Enter.

Browser Requirements:

Java

Active X

• Windows does not have Java installed by default. Please download it from http://www.java.com.

• In Mac OS X 10.7.x, Java applets are disabled by default. Click the Finder > Applications > Utilities >

Java Preferences and check the Enable applet plug-in and Web Start applications option.

• The ActiveX® controls in IE will install automatically if needed. We suggest that you make sure that

you have enabled the related options in Tools > Internet Options > Security > Custom Level.

Follow the instructions below to access your mydlink account:

ENGLISH

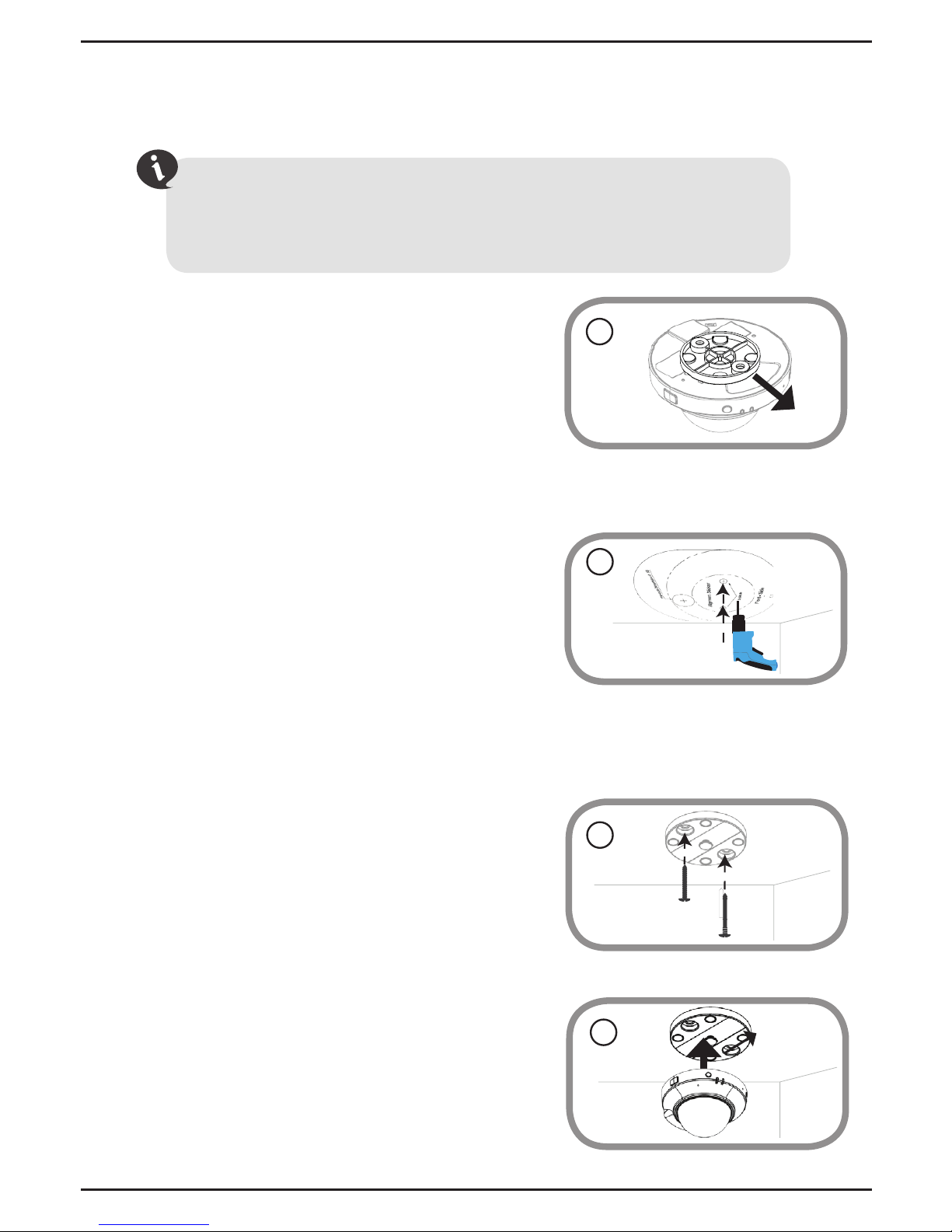

Mount the Camera

Refer to the steps below to assist you with mounting the camera.

We suggest that you congure the camera before mounting. If you plan on

passing the cables for the camera through the wall or ceiling, make sure you

determine the position and angle of the camera you want before drilling a hole

for the cables in Step 6.

1. The camera must be separated from the

mounting base to expose the holes in the

mounting base. Remove the camera head

from the mounting base by rmly holding

the camera with the D-Link logo facing

you and then sliding the mounting base

towards you.

2. Place the mounting base alignment sticker

where you want to position the camera.

Depending on the material of the wall or

ceiling, use proper tools to drill two holes

where you placed the alignment sticker. If

the wall is made out of concrete, drill the

holes rst, then insert the plastic anchors

to support the screws.

4. With the D-Link logo facing you, reattach

the camera to the mounting plate by

sliding the camera towards you until it

locks into position, and replace the cover.

3. Align the mounting base holes with the

holes in the wall when you position the

mounting base. Use the supplied screws to

attach the mounting base to the surface of

the wall or ceiling.

ENGLISH

5. Adjust the angle of the camera as desired

by rotating it. 5

Note: If you are going to pass the cables for the camera through the wall or

ceiling, remove the cover and proceed to step 6.

6. Optional Step - With the camera in the

desired position, use a pencil to mark

the hole for the cables. Before drilling,

make sure the hole for the cables will

be hidden by the camera. Drill the hole

and pass the cables through.

Note: After you pass the cables for the camera through the wall or ceiling,

lock the camera into position as described in step 4 and replace the cover.

ENGLISH

Adjusting the Viewing Angle

Refer to the steps below for adjusting the viewing angle of the camera.

1. The camera housing needs to be separated

from the camera base to expose the screw

used to adjust the viewing angle. Remove

the camera housing from the camera base

by squeezing the housing release buttons

on either side of the camera.

2. Lift the camera housing up o the camera

base once the housing has been released.

3. Use a Phillips screwdriver to loosen

the retaining screw used to secure the

viewing angle of the camera lens.

4. Manually adjust the viewing angle back

and forth to your desired location.

5. Use a Phillips screwdriver to tighten

the retaining screw used to secure the

viewing angle of the camera lens.

6. Reattach the camera housing by lining up

the access port on the housing with the

access port on the camera base. Firmly push

down until the camera housing snaps back

onto the camera base.

ENGLISH
