Before You Begin

Check Your Package Contents

DI-604 Ethernet Broadband Router

CD-ROM (containing Manual and Warranty)

Ethernet (Straight Through) Cable

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

If any of the above items are missing, please contact your reseller.

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 6.2.3.

1. If you purchased this router to share your high-speed Internet connection with

other computers, you must have either an Ethernet-based Cable or a DSL modem

with an established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for

configuring the DI-604 router. The DI-604 Router acts as a DHCP server and will

assign all the necessary IP address information on your network. See Appendix

at the end of this Quick Installation Guide or the Manual on the CD-ROM

for setting each network adapter to automatically obtain an IP address.

These are the items included with your DI-604 purchase:

Connecting The DI-604 Broadband

Router To Your Network

C. LAN PORTS

These are the connections for Ethernet

cables to Ethernet enabled computers.

Reset Button

Pressing this button restores

the Router to its original factory

default settings.

A. First, connect the power adapter to the receptor at the back panel of the DI-604

and then plug the other end of the power adapter to a wall outlet or power strip.

The Power LED will turn ON to indicate proper operation.

B. 1. Power off your Cable or DSL modem; some devices may not have a on/off

switch and will require you to unplug the power adapter. Now, the DI-604 should

be powered on and the Cable / DSL modem should be turned off.

2. Cable / DSL modem (Power Off) – DI-604 (Power On)

Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL

modem. After the Ethernet cable is securely connected, power on the Cable /

DSL modem by turning on the unit or plugging in the power adapter.

3. Cable / DSL modem (Power On) – DI-604 (Power On)

Insert the other end of the Ethernet cable to the WAN PORT on the back panel

of the DI-604. The WAN LED light will illuminate to indicate proper connection. If

the WAN LED is not illuminated, please go back and step B and repeat its

instructions.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-604 and an

available Ethernet port on the network adapter in the computer you will use to

configure the DI-604. The LED light for LAN Port 1 will illuminate to indicate

proper connection. (Note: The LAN Ports on the DI-604 are Auto-MDI/MDIX.

Meaning you can use a straight-through or crossover-Ethernet cable to the LAN

Ports.)

B. WAN PORT

This is for the connection

of an Ethernet cable to

the Cable or DSL modem

A. Receptor for

Power Adapter.

Restart Your Computer

Connecting Additional Computers To

The DI-604

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped

computers to the remaining Ethernet LAN ports on the back panel of the DI-604.

WAN LED – a solid light

indicates connection on the

WAN port. This LED blinks

during data transmission.

LOCAL NETWORK LEDs – a solid

light on the port indicates a

connection to an Ethernet enabled

computer on ports 1-4. This LED

blinks during data transmission.

POWER LED – a solid light

indicates a proper connection to

the power supply.

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Using The Setup Wizard

The logon pop-up screen will appear.

Open your Web browser and

type “http://192.168.0.1” into the

URL address box. Then press the

Enter or Return key.

Type “admin” for the username and

leave the password field blank.

Click OK

The Setup Wizard (continued)

Once you have logged in, the

Home screen will appear.

You will see the following screens

Set up your new password.You have

the option to establish a password.

Click Run Wizard

Click Next

The Setup Wizard (continued)

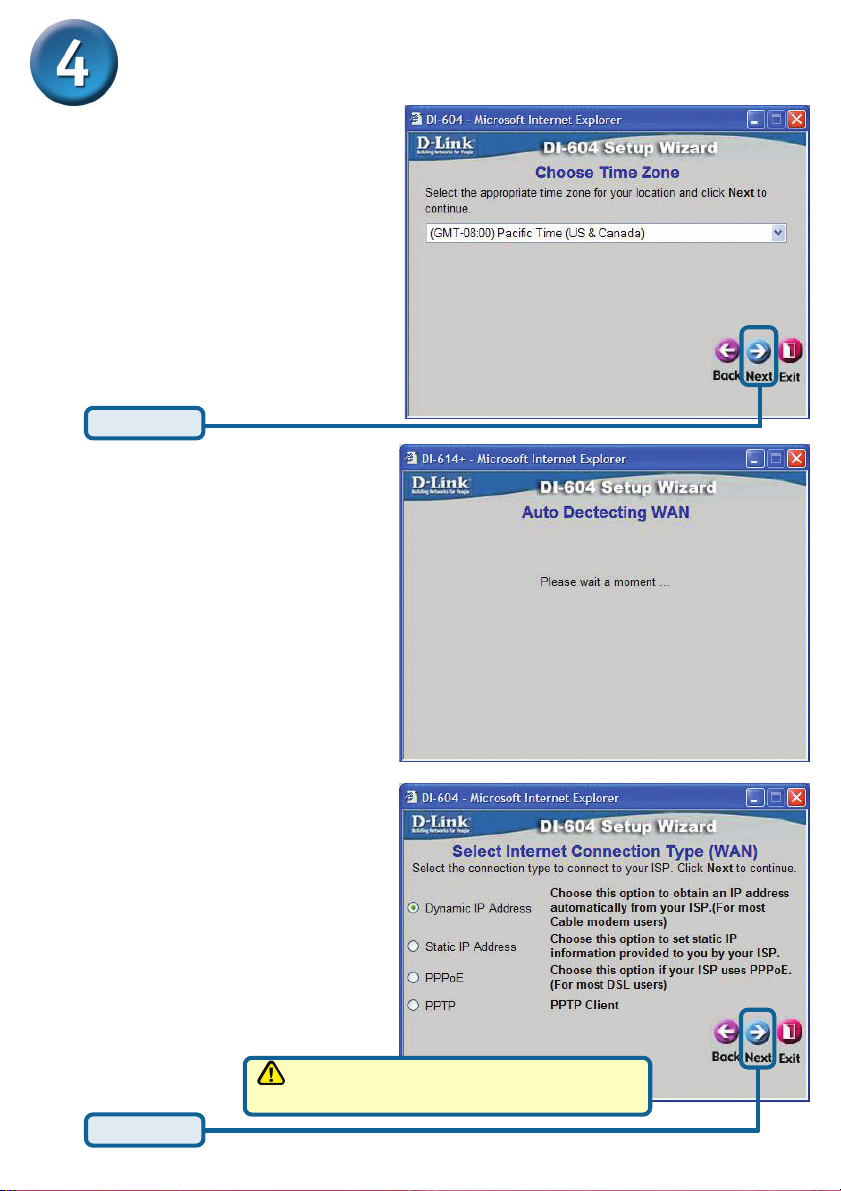

Select your Internet Connection.

You will be prompted to select the

type of Internet connection for your

router.

Click Next

Choose your time zone from the

drop down list.

Click Next

If you are unsure of which setting to select,

please contact your Internet Service Provider.

A this point, the setup wizard will try

to auto-detect your Internet connection

type. If you have a Dynamic or

PPPoE connection, you will be

brought to the corresponding page.

The Setup Wizard (continued)

If your ISP requires a Static IP Address,

and this option is selected, then this

screen will appear:

Enter the IP address information originally

provided to you by your ISP. You will need

to complete all the required fields.

Click Next

If you selected Dynamic IP Address, this

screen will appear: (Used mainly for

Cable Internet service.)

Click the “Clone MAC Address”

button to automatically copy the

MAC address of the network

adapter in your computer. You can

also manually type in the MAC

address.

Click Next

If your ISP uses PPPoE (Point-to-Point

Protocol over Ethernet), and this option is

selected, then this screen will appear:

(Used mainly for DSL Internet service.)

Please be sure to remove any

existing PPPoE client software

installed on your computers.

Enter in the username and password

provided to you by your ISP.

Click Next

This setup should be done on

the computer that is registered

on the ISP’s network.

Your Setup is Complete!

Click Restart

Click Close

Test Internet Connection.

You will be returned to the Home tab.

Then relaunch your Web

browser (i.e., Internet

Explorer or Netscape

Navigator), to link to your

favorite Web site to test

your Internet connection.

Click to Exit

For additional settings or

information, refer to the

Advanced, Tools, or

Status tabs on the web-

management interface; or

to the Manual located on

the CD.

To connect to the network, make sure

the network adapter in your computer

is configured properly. Here’s how to

configure the network adapter to obtain

an IP address automatically for the

DI-604 Broadband Router.

For Microsoft Windows XP: Go to Start

> right click on My Network Places >

select Properties > Right click on the

Network Connection associated with the

Ethernet adapter and select Properties

(i.e., D-Link DFE-530TX+).

APPENDIX (continued)

Click Internet Protocol (TCP/IP)

Click Properties

Select Obtain an IP address

automatically

Restart your computer

Click OK
