D-Link DWR-922 Manual de usuario

4G LTE RouTER

DWR-922

QUICK

INSTALLATION

GUIDE

DWR-922

ENGLISH

CONTENTS OF PACKAGING

4G LTE ROUTER

DWR-922

If any of these items are missing from your packaging, contact your

reseller.

12 V 1.5 A POWER ADAPTER

CAT5 ETHERNET CABLE

• A broadband Internet connection

• A phone handset with RJ11 connector (optional)

• Computer with:

• Microsoft Windows® 8/7/Vista/XP, or Mac with OS X 10.6 or higher

• PC with 1.3 GHz or above and at least 128 MB RAM

• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed and

enabled

SYSTEM REQUIREMENTS

RJ11 PHONE CABLE

DWR-922 3

ENGLISH

PRODUCT SETUP

ZERo CoNFIGuRATIoN SETuP

Ensure that your DWR-922 4G LTE Router is powered off before performing the steps below.

Step 1:

Insert a standard USIM card into the SIM card slot on the back of the

router with the gold contacts facing downward.

Step 2:

Insert your Ethernet cable into the WAN port on the back of the

router.

Note: The 4G connection can also be used as a backup WAN. Once

a backup is congured, the router will automatically use 4G for the

Internet connection if the Ethernet WAN is not available.

Step 3:

Insert the Ethernet cable into a LAN port on the back panel of the

DWR-922 4G LTE Router, and an available Ethernet port on the

network adapter in the computer you will use to congure the unit.

Step 4:

(Optional) Connect a phone handset to the phone port (RJ11) on the

back panel of the DWR-922.

IP (VoIP) calls (see below for information about how to congure the

DWR-922).

Note: Do not directly connect the DWR-922 to a telecommunication

network or a building’s telephone socket.

SIM card

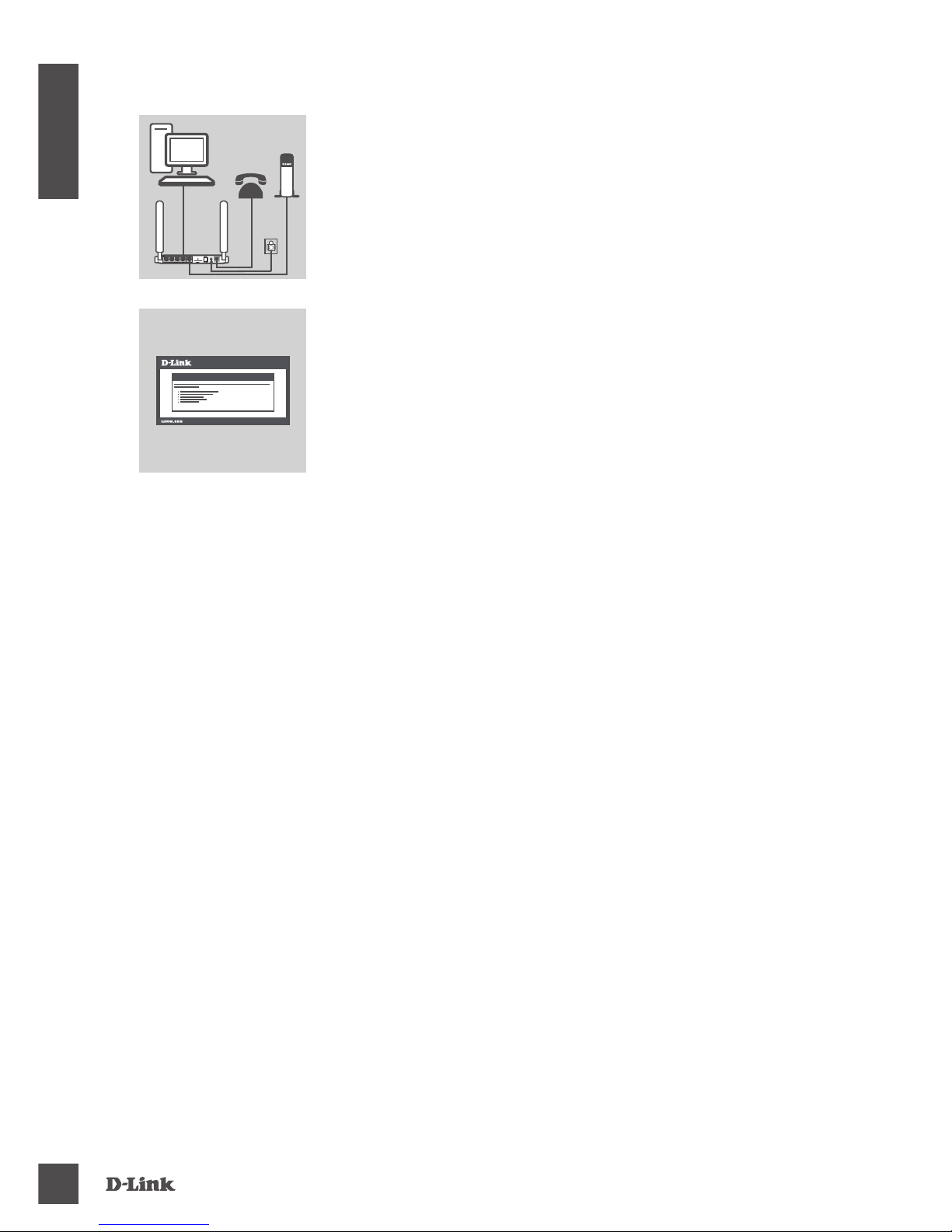

Router

Modem

Phone

Handset

DWR-922

ENGLISH

Step 6:

To congure the DWR-922 4G LTE Router:

Open a web browser window and enter 192.168.1.1 into the address

bar.

Enter admin for the username and admin for the password.

The home conguration page will appear. Please see the user

manual for details on how to set up the DWR-922.

Step 5:

Connect the power adapter to the power input on the back panel of

your DWR-922 4G LTE Router, and plug the other end of the power

adapter into a wall outlet or power strip.

The Status LED will light up to indicate that power has been supplied

to the router.

Router

Modem

Phone

Handset

WELCOME TO THE D-LINK SETUP WIZARD

DWR-922 5

ENGLISH

1. HOW DO I CONFIGURE MY DWR-922 ROUTER OR CHECK MY WIRELESS NETWORK NAME (SSID)

AND WIRELESS ENCRYPTION KEY?

• Connect your PC to the router using an Ethernet cable.

• Open a web browser and enter the router's IP address: http://192.168.1.1

• Log into the router using the default username admin; the default password is admin.

• Once logged in, you can use the wizard to congure the router, or make changes manually.

Note: If you have changed the password and cannot remember it, you will need to reset

therouter to factory defaults.

2. HOW DO I RESET MY DWR-922 ROUTER TO FACTORY DEFAULT SETTINGS?

• If you cannot remember your router administrator password, you may use a paperclip to press

and hold the reset button on the front of the router for about 10 seconds.

Note: Resetting the router to factory default will erase the current conguration. To recongure

your router, log in as outlined in question 1, then run the Setup Wizard.

3. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY WIRELESS

NETWORK NAME (SSID) OR WIRELESS ENCRYPTION KEY?

• Every PC that needs to connect to the router wirelessly will need use the correct Wireless

Network Name (SSID) and encryption key.

• Use the web-based user interface (as described in question 1 above) to check or choose your

wireless settings.

• Make sure you write down these settings so that you can enter them into each wirelessly-

connected PC. You will nd a dedicated area on the back of this document to note this important

information down for future use.

4. WHY AM I UNABLE TO ESTABLISH AN INTERNET CONNECTION?

• If connecting using a 4G mobile connection, make sure that you are within range of the mobile

service provider, and that the service has been correctly congured.

• If connecting using the WAN via ADSL/Cable service, make sure the modem has been enabled/

connected and is operational, and that the service is correctly congured.

TROUBLESHOOTING

SETuP AND CoNFIGuRATIoN PRoBLEMS

DWR-922

ENGLISH

TECHNICAL SuPPoRT

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

NoTES

TECHNICAL SUPPORT

WIRELESS NETWORK REMINDER

Wireless Network Name (SSID)

Wireless Network Password

Ver. 1.00(EN)_90X130 2014/08/20
