Before You Begin

You must have at least the following:

An Ethernet-enabled device, such as a game console, laptop or desktop

computer, network printer or set-top box that will connect to the DWL-810

Check Your Package Contents

These are the items included with your DWL-810 purchase:

If any of the above items are missing, please contact your reseller.

property of their respective holders. Software and specifications subject to change without

notice. DWL-810. 08012002

DWL-810

D-Link Air™

Ethernet-to-Wireless Bridg

• DWL-810 Ethernet-to-Wireless Bridge

• CD-ROM (containing Manual and Warranty)

• Ethernet (CAT5 UTP) Cable

• 5V DC 2.5A Power Adapter

Using a power

supply with a different

voltage rating will damage

this product and void its

warranty.

Web-based Configuration will

require a current web browser, i.e.,

Internet Explorer 5.x, Netscape

Navigator 4.x.

Connecting the DWL-810 Ethernet-to-Wireless

Bridge to your Ethernet-enabled device

A. First, connect the power adapter to the receptor at the back panel of the

DWL-810 and then plug the other end of the power adapter to a wall

outlet or power strip. The Power LED will turn ON to indicate proper

operation.

B. Insert one end of the Cross-Over Ethernet cable (included) to the Ethernet

port on the back panel of the DWL-810 and connect the other end to the

Ethernet port located on the device (e.g., a Set Top Box, Gaming

Console, laptop or desktop computer, or network printer.) The LED light

will illuminate to indicate proper connection.

C. The antenna is used by the DWL-810 to connect to other 802.11b

wireless devices.

If you are wirelessly connecting the DWL-810 to an Access

Point or Wireless Router on a larger wireless network,

additional configuration is required (see Step 3.)

No configuration of the DWL-810 is needed if your setup is

similar to Setup #1 (shown on the following page, in Step 2.)

How the DWL-810 Ethernet-to-Wireless

Bridge Connects to other Wireless

Devices

When you have completed the steps in this Quick Installation

Guide, and you have connected the DWL-810 to your host

computer, set top box, or gaming console, you will be able to

wirelessly connect to other 802.11b wireless devices to share files,

join multiplayer video games or even share your internet connection

over the wireless network (Setup #2.)

Setup #1

Setup #2

If you are connecting in Setup #2 mode (as shown above), please

continue to Step 3 in this guide. If you are connecting in Setup #1

mode, no further configuration is needed! You are ready to enjoy your

connection with the DWL-810 right now!

Wireless

Router

Web-based Configuration

If you need to configure the DWL-810, follow the steps below:

Before You Begin the Configuration

It’s best to use a computer (with an Ethernet adapter) that is connected directly to the

DWL-810 for configuration. The default IP address for the DWL-810 is 192.168.0.30

with a Subnet Mask of 255.255.255.0. You will need to assign your computer a Static

IP address within the same range as the DWL-810’s IP address in order to configure

the DWL-810. See the Appendix in this Quick Installation Guide if you need

assistance in assigning a Static IP address.

The configuration window will open, as shown on the next page.

Type “admin” for the

username and leave the

password field blank.

Click OK

The logon pop-up

screen will appear.

htt

://192.168.0.30

Open your Web

browser and type

“http://192.168.0.30”

into the URL address

box. Then press the Enter

or Return key.

admin

Configuration

You can change the

SSID and Channel

settings to match an

existing wireless

network.

Changes will not take effect until you reboot the DWL-810. To reboot,

click on Admin at the top of this screen. In the Admin window, click

reboot to save the changes.

You have completed the Configuration of the DWL-810!

APPENDIX

Assigning a Static IP Address in Windows

To assign a Static IP Address to the laptop or computer that you are using to configure

the DWL-810, please do the following:

Click on

Apply

Select Infrastructure

The default wireless

settings are:

SSID = default

Channel = 6

default

Click Wireless in

the Configuration

menu. This screen

will appear.

(The following illustrations show Windows XP with the D-Link DWL-650+

Wireless Cardbus Adapter. Other operating systems and other wireless

network adapters will have similar procedures for assigning a Static IP

Address.)

If the computer you are using for configuration already has a Static IP

Address, be sure to make a note of it. You will need to re-input the

original Static IP Address after you configure the DWL-810.

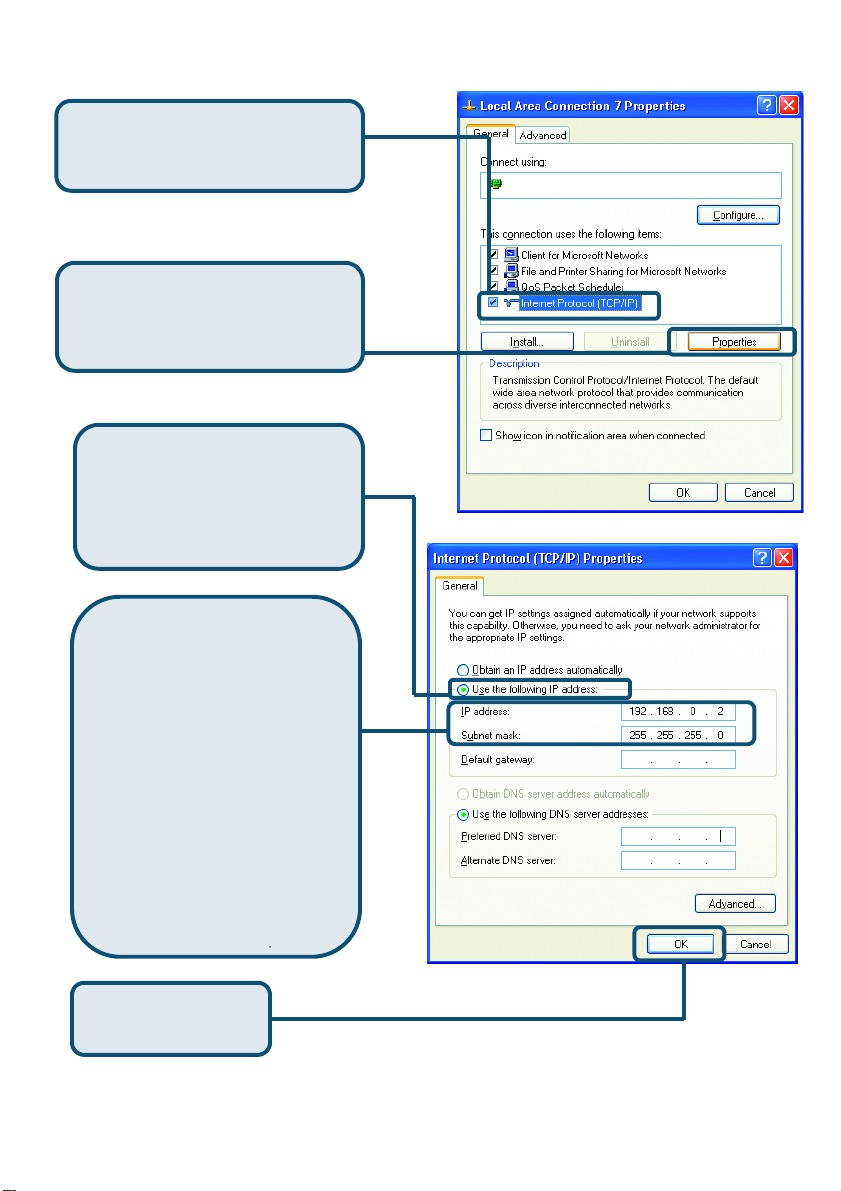

Go to Start > Double- click on Control Panel > Double-click on Network

Connections > Right-click on Local Area Connections > Click Properties

You have completed the assignment of the Static IP Address. Please see Web

Configuration in the manual for more information on the configuration of the DWL-

810 when you are installing it in a network, as shown in Setup #2 in this Quick

Installation Guide.

D-Link DWL-650+

Highlight Internet Protocol

(TCP/IP)

Click Properties

Select Use the following

IP address in the Internet

Protocol (TCP/IP)

Properties window

Input your IP address and

subnet mask. (The IP

Address must be within the

same range as the DWL-

810. The IP Address of the

DWL-810 is 192.168.0.30.

You can assign 192.168.0.2

for your laptop. No two

computers can have the

same IP Address. Assign

a subnet mask of

255.255.255.0.)

Click OK

Technical Support

You can find the most recent software and user documentation on

the D-Link website. D-Link provides free technical support for

customers within the United States for the duration of the warranty

period on this product. U.S. customers can contact D-Link

technical support through our web site or by phone.

D-Link Technical Support over the Telephone:

(877) 453-5465

24 hours a day, seven days a week

D-Link Technical Support over the Internet:

http://support.dlink.com

email: [email protected]
