D-Link SECURICAM Network DCS-2120 Manual de usuario

Wireless G USB 2.0 Adapter

Wireless Internet Camera

with 3G Mobile Video

2D-Link DCS-2120 Quick Install Guide

System Requirements

• Windows®2000 or XP

• At least 128MB of memory (256MB recommended)

• A wireless (802.11b or 802.11g) or Ethernet network

• Internet Explorer 6.x or higher Internet Web Browser

• VGA card resolution: 800x600 or above

• CPU: Pentium 4 1.3GHz or above processor (Pentium 4 2.4GHz

processor or higher with 512MB memory and a 32MB video

card is required for multiple camera viewing and recording in IP

surveillance program)

Manual and Software on CD

Package Contents

D-Link DCS-2120

Wireless Internet Camera

with 3G Mobile Video Support

System Requirements

If any of the above items are missing, please contact your reseller.

Note: If using multiple cameras for viewing/recording, the minimum

requirements are a 2GHz or above CPU with 512MB memory and a

32MB video card.

Antenna CAT5 Ethernet Cable Power Adapter

3 D-Link DCS-2120 Quick Install Guide

Hardware Overview

LED

As soon as the power adapter is connected to the camera, the power LED will

ﬂash red and blue several times, indicating that the DCS-2120 is conducting

a self-test. Upon passing the self-test, the LED will turn blue indicating a good

connection to the Ethernet port, or red indicating that no connection has been

made.

Antenna Connector

One antenna is included with the DCS-2120. It

is fastened onto the antenna connector located

on the side panel, which is used to provide a

connection with a wireless network.

4D-Link DCS-2120 Quick Install Guide

Hardware Overview

Ethernet Cable Connector

The DCS-2120 features an RJ-45 connector for connections to 10Base-T

Ethernet cabling or 100Base-TX Fast Ethernet cabling. The port supports the

NWay protocol, allowing the DCS-2120 to automatically detect or negotiate the

transmission speed of the network.

Reset Button

Reset is initiated when the reset button is pressed

once and the Power LED begins to ﬂash. Factory

Reset will be initiated when the reset button is

pressed continuously for 30 seconds. Release

the reset button and the Power LED will begin to

ﬂash, indicating that the DCS-2120’s settings are

restored to factory settings.

DC Power Connector

The DC Power input connector is

labeled DC 5V with a single jack socket

to supply power to the DCS-2120.

5 D-Link DCS-2120 Quick Install Guide

Hardware Installation

Connect an Ethernet cable to the

Ethernet connector located on the

Internet Camera’s bottom panel and

attach it to the network.

Note: It is required that an Ethernet

cable is used during initial setup. Once

your wireless conﬁguration is set, you

may disconnect the Ethernet cable and

begin communicating wirelessly with

your DCS-2120.

Attach the external power supply to the

DC power input connector located on the

Internet Camera’s bottom panel (labeled

DC 5V 2A) and connect it to an AC power

outlet.

The LED will ﬂash red and blue when you ﬁrst power on the unit.

The LED will not turn blue until the camera has received a network

IP address.

Hardware Installation

6D-Link DCS-2120 Quick Install Guide

Software Installation

Turn on the computer and Insert the D-Link DCS-2120 Driver CD into the

CD-ROM drive.The step-by-step instructions are shown in Windows®

XP, and are similar in other Windows®operating systems.

If the CD Autorun function does not automatically start on your

computer, click Windows® Start > Run. In the Run command box

type “D:\DCS2120.exe”, where D: represents the drive letter of your

CD-ROM. If it does start, proceed to the next screen.

The InstallShieldWizard window

will appear.

Software Installation

Click Installation Wizard

Click Next

7 D-Link DCS-2120 Quick Install Guide

Software Installation

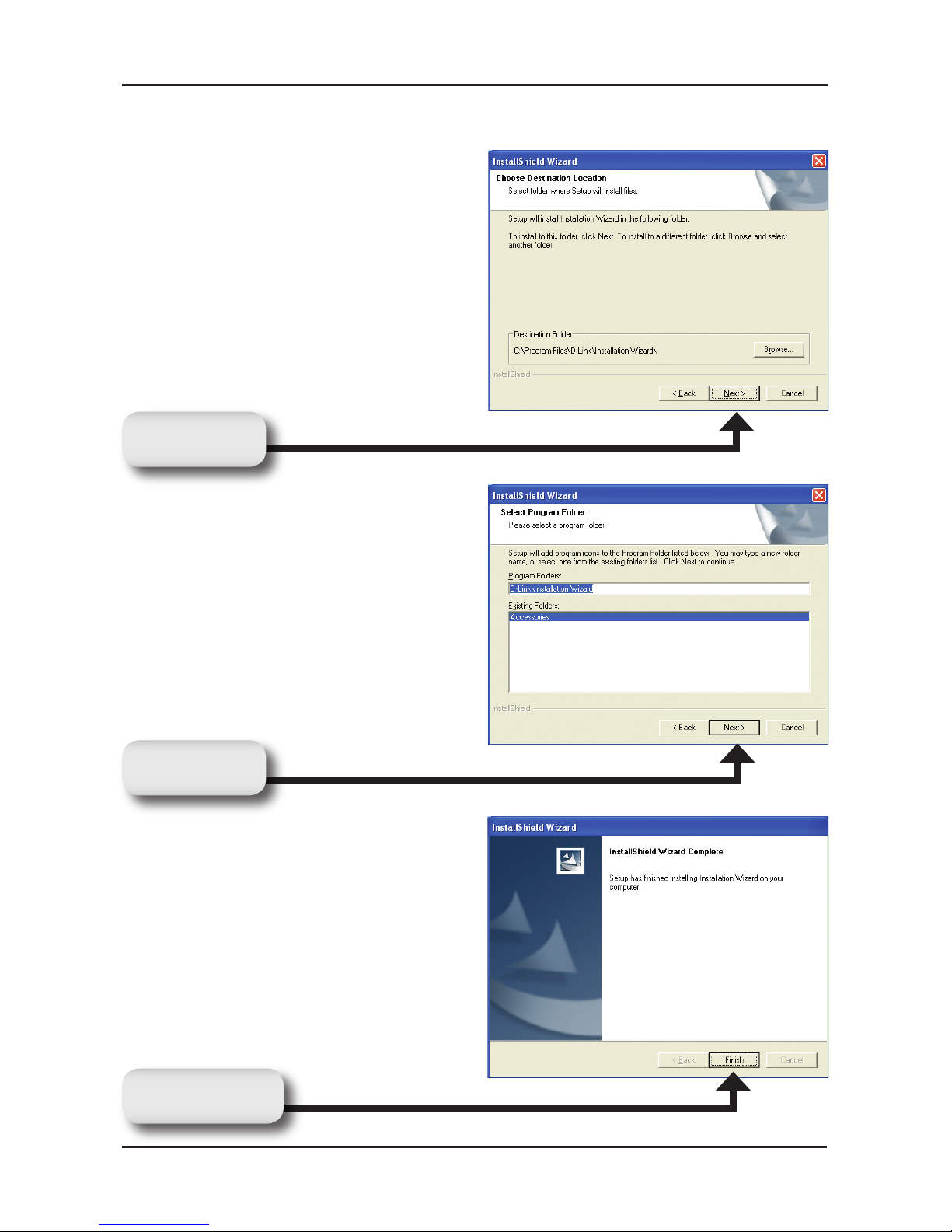

By default the program will be

installed to: C:\Program Files\

D-Link\Installation Wizard, where

C: represents the drive letter of

your hard drive.

To install to a different location,

click Browse and specify the

location.

Specify a Program Folder.

Setup is complete.

Click Next

Click Finish

8D-Link DCS-2120 Quick Install Guide

Conﬁguration

The D-Link DCS-2120 uses the Installation Wizard as the management

software. The wizard provides the user an easy interface to change

any settings related to the Wireless Internet Camera. Clicking on the

Installation Wizard icon will start the wizard.

The Installation Wizard will

appear and show the MAC

address of the DCS-2120 and an

IP Address. If you have a DHCP*

server on your network, there will

be a valid IP Address displayed

here, indicated by a “Yes” under

the assigned column.

*A DHCP server is a device that

supplies IP Addresses to its

clients, which are on the same

network.

D-Link Installation Wizard

This section will show you how to conﬁgure your new D-Link Wireless

Internet Camera using the D-Link Installation Wizard.

Conﬁguration

9 D-Link DCS-2120 Quick Install Guide

Conﬁguration

If the Installation Wizard does not detect

any devices, you will need to reset the cam-

era. Reset is initiated when the reset button

is pressed once and the Power LED begins

to ﬂash. Factory Reset will be initiated when

the reset button is pressed continuously for

30 seconds. Release the reset button and

the Power LED will begin to ﬂash, indicating

that the DCS-2120’s settings are restored

to factory settings.

Click Search to refresh the list

of cameras.

10D-Link DCS-2120 Quick Install Guide

Conﬁguration

Once the camera appears, select the camera by placing a check

mark in the box.

Enter an administrative password in the Admin password and Conﬁrm

password ﬁelds.

Note: For details on the Date/Time

Settings, please refer to the Manual

on the CD-ROM.

Click Next

Click Setup
