D-Link SECURICAM Network DCS-900 Manual de usuario

Wireless G USB 2.0 Adapter

Version 2.0

DCS-900

Fast Ethernet Internet Camera

2D-Link DCS-900 Quick Install Guide

Package Contents

System Requirements

If any of the above items are missing, please contact your reseller.

• Windows® 2000 (SP4) or XP (SP2) operating system.

• PC with 1.3GHz processor or above; at least 128MB RAM

• Internet Explorer 6.0 or Netscape Navigator 7.0 or above.

• An existing 10/100 Ethernet-based network.

CAT5 Ethernet Cable

Manual and Software on CD

DCS-900

Fast Ethernet Internet Camera

Power Adapter

Camera Stand

3 D-Link DCS-900 Quick Install Guide

Hardware Overview

Front Panel LEDs

LAN

A blinking light indicates

data is being transmitted.

Power

A solid light indicates

the unit is properly

powered.

Camera Lens

Camera Stand

4D-Link DCS-900 Quick Install Guide

Hardware Overview

Back Panel Connections

Power Connector

Ethernet Cable

Connector

Reset

5 D-Link DCS-900 Quick Install Guide

Installation

Connect the Ethernet Cable

Connect the included Ethernet

cable to the network cable

connector located on the back

panel of the DCS-900 and

attach it to the network. Network

connectivity is conﬁrmed when

the green LED Indicator on the

DCS-900, located below the

Power LED, is illuminated.

Attach the Power Supply

Attach the power supply to

the DC power input connector

located on the rear panel of the

DCS-900 and connect it to your

local power supply.

Note: Power source is conﬁrmed

when the red LED Power Indicator

located to the right of the lens on

the DCS-900 is illuminated.

Attach the Swivel Stand

Locate the stand mount on the

bottom panel of the DCS-900

and screw on the swivel stand

to the base of the DCS-900.

6D-Link DCS-900 Quick Install Guide

You are now ready to run the Setup Wizard, which will guide you

quickly through the installation process.

Insert the D-Link Driver CD into your CD-ROM drive.

Conﬁguration

Click Install Wizard

Click Next

7 D-Link DCS-900 Quick Install Guide

Click Yes

Click Next

Click Finish

8D-Link DCS-900 Quick Install Guide

You must change the Admin ID and Password immediately to protect

your camera against unauthorized access.

By default, the Admin ID and

Password are blank.

To change the Admin ID and

Password, select both Change

boxes and enter a New ID and

New Password.

To run the Setup Wizard, click on: Start > Programs >

D-Link Setup Wizard. Your camera’s IP Address will be displayed

here along with its corresponding MAC Address.

Click Wizard

Click Next

9 D-Link DCS-900 Quick Install Guide

Enter an IP Address and Subnet

Mask for your camera if you want

to change the current settings.

Enter your Gateway and DNS

settings. These settings must

correspond with your network

settings for you to access the

camera. If you are unsure of what

these settings should be, check

with your network administrator.

If you need to make any changes,

click Back to modify your settings.

Otherwise, click Restart to save

and apply your settings.

Click Next

Click Restart

10D-Link DCS-900 Quick Install Guide

The Home screen of your camera can be accessed from the Setup

Wizard using the Link button. You can also use your favorite Web

browser, type “http://address” in the address box where address

is the IP address that you assigned to the DCS-900 from the previous

section. Press Enter.

Your setup is complete!

Click Link to launch your web

browser and view your images.

Click ActiveX or Java to view

your video images.

• Make sure that you have the

latest version of Java installed on

your computer to ensure proper

operation when viewing the

video in Java mode. Java can be

downloaded for free from Sun’s

web site. (http://www.java.com)

• When you connect to the home page, you will be prompted to download

ActiveX. If you want to use ActiveX to view your video images instead of

Java, then you must download ActiveX.

• Please refer to the Manual located on the CD-ROM for additional information

regarding all features and instructions related to the DCS-900.

Click Link

Your Basic Setup is Complete!

Otros manuales para SECURICAM Network DCS-900

Tabla de contenidos

Otros manuales de Cámara IP de D-Link

D-Link

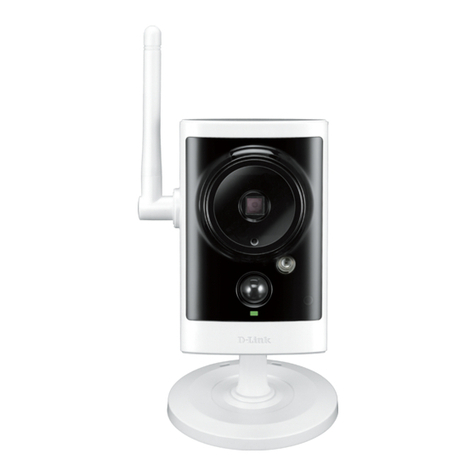

D-Link DCS-2330L Manual de usuario
