D-Link DCS-6620G - Network Camera Manual de usuario
2 D-Link Systems, Inc.
DCS-6620G Install GuideSystem Requirements
System Requirements
Minimum System Requirements:
n Internet Explorer Version 6.0 or above
n CPU Pentium 4, 2.0GHz plus processor
n
Memory Size: 128MB or above
n
32MB AGP Video Card
Package Contents
D-Link Systems, Inc. 3
DCS-6620G Install Guide Hardware Overview
Hardware Overview
Front
Power LED
Link LED
Built-In
Microphone
Motorized Zoom Lens
4 D-Link Systems, Inc.
DCS-6620G Install GuideHardware Overview
Rear
Connect the power adapter jack to the Network Camera before plugging in
to the power socket. This will reduce the risk of accidental electric shock.
A/V out
External I/O Port
External Mic.
Ethernet 10/100 RJ45 socket
Power Cord socket
Antennas
D-Link Systems, Inc. 5
DCS-6620G Install Guide Hardware Installation
Hardware Installation
Connect the Ethernet Cable
Connect one end of the Ethernet cable to the
network cable connector located on the back
panel of the DCS-6620G, and attach the other
end to a router, switch, or
gateway on the
network.
If you connect this camera directly
to a PC, you will need a cross-over
Ethernet cable. If you plug the camera into
a hub or router,
you will be able to use
the cable included
with your camera.
Attach the External Power Supply
Attach the external power supply to the DC
power input connector located on the
backpanel
of the DCS-6620G (labeled DC
12V), and connect it to an AC power outlet.
Power source is confirmed
when
the LED Power Indicator
on the Network Camera is illuminated.
Both the red and green LEDs will flash alternately
and only the red LED will remain lit. The green
LED will not come on until you have configured
your camera.
Attach the Antennas
Attach the two antennas to the connectors
located on the back panel of the DCS-6620G
.
It is required that an Ethernet cable
is used during initial setup
. Once
your wireless
configuration is set, you may
disconnect the Ethernet cable and reboot
your camera to connect to your wireless
network.
6 D-Link Systems, Inc.
DCS-6620G Install GuideHardware Installation (continued)
Attach the A/V cable to the A/V out
connector if you wish to connect the
DCS-6620G to your TV set.
Note: Audio Out from the A/V port is
for connecting a speaker to the camera
so that a person in front of the camera
can hear the person on the other end
of the communication. Video out from
the A/V port is for connecting to a TV
for viewing the camera’s video feed or
VCR for recording purposes.
Attach the yellow RCA connector to
the “video” connector on your TV.
Attach the white RCA cable to the
“audio” connector on your TV set.
D-Link Systems, Inc. 7
DCS-6620G Install Guide Installation Wizard
Installation Wizard
Insert the DCS-6620G CD into the CD-ROM drive. If the CD Autorun function does not
automatically start on your computer, click Windows®Start > Run. In the Run command
box type “D:\DCS6620G.exe”, where D: represents the drive letter of your CD-ROM. If
it does start, proceed to the next screen.
Click Next
Click Installation Wizard
8 D-Link Systems, Inc.
DCS-6620G Install GuideInstallation Wizard (continued)
Click Next
Click Next
Click Finish
D-Link Systems, Inc. 9

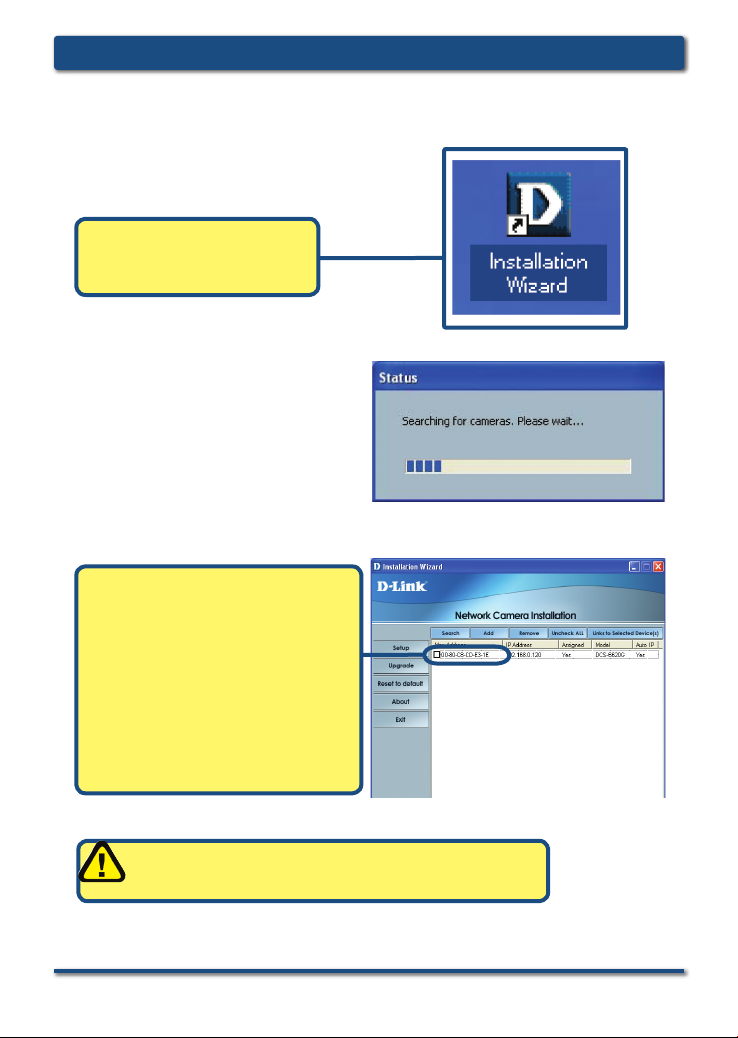

DCS-6620G Install Guide Camera Configuration
Camera Configuration
The software will search for cameras.
Double-click on the Installation
Wizard icon, which should have
been created on your desktop.
The Installation Wizard will now show
a MAC address of the DCS-6620G
and an IP Address (which may or may
not be correct depending on what you
have your DCS-6620G connected to).
If you have a DHCP* server on your
network
, there will be a valid IP Address
displayed
here. After a few seconds, the
“assigned” column will display yes
,
indicating that the displayed IP
Address
is now assigned to the camera.
*A DHCP server is a device that supplies IP Addresses to
its clients that are on the same network.
10 D-Link Systems, Inc.
DCS-6620G Install GuideCamera Configuration (continued)
If the Installation Wizard does not display
any devices, you will need to nd a
tool small enough to t into the reset
hole and softly press down a switch for
2 cycles (about 5-7 seconds). The red
and green LEDs will blink continuously
and stop twice. Let go when the red
LED starts to ash the second time.
Once the camera appears,
select the camera by placing
a Checkmark in the box.
Click Search to refresh the
list of cameras if needed.
