2D-Link DCS-1110 Quick Install Guide

• Internet Explorer 6.x or above

• Windows® 2000 or XP

• 1.3GHz processor and at least 128MB of RAM

• An available Ethernet connection

CAT5 Ethernet Cable

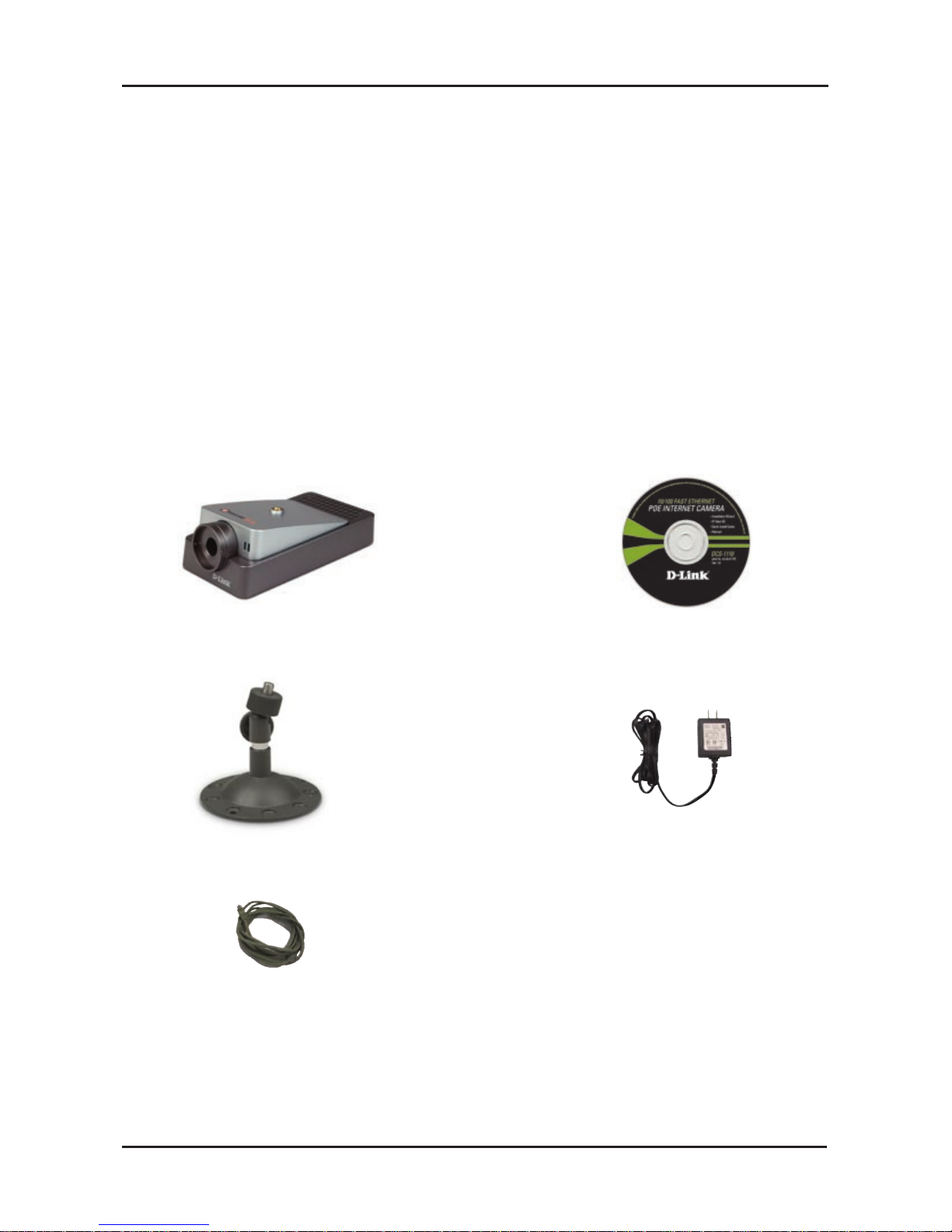

Package Contents

DCS-1110 10/100 TX

PoE Internet Camera

System Requirements

If any of the above items are missing, please contact your reseller.

CD-ROM with Manual and

Installation Wizard

Camera Stand 5V 2.5A AC Power Adapter

3 D-Link DCS-1110 Quick Install Guide

Hardware Overview

Power LED

The Power LED is positioned on the

right side of the DCS-1110 lens. Steady

blue conﬁrms that the DCS-1110 is

powered ON.

Link LED

The Link LED is positioned on the right side of the DCS-1110’s lens.

It is located to the right of the Power LED. Steady orange conﬁrms

a good connection to the LAN. Depending on the data trafﬁc, the

LED will begin to ﬂash to indicate that the DCS-1110 is receiving/

transceiving from/to the LAN network.

Hardware Overview

D-Link DCS-1110 Quick Install Guide 4

Reset Button

Reset will be initiated when the reset button is pressed once and Power LED

begins to ﬂash.

Factory Reset will be initiated when the reset button is pressed continuously

for ten seconds. Release the reset button and the Power LED will begin to ﬂash

indicating that the DCS-1110’s settings are reverting back to the factory settings.

The IP address will also return to the default setting with DHCP selected.

DC Power Connector

The DC power input connector is

labeled DC 5V with a single jack

socket to supply power to the

DCS-1110. The power supply is

optional if PoE is used.

Ethernet Cable Connector

The DCS-1110 features an RJ-45 connector for connections to

10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling.

The port supports 802.3af Power over Ethernet (PoE) and the NWay

protocol, allowing the DCS-1110 to automatically detect or negotiate

the transmission speed of the network. The port also supports MDI/X,

which allows the use of either straight through or cross-over cables.

5 D-Link DCS-1110 Quick Install Guide

Hardware Installation

Connect the Ethernet Cable

Connect an Ethernet cable to the Ethernet

connector located on the Internet Camera’s

back panel and attach it to the network.

If you connect this camera directly to a PC,

the DCS-1110 has an MDI/X port that will

allow you to use either a straight through

(included) or cross-over cable.

The LAN LED will light orange when there is a good connection to the

LAN. The LED will begin to ﬂash indicating the camera is receiving or

sending data.

Attach the External Power Supply

Attach the external power supply to the

DC power input connector located on the

Internet Camera’s back panel (labeled

DC 5V) and connect it to an AC power

outlet.

Note: The power supply is optional if the

PoE (Power over Ethernet) is used.

Power source is conﬁrmed when the LED Power Indicator on the

Internet Camera is illuminated.

Software Installation

D-Link DCS-1110 Quick Install Guide 6

Click Next

Insert the DCS-1110 CD into the

CD-ROM drive.

Software Installation

Click on Installation

Wizard

7 D-Link DCS-1110 Quick Install Guide

Software Installation

Click Yes

Click Next

Software Installation

D-Link DCS-1110 Quick Install Guide 8

Now you should install ffdshow, this will install the proper codec that

will allow you to playback recorded video taken by the DCS-1110.

Click Finish

Click OK

Click Next

9 D-Link DCS-1110 Quick Install Guide

Software Installation

Click I Agree

Click Next

Click Install

Software Installation

D-Link DCS-1110 Quick Install Guide 10

Click Next

Click Finish
