D-Link SECURICAM NETWORK DCS-5300 Manual de usuario

D-Link

SecuriCam

Internet Camera

Manual

Building Networks for People

Version 1.00

DCS-5300

Contents

Contents of Package ............................................................................3

Introduction............................................................................................4

Features and Benefits ...........................................................................4

Connections ..........................................................................................6

Hardware Installation .............................................................................9

Software Installation ............................................................................10

Enabling UPnP for Windows XP/ME ...................................................13

Installing IP surveillance Software ........................................................17

Testing the DCS-5300 .........................................................................21

Security ...............................................................................................22

Using and Configuring the DCS-5300 with a Router ............................23

Using the DCS-5300 with the Internet Browser ....................................29

Using IP surveillance Software ............................................................58

Monitor Program ......................................................................58

Playback Program....................................................................78

Firmware Upgrades ............................................................................93

Appendix ............................................................................................96

Frequently Asked Questions .....................................................96

How to PING Your IP Address ...................................................99

Reset and Restore .................................................................100

I/O Connector .........................................................................101

Technical Specifications .........................................................102

Contacting Technical Support ............................................................104

Time Zone Table ................................................................................105

Warranty and Registration .................................................................107

D-Link SecuriCam DCS-5300 Internet Camera

 Power Adapter

 Installation software and manual on CD

Quick Installation Guide

 Camera Stand

 Category 5 Ethernet Cable

 Infrared Remote Control

Note: Using a power supply with a different voltage than the one included with the

DCS-5300 will cause damage and void the warranty for this product.

Minimum System Requirements:

 Internet Explorer 5.x or above Internet Web Browser

CPU: Pentium III, 800 MHz or above

Memory Size: 128 MB or above

VGA card resolution: 800 x 600 or above

Package Contents

If any of the above items are missing, please contact your reseller.

Introduction

Motorized Pan and Tilt Operation

The DCS-5300 has a pan and tilt function that can expand your viewing area to

cover a wide 270oangle side-to-side and a 90o angle up and down. This can be

controlled with a PC from any location or locally using the included infrared

remote control.

The D-Link SecuriCam DCS-5300 Internet Camera is a full featured surveillance

system that connects to an Ethernet, Fast Ethernet or broadband Internet

connection to provide remote high-quality video and audio. The DCS-5300 is

the latest product added to the D-Link internet camera line. The camera features

a motorized pan and tilt function found on more expensive cameras. This

function allows the viewing area of the camera to extend 270oside-to-side and

90oup and down. The DCS-5300 gives you the ability to monitor your home/

office when you can not be there. Place the camera anywhere you would like to

monitor with no PC required on location!

Features and Benefits

The D-Link SecuriCam DCS-5300 Internet Camera is connected through an

Ethernet connection and a power source. You only need one PC to initially

configure multiple cameras for all locations. Each camera has a built in web

server with a configurable IP address.

Suports a Variety of Platforms

In addition , the DCS-5300 supports a variety of platforms including FTP, SMTP,

NTP, and HTTP. The camera also supports UPnP and DDNS. DDNS allows

the camera to use an easier to remember naming format rather than an IP

address. UPnP will allow users of Windows XP and ME to install the camera

with the click of a mouse.

CCD Sensor

The DCS-5300 comes standard with a high quality CCD sensor that is superior

to a CMOS type sensor. The fixed focus glass lens will facilitate the use of the

DCS-5300 providing crystal clear and sharp images. You can view up to 30

frames per second of live motion video with 380 lines resolution.

Features & Benefits (continued)

A/V Output

The SecuriCam DCS-5300 comes with an A/V output allowing you to connect

to your TV for local viewing. The DCS-5300 can also be connected to your

VCR to record activities directly to a VHS tape.

Surveillance Software

The surveillance software allows you to view up to 16 cameras simultaneously.

This software also allows controls to all 16 cameras by linking each one to its

own web page. Images can be monitored and recorded to a hard drive.

Internal/External Microphone

The SecuriCam DCS-5300 allows you to monitor video as well as audio through

the web browser. You have the option of using the DCS-5300’s integrated

microphone or your own external microphone using the connection located at

the rear of the unit.

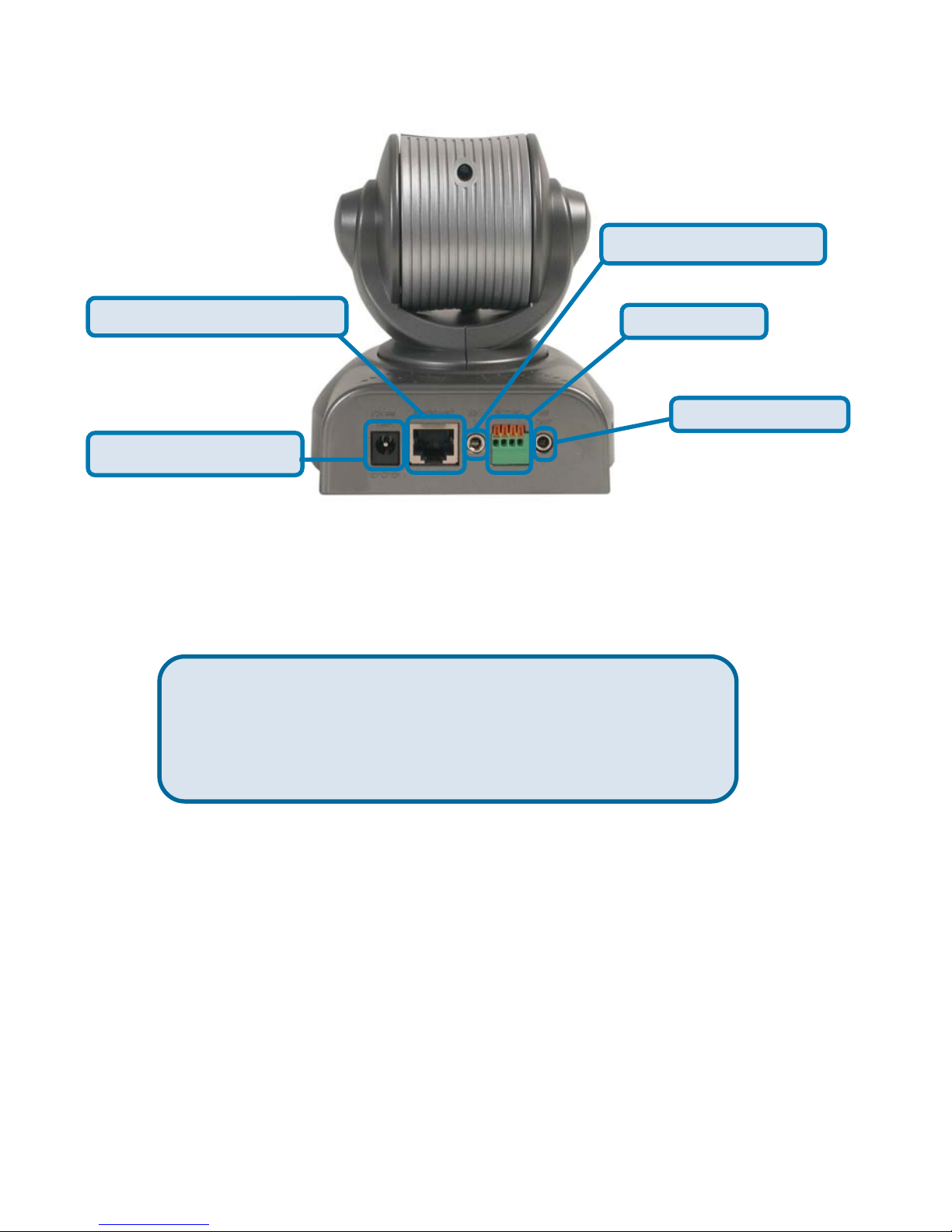

Connections

Ethernet Cable Connector

The DCS-5300 back panel features an RJ-45 connector for connections to

10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling. This network

port supports the NWay protocol, allowing the Internet Camera to automatically

detect or negotiate the transmission speed of the network.

DC Power Connector

The DC power input connector is located on the DCS-5300 Internet Camera’s

back panel and is labeled DC 12V with a single socket to supply power to the

Internet Camera.

The Ethernet cable included with the DCS-5300 Internet

Camera is a Category 5 “straight through” cable. This is

the recommended cable type when the camera is

connected to a 100 Mbps Fast Ethernet network hub or

switch.

Ethernet Cable Connector

DC Power Connector

Microphone Connector

AV Out Connector

I/O Connector

Microphone

The DCS-5300 Internet Camera’s has an internal microphone. However, you

have the option of using an external microphone by plugging it into the

microphone connector.

AV Out

Plug the included A/V cable into the A/V out connector to use the DCS-5300

with a television or VCR.

Connections (continued)

Located on the bottom panel of the DCS-5300, the socket is used to connect

the camera stand to the Internet Camera by attaching the screw head on the

camera stand to the Internet Camera.

Bottom Panel

Power LED

LED stands for Light-Emitting Diode.

The Power LED is positioned on the right side of the Internet Camera lens. As

soon as the power adapter is connected to the Internet camera the power LED

will flash red and green several times, the DCS-5300 is conducting a

self-test. Upon passing the self-test the LED will turn green to indicate a good

connection to an Ethernet port or red to indicate no connection has been made.

Attachment socket for the Camera Stand

The DCS-5300 provides a terminal block with two pairs of connectors situated

on the back panel. One pair is for input and the other is for output. The I/O

connectors provide th sical interface to send and receive digital signals to a

variety of external alarm devices. Please refer to the appendix in this manual

for detailed information.

I/O Connector

Socket for stand

Connections (continued)

Included with the DCS-5300 is an infrared remote control. You have the option

of controlling the camera via the Pan/Tilt Controls using the IP surveillance

software or via the infrared remote. To use the remote, make sure that IR Control

is enabled on the Camera Control page in the Configuration Menu under

Advanced. Please refer to the section titled “Using the DCS-5300 with

an Internet Browser” in this manual for more information.

Infrared Remote Control

Stop

Auto-Patrol

Auto-Pan

Center

Home

Arrows

Arrows - Use the Up,Down, Left and Right arrows to tilt/

navigate the camera lens.

Home- Returns the camera lens to the set home position.

Auto-Patrol- Enables the Auto-Patrol function.

Auto-Pan-

Center- Centers the camera lens.

Pans the camera one full cycle.

Stop- Stops the movement of the camera during pan.

Hardware Installation

Connect an Ethernet cable

Connect an Ethernet cable to the network

cable connector located on the DCS-5300’s

back panel and attach it to the network.

Attach the external power supply

Attach the external power supply to the DC

power input connector located on the

DCS-5300’s back panel labeled 12VCD

and connect the other end to your wall outlet.

The Internet Camera comes with a camera

stand with a swivel ball screw head that

can be attached to the Internet Camera

bottom socket cavity. Attach the camera

stand to the Internet Camera and station it

for your application. There are holes

located in the base of the camera stand

allowing the Internet Camera to be mounted

to the ceiling, or any wall securely.

Attaching the Internet Camera to the Camera Stand

When you have a proper connection, the LED will turn from red to green. The

light may cycle on and off and your computer may show an intermittent loss of

connectivity, this is normal until you have configured your Internet Camera.

Software Installation

After you have successfully completed the hardware installation of the

DCS-5300 Internet Camera, it is necessary to install software to configure and

operate the camera. The first step is to run the IP Installer program on the CD.

IP Installer allows you to use the Internet Camera with your Internet browser.

With the IP Installer program you can enter settings that permit the camera to

access the Internet directly or through your Ethernet network.

After the IP Installer software program is completed, you will have an operating

and controllable Internet Camera. From your Internet Explorer Web browser

you will be able to access the video and sound from the Internet camera. The

camera has a built-in Web server. This Web server will allow the camera to

access the Internet without being attached to a computer and permits users to

view the video and audio remotely.

After running the IP Installer, you will be able to operate the DCS-5300 and

view the camera remotely through Internet Explorer 5.x and above.

However it is necessary to install the IP surveillance software from the enclosed

CD to create a truly powerful monitoring and surveillance system. The following

section will show in detail the installation of the IP Installer and the IP

surveillance software.

Installing the IP Installer program

Insert the CD that is included with the DCS-5300 Internet Camera. The

DCS-5300 installation menu will start up automatically from the CD. If the CD

does not startup automatically (the Windows operating system may turn this

function off), access the CD from Windows and click on the autorun.exe program

to access the installation menu shown below:

Click IP Installer

Otros manuales para SECURICAM NETWORK DCS-5300

Tabla de contenidos

Otros manuales de Cámara IP de D-Link

D-Link

D-Link DCS-942L Manual de usuario

D-Link

D-Link DCS-930L Guía de seguridad

D-Link

D-Link DCS-4201 Manual de usuario

D-Link

D-Link WIRELESS G DCS-950G Manual de usuario

D-Link

D-Link DHA-390 Manual de usuario

D-Link

D-Link Air DCS-1000W Manual de usuario

D-Link

D-Link SECURICAM Network DCS-2100 Manual de usuario

D-Link

D-Link DCS-960L Manual de usuario

D-Link

D-Link Cloud Camera 2330L Manual de usuario

D-Link

D-Link DCS-5030L Manual de usuario

D-Link

D-Link SECURICAM Network DCS-2120 Manual de usuario

D-Link

D-Link DCS-G900 - SECURICAM Wireless G Internet Camera... Manual de usuario

D-Link

D-Link DCS-2310L Manual de usuario

D-Link

D-Link DCS-2330L Manual de usuario

D-Link

D-Link DCS-1000 Manual

D-Link

D-Link WIRELESS G DCS-950G Manual de usuario

D-Link

D-Link SECURICAM Network DCS-6620 Manual de usuario

D-Link

D-Link SECURICAM DCS-910 Manual de usuario

D-Link

D-Link WIRELESS G DCS-950G Manual de usuario

D-Link

D-Link DCS-936L Manual de usuario

D-Link

D-Link SECURICAM Network DCS-6620 Manual de usuario

D-Link

D-Link DCS-2332L Manual de usuario

D-Link

D-Link DCS-5030L Manual de usuario

D-Link

D-Link SECURICAM Network DCS-900 Manual de usuario

Manuales populares de Cámara IP de otras marcas

FLIR

FLIR Exx series Manual de usuario

Avigilon

Avigilon H4A-BO1-IR Manual de usuario

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manual de usuario

ShareTech

ShareTech AV1 Manual de usuario

Ezviz

Ezviz C6C Manual de usuario

Melchioni

Melchioni UCAM 2015 Manual de usuario

Geutebruck

Geutebruck G-Cam/ESD-4630 Manual de usuario

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manual de usuario

Mitel

Mitel 6800i Series Manual de servicio

Vitek

Vitek VTC-IR403-212NP Manual de usuario

THOMSON

THOMSON DSC - 323W Manual de usuario

AVer

AVer FB2027 Manual de usuario

ENFORCER

ENFORCER EV-T5105-N2SQ Manual de usuario

Wansview

Wansview NC543 Manual de usuario

Eneo

Eneo MCB-64A0003M0A Manual de usuario

deView electronics

deView electronics CBDNI36F Manual de usuario

Swann

Swann SwannEye Manual de usuario

LevelOne

LevelOne IP CamSecure Manual de usuario
