CYP CLUX-DDP Manual de usuario
CLUX-DDP
DVI to DVI Enhancer with EDID Management
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2016 by Cypress Technology.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
RDV1 28/03/16 Preliminary Release
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 1
6. Operation Controls and Functions....... 2
6.1 Front Panel ........................................2
6.2 Transmitter Rear Panel.....................3
6.3 EDID Manager ..................................4
7. Connection Diagram ............................ 6
8. Specications ........................................ 7
8.1 Technical Specication...................7
8.2 Supported Resolutions.....................8
1
1. INTRODUCTION
The DVI Enhancer with EDID Management is a handy device for your
DVI signal extension and differentiation. With 3G bandwidth and EDID
selection this device allows you with fast and clear viewing on the
DVI signal status. Further, this device allows user to upload EDID for
selection which create alternative EDID selection for specic usage.
Last but not least, EDID hot keys and LEDs design allow fast switching
and quick viewing on the status.
2. APPLICATIONS
• DVI signal extension
• EDID selection
• Gaming/Commercial Display
3. PACKAGE CONTENTS
• 1 x DVI Enhancer with EDID Management
• 1 x 5V/2.6A DC Power Adaptor
• 1 x Operation Manual
4. SYSTEM REQUIREMENTS
Input DVI source signal with output DVI display and connection
cables.
5. FEATURES
• DVI with 3G supported, HDCP and HDMI compliant
• Supports video source and output display signal analysis
• Supports EDID selection from internal, external and user’s EDID to be
insert
• Supports application control via USB
• Supports LEDs display with fast viewing on current selection status
• Supports USB rmware update
2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
PWR LINK
USB
DVI OUT
INT EXT USER
EDID
43
21
1Power: This LED will illuminate when the device is connected to an
active power supply.
2USB LINK: This LED will illuminate when the connected USB device is
valid for PC control.
3EDID: Press this button to select EDID of INTernal/EXTernal or USER
where internal EDID is 1080p at 2Ch, external EDID is depending on
the connected DVI output display and USER is for user to upload
with default setting on 1080p 2CH.
4DVI OUT: Connect to DVI display for output display.
3
6.2 Transmitter Rear Panel
DVI IN
DC 5V
SERVICE
1 2 3
1DVI IN: Connect with DVI source equipment such as PC or Graphic
card devices.
2SERVICE: This is reserved for rmware update use and EDID
Manager Tool only.
3DC 5V: Connect the adapter included in the package and
connect to AC wall outlet for power supply.
4

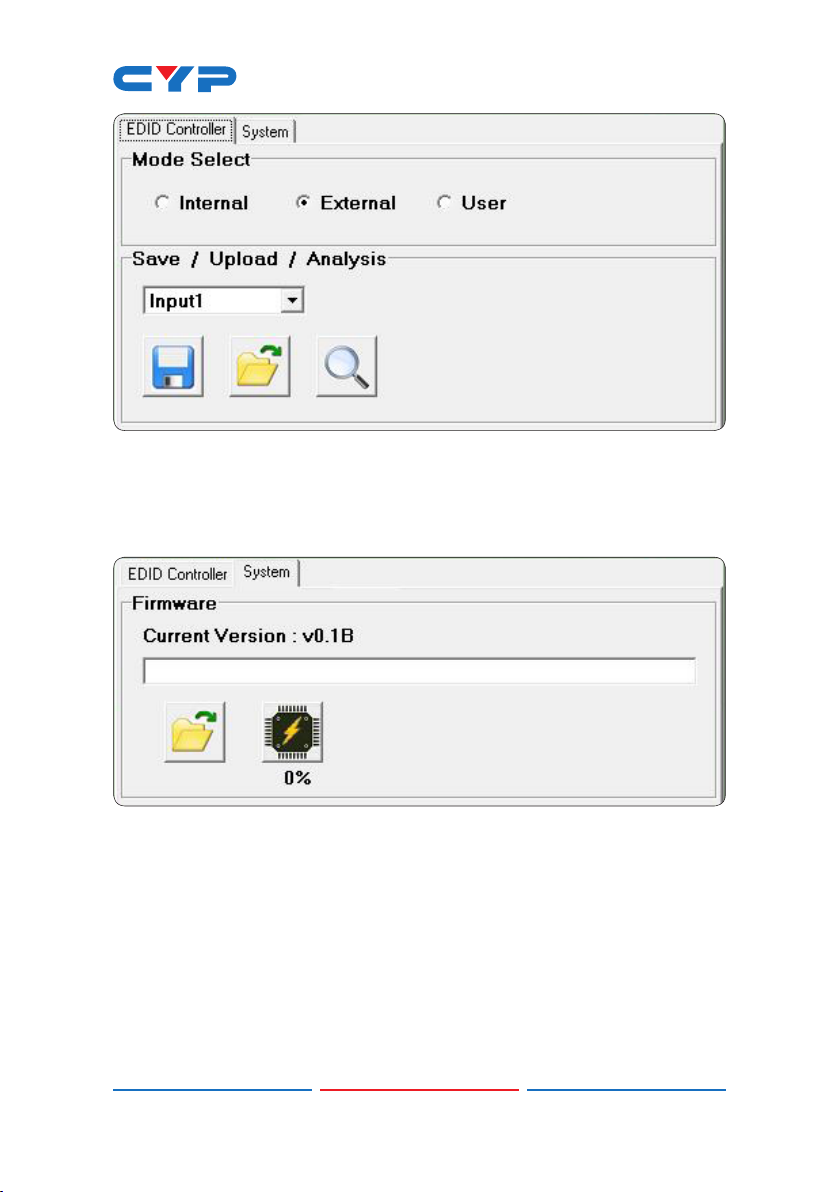

6.3 EDID Manager
This unit includes an EDID Manager application that allows user
to manage EDID from PC to display. The application can be
downloaded from www.cypress.com.tw with le name CDPS 2016.
Once the le has been downloaded successfully an icon of CDPS
2016 will appear. Connect the unit under power ON status with
USB cable from PC/Laptop. Click on Search to allow the unit to be
lined up.
Once the search is done successfully, click on DVI Enhance to bring
up the EDID Controller.
User may select EDID from Internal, External or User as a reference
for input HDMI source, the selection will act correspondingly with the
unit’s LED light. EDID may be uploaded, simply by open the EDID’s
*.bin le and click on Upload the unit will check EDID’s Header and
Checksum and proceed the upload. When the upload is successfully
done EDID mode will switch to User.
EDID may also be downloaded, simply by a click on Internal, External
or User and the unit will download current EDID with a pop up screen
to save.
5
Click on System to learn the unit’s Current Firmware version. To update
simply open the *.bin le and click on Update. Once the update is
nished click on Disconnect and re-power on the unit will complete
the update procedure.
To use the advance features like EDID Analyzer and Creator requires
registration and approval license. Please consult with vendor for
further advanced features.
