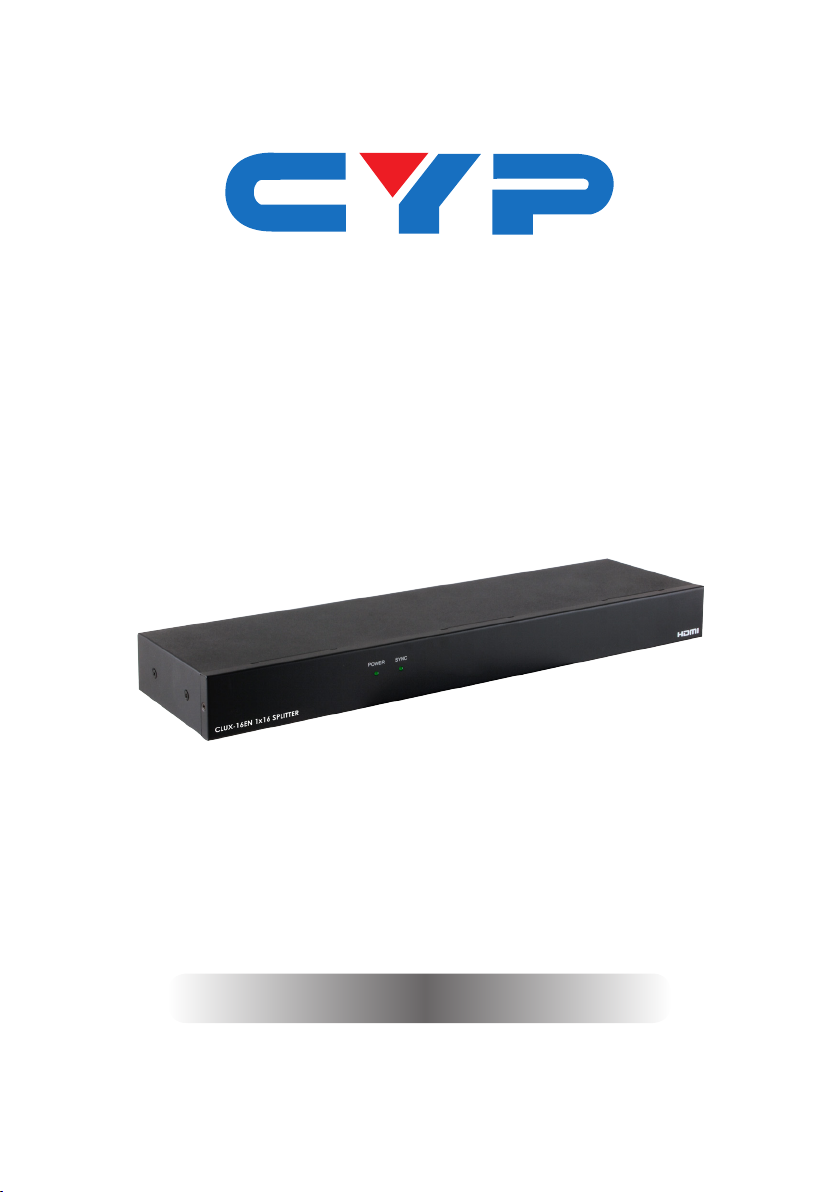

CLUX-16EN
1 by 16 HDMI Splitter
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 27/09/13 Preliminary Release
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 1
6. Operation Controls and Functions....... 2
6.1 Front Panel ........................................2
6.2 Rear Panel.........................................2
7. Connection Diagram ............................ 3
8. Specications ........................................ 4
9. Acronyms ............................................... 5
1
1. INTRODUCTION
This range of high performance HDMI splitters provide one HDMI in to
sixteen HDMI outputs and supports 3D, 12-bit Deep Color as well as
High Denition Lossless Audio. With its addtional features of the latest
HDMI standards you can be sure of great HDMI distribution.
2. APPLICATIONS
• Simultaneously display one HDMI source on 16 TVs/projectors
• Showroom display
• University lecture hall display
• Retail sales display
• Commercial presentation switcher/scaler
3. PACKAGE CONTENTS
• 1×1 by 16 HDMI Splitter
• 1×5 V DC Power Supply Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices such as a DVD/Blu-ray play with
HDMI cables or DVI to HDMI cables
• HDMI equipped displays (TVs or monitors) with HDMI cables
5. FEATURES
• Supports HDTV resolutions up to WUXGA
• HDMI and DVI compatible
• Supports 1080p@60Hz, Deep Color 12-bit
• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
• Supports 3D
• Supports cascading up to 3 layer
2

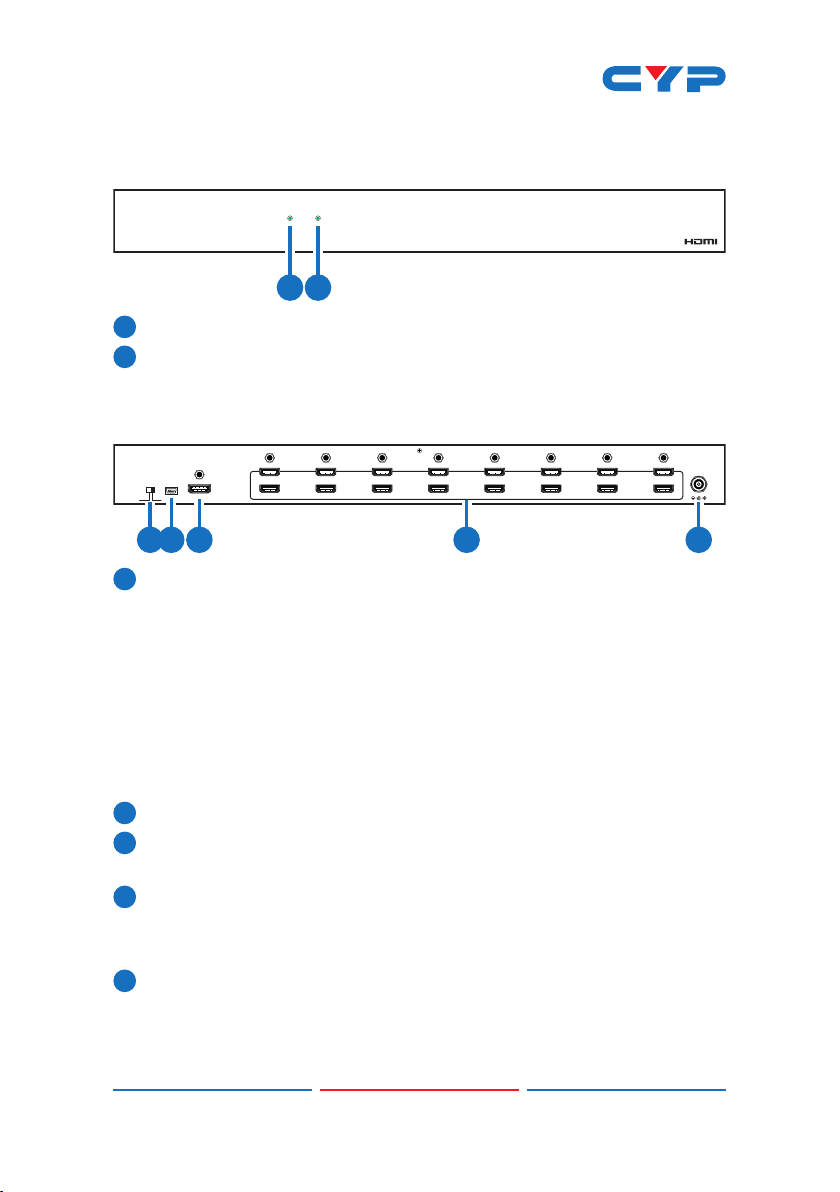

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER SYNC
CLUX-16EN 1x16 SPLITTER
1 2
1POWER LED: The power LED will illuminate when the unit is powered.
2SYNC LED: The LED will illuminate when the HDMI source signal is
connected to the input port.
6.2 Rear Panel
DC 5V
SERVICE
2
1
4
3
6
5
8
7
10
9
12
11
14
13 15
STD TV
INPUT OUTPUT
EDID
16
1 2 3 4 5
1EDID STD/TV: The default factory setting is on TV, leave as it is when
the display is properly. The unit will detect the 1st HDMI output's
EDID and send out the signal accordingly to all other output ports.
This device obtain the last memory function therefore, the device
will use the last output port1's EDID when output port is not
connected to a display after every power cycling or switch in
between the EDID setting.
Switch to STD to use build-in EDID if the display has problem. STD
EDID's video at 1080p@60Hz and audio at LPCM 2CH.
2SERVICE: Manufacturer use only.
3HDMI INPUT: Connect the input port to the HDMI or DVI output of
your source equipment such as DVD player or set-top box.
4HDMI OUTPUT
Connect each of the output ports to the HDMI display for
simultaneous HDMI distribution.
5DC 5V: Connect the 5V DC power supply into the splitter and Plug
the adaptor to AC wall outlet.
3

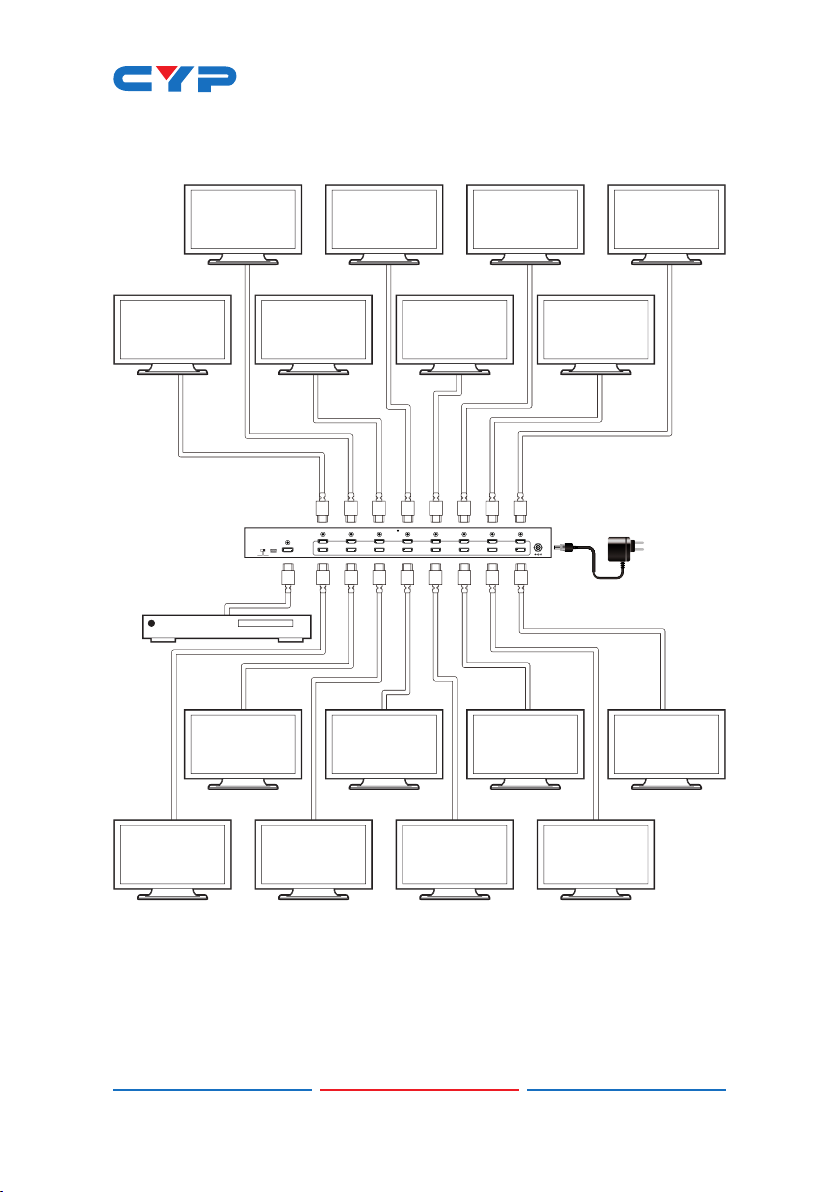

7. CONNECTION DIAGRAM
TV/Monitors
TV/Monitors
Power
Supply
DC 5V
SERVICE
2
1
4
3
6
5
8
7
10
9
12
11
14
13 15
STDTV
INPUTOUTPUT
EDID
16
Blu-ray
Player
HDMI
Input
Simultaneous
HDMI Outputs
Simultaneous
HDMI Outputs
4
8. SPECIFICATIONS
Video Bandwidth 225 MHz/6.75Gbps
Input Ports 1×HDMI (Female connector)
1×USB (Manufacturer use only)
Output Ports 16×HDMI (Female connector)
Output Resolution 480i~1080p@50/60, 1080p@24/50/60,
VGA~WUXGA
Power Supply 5V/6A DC (US/EU standards, CE/FCC/UL
certied)
HDMI Cable Distance IN: Up to 10M for 1080p/8-bit or 12-bit
OUT: Up to 15/10M for 1080p 8-bit/12-bit
ESD Protection Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions 436 mm (W)×119 mm (D)×44 mm (H)/
Excluding Jacks
436 mm (W)×126 mm (D)×48 mm (H)/
Including Jacks
Weight 1664 g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 18 W
Note: When displaying a 3D signal with a higher bandwidth than 225
MHz, a High Standard HDMI cable is required.
5
9. ACRONYMS
ACRONYM COMPLETE TERM
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television
