CYP PU-8H8HBTPL Manual de usuario

PU-8H8HBTPL

8 x 8 HDMI HDBaseT™ LITE Matrix with PoC

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v1.00 29/01/13 First Release

v1.01 31/07/13 Added USB Power Cable information

v1.02 16/08/13 Corrected Package Contents

CONTENTS

1. Introduction...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................7

5. Features..................................................7

6. Operation Controls and Functions .......8

6.1 Front Panel................................................... 8

6.2 Rear Panel..................................................... 9

6.3 Side Panel ...................................................10

6.4 Remote Control........................................10

6.5 IR Cable Pin Assignment .......................11

6.6 RS-232 Pin Assignment..........................12

6.7 RS-232 and Telnet Commands............13

6.8 Telnet Control............................................14

6.9 Web GUI Control ......................................16

8. Specications...................................... 20

9. Acronyms............................................. 22

1. INTRODUCTION

The PU-8H8HBTL is an 8x8 HDMI HDBaseT™ Lite Matrix. Installers can

switch and distribute up to 8 HDMI sources, and 2-Way IR to lengths of up

to 60m using CAT5e/6/7 cable infrastructure. Control of the matrix is via

IP, RS-232, IR remote, or manual selection buttons. This single box solution

will enable an installer to condently integrate an eight zone multi-room

AV system.

The PU-8H8HBTL is designed to be used with the PU-514L-RX Receiver

which enables the use of 2-Way IR control feature. Utilise the USB power

output from a TV as an optional way of powering the PU-514L-RX receiver

unit alternative to a mains power supply.

2. APPLICATIONS

HDMI Matrix System

Video/TV wall display and control

Security surveillance and control

Commercial advertising, display and control

University lecture hall, display and control

Retail sales and demonstration

3. PACKAGE CONTENTS

HDBaseT™ Lite 8×8 HDMI Matrix

9×IR Emitter

1×24V/6.25 A DC Power Adaptor

1×IR Remote Control

1×Set of Rack Ears (REARS-08)

Operation Manual

4. SYSTEM REQUIREMENTS

HDMI equipped source devices, connect with HDMI cables or DVI

equipped source, connect with DVI to HDMI cables

HDMI equipped displays (TVs or monitors) or HDMI equipped AV

receivers, connect with HDMI cables

Industry standard CAT5e/6/7 cables

HDBaseT™ Lite Receivers (i.e PU-514L-RX)

5. FEATURES

Supports all v1.4 HDMI resolutions

Supports uncompressed video/audio up to 10.2Gbps

Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i,

1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.

HDMI, HDCP and DVI complaint

High Denition Audio supported: Dolby TrueHD, Dolby Digital Plus

and DTS-HD Master Audio plus LPCM (up to 192kHz)

Uncompressed data transfer over single CAT cable (60m via CAT5e/6/7)

Supports HDMI input up to 15m 1080p 8bit or 10m 1080p 12bit.

Supports RS-232, 2-Way IR, Manual Selection Buttons, and HDMI CEC

control pass through

Selectable EDID settings - TV (downstream) and STD (xed).

Compact 2U Rack mount design

Supports IP control

Supports 3D signals

Choose to power the PU-514L-RX via the USB output from a TV (Cable

available separately - ADC-USB): * Please note the performance and

consistency of USB power outputs from TV's can vary and cannot be

guaranteed by CYP.

Note:

1. Do not connect the CONTROL port to CAT outputs of this device.

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

POWER LOCK

MENU OUTA 1B2C3D4

E5F6G7H8

2 3 4 5 61

LCM: Displays the setting information of each input and output

setting.

POWER: Press this button to power the device on/o. The LED will

illuminate green when the power is on, red when it is in 'Standby'

mode.

LOCK: Press this button to lock all the buttons on the panel; press

again to unlock. The LED will illuminate when locked.

IR: IR Receiver window (accepts the remote control signal of this

device only).

MENU: Press this button to access the LCM menu system, from here

EDID settings can be managed and IP system settings are displayed.

A~H/1~8 and OUT/IN: Press the OUT or IN button to select the

output or input mode and then press the required number button to

make the selection accordingly.

For example, if outputs A~D need to be set to input 1 and outputs

E~H need to be set to input 2, then the following sequence of button

presses need to be performed:

Press: OUTABCDIN1MENU,

and then press: OUTEFGHIN2MENU.

Note: If the MENU button is not pressed the selection will not be changed.

6.2 Rear Panel

RS232

SERVICE

IR OUT

IR IN

IR OUT

IR IN

IR OUT

IR IN

ALL A B C D E F G H

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUTCAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

DC 24V

HDMI IN

V+

GND

GND GND

V+

CONTROL

2 4

5101

POE 24V

CONTROL: This port is the link for Telnet or Web GUI controls, connect to

an active Ethernet link with an RJ45 terminated cable (for further details,

please refer to section 6.8 & 6.9).

Warning: Please do not connect this port directly to the PC/Laptop as the

Telnet function will not work.

RS-232: Connect to a PC or control system with D-Sub 9-pin cable for

RS-232 control.

ALL IR OUT: Connect to the IR blaster for IR signal transmission to the

source side. Place the IR blaster in direct line-of-sight of the equipment

to be controlled. It will transmit all signals received from the IR IN at

the receiver locations.

ALL IR IN: Connect to the IR extender for IR signal reception. Ensure that

remote being used is within the direct line-of-sight of the IR extender

for it will send out the signal to all receiver's IR OUT.

SERVICE: Manufacturer use only.

IR OUT A~H: Connect to the IR blasters for IR signal transmission. Place

the IR blaster in direct line-of-sight of the equipment to be controlled.

It will transmit the IR signal received from the receiver side choosen by

input selection.

IR IN 1~8: Connect to the IR extenders for IR signal reception. Ensure

that the remote being used is within the direct line-of-sight of the IR

extender for it will send out the IR signal to the selected receiver's IR

OUT.

CAT5e/6/7 OUT A~H: Connect from these CAT outputs to the CAT input

port of the receiver units with a single CAT5e/6/7 cable for HDMI Audio/

Video and IR control signal transmission.

HDMI IN 1~8: Connect to the HDMI input source devices such as a DVD

player or a Set-top Box with HDMI cable or DVI to HDMI cable.

DC 24V: Plug the 24 V DC power supply into the unit and connect the

adaptor to an AC outlet.

Warning: Please do not connect the CAT5e/6/7 cable into the

receiver's CONTROL port.

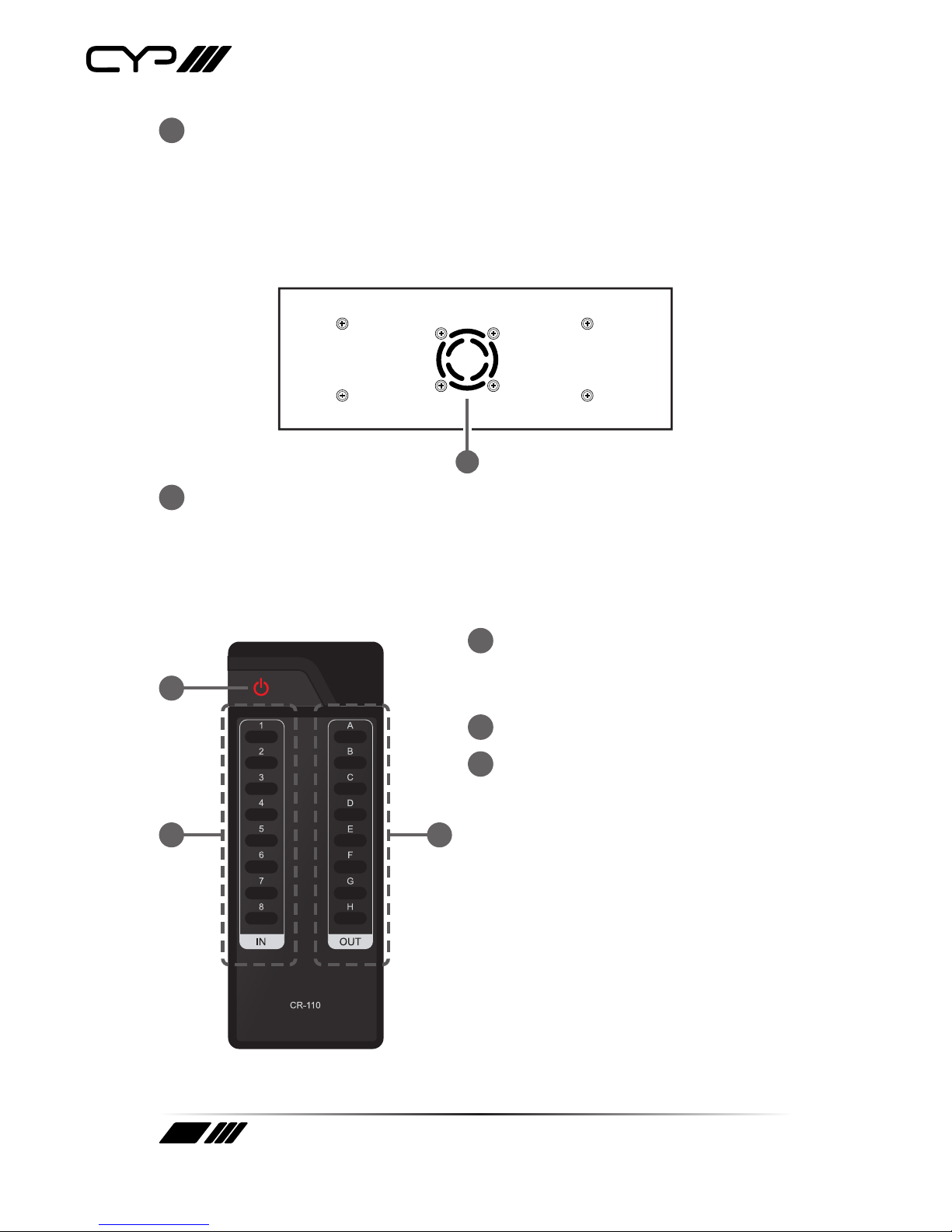

6.3 Side Panel

Fan Ventilator: These are air ventilation areas, DO NOT block these

areas or cover it with any object. Please allow adequate space around

the unit for air circulation.

6.4 Remote Control

POWER: Press this button to

switch on the device or set it to

standby mode.

IN: Input ports selection 1~8.

OUT: Output ports selection A~H.
