CYP CMSI-8H8HC Manual de usuario
CMSI-8H8HC
8×8 HDMI Matrix with Simultaneous Dual CAT6 and
HDMI Outputs
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 14/11/12 Preliminary Release
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 Side Panel .........................................5
6.4 Remote Control................................5
6.5 IR Cable Pin Assignment..................6
6.6 RS-232 Pin Assignment .....................7
6.7 RS-232 and Telnet Commands .......8
6.8 Telnet Control ...................................9
6.9 Web GUI Control ............................11
7. Connection Diagram .......................... 13
8. Specications ...................................... 15
9. Acronyms ............................................. 16
1
1. INTRODUCTION
The 8×8 HDMI Matrix with simultaneous CAT6 and HDMI outputs
connects eight HDMI sources to 16 displays. This matrix features 8
HDMI outputs and each HDMI output is mirrored to provide a Dual-
CAT-Cable output which runs simultaneously. Connect a CH-1106RX
Receiver to each of the Dual-CAT-Cable outputs to extend the HDMI
signal up to 45m for multi-room connectivity.This matrix switcher can
be controlled via the supplied IR Remote Control, RS-232, Telnet,
Web GUI or by using the selection buttons on the front panel. This
device supports ‘Deep Color’, High Denition Audio, and 3D signal
compatibility.
2. APPLICATIONS
• Multi-zoned HD installations
• HD and AVR Sub-zone installation
• Video and TV wall display and control
• Security surveillance and control
• Commercial advertising, display and control
• University Lecture hall display and control
• Retail demonstration and sales
• Telnet and Web GUI Control
3. PACKAGE CONTENTS
• 8×8 HDMI over Dual CAT6 Matrix
• 1×IR Extender
• 2×IR Blaster
• 1×24 V/6.25 A DC Power Adaptor
• 1×IR Remote Control
• Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices, connect with HDMI cables or DVI
equipped source, connect with DVI to HDMI cables
• HDMI equipped displays (TVs or monitors) or HDMI equipped AV
receivers, connect with HDMI cables
• HDMI over dual CAT6 Receiver(s) with industry CAT6 cable
2
5. FEATURES
• HDMI, HDCP 1.1 and DVI compliant
• Supports HDMI 3D pass-through
• Supports resolutions from VGA~WUXGA@60RB and HD resolutions
from 480i~1080p dependent upon the display’s EDID settings
• Supports transmission distances up to 45 meters through Dual CAT6
cables
• Supports 3D signal display dependent upon the display's EDID
settings
• Supports simultaneous HDMI and CAT6 outputs
• Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters
at 12-bit resolution; CAT output up to 45 meters at 8-bit resolution
• Supports IR pass-back through CAT for source control
• Supports RS-232, remote control, on-panel control and IP Control
(Telnet & Web GUI)
• 2U size design
• Supports external and internal EDID settings
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
Note:
1. Tested with CAT-6/23AWG cable, results may vary with cables of a
different specication.
2. Cable distance tested with a Sony PS3 40G, 37" Philips 8-bit LCD TV
and 37" Samsung 12-bit LCD TV.
3. Figures provided in this manual are for reference only, actual gures
may vary depending on the source equipment and display being
used along with the type of cables and their specications.
4. Do not connect the LAN/CONTROL port to CAT outputs of this
device.
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER LOCK
MENU OUTA 1B2C3D4
IN
E5F6G7H8
8X8 HDMI MATRIX CMSI-8H8HC
2 3 4 5 61
1
LCM: Displays the setting information of each input and output
setting.
2
POWER: Press this button to power the device on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
3
LOCK: Press this button to lock all the buttons on the panel, press
again to unlock.
4
IR: IR Receiver window (accepts the remote control signal of this
device only).
5
MENU: Press this button to access the LCM menu system, from
here EDID settings can be managed and IP system settings are
displayed.
6
1~8/A~H and OUT/IN: Press the OUT or IN button to select the
output or input mode and then press the required number button
to make the selection accordingly.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2, then the following sequence of
button presses need to be performed:
Press: OUTABCDIN1MENU,
and then press: OUTEFGHIN2MENU.
Note: If the menu button is not pressed the selection will not be
changed.
4
6.2 Rear Panel
CONTROL
DC 24V
RS232 SERVICE
HDMI VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO
DDC DDC DDC DDC DDC DDC DDC DDC
OUTPUT A
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
1
2
3
4
V+
GND
GND GND
V+
IR
HDMI
OUTPUT B
IR
HDMI
OUTPUT C
IR
HDMI
OUTPUT D
IR
HDMI
OUTPUT E
IR
HDMI
OUTPUT F
IR
HDMI
OUTPUT G
IR
HDMI
OUTPUT H
IR
IR IN
2 4
3
91
6
8
5
7
1
CONTROL: This port is the link for Telnet and Web GUI controls,
connect to an active Ethernet link with an RJ45 terminated cable (for
further details, please refer to section 6.8 & 6.9).
Warning: Please do not connect this port directly to the PC/Laptop
as the Telnet function will not work.
2RS-232: Connect to a PC or control system with D-Sub 9-pin cable
for the transmission of RS-232 commands.
3IR IN: Connect to the IR extenders for IR signal reception from the
remote control of the Matrix. Ensure that the remote is within the
direct line-of-sight of the IR extender when used.
4
SERVICE: Manufacturer use only.
5
IR OUT A~H: Connect to the IR blasters for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be
controlled for it will blaster out the IR signal received from the
reciever side choosen by input selection.
6
DDC/VIDEO OUTPUT A~H: Connect from these CAT outputs to
the Dual-CAT-Cable input ports of the receiver units with a pair
of CAT5e/6/7 cables for HDMI Audio/Video and IR control signal
transmission.
7
HDMI OUT A~H: Connect to HDMI equipped TVs or monitors for
display of the HDMI input source signal.
8
HDMI IN 1~8: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.
9
DC 24V: Plug the 24 V DC power supply into the unit and connect the
adaptor to an AC outlet.
5
6.3 Side Panel
1
1Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space
around the unit for air circulation.
6.4 Remote Control
1
POWER: Press this button to
switch on the device or set it to
standby mode.
2IN: Input ports selection 1~8.
3OUT: Output ports selection A~H.
1
23
6

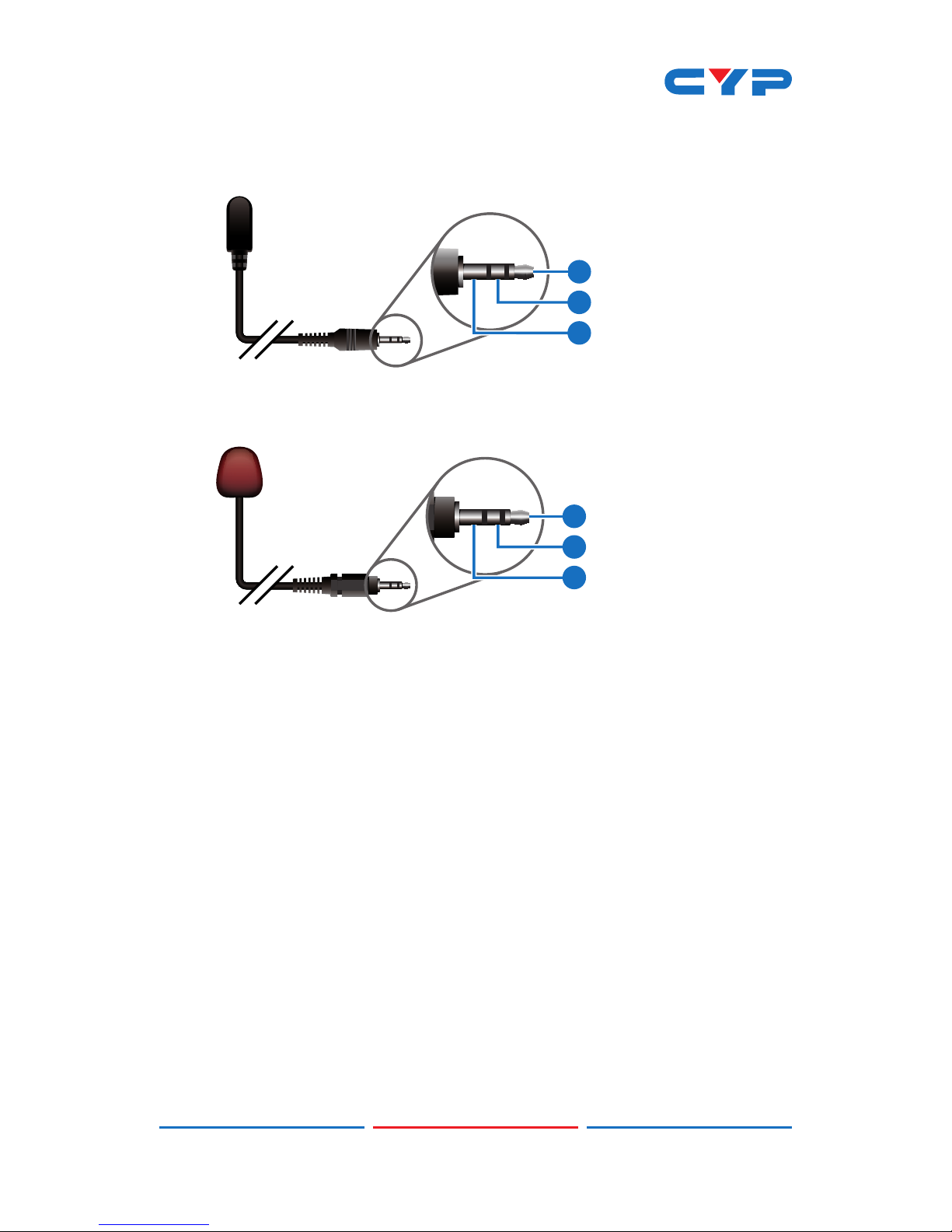

6.5 IR Cable Pin Assignment
3
1
3
1
2
2
Power 5 V
IR Blaster Signal
NC
IR Signal
Power 5 V
Grounding
IR Extender
IR Blaster
