Crux VIMGM-94M Manual de usuario

INTERFACING SOLUTIONS

VIMGM-94M

VIDEO IN-MOTION INTEGRATION

FOR SELECT CHEVROLET, CADILLAC

& GMC VEHICLES 2013-UP

CADILLAC

2014 - 2015 ATS

2013 - 2015 CTS

2013 - 2015 SRX

CHEVROLET

2014 - 2015 Corvette

2015 - 2015 Colorado

2014 - 2015 Silverado

2015 - 2015 Tahoe

GMC

2014 - 2015 Sierra

2015 - 2015 Suburban

2015 - 2015 Terrain

APPLICATION NOTES:

WORKS FOR:

MyLink + CUE Radios

This interface does not offer the

Force RVC feature.

Contact Tech Support for more

information.

PARTS INCLUDED

(1) GM-94M Interface Module

(1) GM-94M 6-Pin Harness

(1) Instruction Sheet

SAFETY PRECAUTIONS

1. Please read through the entire instruction manual before starting any of the installation procedures.

2. We recommend disconnecting the negative side of the battery until ready to code the vehicle.

3. Do not install any of the main modules near any major components or near the HVAC system,

as placing items near the HVAC may cause damage or overheating to the vehicle or interface.

4. We recommend not disconnecting any of the air bag connections behind the dash panels.

5. This product is under Crux’s 1 year manufacturer’s warranty. Warranty may be voided in the case where

the device shows proof of being opened or improper extreme force.

TECH SERVICES

All our products are manufactured under strict quality control. Each device is being tested before shipment. If nevertheless do occur problems or if

you have technical questions, contact us directly:

Crux Interfacing Solutions Tech Support

1 (855) 822-1348 (Mon - Fri - 9:00 AM - 5:00 PM) Pacific Time

www.cruxinterfacing.comRev. 091814 1

INTERFACING SOLUTIONS

VIMGM-94M

VIDEO IN-MOTION INTEGRATION

FOR SELECT CHEVROLET, CADILLAC

& GMC VEHICLES 2013-UP

INSTALLATION OVERVIEW

www.cruxinterfacing.comRev. 091814 2

8-PIN

(male plug)

4 5 6

1 2 3

STATUS LED’S

CAR SIDE

CUT WIRE YELLOW/BLACK/CAR SIDE

YELLOW/RADIO SIDE

CUT PIN 4

TO INTERCEPT

THE DATA

RED/12V CONSTANT

BLACK/GROUND

LIGHT GREEN/DATA

CONNECTING THE INTERFACE

Follow these steps to properly install the interface module.

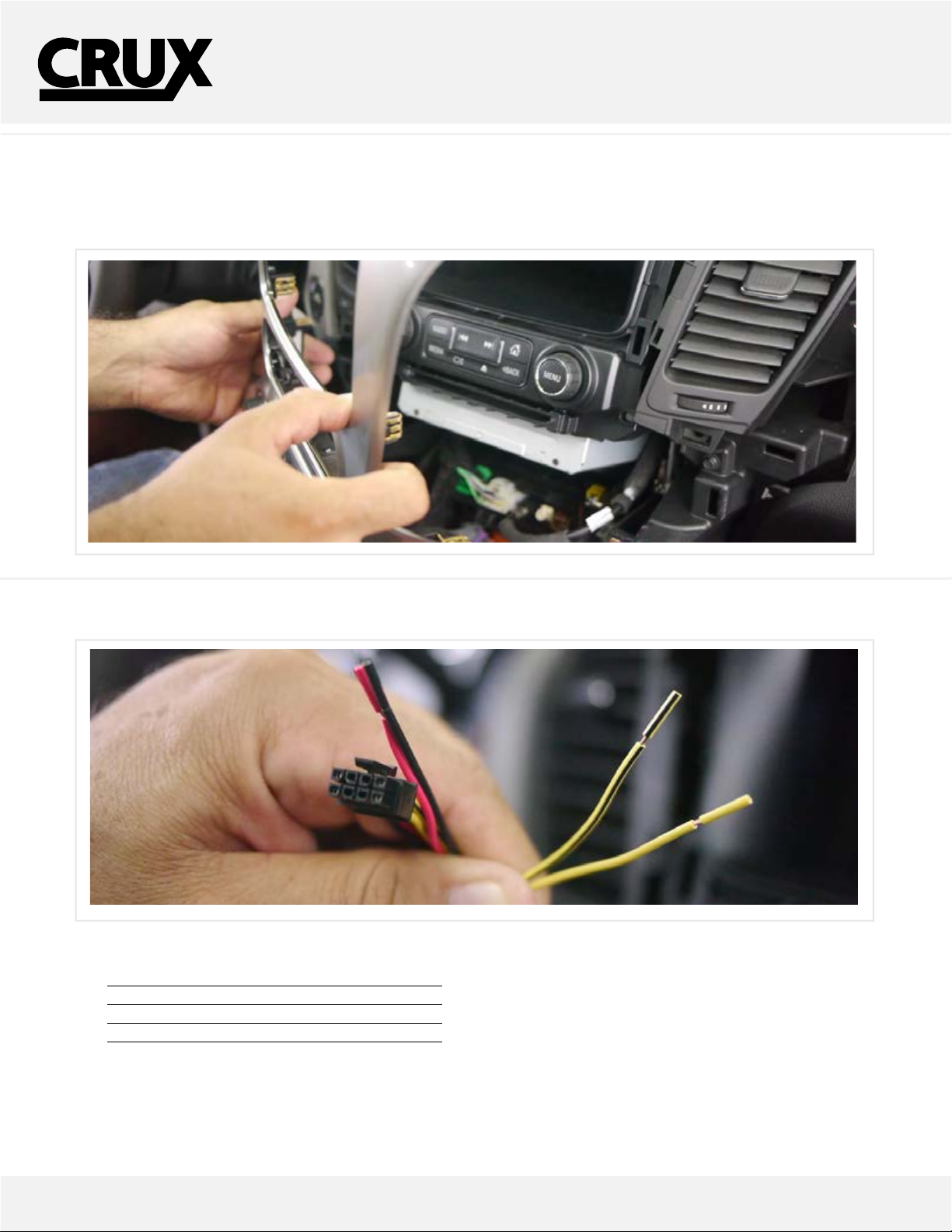

Step 1 - Remove the RADIO panel to gain access to the factory 20-PIN Harnesses. You will need to locate the CAN wire on the

vehicle. Page 2 will give you the full details on how to connect.

Step 2 - Using the provided 8-PIN Harness, you will need to connect the DATA Wire from the vehicle harness to the module, connect

the two YELLOW wires on the 8-PIN harness. See chart below for wire descriptions.

8-PIN LOOSE WIRES

RED = 12V Constant

BLACK = Ground

YELLOW = Data Output (To Radio)

YELLOW/BLACK = Data Input (From Car)

INTERFACING SOLUTIONS

VIMGM-94M

VIDEO IN-MOTION INTEGRATION

FOR SELECT CHEVROLET, CADILLAC

& GMC VEHICLES 2013-UP

www.cruxinterfacing.comRev. 091814 3

MAKE SURE THE DATA WIRE

CONNECTIONS ARE CONNECTED

PROPERLY.

FACTORY CAN WIRE IS LOCATED ON THE

FACTORY 20-PIN LOCATED BELOW THE

SCREEN.

INTERFACING SOLUTIONS

VIMGM-94M

VIDEO IN-MOTION INTEGRATION

FOR SELECT CHEVROLET, CADILLAC

& GMC VEHICLES 2013-UP

www.cruxinterfacing.comRev. 091814 4

CONNECTING THE INTERFACE

Follow these steps to properly install the interface module.

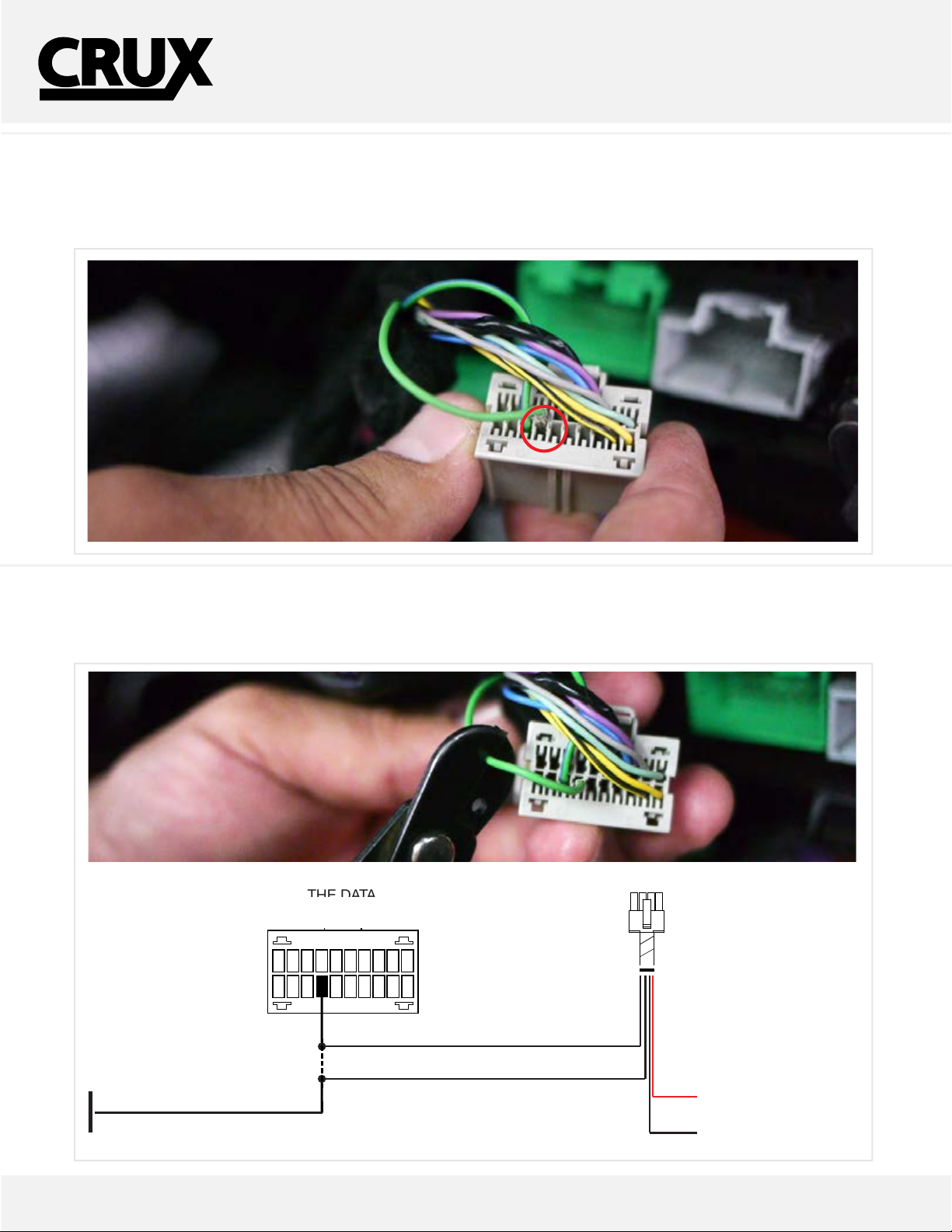

Step 3 - Use the facotry 20-PIN connector to tap for DATA. Normally the 20-Pin connector will be GRAY and the CAN wire is located

on PIN 4 of the factory connector. Shown below is the WIRE VIEW (Solid Light Green)

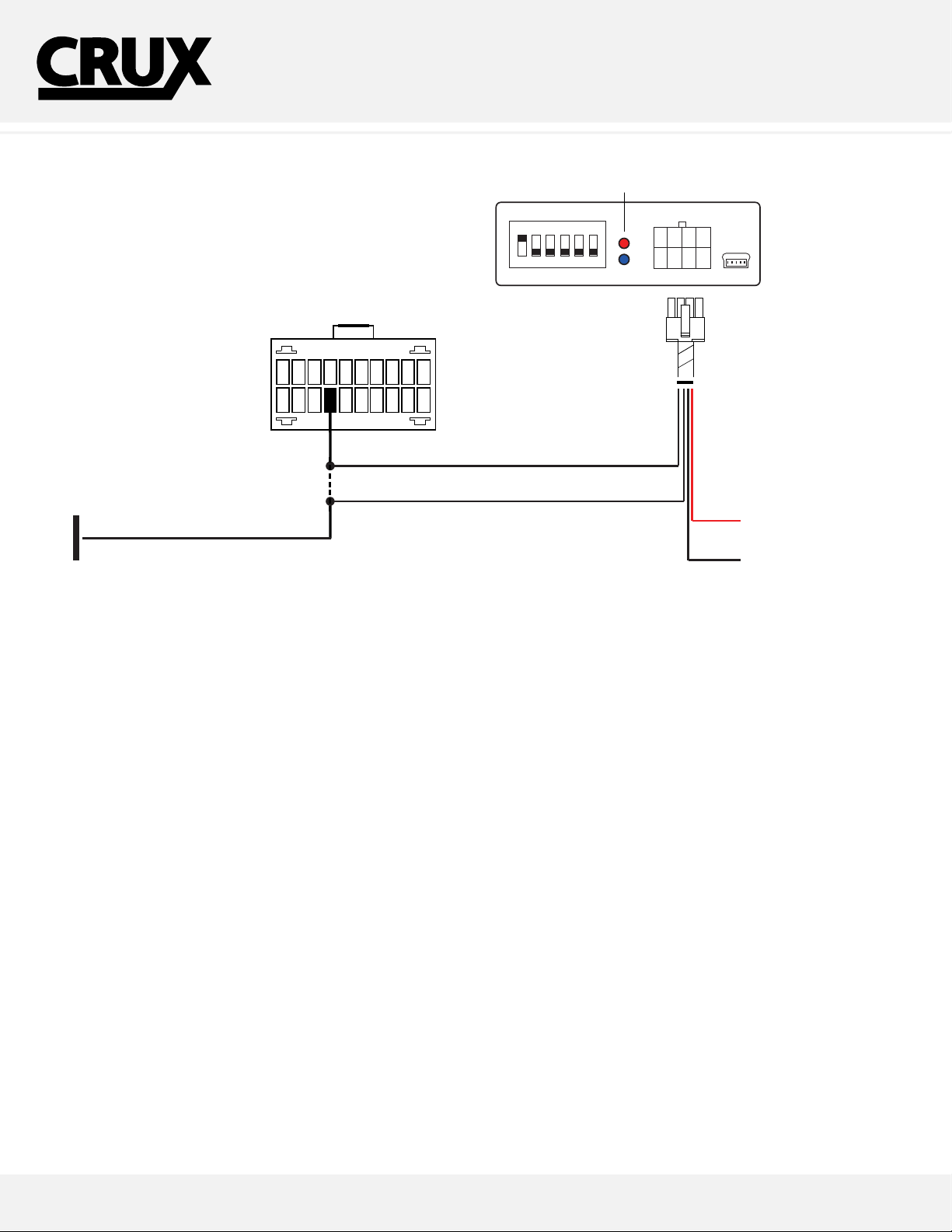

Step 4 - You will need to cut the DATA wire in order to properly connect the module. With the wire cut, use the side coming from the car

to go to the INPUT (Yellow/Black) wire on the 8-PIN Harness. Connect the solid YELLOW back to the portion on the factory

connector. See diagram below.

8-PIN

(male plug)

4 5 6

1 2 3

STATUS LED’S

CAR SIDE

CUT WIRE YELLOW/BLACK/CAR SIDE

YELLOW/RADIO SIDE

CUT PIN 4

TO INTERCEPT

THE DATA

RED/12V CONSTANT

BLACK/GROUND

LIGHT GREEN/DATA

INTERFACING SOLUTIONS

VIMGM-94M

VIDEO IN-MOTION INTEGRATION

FOR SELECT CHEVROLET, CADILLAC

& GMC VEHICLES 2013-UP

www.cruxinterfacing.comRev. 091814 5

CONNECTING YOUR DEVICES TO THE INTERFACE

Follow these steps to properly install the interface module.

Step 5 -The power for the module can be found on the GREEN 16-PIN connector. Located next to the GRAY connector.

RED = 12V CONSTANT / BLACK = GROUND (Make sure to measure the wires with a volt meter to confirm)

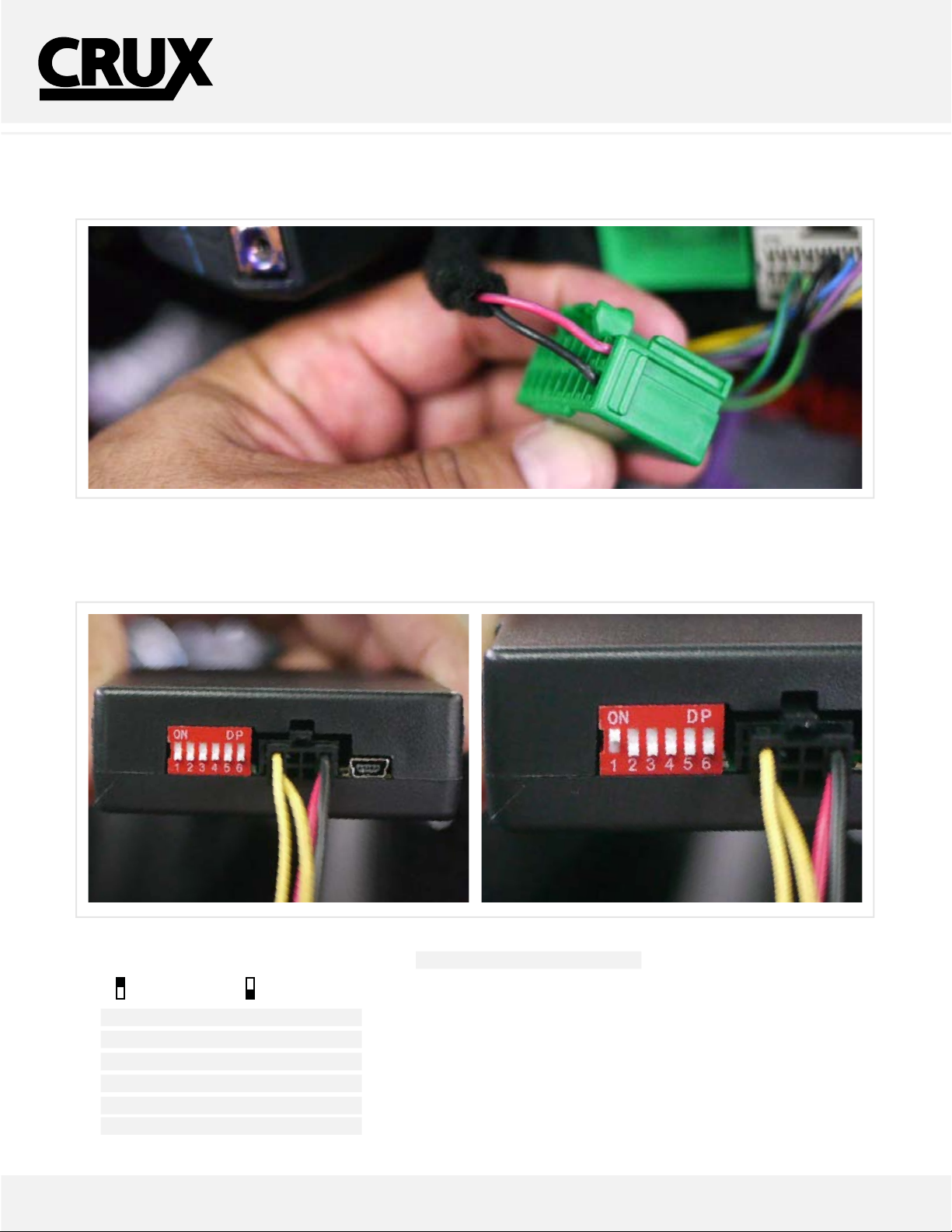

Step 6 - Connect the 8-Pin connector to the module and set your dip switch number 1 to ON. If the vehicle has a factory rear-view camera

Please set dip switch number 2 to ON also, if not simply leave OFF.

DIP SWITCH DESCRIPTION

IF NOT USING THE INPUT, PLACE TO OFF

DIP 1 = Video In-Motion Enable

DIP 2 = Not Used

DIP 3 = Not Used

DIP 4 = Not Used

DIP 5 = Not Used

DIP 6 = Not Used

After each change of the DIP switch settings,

we recommend powering down the module,

then restarting the vehicle.

DOES NOT EFFECT THE FACTORY

REAR-VIEW CAMERA.

LED INDICATORS

BLUE LED:

ON = Power On

OFF = Power OFF

UP=ON DOWN=OFF

INTERFACING SOLUTIONS

VIMGM-94M

VIDEO IN-MOTION INTEGRATION

FOR SELECT CHEVROLET, CADILLAC

& GMC VEHICLES 2013-UP

www.cruxinterfacing.comRev. 091814 6

TESTING THE INTERFACE

Make sure to test the interface while the vehicle is in motion.

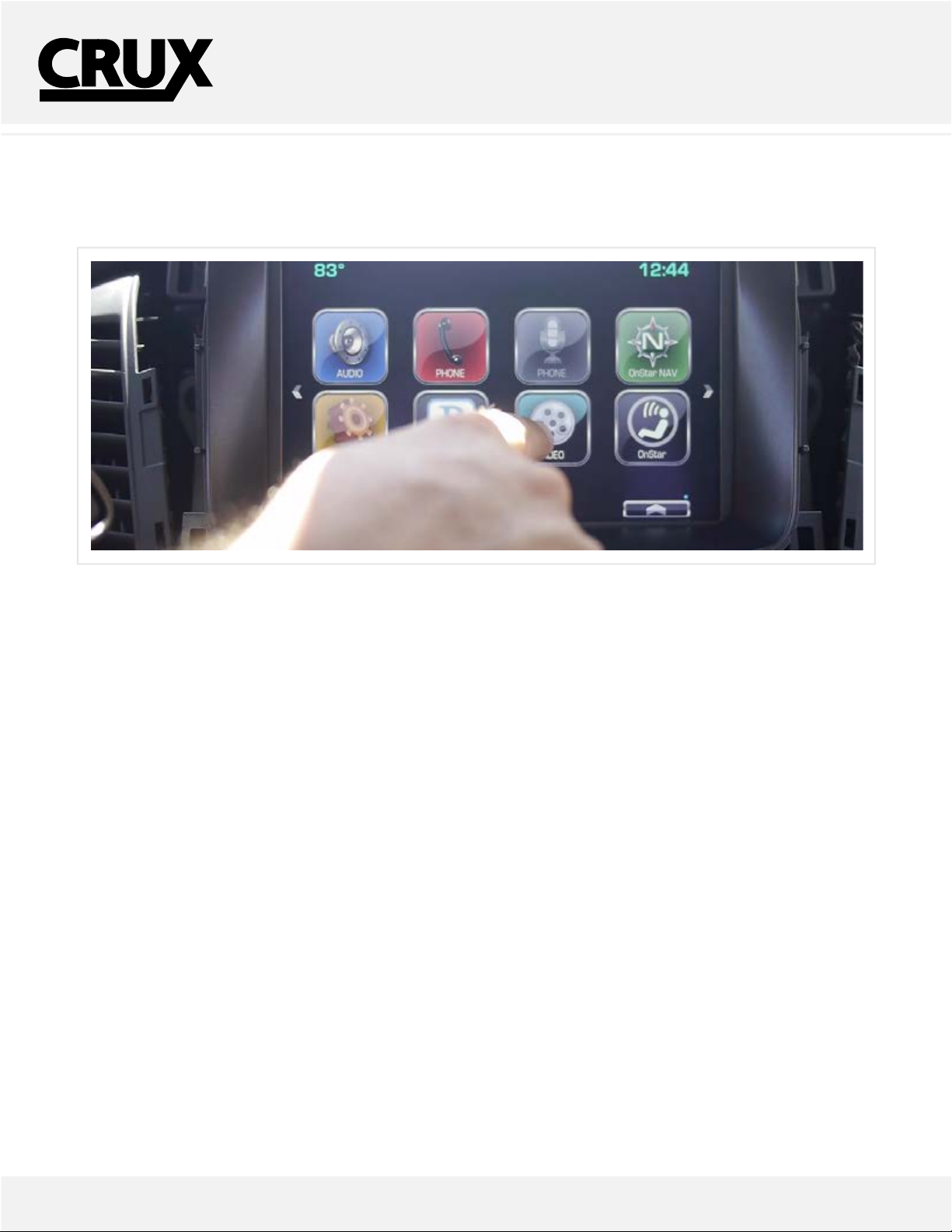

Step 1 - Use the features on the factory display to test the interface module. Using the VIDEO source will be your fastest way to test

the interface.

INTERFACING SOLUTIONS

VIMGM-94M

REAR-VIEW CAMERA INTEGRATION

FOR SELECT CHEVROLET, CADILLAC

& GMC VEHICLES 2013-UP

www.cruxinterfacing.comRev. 091814 7

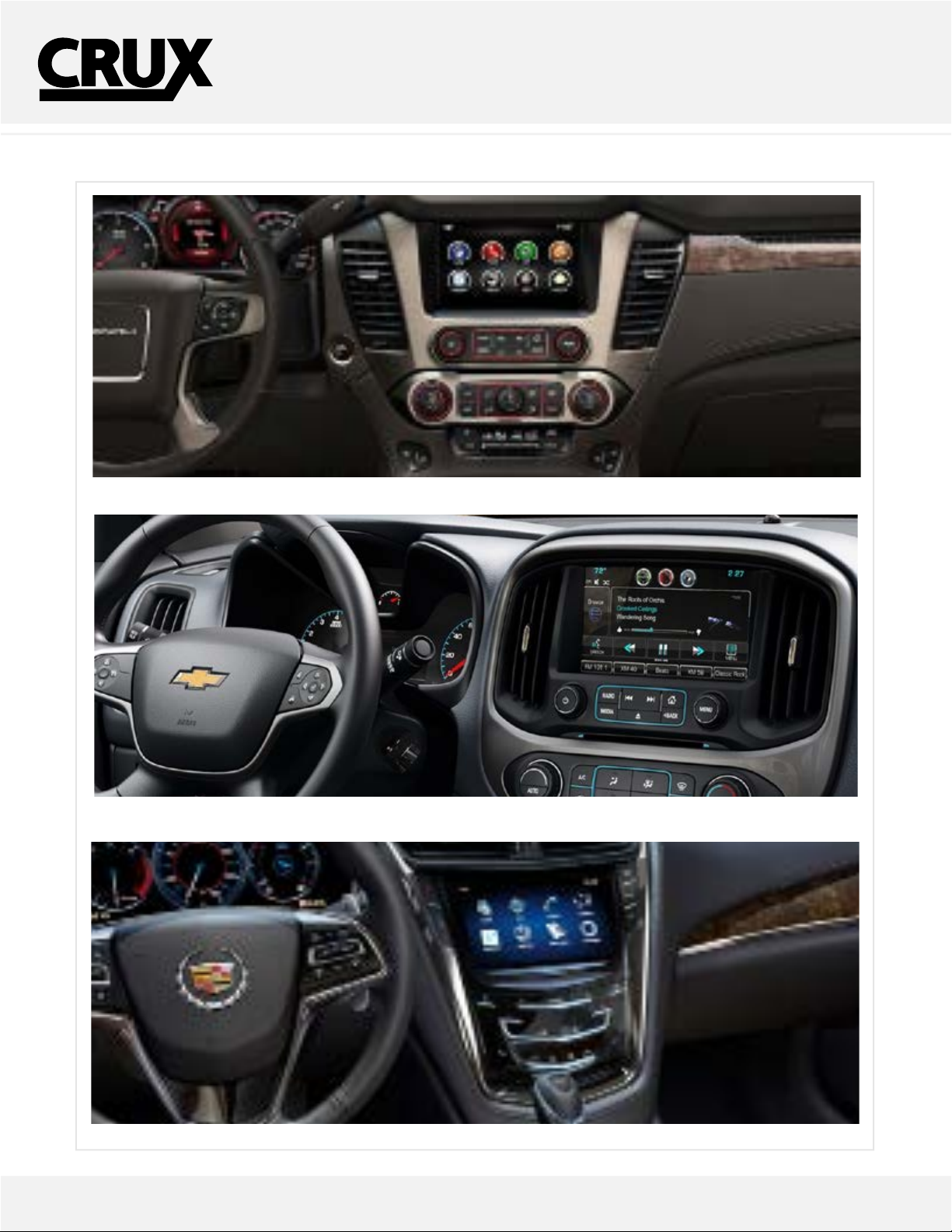

COMPATIBLE RADIOS: MyLink + CUE Radios 7”
