Crux RVCVL-82S Manual de usuario

2014-2015 S60 / V60

2014-2015 S80

2014-2015 V70

2014-2015 V40 / V40 Cross Country

2014-2015 XC60

2014-2015 XC70

1. Features like lane pilot, distance assistant and city safety system, DO NOT work while the

RVCVL-82S is activated.

2. Tap the green wire to +12V to activate the video-in-motion feature in selective mode.

VL-82S

Harness

RVCVL-82S

CAN Interface

050415

Switch off ignition and disconnect the vehicle’s battery! If disconnecting the battery has to be avoided

according to the factory directive, it is usually sufficient to put the vehicle is sleep-mode.

In case the sleep-mode does not work, disconnect the battery with a resistor lead.

DIP Switch Setting

Navigation

DIP

Vehicles WITHOUT extra equipment (lane pilot,

distance assistant, city safety system) and rear-view

camera

ON ON OFF OFF ON ON

Vehicles WITHOUT extra equipment (lane pilot,

distance assistant, city safety system) and with rear-

view and front-camera

ON ON ON OFF ON ON

Vehicles WITH extra equipment (lane pilot, distance

assistant, city safety system) and rear-view camera

OFF ON OFF OFF ON ON

Vehicles WITH extra equipment (lane pilot, distance

assistant, city safety system) and with rear-view and

front-camera

OFF ON ON OFF

ON ON

VL-82S Harness

071715

2 / 6

DIP switch functions of the RVCVL-82S

DIP 1 – Activate Video in Motion

DIP 2 – Activate rear-view camera

DIP 3 – Activate front-camera

DIP 4 – No function

DIP 5 – CAN-bus termination resistor on the vehicle side

DIP 6 – CAN-bus termination resistor on the head-unit side

PIN Assignment of loose wires on the VL-82S Harness (8-Pin Molex)

Wire Color

Pin-No.

Assignment

●Green

Pin 6

Activation of the video-in-motion function

(+12V =Video in Motion, only if DIP1=OFF)

●White

Pin 2

Reverse Trigger Output (+12V DC 500 mA)

Only if DIP2=ON and Reverse gear engaged

Note: The interface is installed on the backside of the navigation unit.

CONNECTING THE CAN INTERFACE TO THE FACTORY NAVIGATION UNIT

VL-82S

Harness

RVCVL-82S

CAN Interface

071715

3 / 6

Connect female 8-Pin Molex connector of the VL-82S harness to the male 8-Pin Molex

connector of CAN Interface.

Transfer the female Quadlock connector of vehicle harness from rear of the head-unit

to male Quadlock connector of the VL-82S harness.

Plug female Quadlock connector of the VL-82S harness into male Quadlock

connector on the rear of the head-unit.

Connect the video RCA of the rear-view camera to the female RCA connector of the

adapter cable from the RVCVL-82S kit.

Connect the green Fakra plug of the adapter cable from the RVCVL-82S kit to the brown

Fakra socket of the head unit.

Connect the white wire of the VL-82S harness to the camera power supply (+12V max

500mA). The white wire gets power when reverse gear is engaged.

VL-82S Harness

CONNECTIONS TO REAR VIEW CAMERA

Back of radio

071715

4 / 6

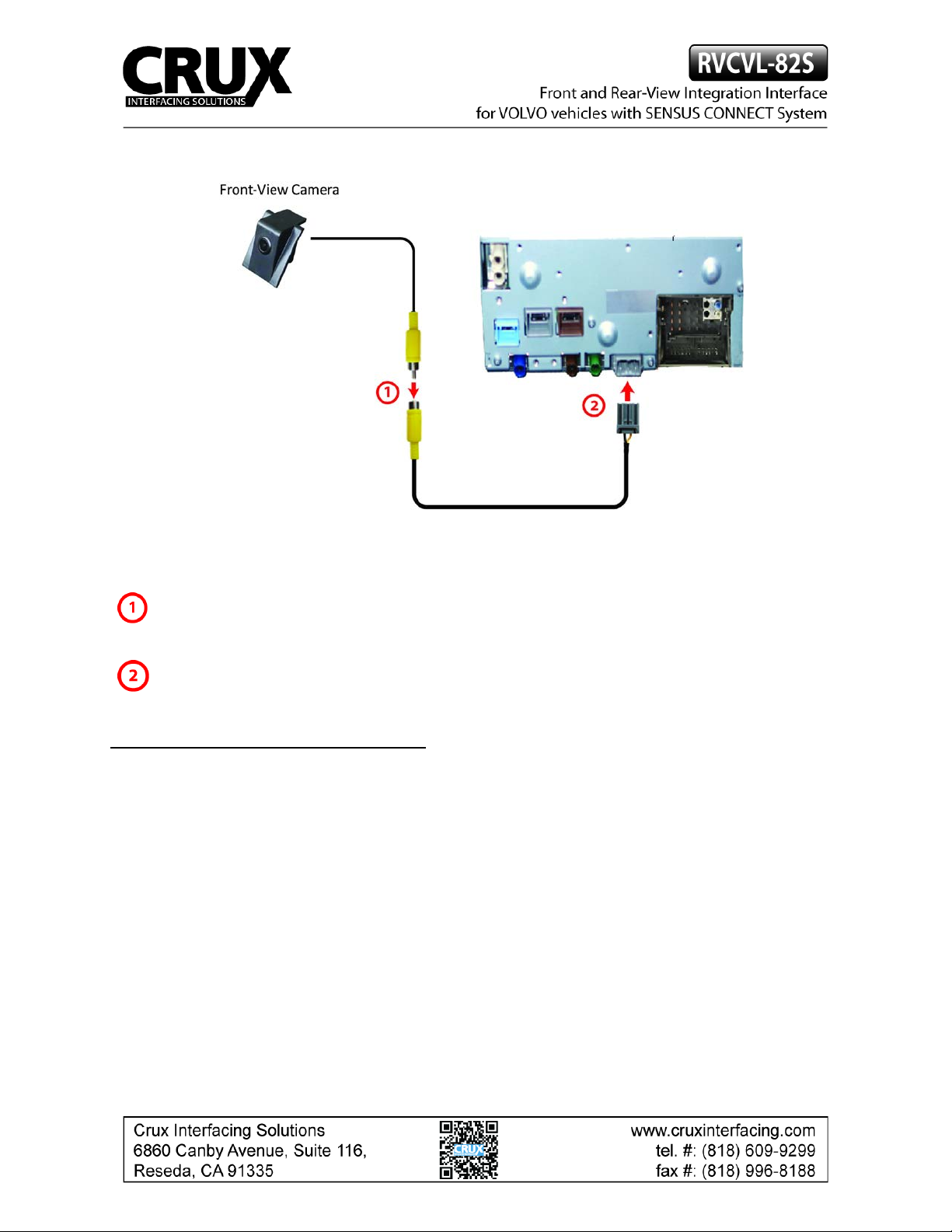

CONNECTION TO FRONT CAMERA

Connect the video RCA of the front camera to the female RCA connector of the adapter

cable from the RVCVL-82S kit.

Connect the grey 5pin plug of the adapter cable from the RVCVL-82S kit to the grey 5pin

socket of the head unit.

Activation of rear-view and front camera

The rear-view camera activates automatically whenever the reverse gear is engaged. The

camera will be deactivated once a speed of 12 mph is reached. Alternatively, activation /

deactivation can be done manually via the camera menu or via the softkey (see diagram).

The front camera can only be activated / deactivated manually via the camera menu or via the

softkey (see diagram).

Softkey rear-view camera function:



rear-view camera



off



...

Softkey front- and rear-view camera function:



rear-view camera



front camera



off



...

071715

5 / 6

Camera menu

Softkey

Activation of the video-in-motion function

The video-in-motion can be activated and deactivated by DIP 1 or by the loose green wire on

the harness when connected to a +12V ACC source.

Video-in-motion permanent

With DIP1 to ON the video-in-motion function is activated permanently without disturbing the

navigation performance.

Video-in-motion selective

With DIP1 set to OFF, the green wire is used to activate and deactivate the video-in-motion

function.

Connect a switch between the green wire and +12V ACC.

●+12V = Video-in-motion is activated

●0V = Video-in-motion is not activated

071715

6 / 6
