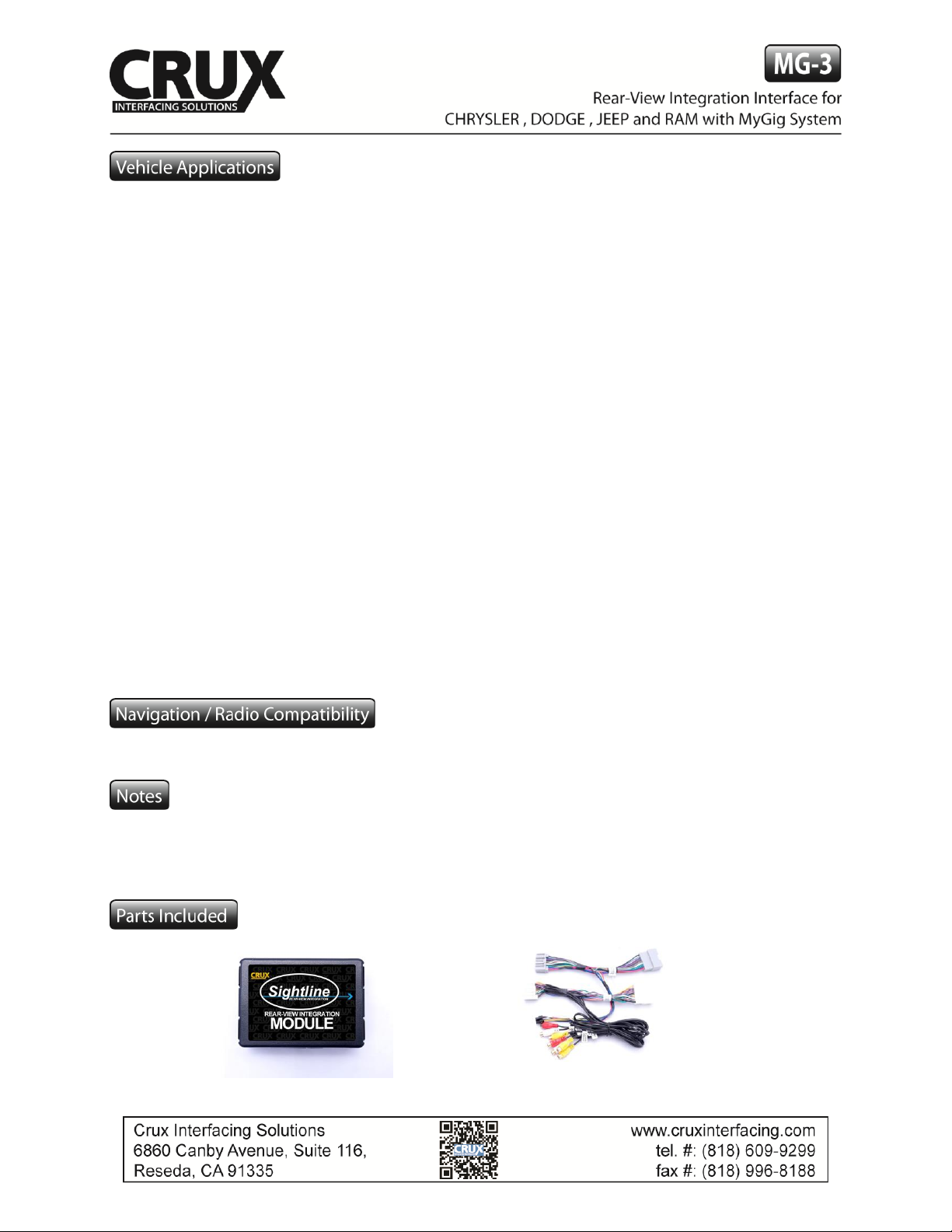

Crux MG-3 Manual de usuario

CHRYSLER

2011 - 2014 200

2008 - 2010 300/300C

2008 - 2010 Aspen

2007 - 2011 Sebring

2008 - 2017 Town & Country

DODGE

2007 - 2015 Avenger

2010 - 2012 Caliber

2008 - 2017 Caravan

2009 - 2014 Challenger

2008 - 2010 Charger

2008 - 2012 Dakota

2008 - 2013 Durango

2009 - 2010 Journey

2007 - 2012 Nitro

JEEP

2008 - 2010 Commander

2009 - 2017 Compass

2008 - 2013 Grand Cherokee

2008 - 2015 Liberty

2009 - 2017 Patriot

2007 - 2017 Wrangler

RAM

2009 - 2012 Ram

VOLKSWAGEN

2009 - 2013 Routan

- MYGIG Radio

1. Not compatible if Factory RSE is installed.

2. Not compatible if Factory Rear-View Camera is installed.

3. Does not supply Reverse Trigger on Manual Transmissions. Camera power must be tapped to reverse light wire.

MG-3 Harness

MG-3

CAN Interface

1 / 4

Rev.032317

NOTE: Does not supply Reverse Trigger on Manual Transmissions. Camera power must be

connected to the factory +12V reverse light wire instead.

DIP Switch Setting

DIP

Function

Activate Video in Motion

Activate rear-view camera

OFF

Not Used

OFF

Not Uses

5 & 6

OFF

CAN–Termination (Default to OFF)

Rev.032317

2 / 4

Installation Example on a Chrysler 300C

1. Remove the front panel from the center console, which is

attached by multiple clips.

2. Remove the 4 TORX screws and pull the headunit out of the

dashboard.

3. Remove the gray 22-pin male connector from the back

of the headunit and plug it to gray 22-pin female connector

on the MG-3 T-harness . Connect the gray 22-pin male

connector of the MG-3 T-harness to the factory radio harness.

4. Remove the white 22-pin male connector from the back

of the headunit and plug it to white 22-pin female connector

on the MG-3 T-harness . Connect the white 22-pin male

connector of the MG-3 T-harness to the factory radio harness.

Rev.032317

3 / 4

SWITCHING SOURCE INPUTS

1. Press RADIO/MEDIA button;

2. Tap VES on the screen;

3. Tap AUX IN 1 to select the interface as current AV-source.

NOTE: The VES button is only active after the interface is installed.

Note: The interface switches automatically to an installed rear-view camera when reverse gear

is engaged.

Activation of rear-view camera

The rear-view camera activate automatically whenever the reverse gear is engaged.

Activation of the video-in-motion function

The video-in-motion can be activated and deactivated by DIP 1 or alternatively by the included loose

green cable in connection with a toggle switch (not included).

Video-in-motion permanent

Set DIP 1 to ON for the video-in-motion function to be activated permanently without disrupting the

navigation performance.

Video-in-motion selective

Set DIP# 1 to OFF and use the green wire to activate the video-in-motion function.

Connect a toggle switch between a +12V ACC source and the green wire.

●+12V = Video in Motion is activated

●0V = Video in Motion is not activated

HDD

DISC

AUX

VES

Rev.032317

4 / 4
