Crux VIMBM-86B Manual de usuario
INTERFACING SOLUTIONS
VIMBM-86B
VIDEO IN-MOTION INTEGRATION
FOR SELECT BMW
VEHICLES 2012-UP
BMW
2012-2015 1 Series
2012-2015 3 Series
2012-2014 5 Series
2012-2014 X3
2012-2014 X5
APPLICATION NOTES:
WORKS FOR:
NBT 10.2” Radio Displays
Contact Tech Support for more
information.
PARTS INCLUDED
(1) BM-86B Interface Module
(1) BM-86B 40-Pin Harness
(1) Instruction Sheet
SAFETY PRECAUTIONS
1. Please read through the entire instruction manual before starting any of the installation procedures.
2. We recommend disconnecting the negative side of the battery until ready to code the vehicle.
3. Do not install any of the main modules near any major components or near the HVAC system,
as placing items near the HVAC may cause damage or overheating to the vehicle or interface.
4. We recommend not disconnecting any of the air bag connections behind the dash panels.
5. This product is under Crux’s 1 year manufacturer’s warranty. Warranty may be voided in the case where
the device shows proof of being opened or improper extreme force.
TECH SERVICES
All our products are manufactured under strict quality control. Each device is being tested before shipment. If nevertheless do occur problems or if
you have technical questions, contact us directly:
Crux Interfacing Solutions Tech Support
1 (855) 822-1348 (Mon - Fri - 9:00 AM - 5:00 PM) Pacific Time
www.cruxinterfacing.comRev. 102814 1
INTERFACING SOLUTIONS
VIMBM-86B
VIDEO IN-MOTION INTEGRATION
FOR SELECT BMW
VEHICLES 2012-UP
INSTALLATION OVERVIEW
www.cruxinterfacing.comRev. 102814 2
8-PIN
(male plug)
4 5 6
ON
1 2 3
STATUS LED’S
40-PIN
(male plug)
40-PIN
(female plug)
4 5 6
ON
1 2 3
DIP 1 = ON
2
3
4
5
DIP 6 = ON
OFF
ACTIVATE
VIDEO
IN-MOTION
DIP SWITCH SETTINGS OVERVIEW
CONNECTING THE INTERFACE
Follow these steps to properly install the interface module.
Step 1 - Remove the RADIO portion of the system to gain access to the factory 40-PIN Harnesses. You will NOT have to
get behind the factory display.
Step 2 - Once behind the RADIO, remove the factory 40-Pin Quadlock connector.
INTERFACING SOLUTIONS
VIMBM-86B
VIDEO IN-MOTION INTEGRATION
FOR SELECT BMW
VEHICLES 2012-UP
www.cruxinterfacing.comRev. 102814 3
INTERFACING SOLUTIONS
VIMBM-86B
VIDEO IN-MOTION INTEGRATION
FOR SELECT BMW
VEHICLES 2012-UP
www.cruxinterfacing.comRev. 102814 4
CONNECTING THE INTERFACE
Follow these steps to properly install the interface module.
Step 3 - On the factory 40-Pin connector, remove the factory Fiber-Optic cables. Lift the clip to release the fiber optic connector.
Step 4 - After removing the factory Fiber-Optic cables, re-insert the Factory fiber optic cables into the CRUX T-Harness.
Make sure to insert the fiber optics into the first slot from the outside.
INTERFACING SOLUTIONS
VIMBM-86B
VIDEO IN-MOTION INTEGRATION
FOR SELECT BMW
VEHICLES 2012-UP
www.cruxinterfacing.comRev. 102814 5

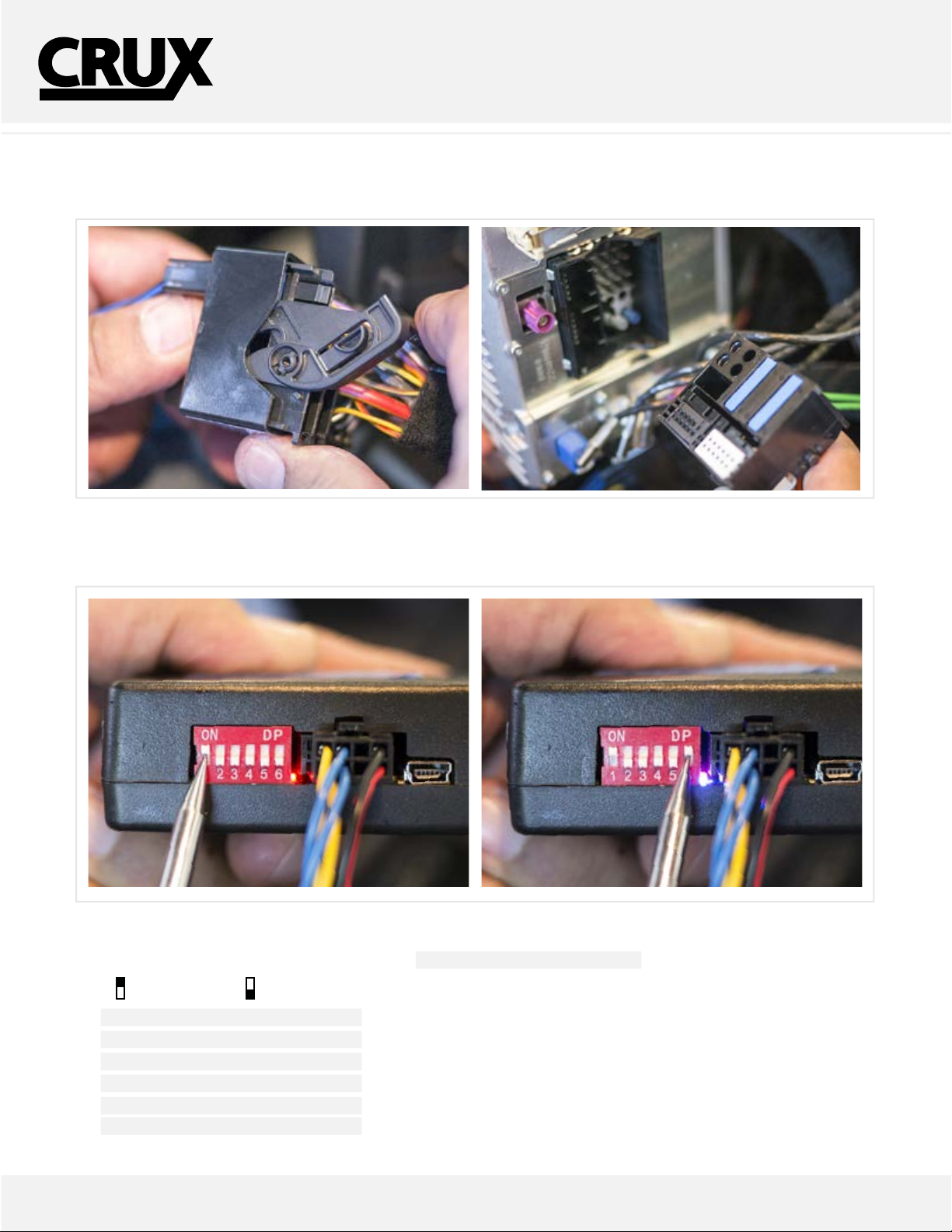

CONNECTING YOUR DEVICES TO THE INTERFACE
Follow these steps to properly install the interface module.
Step 5 -After making the Fiber-Optic connections, mate the T-Harness. One end goes to the factory 40-Pin harness and the other
end goes to the factory Radio. Our 40-Pin will NOT have a latch to lock, but will not move out of place.
Step 6 - Connect the 8-Pin connector to the module and switch dip switches number 1 and 6 to ON.
DIP SWITCH DESCRIPTION
IF NOT USING THE INPUT, PLACE TO OFF
DIP 1 = Video In-Motion Enable
DIP 2 = Not Used
DIP 3 = Not Used
DIP 4 = Not Used
DIP 5 = Not Used
DIP 6 = CAN Termination
After each change of the DIP switch settings,
we recommend powering down the module,
then restarting the vehicle.
ACTIVATING THE VIDEO IN-MOTION DOES NOT EFFECT THE
FACTORY REAR-VIEW CAMERA, GPS, PARK ASSIST, OR
OTHER VEHICLE INFORMATION
LED INDICATORS
BLUE LED:
ON = Power On
OFF = Power OFF
UP=ON DOWN=OFF
INTERFACING SOLUTIONS
VIMBM-86B
VIDEO IN-MOTION INTEGRATION
FOR SELECT BMW
VEHICLES 2012-UP
www.cruxinterfacing.comRev. 102814 6
TESTING THE INTERFACE
Make sure to test the interface while the vehicle is in motion.
Step 1 - Use the features on the factory display to test the interface module. Using the factory video source while driving the vehicle
will be the fastest way to test the interface.
INTERFACING SOLUTIONS
VIMGM-94M
VIDEO IN-MOTION INTEGRATION
FOR SELECT BMW
VEHICLES 2012-UP
www.cruxinterfacing.comRev. 102814 7
COMPATIBLE RADIOS: 10” Screen Radios
