Cross Technologies 2116-182193 Manual de usuario

Instruction Manual Model 2116-182193

Block Downconverter

February 2023, Rev. 0

MODEL 2116

CROSS TECHNOLOGIES INC.

POWER

DOWNCONVERTER

EXT

10MHZ

ALARM

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment. Printed in USA.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 2116-182193 Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

2.0 Installation 6

2.1 Mechanical 6

2.2 Rear Inputs and Outputs 7

2.3 Front Panel Indicators 7

2.4 Operation 8

3.0 Environmental Use Information 9

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2116-182193 Manual, Rev. 0 Page 2

02/28/2023

MODEL 2116-182193 Downconverter

1.0 General

1.1 Equipment Description -The 2116-182193 Downconverter converts 18.2 - 19.3 GHz to 0.95 -

2.05 GHz with a local oscillator at 17.25 GHz. Front panel LEDs indicate DC Power, External 10

MHz, and PLL Alarm. The gain is +25 dB. Connectors are SuperSMA female for the RF input and

BNC female for the RF output (designated L-Band), the external reference input, and the reference

output. A three-way switch controls which 10 MHz reference is being used. In the INT position, the

internal reference is used, in the EXT position, the external reference is used, and in the AUTO

position, the internal reference is used unless a +3 dBm ± 3 dB, 10MHz reference signal is connected

to the external reference input. It is powered by a 100-240 ± 10% VAC power supply, and in a 1 3/4”

X 19” X 14” rack mount chassis.

MODEL 2116

CROSS TECHNOLOGIES INC.

POWER

DOWNCONVERTER

EXT

10MHZ

ALARM

FRONT PANEL

GND

EXT 10MHZ

RF INPUT

INPUT

10MHZ REF

OUTPUT

INT

EXT

AUTO

L-BAND

OUTPUT

J101

J11

ALARM

REAR PANEL

FIGURE 1.1 Model 2116-182193 Front and Rear Panels

18.2

19.3

GHz

0.95

2.05

GHz

OUT

17.25 GHz

EXT 10 MHZ

10 MHZ

MON

AUTO

INT

10 MHZ

2116-182193

Block Diagram

FIGURE 1.2 Model 2116-182193 Downconverter Block Diagram

2116-182193 Manual, Rev. 0 Page 3

02/28/2023

1.2 Technical Characteristics

TABLE 1.0 2116-182193 Downconverter Specifications*

Input Characteristics (RF)

Impedance/Return Loss 50Ω/14 dB (See TABLE 2.2 for connector options)

Frequency 18.2 to 19.3 GHz

Noise Figure, max. 12 dB, max. gain

Input Level -55 to -35 dBm

Input 1dB Compression -25 dBm

Output Characteristics (L-Band)

Impedance/Return Loss 50Ω/14 dB

Frequency 0.95 to 2.05 GHz

Output Level Range -30 to -10 dBm

Output 1 dB compression +0 dBm at Fc, Gmax

Channel Characteristics

Gain +25 dB ± 2 dB at Fc

Image Rejection >55 dB, min.

Spurious, In Band SIGNAL RELATED <-50 dBc in band, -10 dBm out;

SIGNAL INDEPENDENT,<-60 dBm, 0.95-2.05 GHz Out

Spurious, Out of Band <-50 dBm (0.5-0.94 GHz and 2.06-3.3 GHz Out), Gmax

Intermodulation <-55 dBc for two carriers at Fc ± 2 MHz, each at -15 dBm out, Gmax

Frequency Response ±2.0 dB, 0.95 to 2.05 GHz out; ± 0.5 dB, 40 MHz BW

Frequency Sense Non-Inverting

LO Characteristics

LO Frequency 17.25 GHz

Frequency Accuracy ± 0.01 ppm max over temp internal reference,

10 MHz Level 3 dBm, ± 3 dB, 75 ohms, External In or 10MHz Out

Controls, Indicators

INT/AUTO/EXT Switch Selects internal or external 10 MHz (rear panel DP3T switch)

Power Green LED

PLL Alarm Red LED, External contact closure

Ext 10 MHz Yellow LED, Indicates Ext 10 MHz reference selected

Other

RF Connector Super SMA (female), 50Ω

L-Band Connector BNC (female), 50Ω

10 MHz Connectors BNC (female), 50Ω/75Ω

Alarm Connector DB9 - NO or NC contact closure on Alarm

Size 19 inch standard chassis, 1.7” high X 14.0” deep

Power 100 - 240 ±10% VAC, 47 - 63 Hz, 45 watts max.

Options

Connector Options See TABLE 2.2

*+10˚C to +40˚C; Specifications subject to change without notice.

2116-182193 Manual, Rev. 0 Page 4

02/28/2023

2.0 Installation

2.1 Mechanical - The 2116-182193 consists of one RF PCB housed in a 1 RU (1 3/4 inch high) by 14 inch

deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 2116-

182193 can be secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how the 2116-182193 is

assembled.

PS IN

PIN 1, +12 VDC

PIN 2, +5 VDC

PIN 3, +5 VDC

PIN 4, GROUND

PIN 5, GROUND

PIN 6, -12 VDC

PIN 7, +24 VDC

PIN 8, +24 VDC

POWER

SUPPLY

J10

J101 - Panel Mount

Type N Connector

BP FILTER/

ISOLATOR

FIGURE 2.0 2116-182193 Mechanical Assembly

2116-182193 Manual, Rev. 0 Page 5

02/28/2023

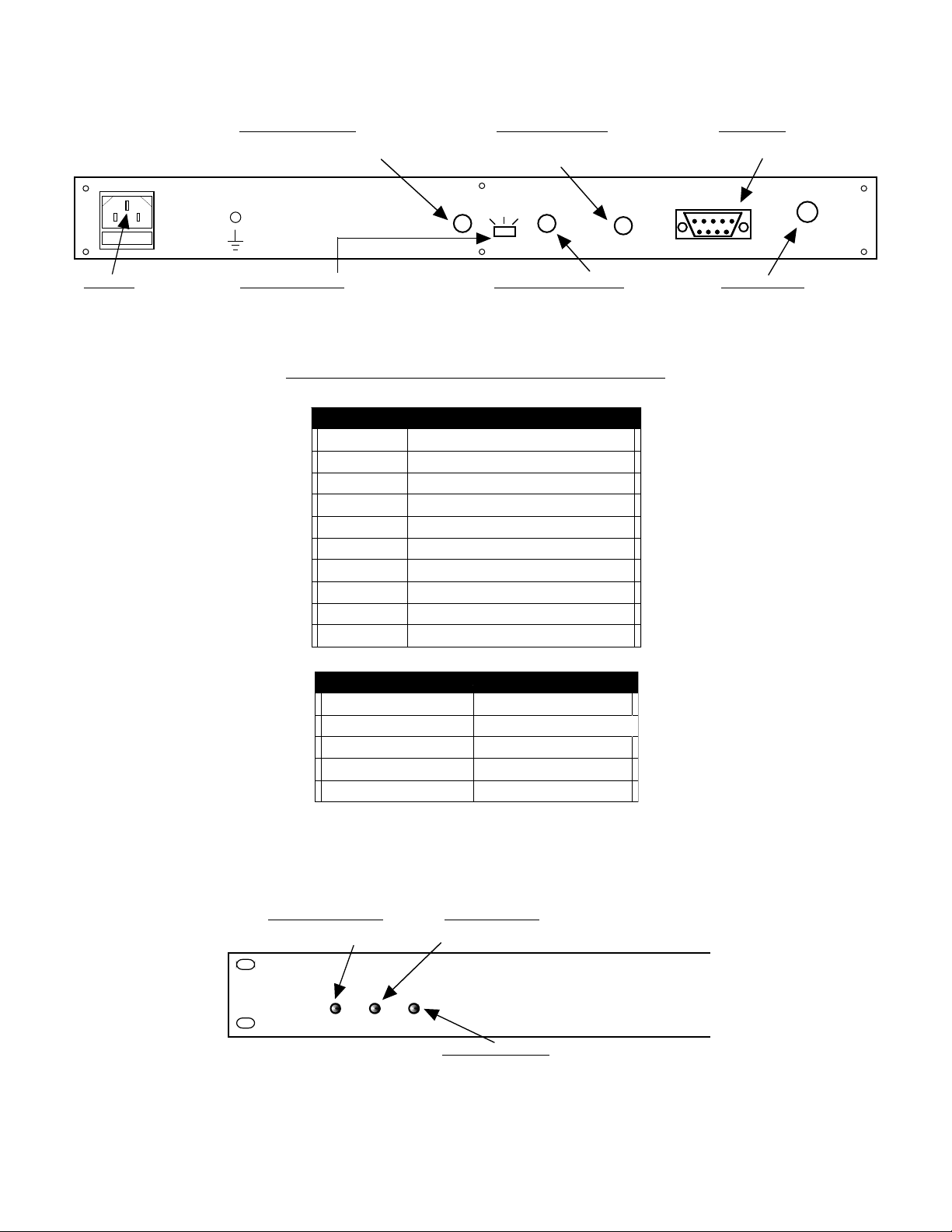

2.2 Rear Panel Input/Output Signals - Figure 2.1 shows the input and output connectors on the rear panel.

GND

EXT 10MHZ

RF INPUT

INPUT

10MHZ REF

OUTPUT

INT

EXT

AUTO

L-BAND

OUTPUT

J101

J11

ALARM

J1 - L-BAND OUTPUT

BNC (female) 50 Ω. 0.95 to 2.05 GHz, -

10 dBm max output signal. See Table

2.2 for other connector options.

AC INPUT

100-240 ±10% VAC,

47-60 HZ

Uses 2 amp Slow Blo,

5mm fuse

S1 - 10MHZ SWITCH

3-position switch. INT selects internal 10MHz ref.

AUTO selects internal 10MHz ref, unless a 0dBm

±3dB 10MHz signal is inserted on J2. EXT selects

external 10MHz ref from J2.

J1 - EXT 10MHZ INPUT

BNC (female) 75 Ω. Insert external 10MHz

reference here (3 dBm ± 3 dB).

J101 - RF INPUT

SuperSMA(female) 50 Ω.

18.2 to 19.3 GHz, -35 dBm max

input signal. See Table 2.2 for

other connector options.

J11 - ALARM

DB9 (female) connector.

See Table 2.1.

J8 - 10MHZ REF OUTPUT

BNC (female) 75 Ω. Outputs currently

selected 10MHz ref signal (3 dBm ±3 dB).

FIGURE 2.1 2116-182193 Rear Panel I/Oʼs

TABLE 2.1 J11 Pinouts (DB9)

Pin Function

1 Not Used

2 Not Used

3 Not Used

4 Not Used

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

TABLE 2.2 Connector Options

L-Band RF

BNC, 50Ω(STD) SuperSMA, 50Ω(STD)

SuperSMA, 50Ω(STD)

BNC, 75Ω

Type F, 75Ω

Type N, 50Ω

2.3 Front Panel Indicators - The following are the front panel indicators.

DS2 - ALARM LED

Lights RED when PLL

comes out of lock.

DS1 - POWER LED A

Lights GREEN when DC voltage is

present from AC power supply.

DS3 - EXT 10MHZ LED

Lights YELLOW when external

10MHz reference is active.

POWER

EXT

10MHZ

ALARM

2116-182193 Manual, Rev. 0 Page 6

02/28/2023

FIGURE 2.2 2116-182193 Front Panel Controls and Indicators

2.4 Installation / Operation

2.4.1 Installing and Operating the 2116-182193 Downconverter

1.) Connect a -55 dBm to -35 dBm signal to RF INPUT, J101 (Figure 2.1).

2.) Connect the L-BAND OUTPUT, J1, to the external equipment.

3.) Connect 100-240 ±10% VAC, 47 - 63 Hz to AC connector on the back panel.

4.) Be sure DS1 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).

5.) Select either INT (for internal 10MHz ref), AUTO (for internal 10MHz ref UNLESS a external

10MHz, 0 dBm signal is connected to J2), or EXT (for external 10MHz, 0 dBm ref that is inserted

at J2) on rear panel switch S1 (Figure 2.1).

6.) If EXT is selected or AUTO is selected and there is a 10MHz, 0 dBm signal at J2, check that DS3

(yellow, Ext 10MHZ) is on (Figure 2.2).

7.) Check that a 10MHz, 0 dBm ±3 dB signal is present at the 10MHZ REF OUTPUT (J8) (Figure 2.1).

8.) AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in

the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot.

If a fuse continues to open, the power supply is most likely defective.

AC Fuse - 2 amp slow blow (Type T),

5 mm X 20 mm

FUSE DRAWER

SPARE FUSE

INPUT

100-240± 10%VAC

47-63 Hz

2A MAX

FUSE

TYPE T 2A GDC

250 VOLT

FOR 100 - 240 V~

FIGURE 2.3 Fuse Location and Spare Fuse

2116-182193 Manual, Rev. 0 Page 7

02/28/2023

3.0 Environmental Use Information

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions

located in the user manual furnished by the manufacturer of your equipment rack.

B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra.

D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between unit

may be required.

E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used, when addressing this concern.

F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.

Particular attention should be given to supply connections other than direct connection to the

Branch (use of power strips).

G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or

EGRESS emission problems.

2116-182193 Manual, Rev. 0 Page 8

02/28/2023

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

Printed in USA

2116-182193 Manual, Rev. 0 Page 9

02/28/2023

Otros manuales de Convertidor de medios de Cross Technologies

Cross Technologies

Cross Technologies 2016-12 Manual de usuario

Cross Technologies

Cross Technologies 3016-1520-1200 Manual de usuario

Cross Technologies

Cross Technologies 2016-75-213 Manual de usuario

Cross Technologies

Cross Technologies 2115-275-1845 Manual de usuario

Cross Technologies

Cross Technologies 2015-24 Manual de usuario

Cross Technologies

Cross Technologies 1584 Manual de usuario

Cross Technologies

Cross Technologies 4117-14 Manual de usuario

Cross Technologies

Cross Technologies 2116-116 Manual de usuario

Cross Technologies

Cross Technologies 2005-02P4 Manual de usuario

Cross Technologies

Cross Technologies 2016-57 Manual de usuario

Cross Technologies

Cross Technologies 2015-26 Manual de usuario

Cross Technologies

Cross Technologies 3116-7786-2150 Manual de usuario

Cross Technologies

Cross Technologies 4116-285-2450 Manual de usuario

Cross Technologies

Cross Technologies 2016-95 Manual de usuario

Cross Technologies

Cross Technologies 4115-41-212 Manual de usuario

Cross Technologies

Cross Technologies 3116-145-1600 Manual de usuario

Cross Technologies

Cross Technologies 2015-123 Manual de usuario

Cross Technologies

Cross Technologies 2005-10 Manual de usuario

Cross Technologies

Cross Technologies 2117-7172 Manual de usuario

Cross Technologies

Cross Technologies 2116-300-1600 Manual de usuario

Cross Technologies

Cross Technologies 2016-8085 Manual de usuario

Cross Technologies

Cross Technologies 2116-21-1014 Manual de usuario

Cross Technologies

Cross Technologies 3116-192 Manual de usuario

Cross Technologies

Cross Technologies 4116-31-184 Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
