Cross Technologies 2016-95 Manual de usuario

Instruction Manual

Model 2016-95

Downconverter

March 2017, Rev. A

EXECUTE

MODEL 2016

CROSS TECHNOLOGIES INC.

F=750 G=+25.0

REMOTEALARM POWER

DOWNCONVERTER

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 2016-95 Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 5

2.0 Installation 8

2.1 Mechanical 8

2.2 Rear I/O’s 9

2.3 Front Panel Controls, Indicators 10

2.4 Operation 11

2.5 Menu Settings 12

3.0 Environmental Use Information 17

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2016-95 Manual, Rev. A Page 2 03/07/17

MODEL 2016-95 Downconverter

1.0 General

1.1 Equipment Description

The 2016-95 Downconverter converts 250 to 950 MHz to 70 ± 18 MHz in 1 MHz steps with low group delay

and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function

push button switches select the input frequency, gain, and other parameters. Front panel LEDs provide

indication of DC power, PLL alarm or Remote operation. Gain is adjustable manually (MGC) over a 0 to 50 dB

range. The frequency and gain are remotely selectable. Parameter selection and frequency and gain settings

appear on the LCD display. Connectors are Type F female for the RF, and BNC female for the IF and optional

external 10 MHz reference input and output (option E). Other connector options are available. The 2016-95 is

EXECUTE

MODEL 2016

CROSS TECHNOLOGIES INC.

F=750 G=+25.0

REMOTEALARM POWER

DOWNCONVERTER

FRONT

GND

J10

RF IN 10 MHZ

AND

MONITOR EXT REF

CONTROL

IF OUT INPUT

15 23

J18

10 MHZ

EXT REF

OUTPUT

REAR

FIGURE 1.1 Model 2016-95 Front and Rear Panels

MHz

OUT

0.25

0.95

GHz

CONTROLLER

F=775 G=+25.0

var

atten

EXT

10MHz*

*OPTIONAL

INT

10MHz

Block Diagram

FIGURE 1.2 Model 2016-95 Downconverter Block Diagram

2016-95 Manual, Rev. A Page 3 03/07/17

1.2 Technical Characteristics

-70 to -20 dBmInput Level Ran

Input Characteristics

Out

ut Characteristics

Channel Characteristics

Synthesizer Characteristics

> 50 dB

min.Ima

e Re

ection

-20 to -10 dBmOut

ut Level Ran

TABLE 1.0 2016-95 Downconverter S

ecifications**

1.0 MHz minimumFre

uenc

Ste

±1.0

m internal reference

(

±.01

tion -H

)

Fre

uenc

Accurac

Invertin

or Non-invertin

(

user selectable

)

Fre

uenc

Sense 0.02 ns/MHz2

arabolic

;

0.06 ns/MHz linear

;

1 ns ri

leGrou

Dela

max.

< -50 dBc in bandS

urious Res

onse

±1.5 dB

250 - 950 MHz

;

±0.5 dB

36 MHz BW

;

±1.0 dB

40 MHz BWFre

uenc

Res

onse

0.0 to +50.0 dBm

1 dB ste

sGain Ran

(

ustable

)

-5 dBmOut

ut 1 dB Com

ression

70 ±18 MHzFre

uenc

75Ω/ 18 dBIm

edance/Return Loss

-15 dBmInput 1dB compression

15 dB max.

ainNoise Fi

ure

Max. 250 to 950 MHzFre

uenc

75Ω/12 dBIn

ut Im

edance/Return Loss

125 kHz ste

sizeX -

Tem

erature SensorT -

External 10 MHz reference in

ut & out

utE -

19 inch

1RU standard chassis

1.75” hi

h x 16.0” dee

Size

Controls

Indicators

Available O

tions

Other

BNC

(

female

50Ω/ 75Ω

(

tion -E

)

10 MHz Connectors

3 dBm

± 3 dB

(

tion -E

)

10 MHz Level

(

In or Out

)

Ethernet M&C Remote InterfaceW8 -

RS-422/485 Remote InterfaceQ -

See TABLE 2.2Connector O

tions

h Stabilit

(

± 0.01

)

internal referenceH -

100-240 ±10% VAC

47- 63 Hz

45 watts maximumPower

RS232C

9600 Baud

;

(

RS485

tion -Q

)

Remote

Direct readout LCD

;

manual or remote selectionFre

uenc

/Gain Selection

**+10˚C to +40˚C; S

ecifications sub

ect to chan

e without notice Cross

Technolo

ies

Inc.

2017

DB9 -

(

female

)

NO or NC contact closure on AlarmAlarm/Remote Connector

e F

75Ω

(

female

BNC

75Ω

(

female

)

IF Connectors

Green LED

;

Red LED

Yellow LEDPower

Alarm

Remote

2016-95 Manual, Rev. A Page 4 03/07/17

1.3 Monitor and Control Interface

A) Remote serial interface

Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

(RS-232C, RS-422, or RS-485 - option -Q)

Female DB-9

PC Com Port Male DB-9

2015/16/17 M&CPort

M&C Cable Diagram - Cross Technologies Frequency Converters

RX RX

TX TX

DTR

DSR

RTS

CTS

Connector: Rear panel, DB-9 male

J10 Pinouts

(RS-232C/422/485)

Pinouts (RS-232C/422/485)

Pin Function

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

2016-95 Manual, Rev. A Page 5 03/07/17

B) Status Requests -

Table 1.2 lists the status requests for the 2016-95 and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

TABLE 1.2 2016-95 Status Reqquests

Requests

Command Syntax* Description

Command Status {aaS1} Returns {S1bbbbcccIA} where:

• bbbb = Rx frequency

• cc = Rx gain

• I = 1 - spectrum invert enabled

• A = summary alarm; 1=alarmed, 0=normal

10MHz Ref Status {aaS2} Returns {S2E} where:

(option -E only)

• E = 1 - external 10 MHz switched in

2016-95 Manual, Rev. A Page 6 03/07/17

C) Commands - Table 1.1 lists the commands for the 2016-95 and briefly describes them. After a

command is sent the 2016-95 sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte

aa = address (RS-485 only - option -Q)

C = 1 character, either C (command) or S (status)

N = 1 character command or status request

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.1 2016-95 Commands

Commands

Command Syntax* Description

Set Receiver Frequency {aaC2xxxx} where:

• xxxx = 4 characters

• Range: 0250 to 0950 MHz, in 1 MHz steps

Set Receiver Gain {aaC4xx} where:

• xx = 2 characters

• Range: 00 to 50 (0 dB to +50 dB, in 1 dB steps)

Enable Spectrum Invert {aaC7x} where x =:

• 0 to disable spectrum invert

• 1 to enable spectrum invert

Enable External 10MHz IN {aaCEx} where x =:

(option -E only)

• 0 to disable External 10MHz ref signal

• 1 to enable External 10MHz ref signal

Enable Remote # Just # sign

Disable Remote {aaCR0} {CR and zero}

2016-95 Manual, Rev. A Page 7 03/07/17

2.0 Installation

2.1 Mechanical - The 2016-95 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16

inch deep chassis. A switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 2016-

95 can be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2016-95 is

assembled.

POWER

SUPPLY

FIGURE 2.1 2016-95 Mechanical Assembly

2016-95 Manual, Rev. A Page 8 03/07/17

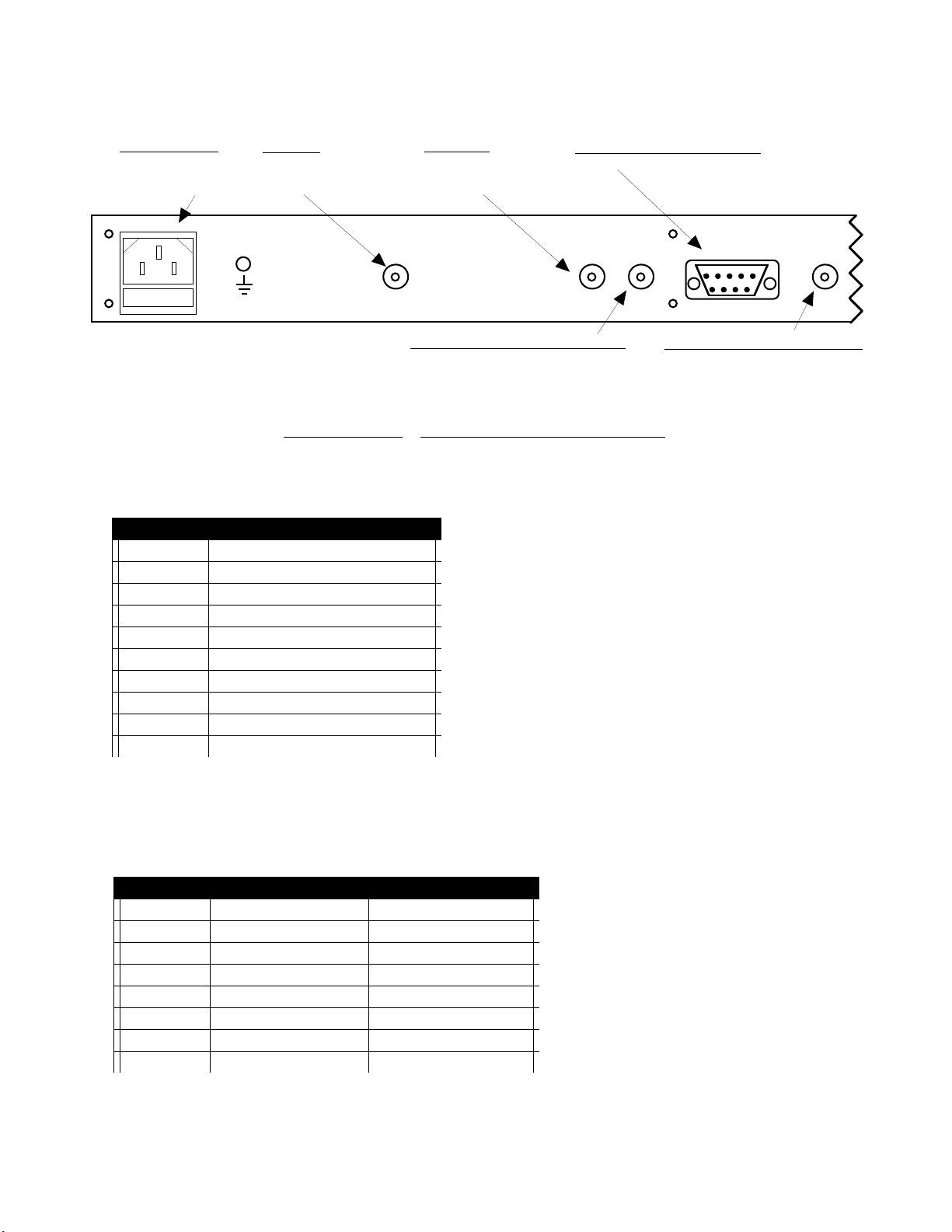

2.2 Rear Panel Input/Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.

AC1 - POWER IN

AC input for switching

power supply.

100-240 ±10% VAC,

47-63 Hz.

J2 - RF IN

250 to 950 MHz input,

-70 to -20 dBm.

see TABLE 2.2.

J1 - IF OUT

70 ±18 MHz output,

-20 to -10 dBm.

see TABLE 2.2.

J10 - MONITOR AND CONTROL

DB9 female connector.

GND

J18J2

RF IN IF OUT

J10

AND

MONITOR

CONTROL

5 4 3 2

9 8 7 6

J3 - 10MHz REF INPUT (option -E)

10 MHz external reference input,

BNC female connector.

10 MHz

EXT REF

INPUT

10 MHz

EXT REF

OUTPUT

J18- 10MHz REF OUTPUT (option -E)

10 MHz external reference Output,

BNC female connector.

FIGURE 2.2 2016-95 Rear Panel I/Os

TABLE 2.1 J110

2.1 J10 Pinouts (RS-232C*)

Pin Function

1 Not Used

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4 Not Used

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Closed

8 Not Used

9 Alarm Relay: Normally Open

*Remote Serial Interface

Interface: DB-9 Male

Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit

TABLE 2.2 IFF/RF

2.2 IF/RF Connector Options

Options

Option IF RF

STD BNC, 75ΩF-Type, 75Ω

-B BNC, 75ΩBNC, 75Ω

-C BNC, 75ΩBNC, 50Ω

-D BNC, 50ΩBNC, 50Ω

-K BNC, 50ΩBNC, 75Ω

-M BNC, 50ΩType N, 50Ω

-N BNC, 75ΩType N, 50Ω

2016-95 Manual, Rev. A Page 9 03/07/17

2.3 Front Panel Controls and Indicators - The following are the front panel controls and indicators.

EXECUTE

REMOTEALARM POWER

LCD DISPLAY

Display shows Downconverter

frequency in MHz and Gain in dB

S1 - MENU/EXECUTE BUTTON

Press this to get into Program mode

and to execute any changes.

DS3 - DOWN ALARM LED

Red LED indicates

downconverter alarm.

DS6 - POWER LED

Green LED indicates

presence of DC power.

DS1 - REMOTE LED

Yellow LED indicates

remote operation.

S2 - VERT. TOGGLE

Vertical toggle switch that controls

values in the Menu items when in

program mode. Does not function in the

normal display mode

S3 - HORIZ. TOGGLE

Horizontal toggle switch that

controls which values are being

adjusted. Does not function in the

normal display mode

F=775 G=+25.0

FIGURE 2.3 2016-95 Front Panel Controls and Indicators

2016-95 Manual, Rev. A Page 10 03/07/17

Tabla de contenidos

Otros manuales de Convertidor de medios de Cross Technologies

Cross Technologies

Cross Technologies 4115-300 Manual de usuario

Cross Technologies

Cross Technologies 2116-184 Manual de usuario

Cross Technologies

Cross Technologies 4117-14 Manual de usuario

Cross Technologies

Cross Technologies 3116-7786-2150 Manual de usuario

Cross Technologies

Cross Technologies 2016-05A Manual de usuario

Cross Technologies

Cross Technologies 2416 25 Series Manual de usuario

Cross Technologies

Cross Technologies 3117-3338 720 Series Manual de usuario

Cross Technologies

Cross Technologies 3116-192 Manual de usuario

Cross Technologies

Cross Technologies 2009-2425-1750 Manual de usuario

Cross Technologies

Cross Technologies 2016-57 Manual de usuario

Cross Technologies

Cross Technologies 2117 Manual de usuario

Cross Technologies

Cross Technologies 2116-182193 Manual de usuario

Cross Technologies

Cross Technologies 2416 02I Series Manual de usuario

Cross Technologies

Cross Technologies 4116-31-184 Manual de usuario

Cross Technologies

Cross Technologies 2115-122 Manual de usuario

Cross Technologies

Cross Technologies 2116-300-1600 Manual de usuario

Cross Technologies

Cross Technologies 2115-275-1845 Manual de usuario

Cross Technologies

Cross Technologies 2005-02P4 Manual de usuario

Cross Technologies

Cross Technologies 1584-29 Manual de usuario

Cross Technologies

Cross Technologies 3116-145-1600 Manual de usuario

Cross Technologies

Cross Technologies 2117-7172 Manual de usuario

Cross Technologies

Cross Technologies 2016-25-01 Manual de usuario

Cross Technologies

Cross Technologies 2015-58T Manual de usuario

Cross Technologies

Cross Technologies 2015-05 Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
