INSTRUCTION MANUAL

MODELS 2005-02P4 and 2005-03P4 Upconverters

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

2.0 Installation 5

2.1 Mechanical 5

2.2 Front Panel Controls and Indicators 5

2.3 Rear Panel Inputs, Outputs, and Controls 5

2.4 Accessing the PC Card 6

2.5 Operation 7

3.0 Environmental Use Information 8

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s

obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,

replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be

liable for any special, indirect, or consequential damages. This warranty does not cover parts

or equipment which have been subject to misuse, negligence, or accident by the customer

during use. All shipping costs for warranty repairs will be prepaid by the customer. There

are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2005-02/03 Manual, Rev. J Page 2 08/14/2019

MODELS 2005-02 and 2005-03 Agile Upconverters

1.0 General

1.1 Equipment Description

The 2005 Upconverters are typically used to loop 70 or 140 MHz IF modulators to L-band receivers.

These IF signals must be “clean”(contain only the desired 70 or 140 MHz signal).

The 2005-02P4, for loop-back applications, converts a 70 MHz signal to a 950-2050 MHz output signal range in

1 MHz steps utilizing a high-side LO (C-band) that ranges from 1020 to 2120 MHz. The 2005-02 can also

operate over a limited output frequency range converting a 70 MHz signal to 1090-2050 MHz utilizing a low-side

LO (Ku-band), a 140 MHz signal to 950-1980 MHz utilizing a high-side LO, and a 140 MHz signal to 1160-2050

MHz utilizing a low-side LO.

The 2005-03P4, for loop-back applications, converts a 70 or 140 MHz signal to the full 950-1450 MHz output

signal range in 1 MHz steps with either a high-side LO (C-band) or a low-side LO (Ku-band). The LO frequency

ranges from 810 to 1590 MHz.

Featuring low phase noise, these units are used to loop 70 or 140 MHz modulators to L-band receivers in uplinks.

The 70 or 140 MHz carrier input is mixed with a synthesized local oscillator (LO) signal. The output frequency is

selected with four BCD switches which control the synthesized LO. Front panel LEDs light when DC power is

applied (green) and when a PLL alarm occurs (red). The mixer output is applied to the output attenuator providing

a nominal gain of -10 dB (high gain) or -30 dB (low gain). Power is provided by the LNB voltage from the

receiver under test and connectors are BNC (female) for the IF input and type F (female) for the RF output. The

2005 can be powered by an external wall mount power supply -P4. The 2005 can be mounted on a 1 3/4”x

19”rack mount panel (option -R).

DC POWER RF OUTIF IN

GAIN

HI LOWJ1 J3 J2

CROSS TECHNOLOGIES, INC.

+DC IN

+15V, 600 ma

2005 TEST UPCONVERTER

CROSS TECHNOLOGIES, INC.

100MHz

FREQUENCY

10MHz 1MHzGHz

LO IF

C KU 70 140

ALARM

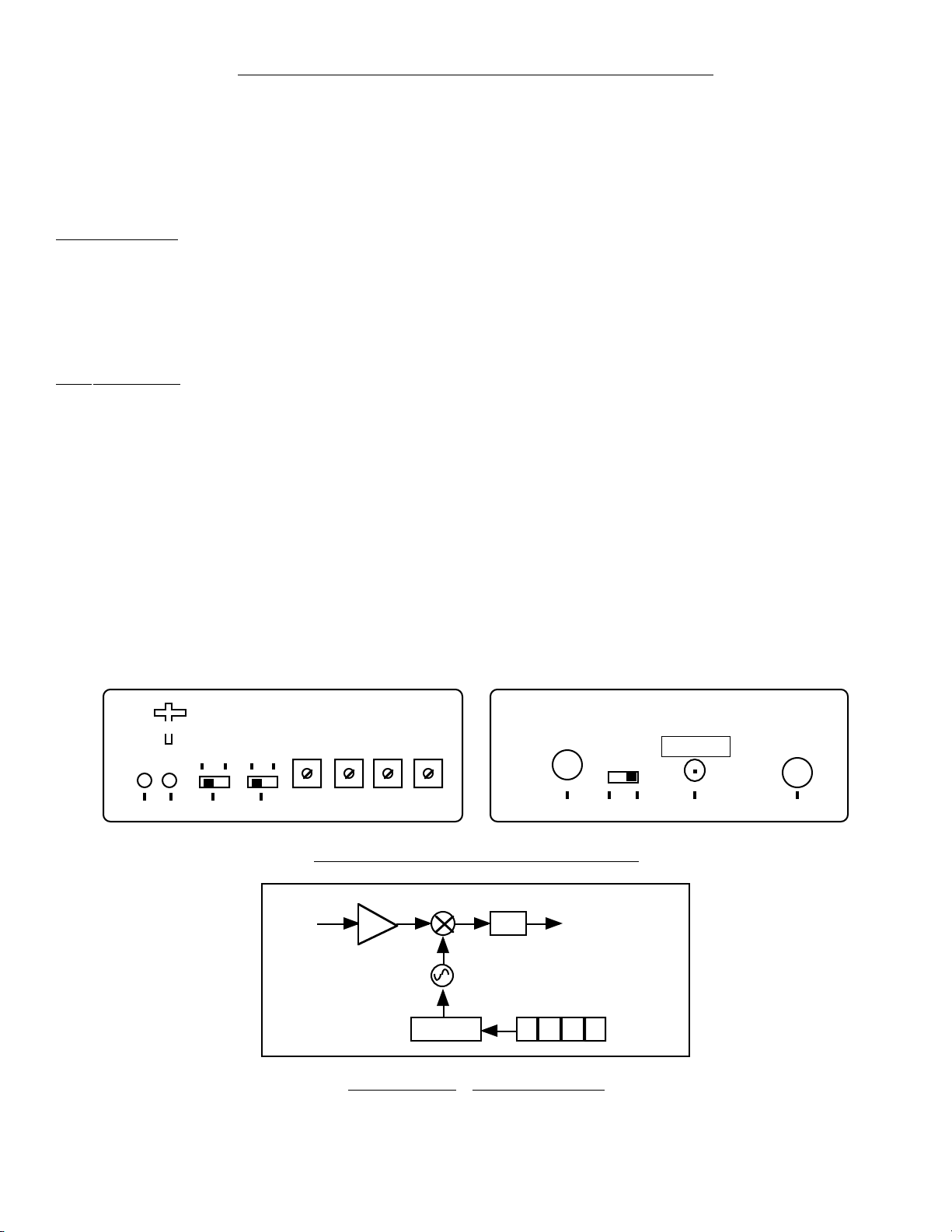

FIGURE 1.1 Front and Rear Panels

70 or 140

MHZ

INPUT 950 - 2050 MHz (-02)

950 - 1450 MHz (-03)

1.0 - 2.1 GHz (-02)

0.8 - 1.6 GHz (-03)

ATTEN

1383

CONTROLLER

FIGURE 1.2 Block Diagram

2005-02/03 Manual, Rev. J Page 3 08/14/2019

1.2 Technical Characteristics

TABLE 1.1 2005 Upconverter Specifications

Input Characteristics

Impedance 75 Ω

Return Loss 12 dB

Frequency 70 or 140 MHz center

Input Level -10 to -40 dBm

Input 1 dB comp / 3rd order 0 / +10 dBm (low gain), -20 / -10 dBm (high gain)

Output Characteristics

Impedance 75 Ω

Return Loss 8dB

Frequency Band 950 -2050 MHz (-02)

950 -1450 MHz (-03)

Channel Characteristics

Gain (at 1200 MHz) -20 dB ±3 dB(low gain)

-5 dB ±3 dB(high gain)

Spurious Response NA; output not filtered

Frequency Response ±4 dB, 950 -2050 MHz; ±0.5 dB, any 10 MHz increment (-02)

±3 dB, 950 -1450 MHz; ±0.5 dB, any 10 MHz increment (-03)

Synthesizer Characteristics

FrequencyAccuracy ± 25 kHz max

Frequency Step 1.0 MHz minimum

-80

10kHz

-100-90

1MHz100kHz

dBC/Hz

Phase Noise

Fre

Controls

L-Band Frequency Selection BCD switches with direct readout

LO Selection SPDT slide switch

IF Frequency Selection SPDT slide switch

Indicators

DC Power Green LED

Alarm Red LED

Other

RF Connector F type (female)

IF Connector BNC (female)

Size, Bench Top 4.7” wide X 1.75” high X 6.5” deep

Size (option -R) 19-inch standard 1RU chassis 1.75”H x 7.0”D

Power, Standard (P4) 100-240 ±10% VAC, 47-63Hz (+15VDC unregulated, 600 ma.)

Wall Mount PS (Specify US, EUR, AUS, or UK)

Power Supply Option:

Power (option C) No power supply.



Requires external 2000-01 power supply.

*+10˚C to +40˚C; 2000 meters max elevation; 80% max humidity; Pollution Degree 2; Specifications subject to change without notice.

2005-02/03 Manual, Rev. J Page 4 08/14/2019

2.0 Installation

2.1 Mechanical

The 2005 is packaged in an aluminum extrusion. The -R option is mounted on a 1 3/4” X 19”panel that can be

mounted to a rack using the 4 holes at the ends. Both units derive +DC from the RF out center conductor (+14 to

+20 VDC) or the wall power supply (+15VDC unregulated). See Figure 2.3.

2.1.1 Cleaning Instructions

Wipe the exterior with a dry, soft cloth. Use no detergent or cleaning chemicals.

2.2 Front Panel Controls and Indicators

Figure 2.1 shows the controls and indicators located on the front panel.

SW6 - LO SIDE SELECT

SPDT slide switch selects high side (C)

or low side (Ku) local oscillator.

DS1 - DC POWER LED

Lights green when DC power

is present

SW1 to SW4 - FREQ SELECT SWITCHES

BCD switches select the desired output frequency

which is the Local Oscillator frequency - 70 , -140,

+70, or +140 MHz.

DS2 - ALARM LED

Lights red when PLL

comes out of lock

SW5 - IF SELECT

SPDT slide switch selects

70 or 140 MHz IF in.

2005 TEST UPCONVERTER

CROSS TECHNOLOGIES, INC.

100MHz

FREQUENCY

10MHz 1MHzGHz

LO IF

C KU 70 140

ALARM

FIGURE 2.1 Front Panel Controls and Indicators

2.3 Rear Panel Inputs, Output, and Controls

Figure 2.2 shows the inputs, outputs, and controls located on the rear panel of the 2005.

J1 - IF INPUT

The IF 70 or 140 MHz

input . This is a 75Ω,

BNC input at -10 dBm

max level for LOW GAIN

(-30 dB) and -30 dBm

max level for HI GAIN (-

10 dB). The gain is

selected by SW7.

J3 - DC POWER

The +15 VDC unregulated DC voltage

from the wall power supply.

J2 - RF OUTPUT

The mixed RF output.

This is an unfiltered

output and contains

mainly the LO- IF, LO,

LO + IF, mixer products.

This is a 75Ω, Type F,

female connector.

GND +15

SW7 - GAIN SELECT SWITCH

Slide switch selects -10 dB high gain (HI)

or -30 dB low gain (LOW) .

DC POWER RF OUTIF IN

GAIN

HI LOWJ1 J3 J2

CROSS TECHNOLOGIES, INC.

+DC IN

+15V, 600 ma

FIGURE 2.2 Rear Panel Inputs, Outputs, and Controls

2005-02/03 Manual, Rev. J Page 5 08/14/2019

2.4 Accessing the PC Card

There are NO USER JUMPERS or other on-card controls. ALTHOUGH IT IS NOT RECOMMENDED AND

MAY VOID THE WARRANTY the following explains how to remove the printed circuit board (PCB) from the

extrusion:

1. Always remove power when installing or removing the PCB from the extrusion

2. Remove four (4) rear panel screws (see Figure 2.3).

3. Gently pull the rear panel and PCB assembly completely out of the extrusion.

4. To install the PCB gently push the rear panel and PCB assembly completely into the extrusion Make

sure the shield goes in the lower channel and the PCB in the next channel above that in the extrusion and

that the front panel controls go through the front panel holes.

5. Install four (4) rear panel screws.

EXTRUSION

FRONT SCREWS (4EA)

FRONT PANEL

RACK MOUNT PANEL (FOR -R MODELS ONLY)

REAR SCREWS (4EA)

PCB ASSEMBLY

REAR PANEL

WALL

POWER

SUPPLY

2005 TEST UPCONVERTER

CROSS TECHNOLOGIES, INC.

100MHz

FREQUENCY

10MHz

1MHz

GHz

LO IF

C KU 70 140

ALARM

(-P and -P4 MODELS)

FIGURE 2.3 2005 Assembly Drawing

2005-02/03 Manual, Rev. J Page 6 08/14/2019

2.5 Operation

2.5.1 Installing and Operating the 2005

1. Check that SW5, SW6, SW7 are set to the desired positions (Figures 2.1 and 2.2).

2. If using the receiver LNB voltage to power the 2005, be sure +14 to +20 VDC is present on the RF OUT

center conductor (Figure 2.2).

3. If using the wall power supply, connect one end to the 2005 and the other end to 100-240 ±10% VAC,

47-63 Hz (Figure 2.2)

4. Connect a -10dBm, max (LOW GAIN), or -30dBm, max (HI GAIN) signal to IF IN, J1 (Figure 2.2)

5. Connect the RF OUT, J2, to the receiver under test (Figure 2.2).

6. Set BCD switches SW1 to SW4 to the desired L-band frequency (Figure 2.1).

7. Be sure DS1 (green, DC Power) is on and DS2 (red, ALARM) is off (Figure 2.1).

2.5.2 Frequency Setting, SW1 to SW4

The frequency is selected by setting the BCD switches (SW1 to SW4) on the front panel to the desired frequency

using a small blade screwdriver. The frequency displayed on the BCD switches is the desired output frequency

with 70 or 140 MHz IF center frequency input and the low or high side LO as selected by SW5 and SW6 (see

Figure 2.2). There is no muting of the output carrier during frequency selection. If the switches are set to an invalid

frequency, alarm LED DS2 will light.

2.5.3 LO and IF for the 2005-02P4

The 2005-02 operates over it’s full 950 to 2050 MHz range with high side LO and 70 MHz input. Normally,

LNB’s use high side LO for C-band and low side LO for Ku-band. Also, note that there will be a spectrum

inversion of the input IF modulation with the high side LO. Although the 2005-02 operates over it’s full 950 to

2050 MHz range with high side LO and 70 MHz input only, it can be set for low side LO and 140 MHz operation

over a limited range as Table 2.1 shows. The PLL will alarm if you try to operate the 2005-02 outside the

allowable frequency range shown.

2.5.4 LO and IF for the 2005-03P4

The 2005-03 operates over it’s full 950 to 1450 MHz range with high side or low side LO and 70 or 140 MHz

input as shown in Table 2.1. Normally, LNB’s use high side LO for C-band and low side LO for Ku-band. Also,

note that there will be a spectrum inversion of the input IF modulation with the high side LO.

TABLE 2.1 2005

2.1 2005 UPCCONVERTER

UPCONVERTER FREQUEENCY

FREQUENCY INFORMATION

2005-02 2005-02 2005-03 2005-03

LO-Side IF (MHz) LO Range (MHz) Output Range (MHz) LO Range (MHz) Output Range (MHz)

HIGH 70 1020-2120 950-2050 1020-1520 950-1450

LOW 70 1020-1980 1090-2050 880-1380 950-1450

HIGH 140 1090-2120 950-1980 1090-1590 950-1450

LOW 140 1020-1910 1160-2050 810-1310 950-1450

2.5.5 Selecting High/Low Side LO, 70/140 MHz IF, and Gain

To select high- or low-side LO and 70 or 140 MHz IF Input set SW5 and SW6 on the front panel (see Figure 2.1)

to the desired position. The gain of the 2005 can be selected for -10 dB (HI gain, -30 dBm maximum IF input) or

-30 dB (LOW gain, -10 dBm maximum IF input) with SW7 on the rear panel (see Figure 2.2).

2005-02/03 Manual, Rev. J Page 7 08/14/2019

3.0 Environmental Use Information

A.Elevated operating ambient temperature - if installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra (Maximum Recommended Ambient Temperature).

B. Reduced air flow - Installation of the equipment in a rack should be such that the amount of

air flow required for safe operation of the equipment is not compromised. Additional space between

units may be required.

C. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

D. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used, when addressing this concern.

E. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.

Particular attention should be given to supply connections other than direct connection to the

Branch (use of power strips).

F. Top Cover - There are no servicable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE RE-INSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

2005-02/03 Manual, Rev. J Page 8 08/14/2019

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

Printed in USA

2005-02/03 Manual, Rev. J Page 9 08/14/2019

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Convertidor de medios de Cross Technologies

Cross Technologies

Cross Technologies 2117-8485 Manual de usuario

Cross Technologies

Cross Technologies 2015-7075 Manual de usuario

Cross Technologies

Cross Technologies 2017-0923 370 Series Manual de usuario

Cross Technologies

Cross Technologies 3116-145-1600 Manual de usuario

Cross Technologies

Cross Technologies 2016-25-01 Manual de usuario

Cross Technologies

Cross Technologies 2099-2424 Manual de usuario

Cross Technologies

Cross Technologies 2017-03A Manual de usuario

Cross Technologies

Cross Technologies 2015-123 Manual de usuario

Cross Technologies

Cross Technologies 4116-31-2831 Manual de usuario

Cross Technologies

Cross Technologies 2009-2425-1750 Manual de usuario

Cross Technologies

Cross Technologies 2015-26 Manual de usuario

Cross Technologies

Cross Technologies 2016-26 Manual de usuario

Cross Technologies

Cross Technologies 2015-05 Manual de usuario

Cross Technologies

Cross Technologies 2117-9395 Manual de usuario

Cross Technologies

Cross Technologies 2116-140T120 Manual de usuario

Cross Technologies

Cross Technologies 3116-22-23 Manual de usuario

Cross Technologies

Cross Technologies 2016-25 Manual de usuario

Cross Technologies

Cross Technologies 2016-03A Manual de usuario

Cross Technologies

Cross Technologies 2016-8085 Manual de usuario

Cross Technologies

Cross Technologies 2099-10 Manual de usuario

Cross Technologies

Cross Technologies 2017-03 Manual de usuario

Cross Technologies

Cross Technologies 2005-10 Manual de usuario

Cross Technologies

Cross Technologies 2415-02 Series Manual de usuario

Cross Technologies

Cross Technologies 2117 Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
