CrimeStopper EZ-31DP/33DP/34DP Manual de usuario

EZ-31DP/33DP/34DP 1-WAY SYSTEMS

EZ-64TW1/74TW2/84FM 2-WAY SYSTEMS

EZ-30DP Stand Alone unit

DP SERIES (Data port)

REMOTE ENGINE STARTING SYSTEM

INSTALLATION INSTRUCTIONS

INTRODUCTION

CONGRATULATIONS on your choice of a “EZEE Start” System by Crimestopper Security Products Inc. This booklet

contains the information necessary for installing your remote starter system. If any questions arise, contact your

installation dealer or Crimestopper Security Products Inc. at the Tech Support number below.

DISCLAIMER:

This installation book is designed for the installer or individual with an existing understanding of automotive electrical

systems, along with the ability to test and connect wires for proper operation. To ease installation, we suggest that you

READ THIS MANUAL before beginning your installation. This book is provided as a GENERAL GUIDELINE and the

information contained herein may differ from your vehicle. Crimestopper Security Products, Inc. and its’ vendors shall

not be liable for any accident resulting from the use of this product. This system is designed to be professionally

installed into a vehicle in which all systems and associated components are in perfect working condition.

TECHNICAL SUPPORT: (800) 998-6880 ThisdevicecomplieswithFCCRulespart 15. Operation issubjectto

the following two conditions: (1) This device may not cause harmful

interference, and (2) This device must accept any interference that

may be received, including interference that may cause undesired

operation. The manufacturer is not responsible for any radio or TV

interference caused by unauthorized modificationstothisequipment.

Such modification could void the user’s authority to use the

equipment.

Monday - Friday 8:00am - 4:30pm Pacific Std. Time

Web Site: www.crimestopper.com

E-mail: [email protected]

CRIMESTOPPER SECURITY PRODUCTS, INC.

1770 S. TAPO STREET, SIMI VALLEY, CA. 93063

REV A 07.2005

TABLE OF CONTENTS

Pre-Installation Considerations……….………...……...……………………………………………………………….……2

Installation Cautions & Warnings………………….……………………………………………………………….…..……3

Wiring……..…………………………....……………………………………………………………………………….…….3-7

Wiring High-Current Connector…….………………...………………………………………………………………….....8-9

Power Door Lock Wiring...………………………………………….…………….……..…………...………………..…10-11

Smart Tachless, Tach Reference, Tach Finder, & Timed Crank Modes…………………..…..………...…...……12-15

Diesel Glow Plug Delay..………………….…………………………………...……………………...…..…………………16

Options Programming ………..……………………….…………………………………...……………..………………16-21

Transmitter / Transceiver Programming,2 Vehicle Operation.……………………………………………………….22-23

Troubleshooting “Before You Call” Section……………..…………………………..………………….………….………24

Jumper Pin, Antenna, & System Diagrams…………………………………………………………..………….….…25-27

PRE-INSTALLATION CONSIDERATIONS

BEFORE BEGINNING, check all vehicle manufacturer cautions and warnings regarding electrical service (AIR BAGS,

ABS BRAKES, ENGINE / BODY COMPUTER AND BATTERY).

PLAN OUT YOUR INSTALLATION and determine most suitable locations for all components to be placed. These

components include: the module itself, valet/program button, possible relays, and antenna/receiver (EZ-

31DP/33DP/34DP, EZ64TW1/74TW2/84FM only, the EZ-30DP model does not include antenna or remotes.) Allow

enough wire to create a service loop with strain relief, should servicing be required. This will also allow easier access

and mounting.

DAMAGE to the EZEE Start unit resultingfrom incorrectinstallationorfailureto followguidelines statedin thisbook will

not be covered under warranty and will be subject to repair or replacement charges.

USE A VOLT/OHM METER to test and locate all connections. Test Lights can damage a vehicle’s computer systems.

ADDITIONAL PARTS, which are not included with this unit, may be needed for your particular vehicle. These items

may include extra relays or Anti-Theft System Bypass modules.

INSTALLATION CAUTIONS & WARNINGS

**FOR SAFETY REASONS, DO NOT INSTALL in vehicles with MANUAL TRANSMISSIONS.** Ifaccidentallyleft in

gear, a remote started vehicle could become a self-propelled threat to life and property.

DO NOT extend the Remote start ignition harness length. Mount the module so that main harness reaches all ignition

switch wiring. Extending these wires could result in poor or improper performance.

DO NOT routeanywiringthatmay becomeentangled withbrake, gaspedals, steeringcolumnoranyothermoving parts

in the vehicle.

DO NOT exceed the rated output current of any circuit on the Remote start module. Failure to observe this warning will

result in damage to the unit not covered under warranty.

DO NOT remote start the vehicle in a closed garage! Make sure that the garage door is open or there is adequate

ventilation. Failure to observe this rule could result in injury or death from poisonous Carbon Monoxide fumes.

WIRING

PIN 1: YELLOW/WHITE: (-) HORN CHIRP/HONK OUTPUT

ConnecttotheLOWCURRENT NegativeHorn Triggerwire usuallylocated nearthe steeringcolumn. If thevehicle horn

circuit requires +12, then a relay is required. RELAY WIRING: Connect the Yellow/White wire to terminal #85, connect

relay terminals #86 and #87 to +12V constant power. Connect terminal #30 to the +12V positive Horn activation wire.

PIN 2: BLACK: MAIN SYSTEM GROUND

Connecttochassis metalofthe vehicle. Anexistingboltorscrew may provide an adequate ground, or drillasmallhole,

scrapeawaypaintand attach using a sheet metal screw&star washer. Thiswire must be connectedtoa proper ground

or undesirable and inconsistent operation will occur. Do not use Factory ground locations.

PIN 3: YELLOW/BLACK: (-) IGNITION OUTPUT -or- ANTI-GRIND/STARTER DISABLE OUTPUT

This negative output wire is programmable and can function two different ways. It can be used as a Negative Ignition

outputfor GM Anti-theft and Transponder Bypass modules,or it can be programmedtofunction as an Anti grind/Starter

Disable output. As a Negative Ignition wire, this wire turns on when the remote start button is pressed and stays on

throughthe duration of the remote start. As anAnti grind/Starter disable this wire activates whenthe Lockbutton on the

remote is pressed and during remote start. When using this wire for an Anti grind/Starter disable, an optional Relay is

needed to interrupt the Starter circuit. The starter disable circuit adds an anti-theft feature to this remote start system

and prevents accidental grinding of the starter if key is turned too far after a remote start. See diagrams on NEXT

PAGE.

WIRING

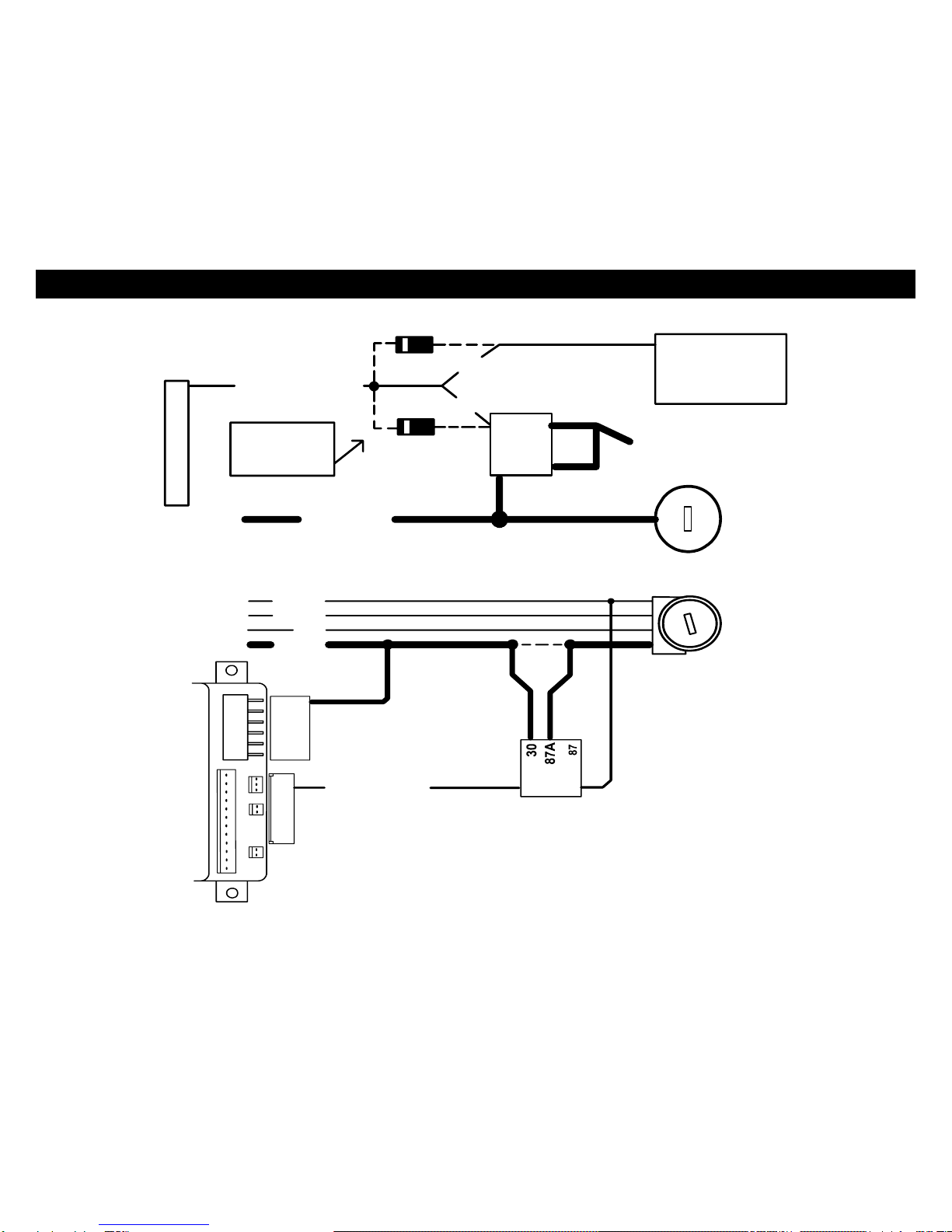

PIN 3: YELLOW/BLACK FOR NEGATIVE IGNITION OUTPUT: (Relay and/or Module not included)

YELLOW/BLACK

85 86

30 87

3rd IGN

(If needed)

IGN SW.

OR ANTI-THEFT/

MODULE

+12V CONSTANT

TRANSPONDER

Diode isolate

if using both!

PIN 3: YELLOW/BLACK: FOR ANTI-GRIND/STARTER DISABLE OUTPUT: (Relay not included)

TO IGN 2

MOTOR ACC

START

CUT

BROWN

YELLOW/BLACK

8685

MAKE CERTAIN TO CONNECT "BROWN" START OUTPUT WIRE TO

MOTOR SIDE OF ANTI-GRIND/START DISABLE RELAY.

IGN 1

MAKE SURE 86 TERMINAL HAS POWER WITH IGNITION ON AND CRANK

WIRING

PIN 4: BROWN: (-) AUX OUTPUT (TRUNK POP) or DOME LIGHT ILLUMINATION OUTPUT

This output is programmable for two modes of operation. See Programming Option Section.

Mode(1)DEFAULT:Provides a Ground pulse when button #3 (Trunk) ontheremotetransmitter is pushed to activate

a factory electric trunk release or other optional accessory.

Mode (2) ALTERNATE: Provides a Ground output for 30 seconds when the unlock button is pressed for use as a

dome light illumination output.

Notewhen using the Brown wire as aTrunk Pop, you mayalso need or want to program option #14 sothesystem

also provides an Unlock signal when the trunk pop is activated. This may help to prevent unnecessary triggering

of Factory Alarm systems or you may want the convenience of having the door unlock at the same time.

BROWN

85 86

30 87

Trunk Soleniod

Dome Light

BROWN WIRE: TRUNK OUTPUT or DOME LIGHT

OR *

(Default)

+12V CONSTANT

-OR-

Circuit

* Test activation circuit in vehicle.

Connect to+12V for Positive circuits

or Ground for Negative circuits. Relay

not included.

WIRING

PIN 5: GREEN: (-) START ACTIVATION INPUT, OEM

INTERFACE or TURBO TIMER INPUT

Momentary

Switch

New TURBO TIMER MODE

GREEN

EZ-30 EXPANSION (Default)

EZ-30 OEM INTERFACE

GREEN

(Not included)

(Aux Channel

AFTERMARKET

1 sec. (-) pulse

FACTORY KEYLESS

Output)

ALARM / KEYLESS

MODULE

3 Consecutive

(-) pulses

See descriptions & diagrams below.

Mode (1) [Default (-) Neg. Start Activation] This wire

allowsa host (or parent) alarm’sorkeyless entry system

to activate a Remote Start by sending a 1-Second

Negative signal to the Green input wire to trigger a

remote engine start or stop. Connect the Green wire to

the host system’s Auxiliary channel output wire.

Mode (2) [Alternate OEM Interface] This mode allows

the system to Remote Start or Stop when 3 successive

Negative pulses are sent to the Green input wire.

ConnecttheGreen input wire to the Negative lock signal

wire of the factory system. If your Factory OEM system

does not have this type of signal, then a relay is

required.

TURBO TIMER INPUT [No programming required] This

wire allows the system to keep a vehicle running for 1-5

minutes [selectively] after removing the key. This mode

requires the use of a momentary switch that is not

included with the kit. Connect a 2-pole momentary

switch with one side to chassis Ground and the other

side to the Green input wire. If you own a turbo or turbo

diesel vehicle, you can now allow the EZEE Start

systemtokeepyourenginerunning for 1-5 minutesafter

exiting/locking your vehicle to cool-down without the need for an external “Turbo Timer”.

NOTE: The turbo timer button will also trigger a remote start if it is inadvertently pressed when the

vehicle is not running. Please note this when installing the button and choose a location out of harm’s

way .

WIRING

PIN 6: GRAY: (-) NEGATIVE HOOD PIN SWITCH (REQUIRED FOR PROGRAMMING)

Connect the Gray wire to a switch that is at ground when the hoodis open. If an existing switch is not available, then we

recommendone to be installed. When this wire is grounded, the remote start isinhibited. Ifhood is opened on a remote

started engine, the unit will immediately shut the motor off. The unit will not attempt to start if hood is open. The hood

pin is also used for remote transmitter programming.

PIN 7: PINK: NEGATIVE GLOW PLUG

ConnectPink wire to indicator circuit that showsa (-) Signal whilethe “WAIT TO STARTLAMP” is on. When thiswireis

used, the system will wait until light turns off before attempting a remote start.

PIN 8: PURPLE: (+12V) BRAKE RESET

Connect the Purple wire to the side of brake pedal switch that shows +12 volts ONLY when pedal is depressed. This is

the wire that turns off the remote start once the driver’s key is in the Ignition and turned to the ON position.

PIN 9: ORANGE/BLACK: (-) OEM DISARM OUTPUT

Thiswireprovidesa Ground pulse to disarm the vehicles' Factoryanti-theftsystem prior to a Remote Start. Connectthis

wireto the vehicles' anti-theft disarm wire. This wire is sometimes found comingofftheDriver's door key switch or at the

Factory Anti-theft control module. This wire may not be needed if Factory Security only requires a door unlock pulse.

PIN 10: ORANGE: (-) OEM REARM OUTPUT

Thiswireprovidesa ground pulse to rearm the vehicles' FACTORYanti-theft system after a timed-out or aborted remote

start. Connect this wire to the vehicles' anti-theft rearm wire or to the door pin circuit depending on your requirements.

This wire may be needed to pulse the door pin circuit on vehicles with retained accessory power.

PIN 11: RED/WHITE: TACHOMETER INPUT

When installing the system in Tach mode, this wire must be connected to a valid source of AC voltage. This wire allows

the unit to sense the engine running and control the starter motor. See TACH REFERENCE MODE.

PROGRAM/OVERRIDE SWITCH: 2 PIN PLUG (REQUIRED FOR PROGRAMMING & LEARNING REMOTES)

This switch is used for programming features, transmitters, valet mode, and to override the optional starter disable (if

installed) in the event of a non-operating remote control.

LED: 2 PIN PLUG (OPTIONAL)

The LED is used as a VALET/PROGRAMMING indicator and it will also FLASH for use as security deterrent when the

optional ANTI-GRIND/STARTER DISABLE output is programmed.

WIRING: 7-PIN HIGH-CURRENT CONNECTOR

BROWN: +12V STARTER OUTPUT 30A:

Connect to circuit in the vehicle that has power ONLY while the STARTER MOTOR is CRANKING.

GRAY: +12V ACCESSORY OUTPUT 30A:

Connectto circuit in the vehicle that providesAccessory Power for systems such as HEATand A/C. Typically, this wire

turns ON with the first position of the key, DROPS OUT WHEN CRANKING, then returns as the engine starts and runs.

(2) RED: +12V POWER INPUT WIRES (30A Fused):

Connect to both of these leads to +12V Constant Power. We recommend the BATTERY POSITIVE

TERMINAL.

PINK: +12V IGNITION OUTPUT 30A:

Connect to circuit in the vehicle that provides true Ignition Power for systems such as Spark and Fuel. Typically, this

wire turns ON with the second position of the key, STAYS ON WHEN CRANKING, and continues ON as the vehicle

runs.

PINK/WHITE: +12V MULTI-FUNCTION OUTPUT 30A (JUMPER SELECTABLE):

This is an optional multi-function output wire the can be configured as a Second IGN, ACC or STARTER output. Some

vehicles require more than just one IGN, ACC, or STARTER wire in order to start and run successfully. If this is the

case for your particular vehicle, then use the jumper pin located under the access panel on the top of the EZEE Start

controlmodule to configure this wire to suityour needs. The DEFAULT setting is IGNITION. See JumperPin Diagram.

WHITE: +12V or (-) NEGATIVE PARKING LIGHT OUTPUT:

Connect to vehicle parking light circuit at the back of light switch or if this is not possible, connect directly to one of the

parking lights at the front of the vehicle. If your vehicle has a multiplex lighting system that requires a (-) Negative

parkinglight output, then open the access door on the topofthe module and move the jumper. See Jumper Pin section.

Some European vehicles require separate left and right circuits. Use a dual relay or diodes to isolate the output. Note

the current limit on the Negative parking light output. You may require an external relay to prevent damage to the unit.

(1) Default parking light output is +12 volts.

(2) Use an external relay for vehicles that draw excess current from extra running lights, light bars, or trailers.

Parking light output is limited to (+) 10 amps or (-) 500 mA only.

SEE DIAGRAM on NEXT PAGE

WIRING: 7-PIN HIGH-CURRENT CONNECTOR

FUSE

RED

PINK/WHITE

30A

FUSE

RED

30A

BROWNPINK

FUEL

ENGINE

BATTERY

PUMP

ECU

GRAY

STARTER

COIL

IGN

ACC

H/V/AC

Diagram not to scale,

for illustration purposes

only. Your vehicle may

differ.

IGN 2

ACC 2

TOP

WHITE

START 2

FUSE

PARKING

LIGHTS

IF NECESSARY

7-PIN High Current

Connector

IGN. SWITCH

VEHICLE

+10A or 500mA (-)

NOTE: Heavyduty/HighCurrentIgnitioncircuits greater than 30 AMPS. Industrial vehicles, dual AC, etc. require high-

current relays. DO NOT use the outputs of the Remote Starter for High-Current systems or you will risk damaging the

unit and creating a hazardous condition! Use Part #CS-403 relays for circuits up to 70 amps.

POWER DOOR LOCK WIRING CONNECTOR

PIN 1: BLUE: (-) Negative pulse for UNLOCK Crimestopper Door Lock Accessories:

CS-6600DLM: Dual-relay plug-in module for Reverse

Polarity, Positive, or Aftermarket Motors.

CS-6500DLI: Plug-in pulse inverter that converts the

Negative outputs of the system to Positive type for Positive

Door Lock systems.

CS-610S1: Aftermarket door lock actuator (motor).

PIN 2: RED: +12V When using external relays (TERM 86)

PIN 3: GREEN: (-) Negative pulse for LOCK

DETERMINING DOOR LOCK TYPE: We recommend

determining the type of locking system the vehicle has before

connecting any wires. Incorrect connection may result in

damageto the alarm and/or vehiclelocking system. Door lock

information is provided as a guide. Your vehicle may differ.

Negative Trigger (-): Many Imports; Late model Ford & General Motors

Negative trigger door lock systems send a Negative (Ground) pulse to existing factory relays to lock and unlock the

vehicle doors.

Positive Trigger (+): Many General Motors; Chrysler / Dodge / Plymouth

Positive trigger door lock systems send a Positive (+12V) pulse to existing factory relays to lock and unlock the

vehicle doors.

Reverse Polarity: Many Ford/Lincoln/Mercury/Dodge/Chrysler/Plymouth and early 90’s GM Trucks

Reverse Polarity systems use no relays, but instead the door lock/unlock motors are controlled directly from the lock

and unlock switches in the door. The lock and unlock wires rest at Negative Ground when not in use. When the

lock or unlock button is pressed, one of the circuits is “Lifted” and replaced with +12V causing a lock or unlock to

occur.

Single Wire (Dual Voltage): Late model Chrysler/Dodge/Plymouth Vehicles, some 2000-UP GM

Dual Voltage systems have lock/unlock switches that send varying levels of Positive voltage OR Negative ground

current to the SAME wire for both lock and unlock. When the vehicle’s Body Computer Module (BCM) or door lock

module senses different voltages on this wire, the system will either lock or unlock. Single wire door lock systems

require relays and resistors.

Databus Systems 2003-UP GM Trucks & SUV’s, ‘96-04 Jeep Grand Cherokee

Databussystemssend low current “Data messages” to the doorlock controllers on a network in order to lock andunlock

the vehicle. To install aftermarket systems in these vehicles, an interface module is required that converts the regular

lock/unlock pulses into “Data messages” to allow locking & unlocking. Interface modules are sold separately.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arranque remoto de CrimeStopper

CrimeStopper

CrimeStopper EZ-45DP/55DP Manual de usuario

CrimeStopper

CrimeStopper Cool Start RS-3 Manual de usuario

CrimeStopper

CrimeStopper Ezee Start EZ-64TW1 Manual de usuario

CrimeStopper

CrimeStopper COOLSTART RS-830 Manual de usuario

CrimeStopper

CrimeStopper EZEE START EZ-10 Manual de usuario

CrimeStopper

CrimeStopper CoolStart RS800 Series II Manual de usuario

CrimeStopper

CrimeStopper CoolStart RS900ER Manual de usuario

CrimeStopper

CrimeStopper RS1-G4 Cool Start Manual de usuario

CrimeStopper

CrimeStopper EZEE Start EZ-3 Manual de usuario

CrimeStopper

CrimeStopper RS700 IIIER Manual de usuario

CrimeStopper

CrimeStopper COOL START RS-900 Manual de usuario

CrimeStopper

CrimeStopper Cool Start RS-1405DP Manual de usuario

CrimeStopper

CrimeStopper RS-800.IV Manual de usuario

CrimeStopper

CrimeStopper G5 series Instrucciones de funcionamiento

CrimeStopper

CrimeStopper Pro Start LCPRO-3 Manual de usuario

CrimeStopper

CrimeStopper CS-845RKE Series II Manual

CrimeStopper

CrimeStopper Cool Start RS-850 Manual de usuario

CrimeStopper

CrimeStopper RS-901.III Manual de usuario

CrimeStopper

CrimeStopper RS-800.III Manual de usuario

CrimeStopper

CrimeStopper Cool Start RS7-G5 FM Manual de usuario

CrimeStopper

CrimeStopper ezee Start EZ-777 VII Manual de usuario

CrimeStopper

CrimeStopper Ezee Start EZ-30DP Manual de usuario

CrimeStopper

CrimeStopper Cool Start RS-7 Manual de usuario

CrimeStopper

CrimeStopper Cool Start RS-00 Manual de usuario

Manuales populares de Arranque remoto de otras marcas

AstroStart

AstroStart 803U Manual de usuario

Durite

Durite 0-649-20 Manual

EINHELL

EINHELL BT-PS 1000 Manual

Linear

Linear ACCESS AK-21 Especificaciones técnicas

Soundstream

Soundstream TARANTULA RS.2 Manual de usuario

Jaycar Electronics

Jaycar Electronics MB3752 Manual de usuario

Ultra Start

Ultra Start 72 Series Manual de usuario

ADS

ADS FLASHLOGIC FLRSVW1 Manual de usuario

Selecta

Selecta JS012 Manual de usuario

Black Widow Security

Black Widow Security BW RAS 400 Manual de usuario

Vector

Vector Power City DK080706 Suplemento

Code Alarm

Code Alarm CA-535 Manual de usuario

Ozito

Ozito OJS-800 Manual de usuario

Profi-Partner

Profi-Partner 46387 Manual de usuario

EZ STARTER

EZ STARTER EZ-45 Manual de usuario

Viper

Viper 4204 Manual de usuario

Essex Electronics

Essex Electronics KE-1701 Manual de usuario

EINHELL

EINHELL EGS 3600 Manual
