CONCORD Eye-Q 4330z Manual de usuario

Thank you for purchasing this digital camera.

Please read these instructions carefully to fully understand the different features of your

camera.

Check whether the contents of your package is complete. Should this not be the case, consult

your camera dealer or contact an authorized Customer Service Center.

• Camera

• Size AA alkaline batteries (4x)

• Video cable

• Wrist strap

• Camera case

• USB cable

• Software on CD-ROM:

USB drivers for Windows®98/ Windows®98 Second Edition/Windows 2000 Prof/Me / Windows®XP

USB drivers for Mac OS 8.6/9/9.0.2/9.0.4

Windows®/ Macintosh (PDF) Manual

Adobe Photoshop LE 5.0 Family Edition,

CD-ROM for Windows®

Adobe Photoshop LE 5.0 CD-ROM for Macintosh

• Documentation (hard copy)

Warranty Card

This symbol confirms conformity of the camera with European Union

regulations governing electrical equipment. CE stands for Conformité

Européenne (European Conformity).

BEFORE YOU START…

DESCRIPTION OF PARTS

Flash*

Lens* Terminal

cover

CAMERA BODY

Strap eyelet

LCD screen*

Card slot

Four-way toggle

MENU button

ENTER button

DISPLAY button

Viewfinder

eyepiece*

Focus lamp

(green)

Flash ready

lamp

(orange) ON/OFF switch

Shutter

release

Control

dial Data monitor

Viewfinder window

Self-timer lamp

* Do not touch!

Flash

sensor*

DESCRIPTION OF PARTS

Tripod socket 1/4“

DESCRIPTION OF PARTS

TERMINALS

Power supply

BOTTOM PLATE

Battery-compartment

cover

* The number of images remaining can only be approximate because it varies with JPEG

compression which is a function of subject characteristics.

No. of images remaining*/

No card

Battery condition Self-timer

Flash mode

DATA MONITOR

The diagram below shows all the data that can be displayed on the data monitor.

Image size

Video out USB connector

INSTALLING THE DRIVER SOFTWARE

Installing the driver software

To install the drivers for Windows 98 / Windows 98 SE / Windows 2000 / XP Prof. / Windows,

proceed as follows:

1Insert the installation CD-ROM into your CD-

ROM drive.

Double-click on the Setup icon.

The Setup dialog box appears. Please wait.

When the “Welcome” dialog appears,

click [Next].

When the Software License Agreement box

appears, read it carefully and decide what to

do:

[Back]: to preceding box.

[Yes]: to accept.

[No]: to reject and exit.

When the Start Copying Files box appears,

select:

[Next]: to start installation.

[Back]: to go back to the previous dialog box.

[Cancel]: to exit.

When the Setup Complete box appears, click

[Finish] to complete installation.

INSTALLING THE DRIVER SOFTWARE

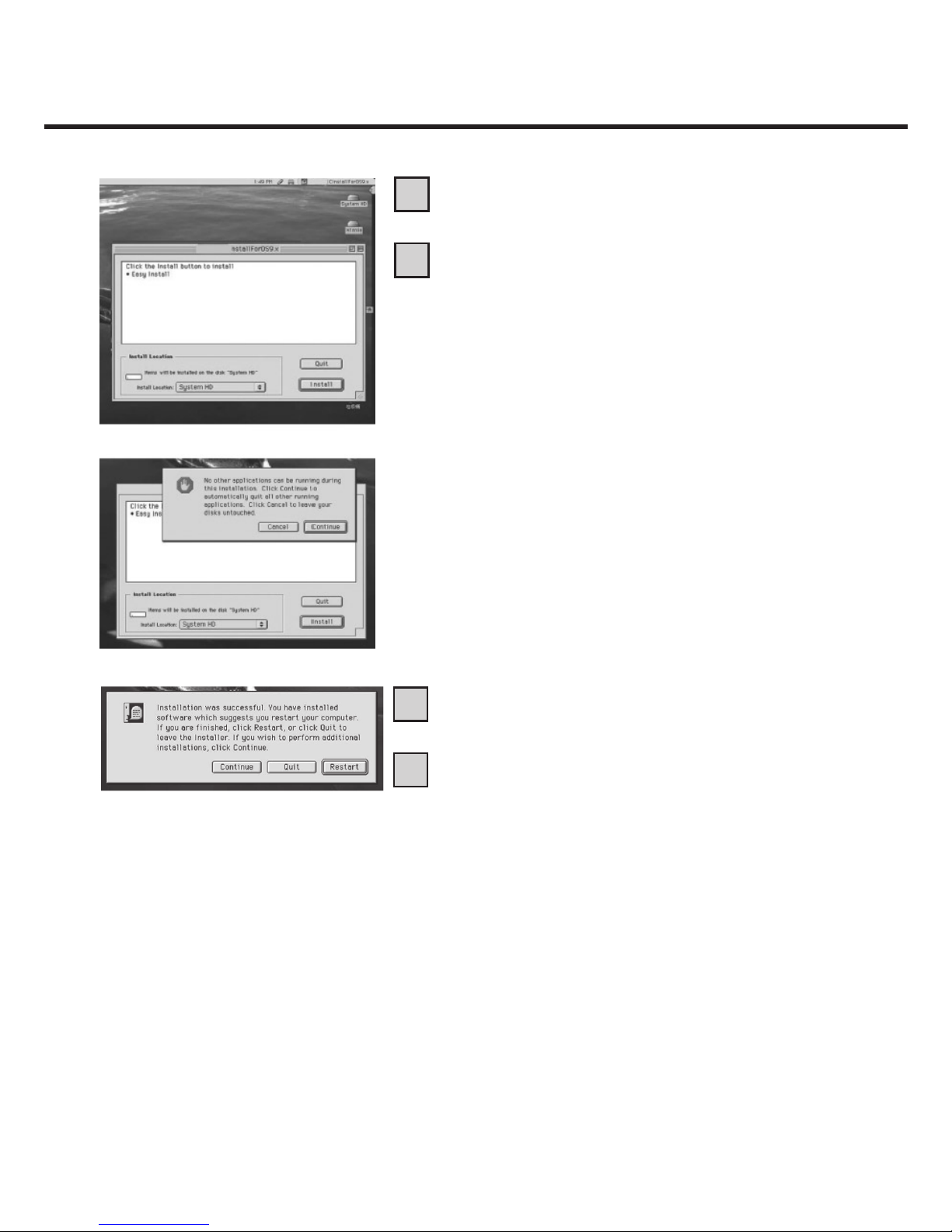

The following steps apply equally to OS 8.6 and OS.9

Choose the appropriate driver for your

system.

Start the installation program by double-

clicking.

When the Welcome box appears, click

[Continue].

INSTALLING THE DRIVER SOFTWARE

To start installation, click [Install].

Read the warnings, then click on [Continue].

If necessary, you may quit the program by clicking

[Cancel].

INSTALLING THE DRIVER SOFTWARE

Installation has been completed successfully.

To initial the newly installed software, restart your

computer (suggested) or click [Continue] if you

wish to continue installing.

Please take the detailed manual from the Acrobat Reader file on the

software CD.

Technical Support Hot Line:

Toll Free In the USA & Canada

1-866-522-6372

Toll Free In Europe

UK: 0800-169-6482

BELGIUM: 0800-787-57

FRANCE: 0800-917-599

GERMANY: 0800-1800-563

SPAIN: 900-973-195

ITALY: 800-781-883

All Other Countries -Toll

31-53-482-9779
