CONCORD QC3914 Manual de usuario

QC3914

Wi-Fi Battery Powered

Camera & Solar Panel

Quick Start Guide

2x Wall Mounting

Hardware

Solar Panel Mounting Base

Solar Panel

2

Getting to know your Solar Panel

Solar Panel

Locking Screw Cap

Universal Joint

Base

Socket Nut

USB Charging Output

Front

Rear

6

6

Please Note: It is suggested to fully charge the camera

for up to 3 hours on ﬁrst time use.

7

Installing Your Solar Panel

Place the solar panel in an area with consistent sunlight throughout the year. It

only needs a few hours of direct sunlight each day to keep your camera powered.

The amount of power that the solar panel produces is affected by weather

conditions, seasonal changes, geographic location, etc.

Step 2: First,install the locking screw cap into the universal joint, and then screw

the circular socket nut into the universal joint.

Step 3: Screw the universal joint into the back of the solar panel. Tighten it ﬁrmly

with the attached nut.

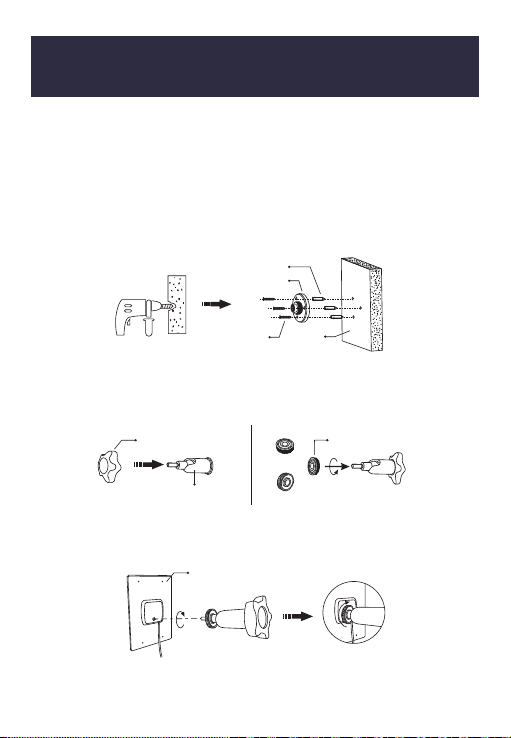

Step 1: Fix the mounting base of the solar panel to the wall using the included

screws. You may need to use the wall anchors depending on the wall type.

Base

Screws

Wall Anchors

Wall

Locking Screw Cap

Universal Joint

Front

Back

Socket nut

Solar Panel

8

Installing Your Solar Panel

Step 4: Screw the locking screw cap into the base. Make sure that the universal

joint is angled upwards.

Step 5: The solar panel’s angle can be adjusted up and down up to 90°.

9

Locking Screw Cap

Base

①②③

Sleeve Rod Locking Screw Cap

°
