CONCORD Eye-Q 4060 AF Manual de usuario

LANGUAGES

ENGLISH................................................................................................................1

FRANÇAIS ............................................................................................................7

DEUTSCH ............................................................................................................13

ESPAÑOL ............................................................................................................19

ITALIANO ............................................................................................................25

DUTCH ................................................................................................................31

4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 2

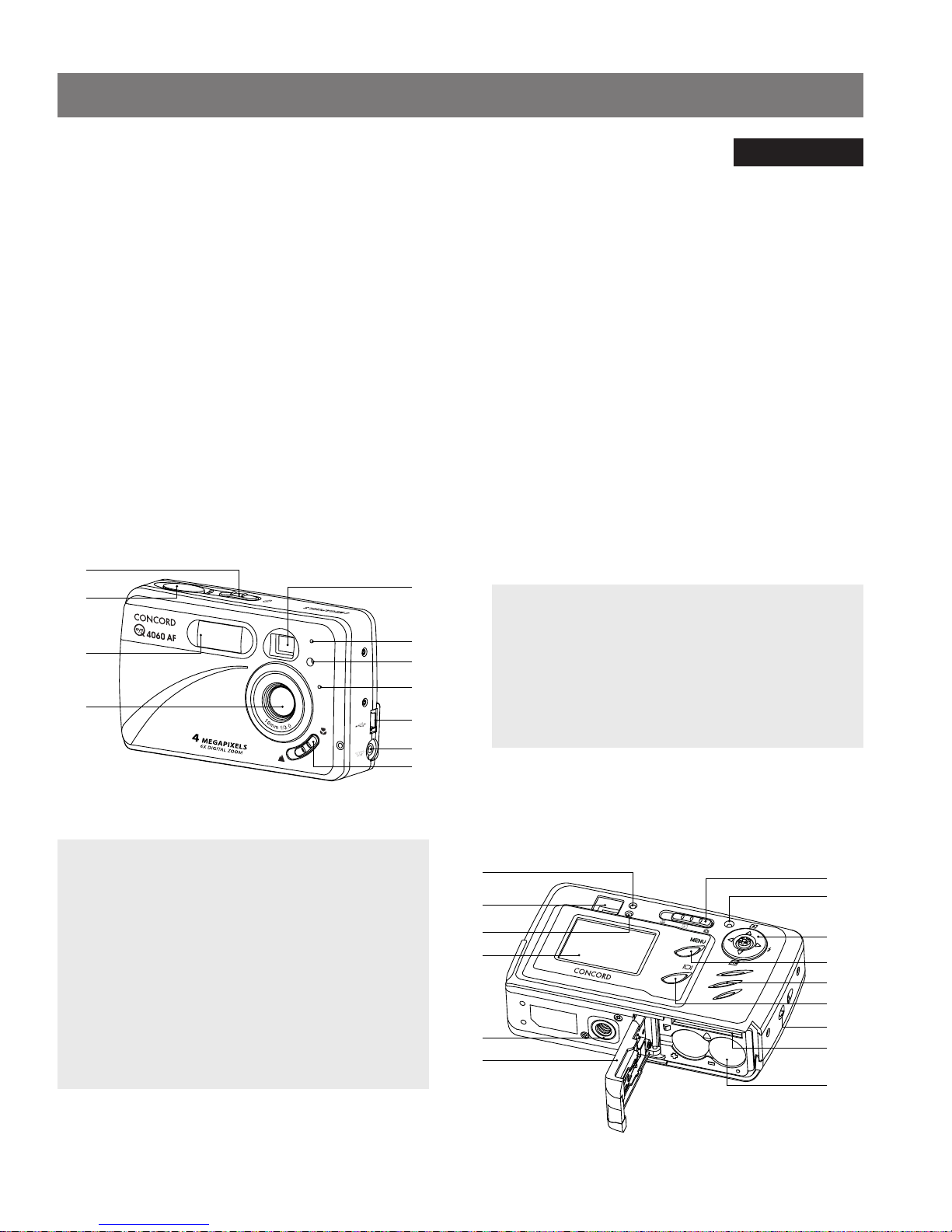

CAMERA OVERVIEW

Top/Front

Bottom/Back

AWB

⁄ ⁄

AWB

⁄ ⁄

12 18

AWB

⁄ ⁄

AWB

⁄ ⁄

1. Power Switch

2. Shutter Button

3. Flash

4. Lens/ Lens Door

5. Viewfinder

6. Flash Sensor

7. Red-eye Reduction

LED/Self-Timer LED

8. Microphone

9. Mini-USB port

10. TV-Out port

11. Macro Mode Switch

12. Flash Ready LED

13. Viewfinder

14. Auto-Focus LED

15. LCD

16. Tripod Socket

17. Battery/Memory

Card Door

18. Mode Switch

19. Reset Button

20. Joystick/OK button/

Zoom button/Flash

button

21. MENU Button

22. Speaker

23. LCD On/Off Button

24. Wrist Strap Holder

25. Memory Card Slot

26. Battery Compartment

This Quick Start Guide provides a quick reference for operating your

new digital camera. Refer to the User’s Guide, which can be found on

the CD-ROM and a hard copy in your Concord Eye-Q 4060AF box, for

detailed instructions on how to use all of your camera’s features. Before

using the camera, make sure to read all safety instructions and

precautions outlined in the User’s Guide.

QUICK START GUIDE

ENGLISH

4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 1

CAMERA OVERVIEW

AWBWB

07 ⁄ 04 ⁄ 03 02:40PM

28/45

AWBWB

07 ⁄ 04 ⁄ 03 02:40PM

28/45

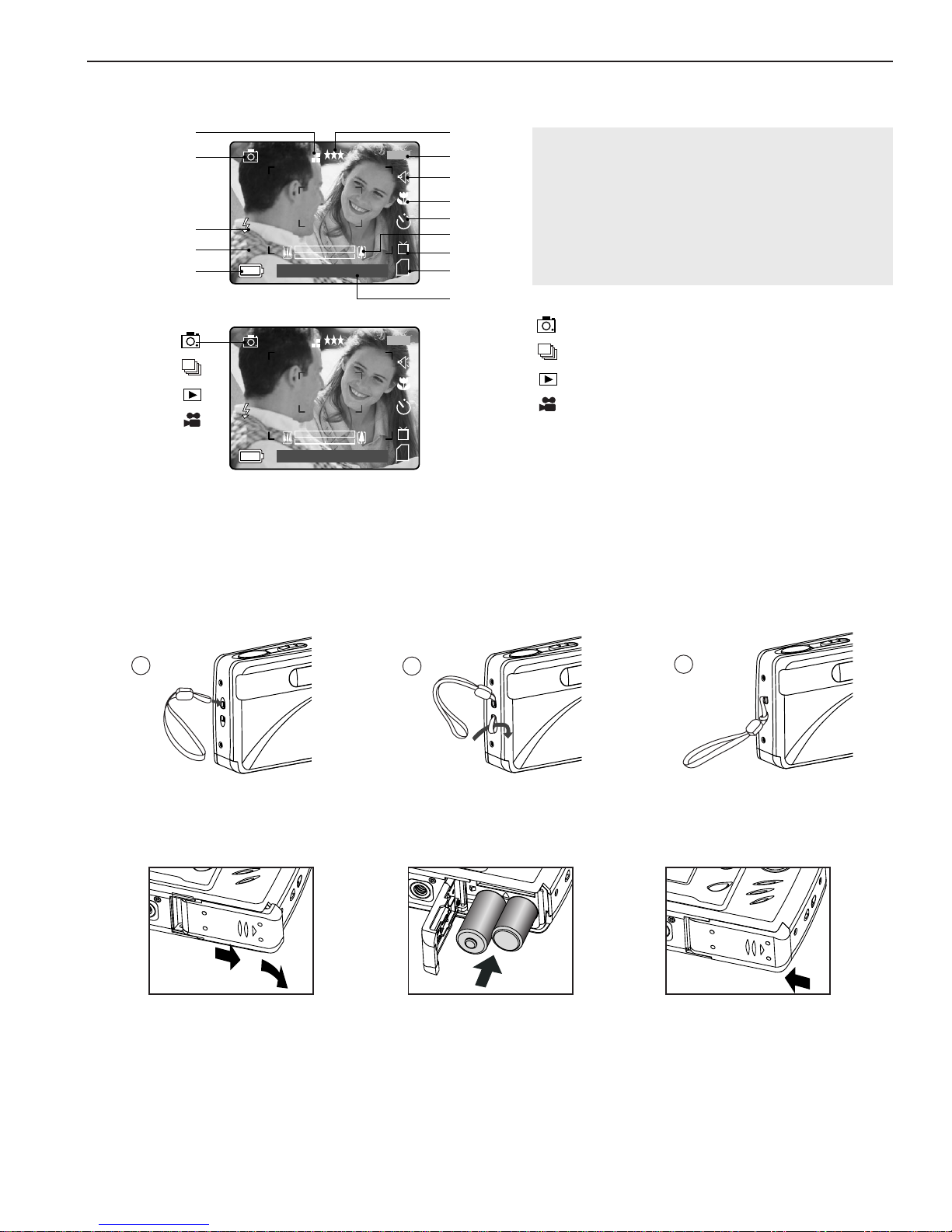

LCD ICONS

A. Resolution

B. Camera Mode

C. Flash

D. White Balance

E. Battery Level

F. Image Quality

G. Frame Counter

H. Sound

I. Macro

J. Self-Timer

K. Zoom Bar

L. TV Option

M. Memory

N. Date / Time

Attaching the Wrist Strap

Please attach the wrist strap to prevent dropping the camera.

LOADING THE BATTERIES

The camera can use 2x AA alkaline, lithium or NiMH rechargeable batteries.

1. Open the Battery/Memory Card door. (fig.1.1)

•Slide the door in the direction of the arrow, and lift it open.

2. Insert the batteries according to the polarity indicators on the top edge of the battery compartment. (fig.1.2)

3. Shut the Battery/Memory Card door by sliding it in the opposite direction of the arrow marked on it, and

close it securely. (fig.1.3)

fig.1.1 fig.1.2 fig.1.3

: Single Shot

: Continuous Shot

: Review

: Video Clips

AWB

⁄ ⁄

AWB

⁄ ⁄

4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 2

GETTING STARTED

TURNING THE CAMERA ON AND OFF

The Power Switch is located on the top of the camera.

1. Slide the Power Switch toward the ( ) icon to power the camera on. (fig.1.1)

•The lens cover will open.

•The LCD will turn on automatically.

2. To turn the camera off, slide the Power Switch away from ( ). (fig.1.2)

Note:

To extend battery life, the camera will automatically power off after 60 seconds of

inactivity. Press the shutter button to power the camera back on.

SETTING THE LANGUAGE

When the camera is powered on for the first time, the Language, Date and Time menus will appear.

1. Turn the camera on.

•The Language Setup screen will appear on the LCD.

2. Press the joystick to highlight the language you would like to use.

3. Press the OK button by pressing the joystick in to select.

4. The next screen will read “Are You Sure?” press the joystick to select No

or Yes.

5. Press the OK button to select.

•If you select No, you will return to the Language select screen.

•If you select Yes, all menu screens will be displayed in the new language.

SETTING THE DATE AND TIME

1. Press the joystick to change the option in the blinking position until you reach the desired number.

2. Press the joystick to highlight the other options.

•The option will blink when it is selected.

3. Repeat steps 1 and 2 to change the date and time setting.

4. Press the OK button.

fig.1.1 Camera On

fig.1.2 Camera Off

English

Français

Español

Deutsch

RETURN SET

LANGUAGE OPTION

⁄ ⁄

28 SEC

⁄ ⁄

28 SEC

AWB

⁄ ⁄

AWB

⁄ ⁄

ADJUST DATE

01 ⁄ 01 ⁄ 2003

RETURN SET

⁄ ⁄

28 SEC

⁄ ⁄

28 SEC

AWB

⁄ ⁄

AWB

⁄ ⁄

ADJUST TIME

01:01AM

RETURN SET

⁄ ⁄

28 SEC

⁄ ⁄

28 SEC

AWB

⁄ ⁄

AWB

⁄ ⁄

4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 3

GETTING STARTED / TICKING PICTURES

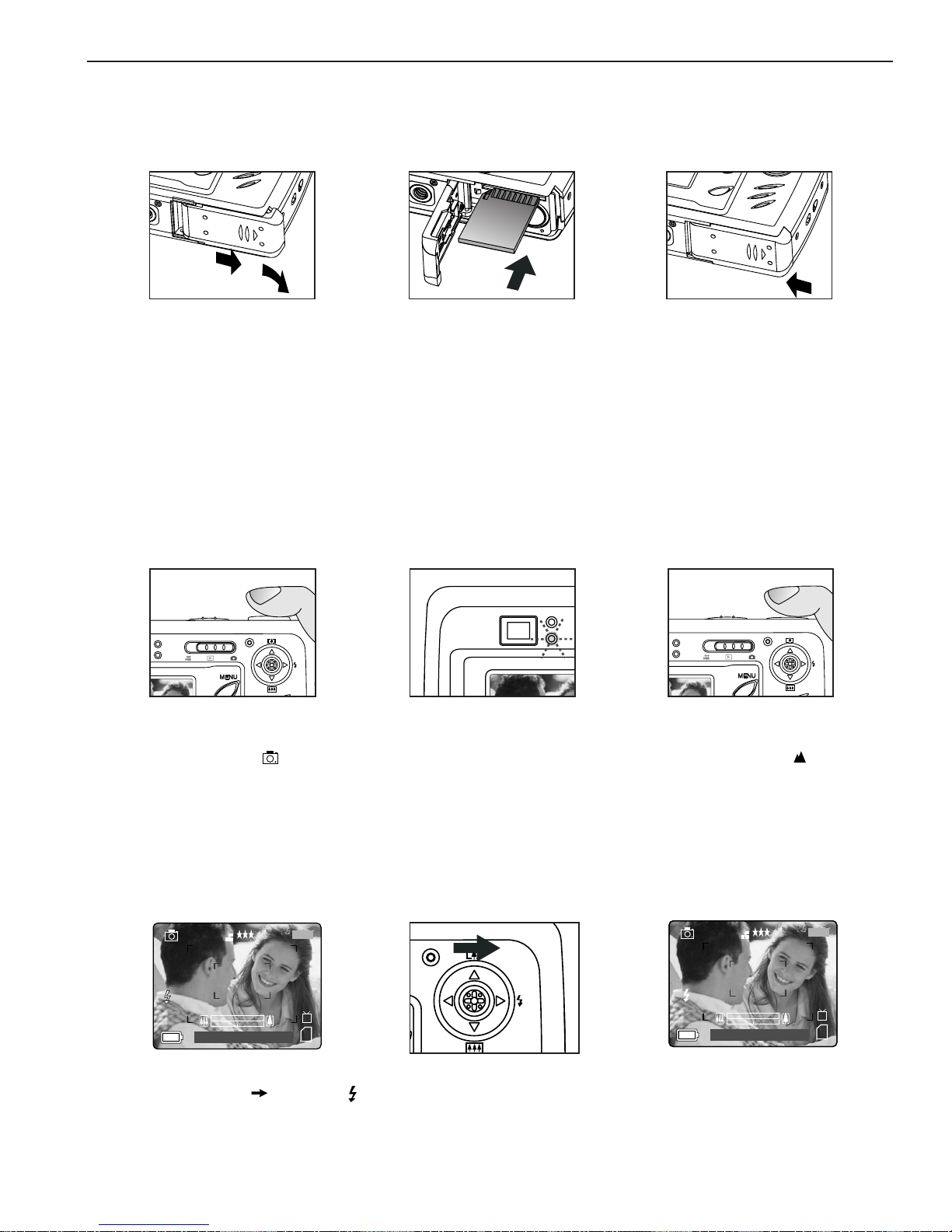

INTERNAL MEMORY/INSERTING THE MEMORY CARD

The camera has 16MB internal memory that can be used right away. The camera can also use secure digital

(SD) memory cards (not included) to store images and video clips.

1. Open the Battery/Memory Card door.

•Slide the door in the direction of the arrow marked on it, and lift it open. (fig.1.1)

2. Insert the memory card as indicated by the diagram. (fig.1.2)

•Please insert the card in straight, not on an angle.

3. Shut the Battery/Memory Card door by sliding it in the opposite direction of the arrow marked on it, and

close it securely. (fig.1.3)

TAKING A PICTURE

TAKING A PICTURE WITH THE VIEWFINDER OR LCD

1. Turn the camera on.

2. Set the camera to ( ) Camera Mode and make sure the Macro Mode Switch is set to the ( ) Distant

Mode. (fig.1.1)

3. Frame the subject in the viewfinder or LCD.

4. Press the shutter button half-way to activate the auto-focus until the green AF LED lights up. (fig.1.2)

5. Press the shutter button fully to capture the image. (fig.1.3)

SETTING THE FLASH

1. Press the joystick toward ( ) repeatedly until the desired indicator appears on the LCD.

fig.1.1 fig.1.2 fig.1.3

fig.1.1 fig.1.3

fig.1.2

⁄ ⁄

28 SEC

⁄ ⁄

28 SEC

AWB

07 ⁄ 04 ⁄ 03 02:40PM

28/45

AWB

⁄ ⁄

28 SEC

⁄ ⁄

28 SEC

AWB

⁄ ⁄

AWB

07 ⁄ 04 ⁄ 03 02:40PM

28/45

4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 4

TICKING PICTURES / DELETE ONE FILE

TAKING A VIDEO CLIP

To record a video clip:

1. Slide the Mode Switch to ( ) Video Clip Mode.

2. Position the subject in the viewfinder or LCD.

3. Press the shutter button fully to capture a continuous video clip.

4. To stop recording, press the shutter button again.

Note: There is a time limit for each video clip. The time will vary depending on the amount of available

memory space. The alloted amount of recording time will appear on the top right hand corner of the

screen. The video clip capture will stop automatically when it reaches its time limit.

Video Clip Information

Resoluton: QVGA (320 x 240)

Frame rate: 30fps

File Format: AVI (Motion Picture)

Note: The Flash Ready LED will turn red when the camera is storing the video clip. Do not open the

battery door or turn the camera off while recording, or the video clip may not be stored.

DELETE ONE FILE

1. Slide the Mode Switch towards ( ).

2. When Delete File is highlighted, press the joystick to enter the Delete File

submenu.

3. In the Delete File menu, press the joystick when Delete One is highlighted.

4. The next screen will display the stored pictures and video clips as thumbnails.

Press the joystick , , , to highlight the file you want to delete.

5. Press the OK button to select.

6. The next screen will read "Are You Sure?" press the joystick or to

highlight No or Yes.

7. Press the OK button to select.

•If No is selected, no change will be made, and you will return to the Delete One thumbnail view.

•If Yes is selected, the selected file will be deleted.

⁄ ⁄

28 SEC

07 ⁄ 04 ⁄ 2003 02:40

Press Shutter to Record

28 SEC28 SEC

AWB

⁄ ⁄

AWB

⁄ ⁄

DELETE FILES

THUMBNAIL

SETUP

RETURN SELECT

REVIEW

⁄ ⁄

28 SEC

⁄ ⁄

28 SEC

AWB

⁄ ⁄

AWB

⁄ ⁄

MENU DELETE

⁄ ⁄

28 SEC

⁄ ⁄

28 SEC

AWB

⁄ ⁄

AWB

⁄ ⁄

Are You Sure?

Yes

SELECT

⁄ ⁄

28 SEC

⁄ ⁄

28 SEC

AWB

⁄ ⁄

AWB

⁄ ⁄

DELETE ONE

DELETE ALL

RETURN SELECT

DELETE FILES

⁄ ⁄

28 SEC

⁄ ⁄

28 SEC

AWB

⁄ ⁄

AWB

⁄ ⁄

4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 5

CONNECTING THE CAMERA TO THE COMPUTER

DOWNLOADING PICTURES AND VIDEO CLIPS ONTO YOUR COMPUTER

Note: Windows 98/98SE users must install the camera driver first. Windows 2000 users must install

DirectX in order to view video clips on the computer. Please refer to the Installation Guide section on page

34 in the User's Guide for more information on installing the drivers and other software found on the CD-

ROM.

Caution: Do not insert or remove the memory card when the camera is connected to the computer.

Downloading files from the camera:

•Internal memory: Do not insert the memory card.

•Memory Card: Insert the memory card.

FOR WINDOWS USERS

1. Connect the camera to the computer.

2. Double-click on My Computer>Removable Disk>DCIM>100CD_4060.

•The stored pictures (JPG) and video clips (AVI) stored in the memory card will

be displayed

3. Click and drag the files into a directory in your computer to save them.

•To select all files, click Edit > Select all.

FOR MACINTOSH USERS

1. Connect the camera to the computer.

After a few moments, the external hard drive “untitled” will appear on the desktop.

2. Double-click on untitled>DCIM>100_4060.

•The stored pictures (JPG) and video clips (AVI) stored in the memory card will be displayed.

3. Drag and drop the image you want to save in the computer.

•To select all files, click Edit > Select all.

Concord, Concord Eye-Q and the Concord Eye-Q logo are registered trademarks or trademarks of Concord Camera Corp., in the United States

and/or other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States

and/or other countries. Mac and Macintosh are registered trademarks or trademarks of Apple Computer, Inc. in the U.S. and other countries. All

other brands and product names are either registered trademarks or trademarks of their respective owners.

4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 6

Les références de ce guide de démarrage rapide vous permettent

d’utiliser rapidement votre nouvel appareil digital. Pour des explications

plus détaillées sur toutes les caractéristiques de votre appareil, veuillez

lire le guide de l’utilisateur qui se trouve sur le CD-ROM situé dans le

coffret du Concord Eye-Q 4060AF. Avant d’utiliser l’appareil, veuillez lire

toutes les instructions de sécurité et de précaution décrites dans ce

guide.

GUIDE DE DEMARRAGE RAPIDE

VUE D’ENSEMBLE DE L’APPAREIL PHOTO

Vue du haut/devant

Vue du dessous/ derrière

1. Bouton de mise en

marche

2. Bouton de l’obturateur

3. Flash

4. Objectif et couvre-

objectif

5. Viseur

6. Capteur du flash

7. DEL du retardateur /

de du réducteur des

yeux rouges

8. Microphone

9. Port USB

10. Port Vidéo

11. Commutateur de

mode Macro

12. DEL de flash

13. Viseur

14. DEL auto-focus

15. LCD

16. Écrou du trépied

17. Porte d’accès aux

piles et à la carte

mémoire

18. Cadran de sélection

de mode

19. Bouton de remise à

zéro

20. Bouton de navigation/

bouton OK/ bouton

zoom/bouton Flash

21. Bouton du menu

22. Haut-parleur

23. Interrupteur

arrêt/marche de

l’ACL

24. Dragonne

25. Logement de la carte

mémoire

26. Compartiment à piles

AWB

⁄ ⁄

AWB

⁄ ⁄

12 18

AWB

⁄ ⁄

AWB

⁄ ⁄

FRANÇAIS

4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 7

VUE D’ENSEMBLE DE L’APPAREIL PHOTO

Fixation de la dragonne

Pour éviter d’échapper l’appareil, veuillez attacher la dragonne.

CHARGEMENT DES PILES DANS L’APPAREIL

Pour utiliser l’appareil photo numérique, vous pouvez utiliser 2 piles alcalines, au lithium ou rechargeables.

1. Ouvrez la porte d’accès aux piles et à la carte mémoire. (fig.1.1)

•Pour ouvrir, déplacer le volet dans le sens indiqué par la flèche et le soulever.

2. Insérer les piles selon les indicateurs de polarité sur la partie supérieure du logement des piles. (fig.1.2)

3. Bien fermer le volet de la carte mémoire et des piles en le déplaçant dans le sens opposé de la flèche.

(fig.1.3)

fig.1.1 fig.1.2 fig.1.3

ICÔNES DE L’AFFICHAGE À CRISTAUX LIQUIDES

A. Résolution

B. Mode Caméra

C. Flash

D. Équilibrage de blancs

E. Piles

F. Qualité

G. Compteur de fichiers

H. Son

I. Macro

J. Retardateur

K. La barre du zoom

L. Option TV

M. Mémoire

N. Date / Heure

: Photo Individuelle

: Photos en rafale

: Visonnage

: Séquences vidéo

AWBWB

07 ⁄ 04 ⁄ 03 02:40PM

28/45

AWBWB

07 ⁄ 04 ⁄ 03 02:40PM

28/45

4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 8

Otros manuales para Eye-Q 4060 AF

Tabla de contenidos

Idiomas:

Otros manuales de Cámara digital de CONCORD

CONCORD

CONCORD Duo 2000 Manual de usuario

CONCORD

CONCORD Eye-Q 2100 Manual de instrucciones

CONCORD

CONCORD EYE-Q MINI Guía de instalación

CONCORD

CONCORD 3045 Manual de usuario

CONCORD

CONCORD 3045 Manual de instrucciones

CONCORD

CONCORD Duo 2000 Manual de usuario

CONCORD

CONCORD DVX Manual de usuario

CONCORD

CONCORD Eye-Q 3340z Manual de instrucciones

CONCORD

CONCORD Eye-Q Go Wireless Manual de instrucciones

CONCORD

CONCORD 3045 Manual de usuario

CONCORD

CONCORD Eye-Q 4360z Manual de instrucciones

CONCORD

CONCORD Eye-Q 1300 Manual de instrucciones

CONCORD

CONCORD Eye-Q Go Wireless Manual de usuario

CONCORD

CONCORD Eye-Q 3042 AF Manual de instrucciones

CONCORD

CONCORD PZ2180 AF Manual de usuario

CONCORD

CONCORD Eye-Q Go 2000 Manual de instrucciones

CONCORD

CONCORD QC3914 Manual de usuario

CONCORD

CONCORD Eye-Q Go Wireless Manual de usuario

CONCORD

CONCORD Eye-Q Go Wireless Manual de usuario

CONCORD

CONCORD Eye-Q Go Wireless Manual de instrucciones

CONCORD

CONCORD Eye-Q Duo 2000 Manual de usuario

CONCORD

CONCORD EYE-Q DUO Manual de usuario

CONCORD

CONCORD Eye-Q Go Wireless Manual de instrucciones

CONCORD

CONCORD Eye-Q 3040AF Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
