Compaq Presario V6700 - Notebook PC Manual de usuario
Notebook Tour
User Guide
© Copyright 2008 Hewlett-Packard
Development Company, L.P.
Microsoft and Windows are U.S. registered
trademarks of Microsoft Corporation.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: January 2008
Document Part Number: 465433-001
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Identifying hardware
2 Components
Product notice ...................................................................................................................................... 2
Top components ................................................................................................................................... 2
TouchPad ............................................................................................................................ 2
Lights ................................................................................................................................... 3
Buttons and speakers .......................................................................................................... 4
Keys ..................................................................................................................................... 5
Front components ................................................................................................................................ 7
Rear components ................................................................................................................................. 8
Right-side components ......................................................................................................................... 9
Left-side components ......................................................................................................................... 10
Bottom components ........................................................................................................................... 12
Display components ........................................................................................................................... 13
Wireless antennae (select models only) ............................................................................................. 14
Additional hardware components ....................................................................................................... 15
3 Labels
Index ................................................................................................................................................................... 17
v
vi
1 Identifying hardware
To see a list of hardware installed in the computer, follow these steps:
1. Select Start > My Computer.
2. In the left pane of the System Tasks window, select View system information.
3. Select Hardware tab > Device Manager.
You can also add hardware or modify device configurations using Device Manager.
1
2 Components
Product notice
This user guide describes features that are common to most models. Some features may not be
available on your computer.
Top components

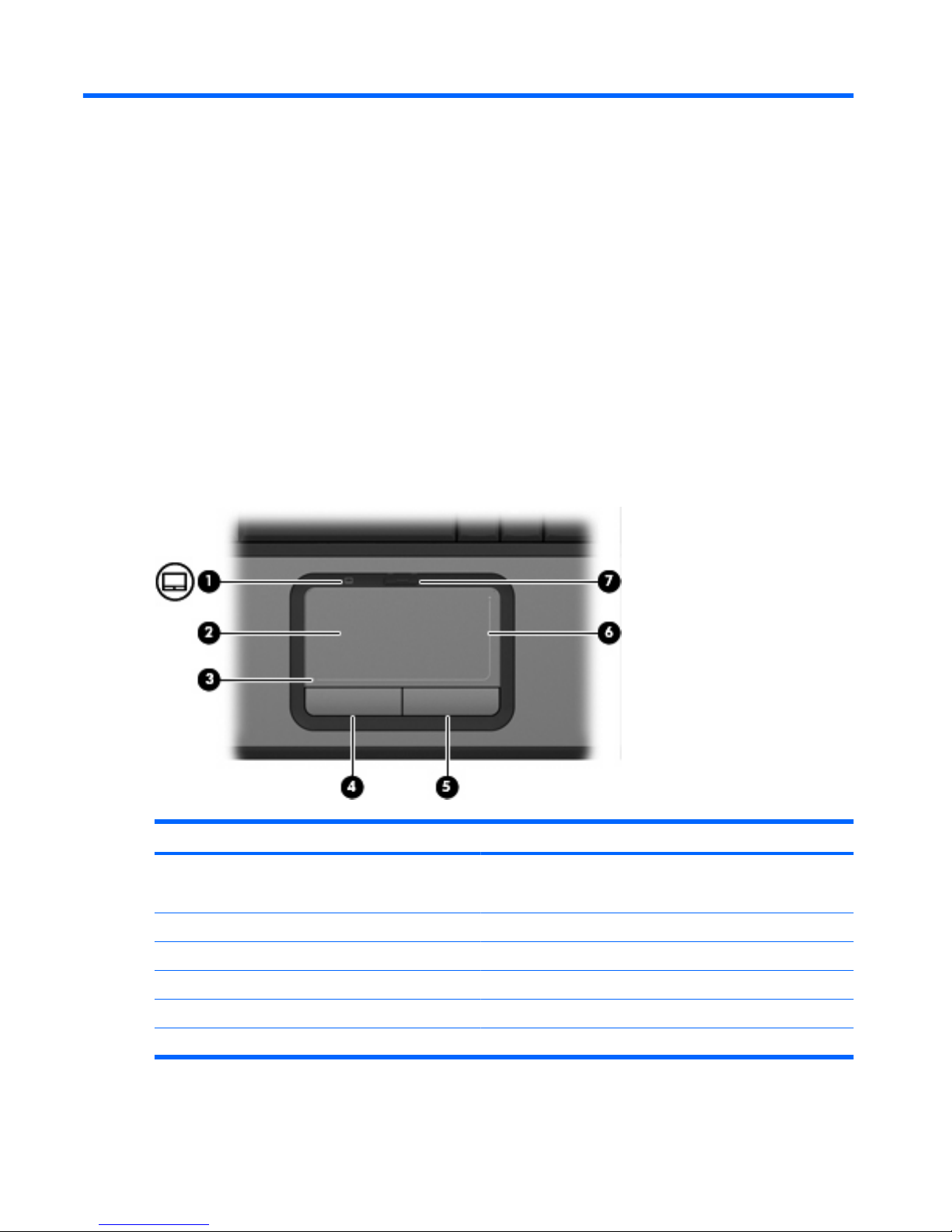

TouchPad
Component Description
(1) TouchPad light ●Blue: TouchPad is enabled.
●Amber: TouchPad is disabled.
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) TouchPad horizontal scroll zone* Scrolls left or right.
(4) Left TouchPad button* Functions like the left button on an external mouse.
(5) Right TouchPad button* Functions like the right button on an external mouse.
(6) TouchPad vertical scroll zone* Scrolls up or down.
2 Chapter 2 Components
Component Description
(7) TouchPad on/off button Enables/disables the TouchPad.
*This table describes factory settings. To view and change pointing device preferences, select Start > Control Panel > Printers
and Other Hardware > Mouse.

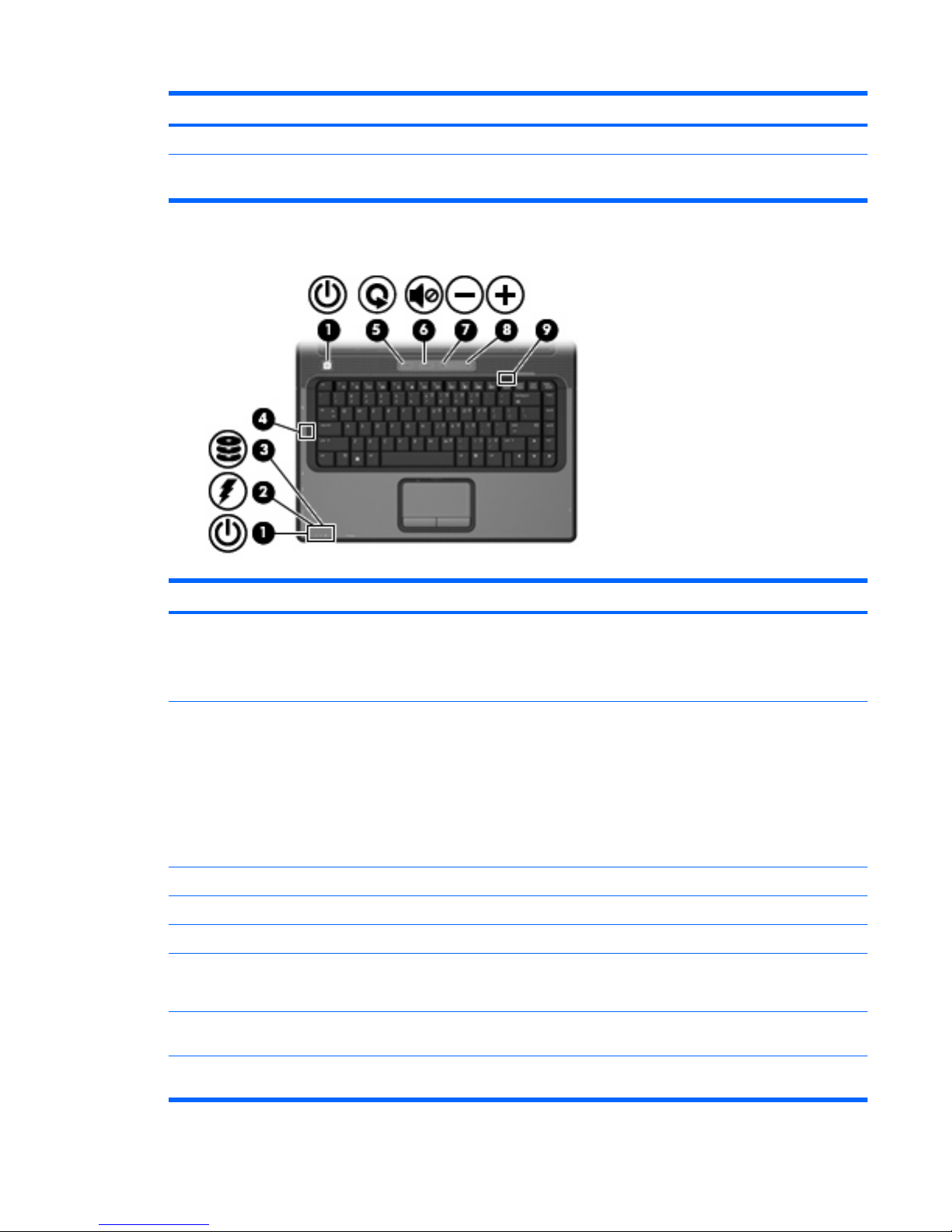

Lights
Component Description
(1) Power lights (2)* ●On: The computer is on.
●Blinking: The computer is in standby.
●Off: The computer is off or in hibernation.
(2) Battery light ●On: A battery is charging.
●Blinking: A battery that is the only available power source has
reached a low battery level or a critical battery level.
●Off: If the computer is plugged into an external power source,
the light turns off when all batteries in the computer are fully
charged. If the computer is not plugged into an external power
source, the light stays off until the battery reaches a low-
battery condition.
(3) Drive light Blinking: The hard drive or optical drive is being accessed.
(4) Caps lock light On: Caps lock is on.
(5) Media button light Blinks once when the media button is pressed.
(6) Volume mute light ●Blue: Computer sound is turned on.
●Amber: Computer sound is turned off.
(7) Volume down light Blinking: The volume scroll zone is being used to decrease speaker
volume.
(8) Volume up light Blinking: The volume scroll zone is being used to increase speaker
volume.
Top components 3
Component Description
(9) Num lock light On: Num lock is on or the embedded numeric keypad is enabled.
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The
power light on the front of the computer is visible whether the computer is open or closed.

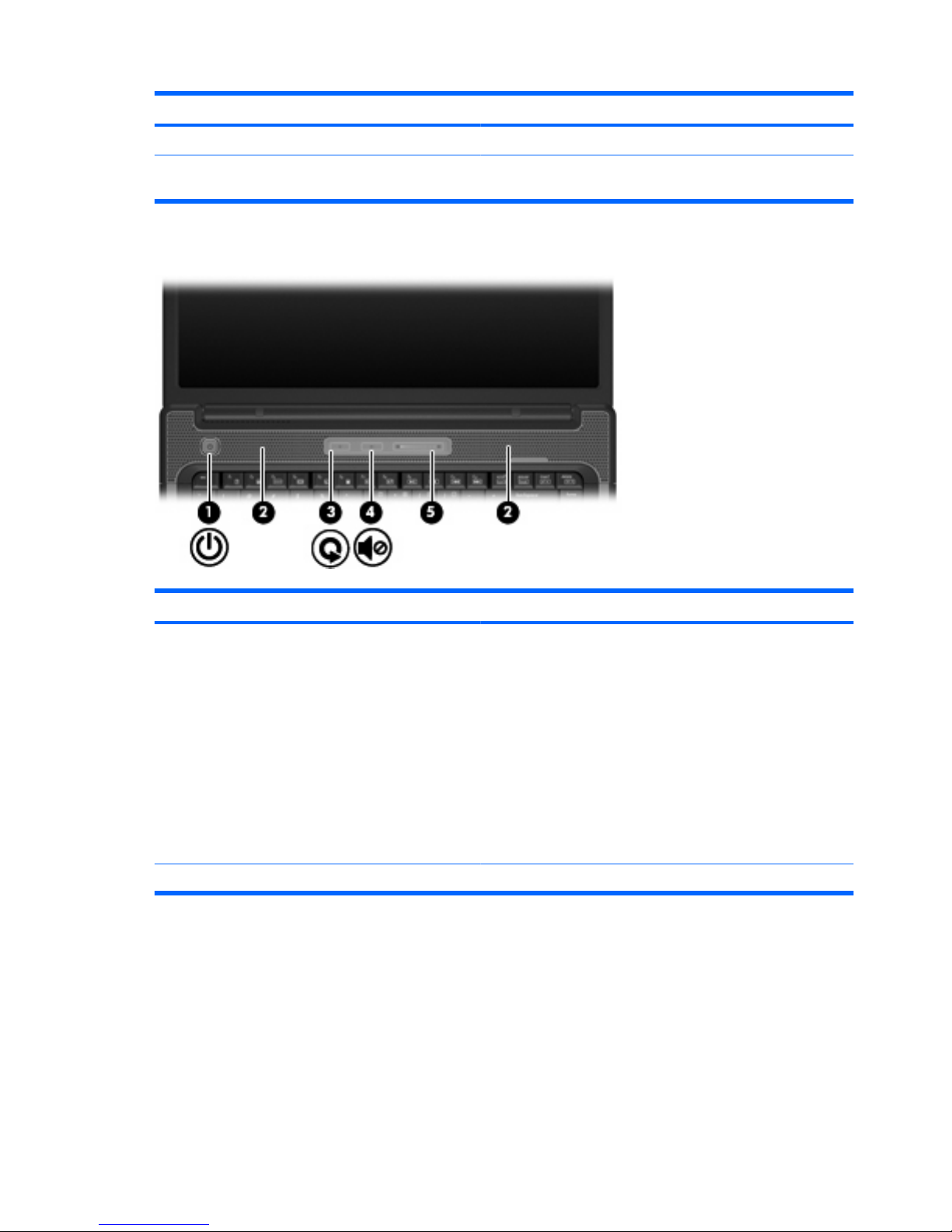

Buttons and speakers
Component Description
(1) Power button* ●When the computer is off, press the button to turn on the
computer.
●When the computer is on, press the button to initiate
hibernation.
●When the computer is in standby, press the button briefly to
exit standby.
●When the computer is in hibernation, press the button briefly
to exit hibernation.
If the computer has stopped responding and Microsoft® Windows®
shutdown procedures cannot be used, press and hold the power
button for at least 5 seconds to turn off the computer.
(2) Speakers (2) Produce sound.
4 Chapter 2 Components
