CommScope NG4access ODF Platform Value-Added Module Manual de usuario

Installation Instructions

25285-A

300001749219 Rev B

TECP-90-702, Issue 4, April 2017

NG4access®Frame (Concrete Floor)

TECP-90-702 • Issue 4 • April 2017 • Preface

Page ii

REVISION HISTORY

TRADEMARK INFORMATION

CommScope, CommScope (logo), and NG4access are trademarks of CommScope Inc.

DISCLAIMER OF LIABILITY

Contents herein are current as of the date of publication. CommScope reserves the right to change the contents without prior notice.

In no event shall CommScope Inc. be liable for any damages resulting from loss of data, loss of use, or loss of profits and

CommScope Inc. further disclaims any and all liability for indirect, incidental, special, consequential or other similar

damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period.

This publication may be verified at any time on the CommScope website using the following URL:

http://www.commscope.com/SupportCenter

ISSUE DATE REASON FOR CHANGE

1 4/2013 Original.

4 April 2017 Reformatted to CommScope format.

TECP-90-702 • Issue 4 • April 2017 • Preface

Page 1

TABLE OF CONTENTS

Content Page

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Admonishments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

List of Acronyms and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1 TOOLS AND MATERIALS REQUIRED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2 FOOTPRINT OF FRAME AND FIBER OPTIC STORAGE PANEL (FOTSP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 MOUNTING THE FRAME ON A CONCRETE SURFACE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4 INSTALLING A FIBER OPTIC STORAGE PANEL (FOTSP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5 GROUNDING THE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

6 SECURING TWO FRAMES TOGETHER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7 CUSTOMER INFORMATION AND ASSISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

TECP-90-702 • Issue 4 • April 2017 • Preface

Page 2

TABLE OF CONTENTS

Content Page

Blank

TECP-90-702 • Issue 4 • April 2017 • Preface

Page 3

ABOUT THIS MANUAL

This manual provides complete instructions for installing a NG4access frame on a concrete

floor, grounding the frame, and securing two frames.

RELATED PUBLICATIONS

Listed below are related manuals and their publication numbers. Copies of these publications can

be ordered using the following URL:

http://www.commscope.com/SupportCenter

NG4access ODF Platform Application and Planning Manual 90-701

Contains an NG4access overview and information for planning a NG4access

application.

NG4access Frame Installation Manual: Raised Floor 90-708

Provides pictorial instructions for installing an NG4access frame on a raised

floor and grounding the frame.

NG4access ODF Platform Universal Chassis Installation Manual 90-703

Provides installation instructions for the NG4access standard chassis.

NG4access ODF Platform Splice Chassis and Splice Tray

Installation Manual 90-704

Provides installation instructions for the NG4access standard chassis.

NG4access ODF Platform Patch Cord Routing Guide 90-705

Provides pictorial guidelines for routing patch cords on a lineup consisting of

one or more NG4access frames. This manual consists of laminated cards that

hang on the front of the lineup.

NG4access ODF Platform Rear Side Routing Guide 90-706

Provides pictorial guidelines for routing cables and installing adapter packs and

cabled modules on the rear side of a lineup consisting of one or more NG4ac-

cess frames. This manual consists of laminated cards that hang on the rear of

the lineup.

Title/Description Publication Number

TECP-90-702 • Issue 4 • April 2017 • Preface

Page 4

ADMONISHMENTS

Important safety admonishments are used throughout this manual to warn of possible hazards to

persons or equipment. An admonishment identifies a possible hazard and then explains what

may happen if the hazard is not avoided. The admonishments — in the form of Dangers,

Warnings, and Cautions — must be followed at all times. These warnings are flagged by use of

the triangular alert icon (seen below), and are listed in descending order of severity of injury or

damage and likelihood of occurrence.

GENERAL SAFETY PRECAUTIONS

LIST OF ACRONYMS AND ABBREVIATIONS

The following acronyms are used in this manual:

FOT Fiber Optic Terminal

IFC Intra Facility Cable

OSP Outside Plant

Danger: Danger is used to indicate the presence of a hazard that will cause severe personal

injury, death, or substantial property damage if the hazard is not avoided.

Warning: Warning is used to indicate the presence of a hazard that can cause severe personal

injury, death, or substantial property damage if the hazard is not avoided.

Caution: Caution is used to indicate the presence of a hazard that will or can cause minor

personal injury or property damage if the hazard is not avoided.

Danger: Infrared radiation is invisible and can seriously damage the retina of the eye. Do not

look into the ends of any optical fiber. Do not look directly into the optical adapters of the

adapter packs. Exposure to invisible laser radiation may result. An optical power meter should

be used to verify active fibers. A protective cap or hood MUST be immediately placed over any

radiating adapter or optical fiber connector to avoid the potential of dangerous amounts of

radiation exposure. This practice also prevents dirt particles from entering the adapter or

connector.

TECP-90-702 • Issue 4 • April 2017

Page 1

1 TOOLS AND MATERIALS REQUIRED

The tools and materials required for mounting the NG4access frame on a concrete surface are

specified in Table 1, Table 2, and Table 3.

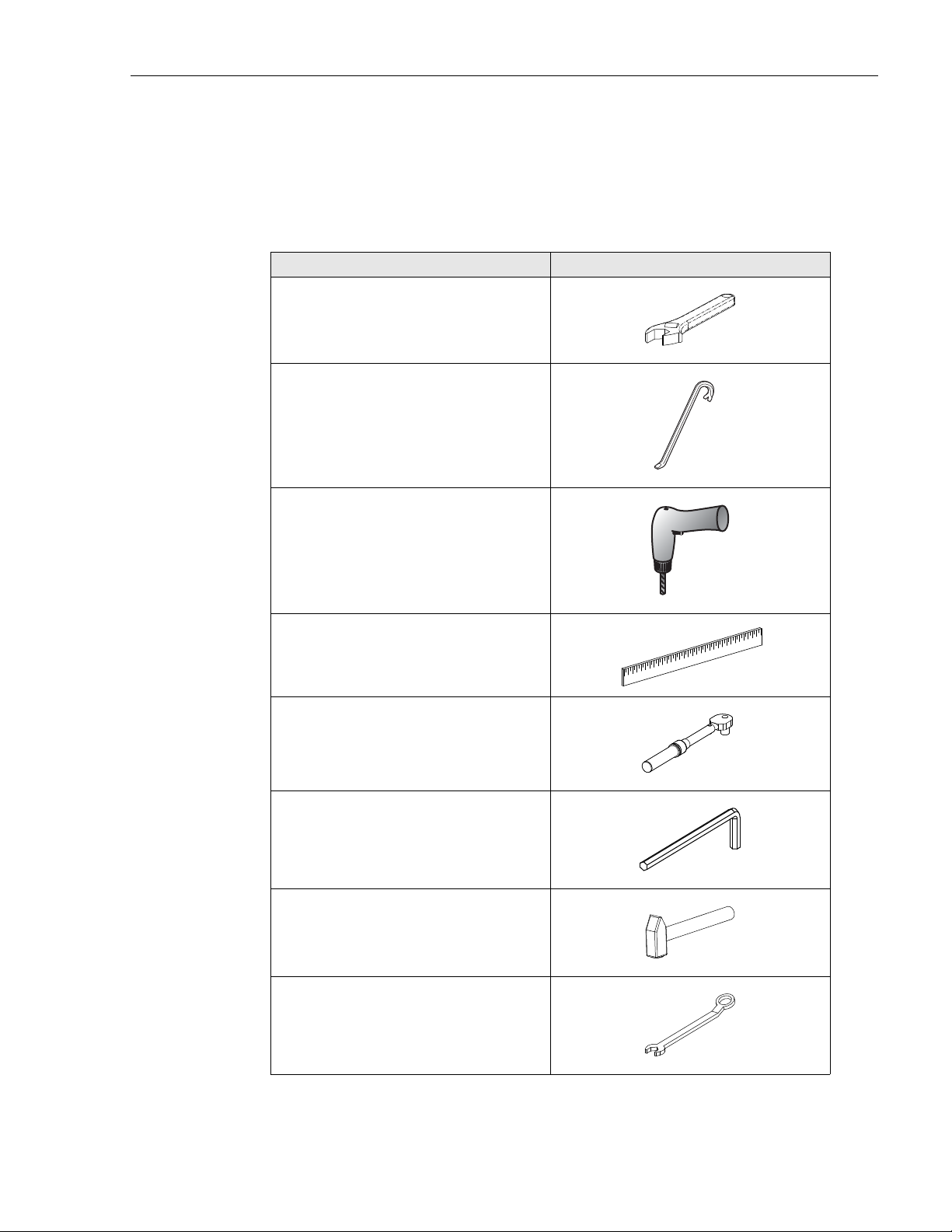

Table 1. Tools Required

TOOL PICTURE

Adjustable wrenches (2)

0.25 to 1 inch (8 to 25.4 mm)

Crow bar

Drill with metal and concrete drill bits

0.25 to 1 inch (8 to 25.4 mm)

Ruler or tape measure

Torque wrench

19.9 ft.-lbs. (27 Nm)

Allen wrench (5/16-inch)

Note: Used for leveling frame

Hammer

Set of combination open-end/box-end

wrenches

0.25 to 1 inch (8 to 25.4 mm)

12494-B

12495-B

12496-B

131

12825-a

17721-A

18406-A

12500-B

12506-B

TECP-90-702 • Issue 4 • April 2017

Page 2

Set of sockets

0.25 to 1 inch (8 to 25.4 mm)

Crimping tool

0.25 to 0.3 inches (6.35 to 7.62 mm)

Note: Used for grounding frame

Vacuum

Flat tip (–) and Phillips (+) screwdrivers

(#1, #2, and #3)

Table 2. Ground Wire Kit Components (Accessory)

ITEM DESCRIPTION/PICTURE

Ground cable (13 ft.) #6 AWG (4.1 mm) solid copper wire

Nylon cable clamps (8)

12-24 x 0.5 inch screws

2-hole copper compression lug (1) with

0.75-inch hole spacing.

Note: Accommodates #6 AWG wire

Table 1. Tools Required, continued

TOOL PICTURE

12504-B

12824-A

12505-B

12503-B

18413-A

18414-A

12498-B

TECP-90-702 • Issue 4 • April 2017

Page 3

Table 3. Other Components Used

PART PICTURE

Concrete floor installation kit

(four threaded assemblies)

Hold-down washer (4)

(provided with frame)

STUD

TORQUE LIMITING HEX NUT

METAL SLEEVE

NYLON SPACER

EXPANDABLE CONE

FLAT WASHER

TOP FLANGE

(SHEARS OFF)

PLASTIC COVER

NOTE: ONE PIECE

TORQUE NUT

18008-B

21899-A

TECP-90-702 • Issue 4 • April 2017

Page 4

2 FOOTPRINT OF FRAME AND FIBER OPTIC STORAGE PANEL (FOTSP)

Figure 1 shows the frame footprint. Figure 2 shows the FOTSP footprint. The optional FOTSP

is installed adjacent to the frame on the left front side.

Figure 1. Frame Footprint (Optional Template Shown)

Figure 2. FOTSP Footprint

25162-A

23.89 IN.

(60.68 CM)

29.84 IN. (75.79 CM)

1.0 IN. (2.54 CM) DIAMETER

(4) PLACES

8-5/16 IN.

(21.11 CM)

7-13/16 IN.

(19.84 CM)

13IN.

(33.02 CM)

25-1/2 IN. (64.77 CM)

FRONT

22-27/32 IN. (58.02 CM)

2-7/8 IN.

(7.30 CM)

9-5/8 IN.

(23.45 CM)

11.88 IN. (30.17 CM)

18.98 IN.

(48.21 CM)

FRONT

2.5 IN.

(6.35 CM)

25243-A

23.98 IN.

(60.91 CM)

RADIUS1.0 IN.

(2.54 CM)

10.90 IN.

(27.69 CM)

3.75 IN. (9.52 CM)

SLOT 1.75 X 1.0 IN.

(4.44 X 2.54 CM)

6.88 IN. (17.47 CM)

4.0 IN. (10.16 CM)
