CommScope FPX Series Manual de usuario

300100107130 Rev C Page 1

Installation Instructions

5RU FPX Panel

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

1 DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2 BASIC INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.1 Mounting Bracket Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.2 Installing the Panel on an Equipment Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.3 Installing Vertical Cable Guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2.4 Grounding the Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

3 PANEL-SPECIFIC INSTALLATION PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3.1 Panel Types and Procedures Done for Each Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3.2 Installing Adapter Packs (LC, SC, or MPO). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3.3 Installing MPO Cassettes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

3.4 Installing an MPO Cable With MPO Cassettes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.5 Installing a Cable Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

3.6 Preparing and Connecting a Pre-Connectorized Cable Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

3.7 Installing Pigtail Adapter Pack Assemblies and Splice Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

3.8 Routing an IFC/OSP Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

(continued)

Content Page

25716-A

FPX Series

3, 4 & 5 Rack Unit Fiber Panel

TECP-92-160, Rev C, May 2018

TECP-92-160 • Rev C • May 2018

Page 2

3.9 Performing a Ribbon Fiber Heat Fusion Splice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.1 Accessing Inner Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.2 Removing Fanout Holders to Gain Access to Splice Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5 CUSTOMER INFORMATION AND ASSISTANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

INTRODUCTION

This manual provides a description of the 12-inch-deep 3, 4, & 5 Rack Unit (3, 4, & 5 RU) FPX

Series Fiber Panel plus the installation and cable routing procedures.

Revision History

Trademark Information

CommScope is a registered trademark of CommScope Inc.

Admonishments

Important safety admonishments are used throughout this manual to warn of possible hazards to

persons or equipment. Admonishments — in the form of Dangers, Warnings, and Cautions, —

must be followed at all times.

General Safety Precautions

Content Page

ISSUE DATE REASON FOR CHANGE

1 2/2015 Original

2 July 2016 Rebranded for CommScope.

Rev C May 2018 Revised cable routing instructions and diagrams.

Danger: Danger is used to indicate the presence of a hazard that will cause severe personal

injury, death, or substantial property damage if the hazard is not avoided.

Warning: Warning is used to indicate the presence of a hazard that can cause severe personal

injury, death, or substantial property damage if the hazard is not avoided.

Caution: Caution is used to indicate the presence of a hazard that will or can cause minor

personal injury or property damage if the hazard is not avoided.

Caution: Fiber optic cables may be damaged if bent or curved to a radius that is less than the

recommended minimum bend radius. Always observe the recommended bend radius limit when

installing fiber optic cables and patch cords.

TECP-92-160 • Rev C • May 2018

Page 3

1 DESCRIPTION

The 3, 4, & 5 RU FPX fiber panel, shown in

Figure 1,

can accommodate up to 144, 192, or 288

LC terminations, respectively (72, 96, and 144 per side, respectively). This panel may be ordered

empty or with adapter packs, Multifiber Push-On (MPO) cassettes, splice trays, or pigtails. The

panel can be configured for termination only (without splice trays) or for termination/splice.

Figure 1 shows a front view of the panel.

Figure 1. Typical FPX Fiber Panel Configured With Adapter Packs (5RU Front View Shown)

Danger: Exposure to laser radiation can seriously damage the retina of the eye. Do not look

into the ends of any optical fiber. Do not assume the laser power is turned-off or that the fiber is

disconnected at the other end.

Caution:

Improper handling can damage fiber optic cables. Do not bend fiber optic cable more

sharply than the minimum recommended bend radius specified by the cable manufacturer. Do not

apply more pulling force to the cable than specified. Do not compress the fiber or allow it to kink.

Note: The FPX panel is designed to be installed in an environmentally controlled network

telecommunications facility such as a Central Office, Controlled Environmental Vault, or

Data Center.

LEFT SIDE

ADAPTER

PACKS

RIGHT SIDE

ADAPTER

PACKS

DOOR

LATCH DESIGNATION

LABEL AREA

MOUNTING

BRACKET

SPLICETRAY

LOCATION

(INSIDE OF PANEL)

HINGED

FRONT DOOR

HINGED

REAR DOOR

25686-A

TECP-92-160 • Rev C • May 2018

Page 4

The FPX fiber panel can be ordered loaded with adapter packs only, or loaded with both adapter

packs and a pre-terminated, factory-installed cable. While not recommended, field-installed

connectors may be accommodated depending on boot length.

The panel can be used in either singlemode or multimode applications, and with either stranded

or ribbon cable. Cables can be either Intra Facility Fiber (IFC) or Outside Plant (OSP). Figure 2

shows a rear view of the panel in a pre-terminated configuration.

Termination/Splice panels have splice trays mounted inside the panel for easy access and cable

routing. The panel accommodates LC/SC adapter packs, MPO adapter packs, and MPO

cassettes. Radius limiters located inside the panel must be removed prior to panel installation

when using MPO cassettes.

When a panel is ordered loaded with adapters, a fanning tree such as shown in Figure 2 is

included. The fanning tree is used to support the fibers routed to the adapters.

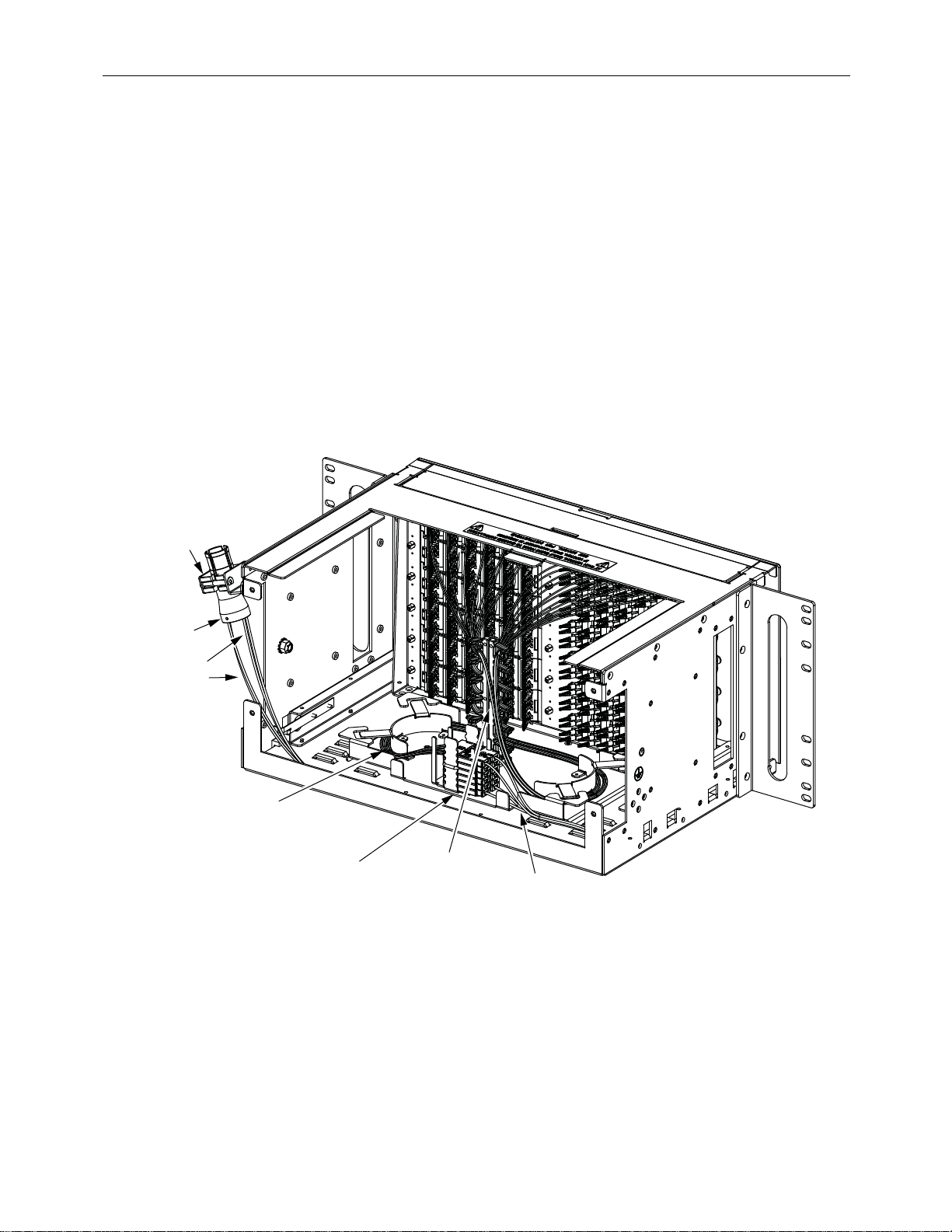

Figure 2. Pre-Terminated 5RU FPX Panel Example

25687-A

CABLE

CLAMP

CABLE

BREAKOUT

SUBUNIT

BREAKOUT

FANOUT

CHIPSINDIVIDUAL

SUBUNIT

PROTECTIVE

TUBES

FANNING

TREE

TECP-92-160 • Rev C • May 2018

Page 5

2 BASIC INSTALLATION

Basic installation consists of procedures done for every type of FPX fiber panel, selecting the

mounting bracket location and reconfiguring the brackets if desired, installing the panel on an

equipment rack, installing the vertical cable guides, and grounding the panel. Instructions for

these procedures are provided below.

2.1 Mounting Bracket Options

The panel is shipped with mounting brackets configured for a 23-inch EIA/WECO rack with a

2-inch recess. The panel can be mounted with a 2, 5, or 8 -inch recess in 19 or 23-inch racks

using EIA or WECO mounting hole patterns. Figure 3 shows the available mounting options.

Figure 3. Mounting Options (5RU Panel Shown)

Warning: Never install equipment in a wet location or during a lightning storm. When

installing or modifying communication lines, disconnect lines at the network interface before

working with uninsulated lines or terminals.

Note: The FPX panel is designed to be installed in an environmentally controlled network

telecommunications facility such as a Central Office, Controlled Environmental Vault, or

Data Center.

25688-A

23-INCH

MOUNTING

BRACKET

NOTE: DIFFERENT

BRACKETS(SEPARATELY

SHIPPED) ARE USED

FOR 19-INCH MOUNTING

2-INCH

RECESS

8-INCH

RECESS

5-INCH

RECESS

REARVIEW

TECP-92-160 • Rev C • May 2018

Page 6

2.2 Installing the Panel on an Equipment Rack

Use 12-24 screws to secure the panel to an equipment rack as shown in Figure 4.

Figure 4. Install Panel into Rack (5RU Panel Shown)

Note: Figure 4 shows a panel installed in a 23-inch rack with a 2-inch recess.

12-24 SCREWS

(4)

25689-A

12-24WASHERS

(4)

TECP-92-160 • Rev C • May 2018

Page 7

2.3 Installing Vertical Cable Guides

Install the two Vertical Cable Guides (VCGs) on the panel as follows, referring to Figure 5:

1. Align the slotted mounting holes in the cable shield with the holes in the VCG mounting

bracket.

2. Align the holes in VCG with the holes in the cable shield and mounting bracket. Use 6-32

screws (2 per VCG, provided) to secure the VGC’s to panel.

Figure 5. Install VCGs (5RU Panel Shown)

VCG

MOUNTING

BRACKET

CABLE

SHIELD

VCG

6-32 SCREWS

(2 PLACES)

INSTALLED

VCG

25690-A

TECP-92-160 • Rev C • May 2018

Page 8

2.4 Grounding the Panel

Each FPX fiber panel has a grounding location on each side of the panel marked by a standard

grounding symbol as indicated in Figure 6. Just below this location are four mounting holes for

securing a a two-hole lug such as shown in Figure 7. The lug may be mounted in either a

horizontal or vertical orientation. Secure the lug using the two #10-32 ground screws and two

#10 star washers provided. Route a a #6 copper grounding cable from the lug to office ground.

If installing an armored OSP cable, use the internal grounding stud (shown in Figure 6) to

ground the metallic sheath within the cable.

Figure 6. Grounding Location (Rear View of 5RU Panel)

Figure 7. Ground Cable and 2-Hole Lug Terminal

Note: Ground the unit to the local facility CBN (Common Bonding Network) or IBN

(Isolated Bonding Network) per local practice.

ISO BACK VIEW

SPLICE

TRAYS

25797-A

INTERNAL

STUD

(BOTH SIDES)

USED FOR

GROUNDING

METALLIC SHEATH

ON OSP

ARMORED CABLE

MOUNTING HOLES

FORTWO-HOLE LUG

HORIZONTAL OR

VERTICALDIRECTION

GROUNDING

SYMBOL

(BOTH SIDES)

24016-B

2-HOLE LUG

TERMINAL

#6 COPPERWIRE

STRIP BACK INSULATION

PER LUG MANUFACTURER'S

RECOMMENDATION

HOLE CENTER

SPACING: 0.625 INCHES

TECP-92-160 • Rev C • May 2018

Page 9

3 PANEL-SPECIFIC INSTALLATION PROCEDURES

For purposes of installation, the FPX fiber panel is divided into four types:

• Empty panel (includes rear management hardware to accept adapter packs, pigtails, and

splice trays);

• Termination panel loaded with adapters only (includes rear management hardware to

accept multi-fiber cable assemblies);

• Termination/splice panel: loaded with adapters, pigtails, and splice trays;

• Stubbed panel: completely equipped with a preterminated cable stub.

3.1 Panel Types and Procedures Done for Each Type

Table 1

lists the main panel types shipped to the customer and the installation procedures that may

be done for each type.

3.2 Installing Adapter Packs (LC, SC, or MPO)

This section describes how to install adapter packs (LC, SC, or MPO) in an empty FPX panel.

The 3RU panel accepts up to six adapter packs. The 4RU panel accepts up to eight adapter

packs. The 5RU panel accepts up to 12 adapter packs. Use the following procedure.

1. Orient the adapter pack as shown in Figure 8.

Table 1. Panel Types and Procedures Required

PANEL TYPE PROCEDURE REFER TO SECTION

Empty Panel Basic installation 2 on Page 5

Install adapter packs (LC, SC, or MPO) 3.2 on Page 9

Install MPO cassettes 3.3 on Page 10

Install an MPO cable with MPO cassettes 3.4 on Page 13

Install a cable clamp 3.5 on Page 16

Prepare and connect a pre-connectorized cable assembly 3.6 on Page 17

Install pigtail adapter pack assemblies and splice trays 3.7 on Page 21

Install an IFC/OSP cable and prepare for splicing 3.8 on Page 25

Termination Only Panel Basic installation 2 on Page 5

Prepare and connect a pre-connectorized cable assembly 3.6 on Page 17

Termination/Splice Panel Basic installation 2 on Page 5

Install pigtail adapter pack assemblies and splice trays 3.7 on Page 21

Install an IFC/OSP cable and prepare for splicing 3.8 on Page 25

Stub cable Basic installation 2 on Page 5

Note: Adapter packs installed on left side of panel are angled toward the left. Adapter

packs on right side are angled towards the right.

TECP-92-160 • Rev C • May 2018

Page 10

2. Align the adapter pack with the receptor holes at its designated location. Pull out the

Nylatch plunger fasteners and press them into the receptor holes until they lock into place.

Figure 8. Adapter Pack Installation (5RU Panel Shown)

3.3 Installing MPO Cassettes

This section describes how to install MPO cassettes in an empty FPX panel. The 3RU panel

accepts up to six cassettes. The 4RU panel accepts up to eight cassettes. The 5RU panel accepts

25691-A

LEFT SIDE ADAPTERS

ARE ANGLEDTOTHE LEFT

ALIGN NYLATCH PLUNGER

FASTENERS WITH HOLES

IN PANEL

MAKE SURE NYLATCH

PLUNGER FASTENERS

ARE PULLED OUT

INSTALL RIGHT SIDE ADAPTER PACKS

IN ORIENTATION SHOWNWITH

ADAPTERS ANGLEDTOWARD

THE RIGHT

NYLATCH PLUNGER FASTENERS MUST BE

PULLED OUT BEFORE INSERTINGTHE

ADAPTER PACK INTO MOUNTING HOLES IN

PANEL. PUSHTHE FASTENERS "IN"TO LOCK

ADAPTER PACK INTO PANEL

Otros manuales para FPX Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de CommScope

CommScope

CommScope SYSTIMAX AirSPEED AP542 Manual de usuario

CommScope

CommScope SYSTIMAX 360 iPatch G2 MPO Manual de usuario

CommScope

CommScope AMP NETCONNECT MRJ21 Manual de usuario

CommScope

CommScope WCS-2 Manual de usuario

CommScope

CommScope CPPR-QF-F-1U-E Manual de usuario

CommScope

CommScope ION-U EU H 7P/80-85P/17P/19P Manual de usuario

CommScope

CommScope OneCell RP5000 Series Guía

CommScope

CommScope SYSTIMAX 100BASE-T Manual de usuario

CommScope

CommScope RUCKUS SmartZone 300 Manual de usuario

CommScope

CommScope FPX Series Manual de usuario

CommScope

CommScope SD-4U-SPLICE PANEL Manual de usuario

CommScope

CommScope NETCONNECT 1479542-1 Manual de usuario

CommScope

CommScope ONECELL RP5200 Manual

CommScope

CommScope Constellation CPT-PP-48C Manual de usuario

CommScope

CommScope SYSTIMAX EHD Manual de usuario

CommScope

CommScope ION-U EU H 23/23 Manual de usuario

CommScope

CommScope RUCKUS SmartZone 100 Manual de usuario

CommScope

CommScope ION-M7P Manual de usuario

CommScope

CommScope ION-M17EHP/19P Manual de usuario

CommScope

CommScope Uniprise Solutions HFTP-HD6B-1U-24 Manual de usuario

CommScope

CommScope UNJ10G Manual de usuario

CommScope

CommScope NG4access ODF Platform Value-Added Module Manual de usuario

CommScope

CommScope TC-96370-IP Manual de usuario

CommScope

CommScope FPX Series Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
