Commax DRC-4CPN2 Manual de usuario

Door Camera DRC-4CPN2

User Manual

•Thank you for purchasing COMMAX products.

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

All manuals and user guides at all-guides.com

all-guides.com

Contens

1. The names of Each Part

Speaker

Camera

LED Lamp

Call Button

Microphone

Front side

Monitor cable

Door release cable

Volume control

Back side

Mounting Holes

1. The names of Each Part

2. Wiring & Installation

3. Package

4. Specification

All manuals and user guides at all-guides.com

1. Align holes on the wall where the unit is

and secure.

FIG-1 : Install the camera at a 30˚

angle to

(install the bracket in reverse

˚to the right)

FIG-2 : Install the camera at a perpendicular

2. Wire the household monitor cables as

picture below[FIG-3]

(#1:RED/VOICE, #2:BLUE/GND,

3. Wire the door release cable as shown in

4. Tighten using bolts and a wrench, then

2. Wiring & Installation

#1: RED(VOICE)

#2: BLUE(GND)

#3: YELLOW(+12V)

#4: BLACK(VIDEO)

[FIG-3]

to be installed with mounting brackets hole

the left

to angle 30

angle to the front

shown below with matched polarity as

#3:YELLOW/DC12V, #4:BLACK/VIDEO)

the diagram.[FIG-3]

cover using the AL. screw covers.

All manuals and user guides at all-guides.com

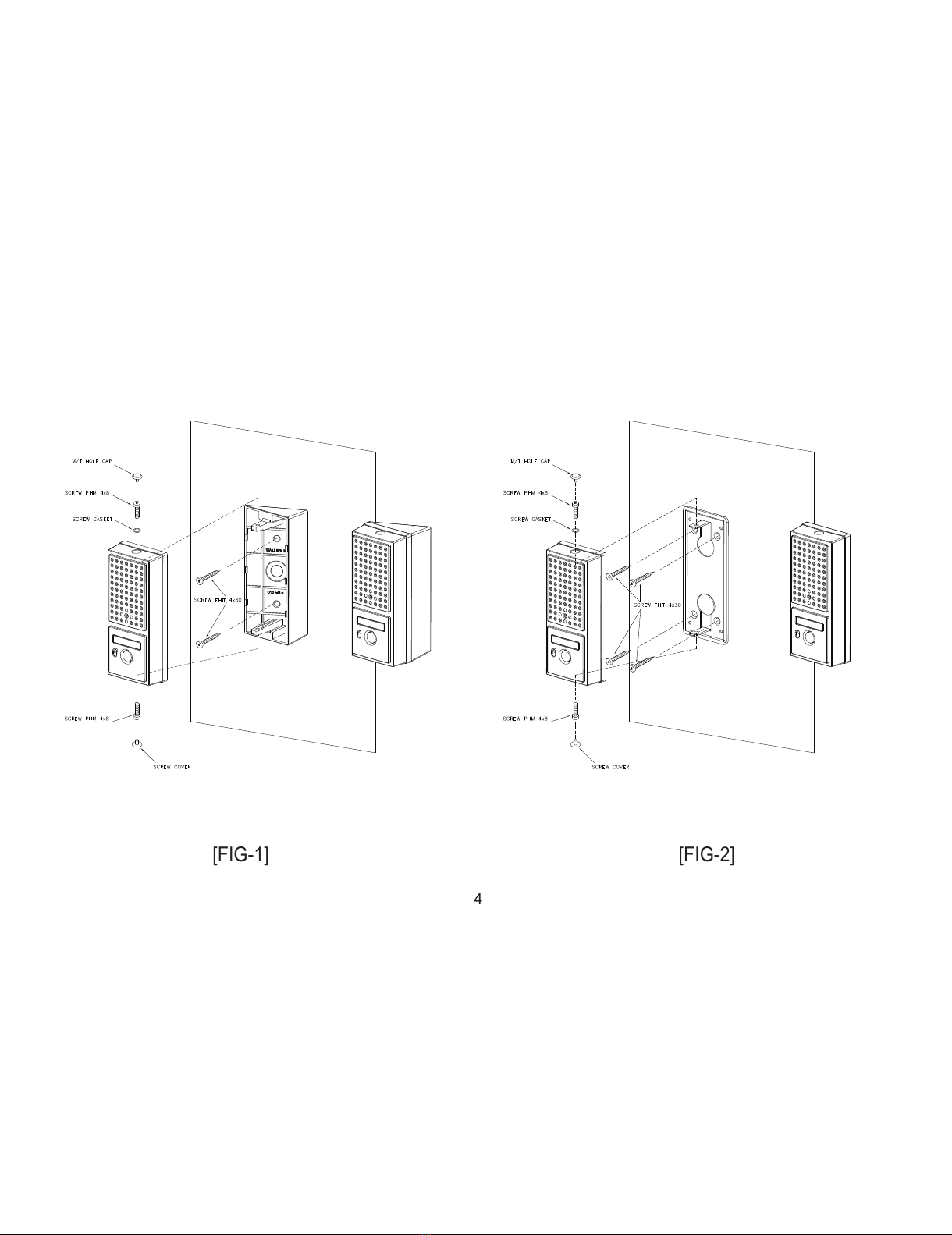

[FIG-1] [FIG-2]

All manuals and user guides at all-guides.com

[FIG-4]

●

You can adjust speaker volume using driver

as shown below. [FIG-4]

60cm

55˚

●

Please refer to the below images regarding

the installation position of the product.

All manuals and user guides at all-guides.com

3. Package

Manual

All manuals and user guides at all-guides.com

all-guides.com

4. Specification

specification Model

DRC-4CPN2

Image Sensor CMOS 1/3"

Sensor Resolution 0.41 megapixel

Power source 12V (supplied from the Monitor)

Wiring(household) Polar 4 wires

Call mode Duplex

Horizontal angle 68°

Vertical angle 55°

Format NTSC or PAL STANDARD

Horizontal / vertical Frequency 15.734㎑/ 60㎐or 15.625㎑/ 50㎐

Lamp Built-in white LED (automatically turns on in night)

Low illumination 0.1 LUX (Up to 300mm in front of the camera)

Workable temperature -10℃(tested up to -40

℃

) +50℃

Dimension(mm) 50(W) x 118 (H) x 25.5(D)

Weight(g) 250g (B/K included)

Camera angle

All manuals and user guides at all-guides.com

Printed In Korea / 2016.04.105

PM104CPN2001

513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea

Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133

Web site : www.commax.com
