Commax DRC-41UN Manual de usuario

Door camera DRC-41UN

User Manual

•Thank you for purchasing COMMAX products.

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

Installation & Wiring

Camera Lens

LED &

Speaker

Name card

Call button

Microphone

Angle

Volume

Door

Monitor

illumination Sensor

Adjuster

Controller VR Release cable

Connecting

Terminal

66.5°

FHM 4X40

(4EA)

①Line up the holes of wall and

②Do the monitor wiring cosidering

flush box and fix it on the wall.

the polarity according to the image

(Wiring diagram)

③Fit the product from the above and

Then, check the monitor screen,

press it against the bracket.

if it shows the place that you would

like to see.

▶Position of camera

Installation

▶

Wiring

▶

④Fix it from the bottom with the screw

1. O er iew

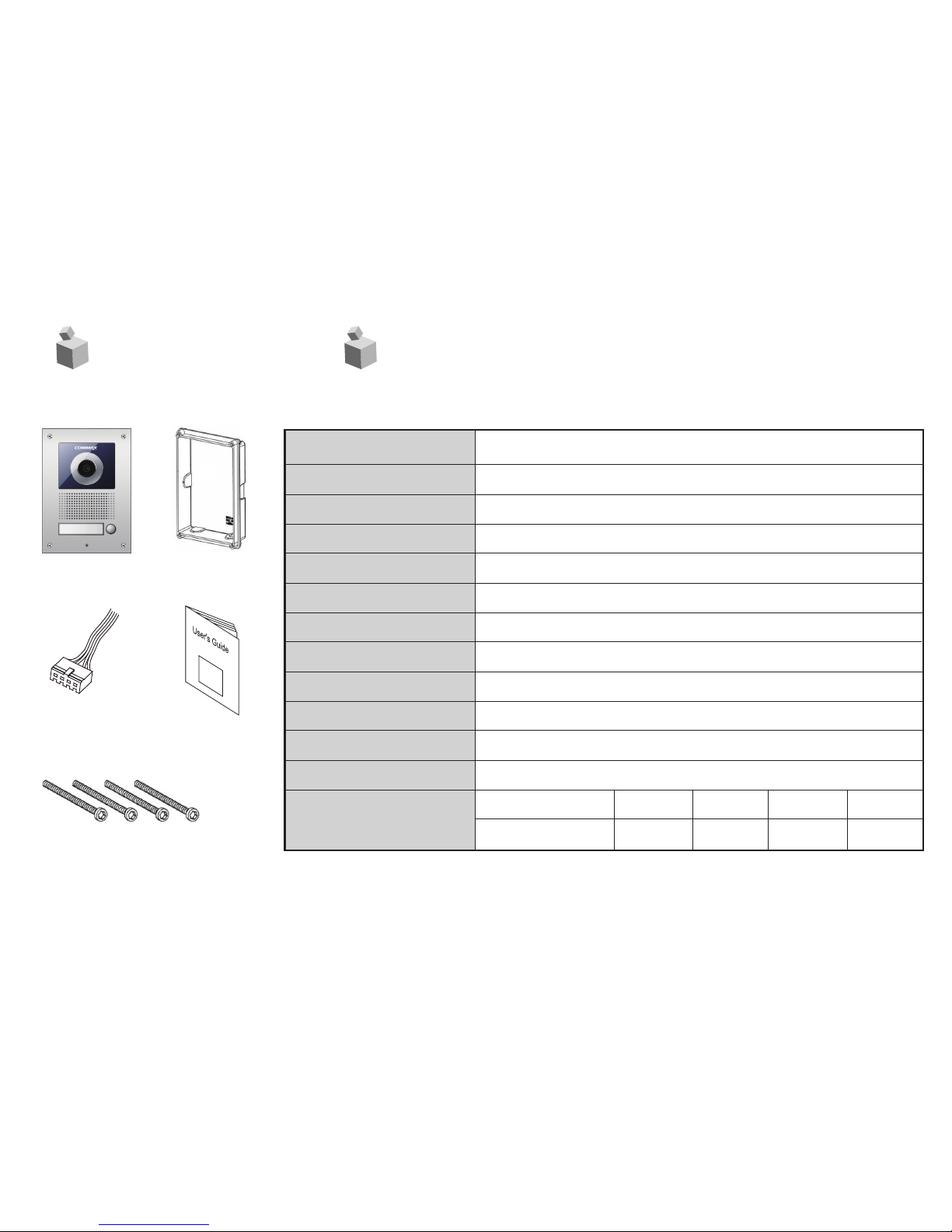

4. Specification

Model

Power source 12V (from Monitor)

Wiring

Camera Module

Communication

Frequency PAL STANDARD

Min. Lux.

Light

Camera Angle Horizontal 82°, Vertical 66.5°

Angle Adjustment

Temperation

Dimesion(mm)

Diameter(pie) 0.5 0.65 0.8 1

Distance(M) 28 50 70 115

Distance(TIV Cable)

DRC-41UN

4wires(Polariry)C

C-MOS(COLOR)

Duplex

0.1Lux(300mm from camera)

LED (Operation in Dark)

Up, Down, Left, Right, 10° each

-10°C(tested up to -40°C) ~ +50°C

130(W) X 182(H) X 39(D)

3. Package

Door Camera Flush box

Connector

(4PX200) Manual

카메라

Screw(4EA)

FHM(LENCH) 4X40

1/3 Inch

Printed In Korea / 2016.04.105

PM1041UN0010

513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea

Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133

Web site : www.commax.com
