Commax DP-2LD Manual de usuario

DOOR PHONE DP-2LD

User Manual

•Thank you for purchasing COMMAX products.

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

2

1. Overview

Volume Switch

Handset

Door release button

1. When the call button(on the door station) is pressed,

2. Adjust the volume switch(on the room station) to control

3. Pick up the handset(on the room station) to talk.

4. Press the door release button(on the room station) to open

the door. The door-lock should be instatlled.

5. Place the handset to finish talking.

2.

Operation

the chime sounds.

the call sound.

3. Installation

The unit may also be used with 6V Battery.

It is required to use Voltage Regulation DC Power Supply(9V or 12V ADAPTER) for safety operation.

Intercom Battery Power Supply

3

5. Specifications

Battery : 6V

Adapter : 9V or 12V

Door Phone 2-Wire(Nonpolar)

Door Release 2-Wire(Nonpolar)

Standby current

Maximum current

Effective distance Ø Ø

Dimensions

Wiring

Operating voltage

98(W) x 208(D) x 65(H)mm

100m ( 0.65mm), 150m( 0.8mm)

50mA

0.1mA

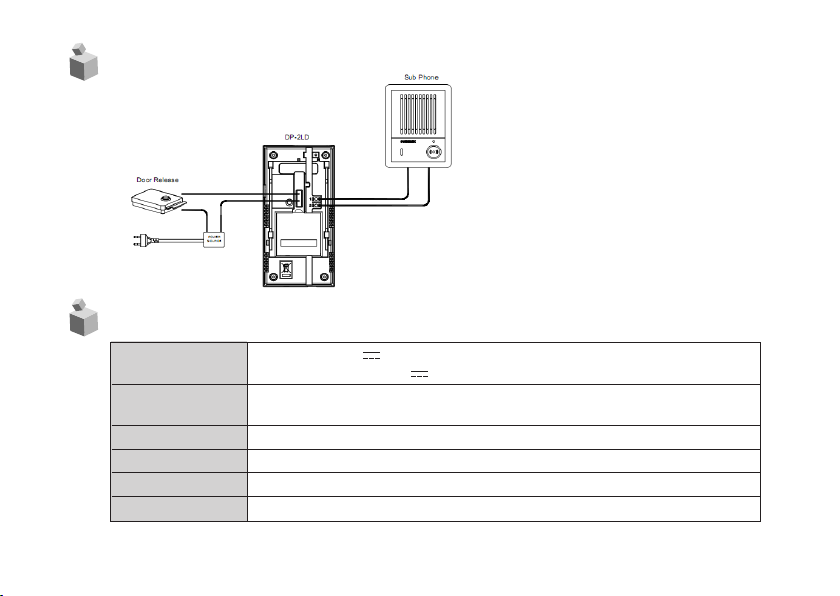

4. Wiring

Printed In Korea / 2016.04.105

513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea

Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133

Web site : www.commax.com
