Comeup CWL-301 Manual de usuario

Compact Winch

Model: CWL-301

PN : 373973 230V

373998 240V

Introduction

 Feature

Lifting capacity:

300 kg wire rope top layer

Lifting height: 29 m

Lifting speed: 16 – 25 m/min

Motor output: 2.3kw x 11A at 220-240V

Brake: Electromagnetic and mechanical ratchets

Control: Pendant switch powers the winch

 Unpacking

．Winch assembly 1pc

．Wire rope 6 mm x 30 m 1pc

．Weight hook CHW-0031 1pc

．Pendant switch PB-417 w/cord 2.0 mm2

x 6C x 10m 1pc

 Read this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

 Information requesting or parts ordering

Please specify the followings information:

．Winch PN

．Serial number

．Part description

．Replacement part number

．Quantity for each part

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

 Wire rope replacement

．Insert the wire rope into the hole of drum and fix it with a P. T. screw, then

press the "UP" button of switch for rotate the drum in the lifting direction.

．Wind the wire rope accurately around the drum, and an irregular winding

will cause the load to be swing, thus damaging the wire and reducing the

life of winch.

．When replacing, according to the following procedures.

*Pull out a R-dowel "D" from the round head pin "C".

*Pull out a round head pin "C" from hook body "A".

*Put a wire rope "B" into the hole of hook body "A", and insert a round

head pin "C" through wire rope and fixture hole of hook body "A".

*Insert a R-dower "D" into the hole of round head pin "C".

 Wiring Diagram

Warning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The lifting capacity shown is based on the top layer of rope on the drum.

．The rope winding on the drum shall remain 5 wraps from the drum.

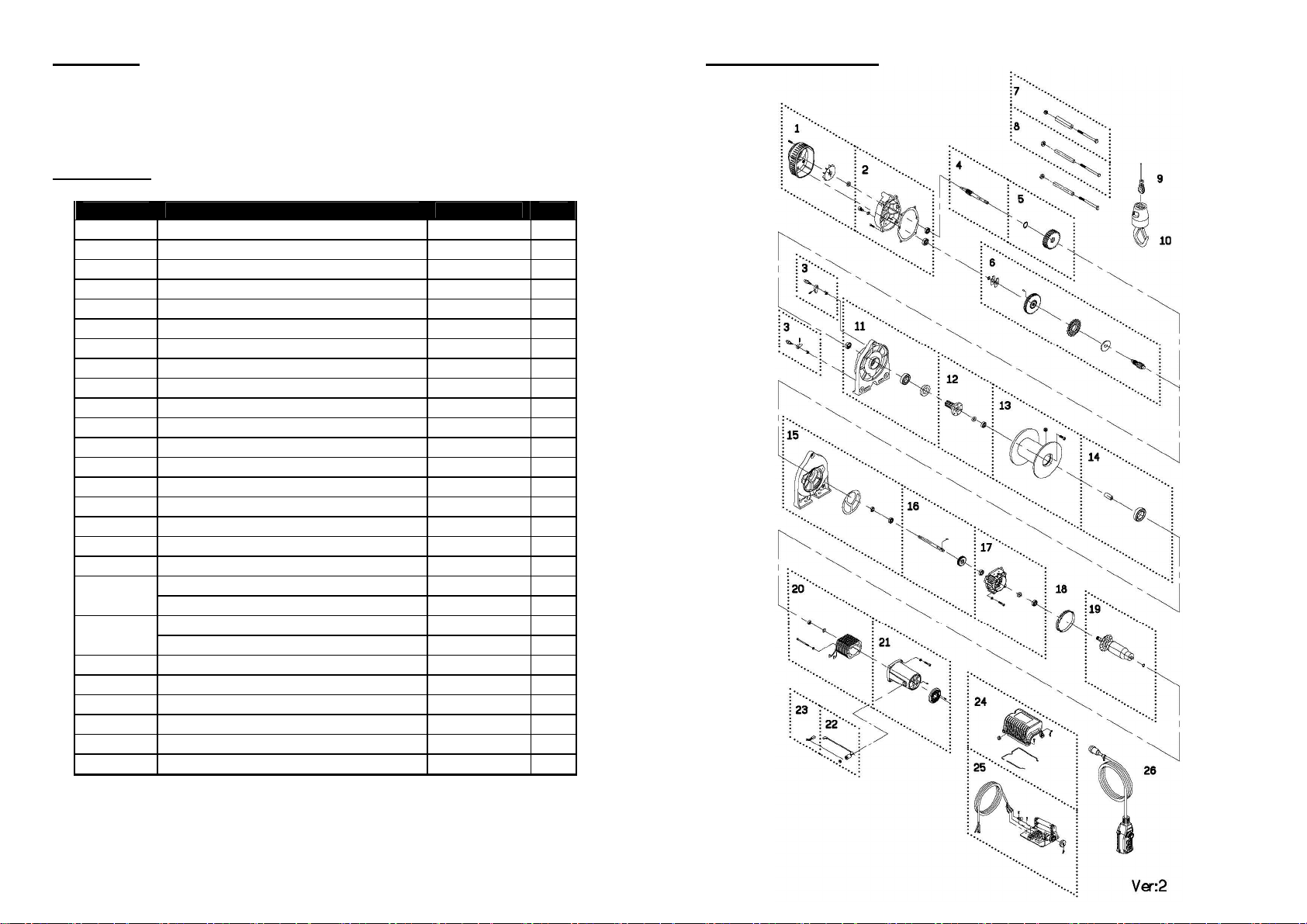

Parts List

Item No.

Description Part No. Qty

1 Protection cover kit 880581 1

2 Gearbox rear cover kit 880582 1

3 Ratchet stopper kit 880494 2

4 2

shaft 880583 1

5 3

gear kit 880584 1

6 Brake kit 881534 1

7 Tie bar kit 880552 1

8 Tie bar kit A 880553 2

9 Wire rope 880383 1

10 Weight hook 880384 1

11 Gearbox support rack kit 880590 1

12 Output shaft kit 880556 1

13 Drum kit 881518 1

14 Motor coupling kit 881515 1

15 Motor support rack kit 880558 1

16 Torque shaft kit 881535 1

17 Motor bracket kit 880595 1

18 Cooling ring 880596 1

19 Armature winding, 220/230V 880603 1

Armature winding, 240V 880604

20 Armature core, 220/230V 880978 1

Armature core, 240V 880979

21 Motor housing kit 880599 1

22 Carbon brush lead 880600 2

23 Carbon brush 880601 2

24 Terminal upper cover kit 882415 1

25 Control panel 882416 1

26 Remote control, PB-417 883146 1

Winch Assembly
