Comeup CWS-230 Manual de usuario

Baby Winch

Model: CWS-230

PN: 421000 220V 421929 230V 421960 240V

421949 240V 421870 230V 421470 240V

421912 230V 421392 110V 421794 220V

421399 110V 421391 240V

Introduction

XFeature

Lifting capacity: 230 kg wire rope top layer

Lifting height: 24 m

Lifting speed: 9 – 14 m/min

Brake: Electromagnetic and mechanical ratchet

Limit protection: Lifting and lowering limiters

Control: Pendant switch powers the winch

XUnpacking

．Winch assembly 1pc

．Wire rope 5 mm x 25 m(6X19), except for PN:421794 1pc

．Wire rope 5 mm x 25 m(19X7)untwisted for PN:421392 / 421949 1pc

．Weight hook CHW-0033 1pc

．Power lead 1.5 mm2

x 3C x 5 m and plug 1pc

．Power lead 1.5 mm2

x 3C x 3 m and plug for PN:421960 / 421470 1pc

．Pendant switch PB-317 w/cord 1.25 mm2

x 6C x 10 m 1pc

．Pendant switch PO3.5 w/cord 1.25 mm2

x 6C x 10 m for PN:421870 1pc

XRead this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

XInformation requesting or parts ordering

Please specify the followings information:

．Winch PN ．Serial number

．Part description ．Replacement part number

．Quantity for each part

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

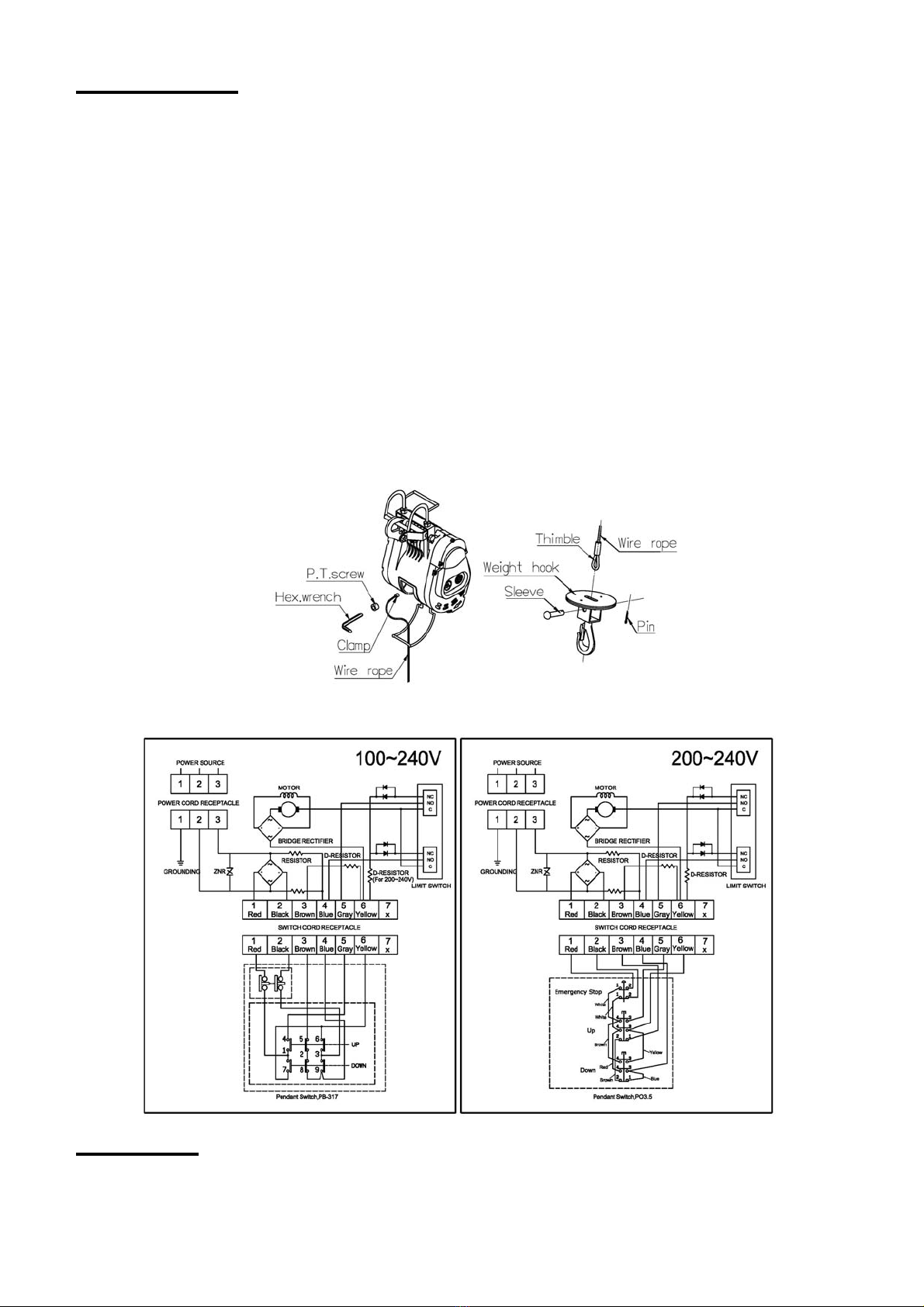

XWire rope replacement

．Put a new wire rope through the hole of the round plate of swivel hook.

．Insert a sleeve pin through the thimble of wire rope.

．Insert a pin through the sleeve pin and bent it by a pliers.

．Let a new wire rope w/clamp through the limit lever and insert it into the

hole of the drum.

．Put a P.T. screw into the hole of the drum and tighten it by a hexagon

wrench.

．Press the ↑button to rotate the drum in the lifting direction.

．An uneven winding of wire rope may cause the load to be swing, thus

damaging the rope and reducing its life.

XWiring Diagram

Warning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The lifting capacity shown is based on the top layer of rope on the drum.

．The rope winding on the drum shall remain 5 wraps from the drum.

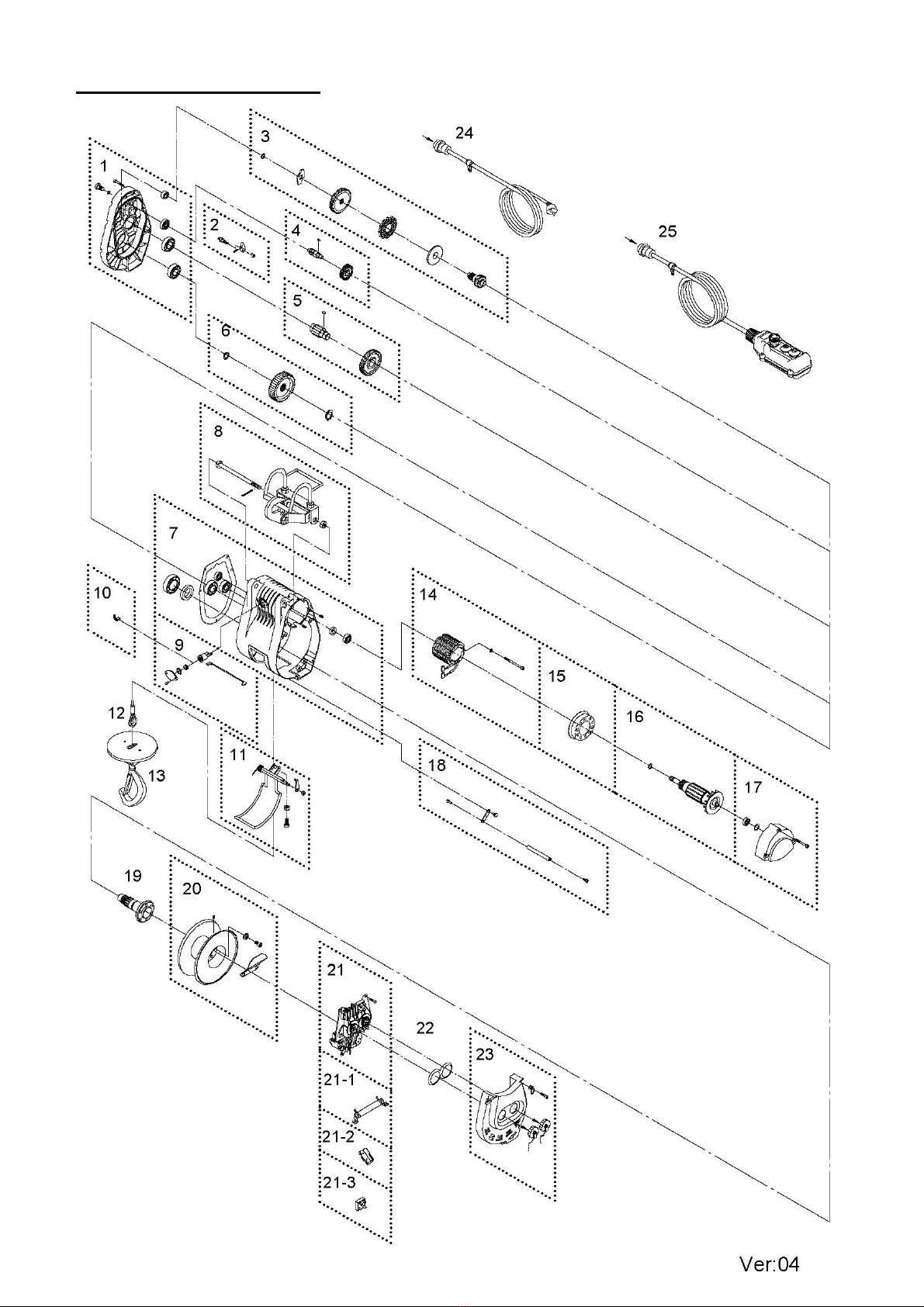

Parts List

Item No. Description Part No. Qty

Gearbox rear cover kit 880493

1 Gearbox rear cover kit for PN:421912 881352 1

2 Ratchet stopper kit 880547 1

3 Brake kit 881507 1

4 1st gear kit 881498 1

5 3rd gear kit 881508 1

6 4th gear kit 880500 1

Gear box kit 880470

7 Gear box kit for PN:421912 881353

8 Hanger kit 880476 1

9 Carbon brush holder 880472 1

10 Carbon brush 110V~240V 880473 2

11 Over-winding bracket kit 880503 1

Wire rope 880960

12 Wire rope untwisted 881419 1

13 Weight hook CHW-0033 880505 1

Armature core 110V 880972

Armature core 220/230V 880973

Armature core 240V 880974

15 Cooling cover 881500 1

Armature winding 110V 880512

Armature winding 220/230V 880513

Armature winding 240V 880514

Motor rear cover kit 880477

17 Motor rear cover kit for PN:421912 881350 1

18 Reverse winding shaft kit 880478 1

19 Output shaft kit 880507 1

20 Drum kit 881501 1

Control panel 110V 880510

21 Control panel 220~240V 881255 1

D type resistor 110V 881509 1

21-1 D type resistor 220~240V 881502 2

21-2 Limit switch 881503 2

21-3 Diode 881504 2

22 Rubber packing 880483 1

Electric cover kit 880511

23 Electric cover kit for PN:421912 881354 1

Power lead w/3 flat pins plug 880491

24 Power lead w/3 round pins plug 880492 1

Remote control, PB-317 881601

25 Remote control, PO3.5 881458 1

Winch Assembly
