Comeup CP-250 Manual de usuario

Electric Winch

Model: CP-250

PN:150387 110V50Hz 159632 220V50Hz

157410 240V50Hz 154658 220V50Hz

159633 230V50Hz 151240 240V50Hz

152468 240V50Hz

Introduction

Feature

Lifting capacity: 250 kg at wire rope top layer

Lifting height: 29 m

Lifting speed: 10-15 m/min at 50Hz

Brake: Electromagnetic spring-applied failsafe brake

Control: Pendant switch powers the winch

Unpacking

．Winch assembly 1pc

．Wire rope 6 mm x 30 m except for PN: 154658 1pc

．Weight hook CHW-0031 except for PN: 154658 1pc

．Power lead 1.5 mm2

x 3C x 3 m and plug 1pc

．Pendant switch PB-331 w/cord 2.0mm2

x 5C x 3 m 1pc

Read this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

Information requesting or parts ordering

Please specify the followings information:

．Winch PN

．Serial number

．Part description

．Replacement part number

．Quantity for each part

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

Performance

Winch Model CP-250

Motor kw x p 0.75 x 4

Recommend

Wire Rope Size(mm) 6

Breaking (kg) 2,010

1st

Layer

Rated Load

(kg) 50Hz 370

2nd

Layer

Rated Load

(kg) 50Hz 330

3rd

Layer

Rated Load

(kg) 50Hz 298

Speed

(m/min) 50Hz 10 Speed

(m/min) 50Hz 11.3 Speed

(m/min) 50Hz 12.5

Rope-Winding Cumulating

Sum

(

)

5.4 Rope-Winding

Cumulatin

Sum

(

)

11.5 Rope-Winding

Cumulatin

Sum

(

)

18.3

4th

Layer

Rated Load

(kg) 50Hz 272

5th

Layer

Rated Load

(kg) 50Hz 250

Speed

(m/min) 50Hz 13.8 Speed

(m/min) 50Hz 15.0

Rope-Winding Cumulating

Sum (m) 25.7 Rope-Winding

Cumulating Sum (m) 30

Wiring Diagram

Warning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The lifting capacity shown is based on the top layer of rope on the drum.

．The rope winding on the drum shall remain 5 wraps from the drum.

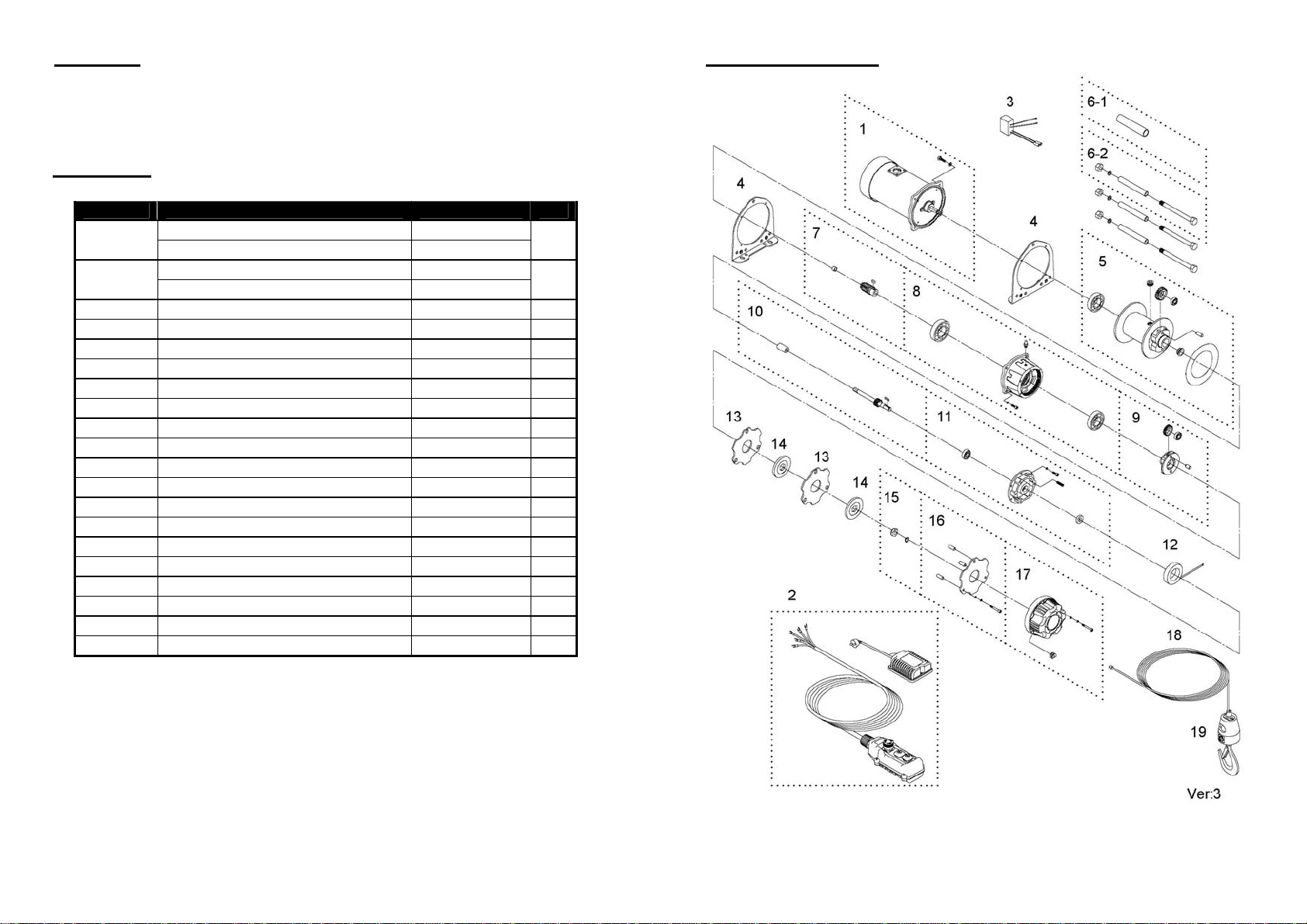

Parts List

Item No. Description Part No. Qty

1 Induction motor kit , 110/220/230 V 880405 1

Induction motor kit , 240 V 880406

2 Control kit, 3 round pins 881751 1

Control kit, 3 flat pins 881965

3 Bridge rectifier CBR-061 880368 1

4 Support bracket 880369 2

5 Drum kit 880370 1

6-1 Tie bar 881862 1

6-2 Tie bar kit 880371 3

7 2nd shaft kit 880372 1

8 Gear box kit 880373 1

9 1st stage carrier 880374 1

10 1st shaft kit 880375 1

11 Conductor kit 880376 1

12 Brake coil 110V 880377 1

13 Conductor plate A 880403 2

14 Brake disc 880379 2

15 Hex socket 880380 1

16 Conductor plate B kit 880381 1

17 Brake cover 880382 1

18 Wire rope 880383 1

19 Weight hook CHW-0031 880384 1

Winch Assembly
