Comeup CP-200 Manual de usuario

Winch Assembly

Electric Winch

Model: CP-200

PN : 152363 220V50Hz 152222 220V50Hz

PN : 152349 230V50Hz 152456 240V50Hz

Introduction

 Feature

Lifting capacity:

200 kg wire rope top layer

Lifting height: 29 m

Lifting speed: 10-15 m/min at 50Hz

Brake: Electromagnetic spring-applied failsafe brake

Control: Pendant switch powers the winch

 Unpacking

．Winch assembly 1pc

．Wire rope 6 mm x 30 m 1pc

．Wire rope 5 mm x 45 m for PN :152222 1pc

．Weight hook CHW-0031 1pc

．Power lead 1.5 mm2

x 3C x 3 m and plug 1pc

．Pendant switch w/cord 1.25 mm2

x 5C x 3 m 1pc

 Read this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

 Information requesting or parts ordering

Please specify the followings information:

．Winch PN

．Serial number

．Part description

．Replacement part number

．Quantity for each part

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

 Performance

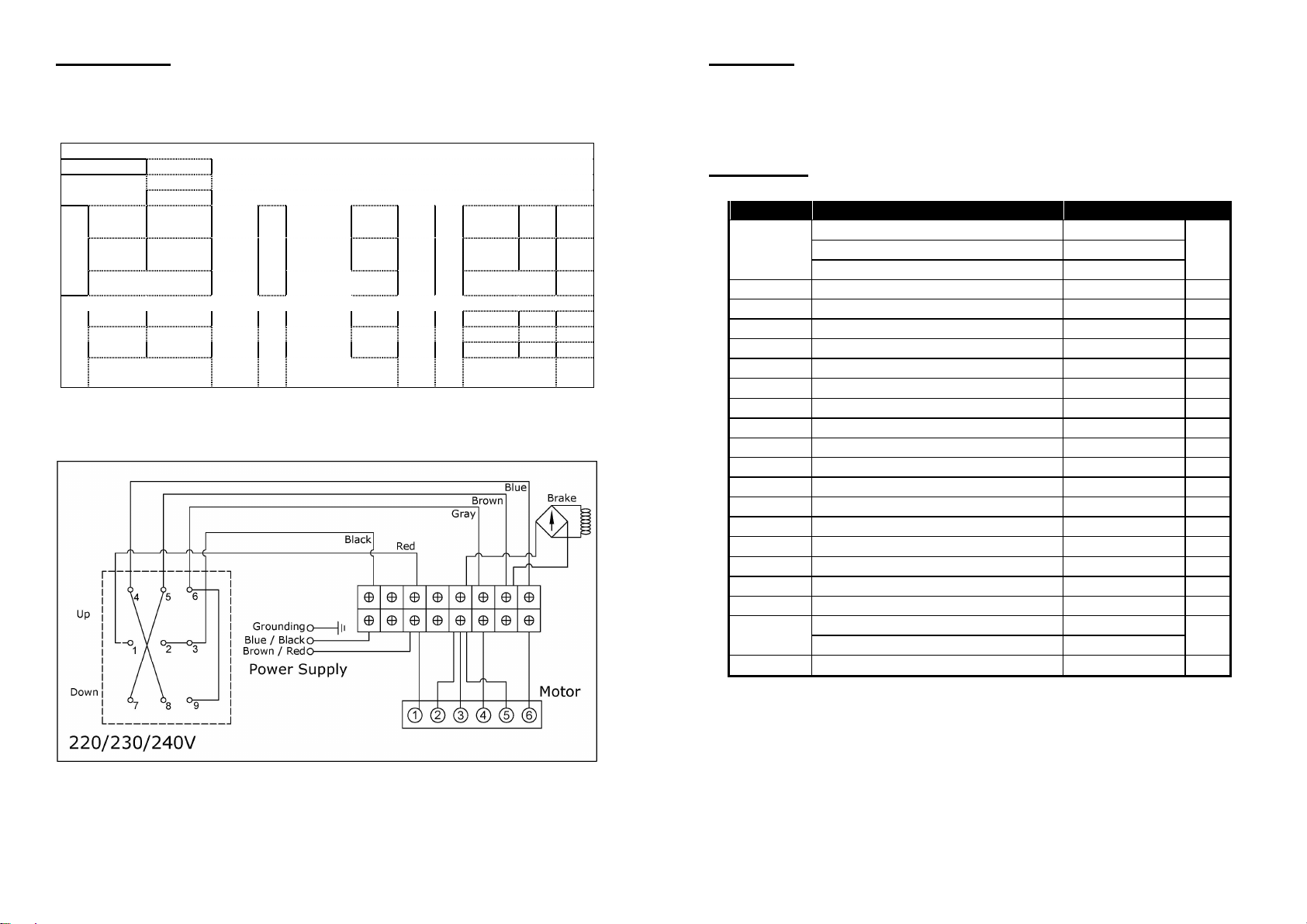

Wiring Diagram

Winch Model CP-200

Motor kw x p 0.6 x 4

Recommend

Wire Rope

Size (mm) 6

Breaking (kg)

2,010

1st

Layer

Rated Load

(kg) 50Hz 296

2nd

Layer

Rated Load

(kg) 50Hz 264

3rd

Layer

Rated Load

(kg) 50Hz

239

Speed

(m/min) 50Hz 10 Speed

(m/min) 50Hz 11.3

Speed

(m/min)

50Hz

12.5

Rope-Winding Cumulating

Sum (m)

5.4 Rope-Winding

Cumulating

Sum

(m)

11.5

Rope-Winding

Cumulating Sum (m)

18.3

4th

Layer

Rated Load

(kg) 50Hz 218

5th

Layer

Rated Load

(kg) 50Hz 200

Speed

(m/min) 50Hz 13.8 Speed

(m/min) 50Hz 15

Rope-Winding Cumulating

Sum (m) 25.7 Rope-Winding

Cumulating Sum (m) 30

Warning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The lifting capacity shown is based on the top layer of rope on the drum.

．The rope winding on the drum shall remain 5 wraps from the drum.

Parts List

Item No.

Description Part No. Qty

Induction motor kit , 110/220V 880391

1 Induction motor kit , 240V 880392

Induction motor kit , 230V 882540

2 Control kit, 3 round pins 880398 1

3 Bridge rectifier 880368 1

4 Support bracket 880369 2

5 Drum kit 880370 1

6-1 Tie bar 881862 1

6-2 Tie bar kit 880371 3

7 2nd shaft kit 880372 1

8 Gear box kit 880373 1

9 1st stage carrier 880374 1

10 1st shaft kit 881281 1

11 Conductor kit 880376 1

12 Brake coil 110V 880377 1

13 Conductor plate A 880403 1

14 Brake disc 880379 1

15 Hex socket 881282 1

16 Conductor plate B kit 880378 1

17 Brake cover 880382 1

18 Wire rope 880383 1

Wire rope for PN:152222 881686

19 Weight hook CHW-0031 880384 1
