Coffee Queen Empire Cold Manual de usuario

Service manual

A TASTE OF THE FUTURE

Rev. 090914

S / EN

Empire Cold

COFFEE QUEEN

Din återförsäljare / Your retail dealer

...............................................................................

1. Table (list) of contents.

1. Table of contents sid. 2

2. Generally 3

3. Overview of components front 4

3. Overview of components mixing system 5

3. Overview of components cooling water 6

4. SERVICE; Installation and start

Place the brewer 7

Connectings: Electricity/Water 7

Starting up machine 7

Fill canister with ingredients 8

5. OPERATIONMaking drinks in cup or glass 9

6. CLEANING Weekly cleaning

Dismantle mixing system 10

Washing parts 10

Reassemble mixing system 11

7. CLEANING PROGRAMS:

Automatic cleaning of mixing bowls 12

Automatic cleaning of mixing bowl 1 or 2 13

8. Cleaning and maintenance 14

outside cleaning

cleaning condenser

9. Cup counter and Easy access 15

10. Safety functions 16

11. Failure messages 16

12. Storage / Transport. 16

13. Dimension sketch 17

14. Circuit diagram. 18

15. Spare parts list 19-21

16. Exploded View 22-28

2. Generally. Empire Cold

We congratulate to your choice of a Coffee Queen coffee machine.

Please read this manual before you take the machine into operation for the first time.

Alwayskeepthismanualwithinreachfortheuser!

Empire cold

- making drinks cup by cup

- 4 choices of drinks + cold water

- 2 - 4 ingredients canisters,

- electronicallytemperaturecontrolled

- adjustabledrinkstrenght

- clockfunctions

Facts:

Height 620 mm

Width 310mm

Depth 490mm

Electricity 230V / 170 W Chillerunit

Refrigerator HFC-134a

Water connection ½”outside thread

3. Overview of components , front Empire Cold

Outlet/ drinks

Strenght of drinks

++ or - -

Choices

of drinks

Drip tray

Drip tray insert

Key switch

(cupandjug

choice)

Display

Door lock

Chute

Ingredients

canister

3. Overview of components , mixer system Empire Cold

ON/OFF-

switch

Steam trap

Mixing bowl

Outlet pipe

Empire cold: 4 canisters.

Canister: Width Depth Height Volume/litre; Cups/filling

Icecoffee 67 225 200 1,15 45

Icechocolate 67 225 200 1,15 32

Icelemon 67 225 200 1,15 83

Icepeach 67 225 200 1,15

3. Overview of components , cooling water Empire Cold

Fan

Cooling unit

Compressor Starting capacitor Thermostat

Condencer

Dryer

Water IN

Water

OUT

Pull out unit

ON / OFF

switch

4. Service. Installation and start Empire Cold

1. Locate the brewer on a flat Connect the electrical plug to a separate

levelandwaterproofsurface. groundedwallsocket

Grounded wall socket

230V 10A

OBSERVE!

Make sure there is a space behind the machine

for free flow of air.

( minimum 10cm ).

2. Connect attached water tube to cold water with an R 1/2”.

Makesurethatthewaterhosenotarekinkedanywherewhenmachineis

pushedintoplace.

Pleaseflushthewatertubebeforeconnectingtomachine,thistoavoidany

particles to damage theinletvalve.

3. Openthewaterinlet.

4. TurnontheON-OFFswitchinsidethedoor.

Nowthecoolerwillstartingup.

After approx. 15 minutes machine

are ready to use.

5. Close door.

(A).

4. Service. Installation and start Empire Cold

6. Fill canisters with ingredients.

Takeout(thistoavoidunnecesseryspillage

inthemachine)ingredientcanistersandfill

them withingredients.

1. Turnupchute.

2. Lift up canister and pull out.

3. Lift off lid and fill canister with

ingredients.

7. When placing the ingredient canisters;

Makesurethattheoutletpipeson the ingredient canisters are touching the

steam traps (A).

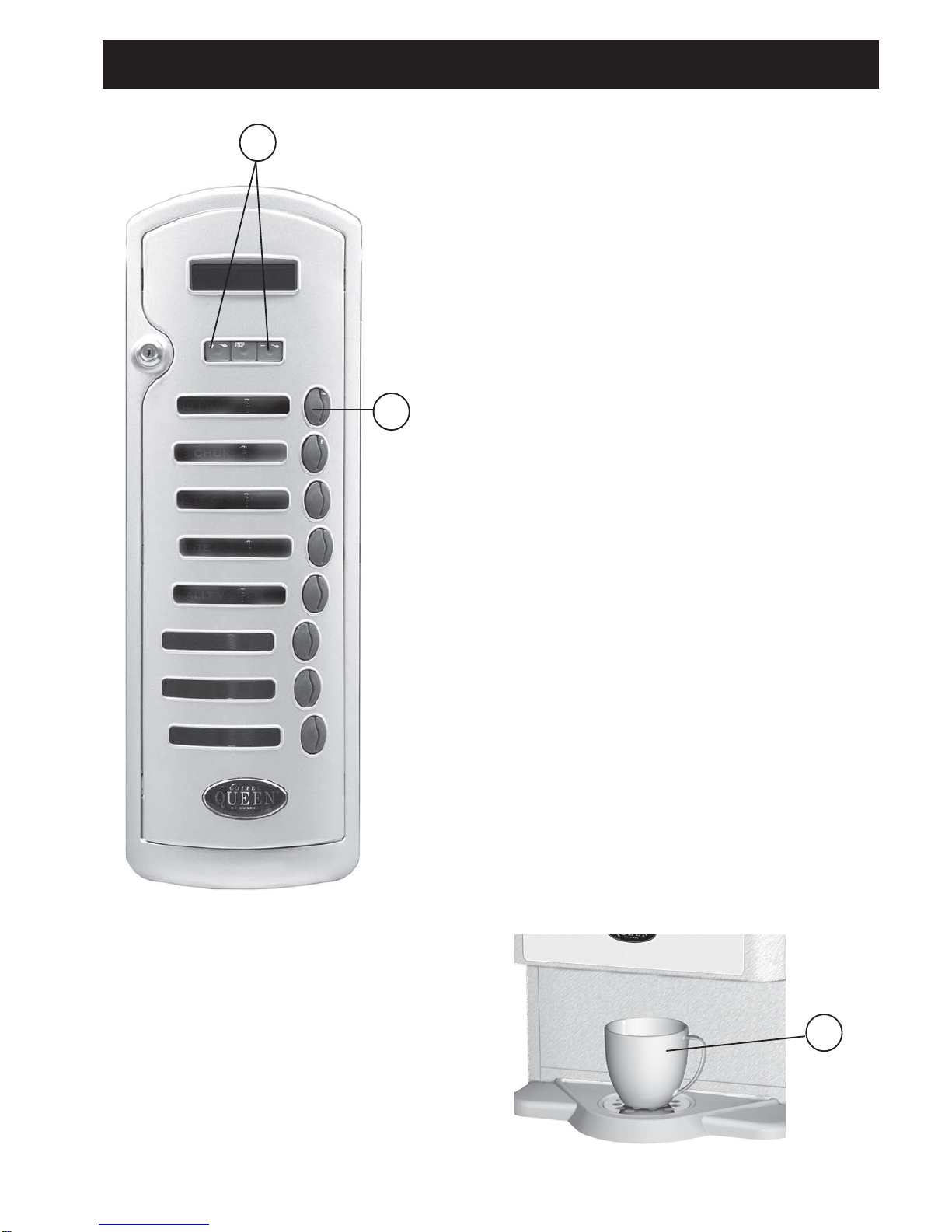

5. Operation; Making a drink in a glass or mug Empire Cold

1. Place a glass or a mug in the centre of the cup holder.

2. The strenght has a standard setting,

ifyou wish to increase or decrease it,

do as follows. if not continue to point 3.

Stronger drink;

Increase by pushing + or++ for 5% or 10%

alternative

Weaker drink;

Decrease by pushing - or -- for 5% or 10%

(the indication lamp will go up or down

depending of choice).

3. Chooseamountofdrink.

The display will show; ”Please wait”.

4. Waituntil the lightoncupandthetext

”Please wait” has been turned off before you take

thecup.

6. Enjoyyourdrink.

10.

6. CLEANING: Weekly cleaning Empire Cold

(D)

Dismantle : Mixer system

Loosenoutlethose(A) and

turnlockknob(B)

anti-clockwise.

Loosen whipper (D) pull

whipperstraight out from the

machine.

(E)

(A)

(B) (C)

Cleaning

Wash these parts:

.6.

A. Mixerbowl

B. Steam trap

C. Whipper

D. Assembly plate

Make sure this parts are dry

before use

Loosenmixerbowl.

Pullapart(C).

Turnlock knobanti-

clockwise.(E) untilit stops

5. Clean with a wet rag and

droughtdrily.
