Clarke CBS43 Manual de instrucciones

OPERATION & MAINTENANCE

INSTRUCTIONS

LS1210

DRILL BIT SHARPENER

MODEL NO: CBS43

PART NO: 6480232

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE drill bit sharpener.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

IMPORTANT

Please read all of the safety and operating instructions carefully before using this

product. Please pay particular attention to all sections of these instructions that display

warning symbols and notices.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

Please note that this drill bit sharpener is not suitable for sharpening masonry bits

WARNING! This is a Warning symbol. This symbol is used

throughout the user guide whenever there is a risk of personal

injury. Ensure that these warnings are read and understood at all

times.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

1. KEEP WORK AREA CLEAN. Cluttered areas invite injuries. Keep work area well lit.

2. NEVER use power tools in damp, wet, or poorly lit locations. Don't expose to rain. Do

not use electrically powered tools in the presence of flammable gases or liquids.

3. KEEP CHILDREN AWAY. Children must never be allowed in the work area. Do not let

them handle machines, tools, or extension cables.

4. STORE IDLE EQUIPMENT. When not in use, tools must be locked up in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

5. DO NOT FORCE THE TOOL. It will do the job better and more safely at the rate for

which it was intended.

6. DRESS PROPERLY. Do not wear loose clothing or jewellery which could be caught in

moving parts.

7. USE EYE AND HAND PROTECTION. Always wear approved impact safety goggles.

8. STAY ALERT. Watch what you are doing, use common sense. Do not operate any tool

when you are tired.

9. CHECK DAMAGED PARTS. Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform

its intended function.

10. REPLACEMENT PARTS AND ACCESSORIES. When servicing, use only identical

replacement parts. Use of any other parts will void the warranty. Only use

accessories intended for use with this tool.

11. DO NOT OPERATE TOOL IF UNDER THE INFLUENCE OF ALCOHOL OR DRUGS. If there is

any doubt, do not operate the tool.

12. KEEP AWAY FROM LIQUIDS. Tool is designed for dry sharpening operations only.

13. HEAT PRODUCED WHEN SHARPENING. The sharpening head and any bits being

sharpened will become hot. Be careful when handling; allow the drill bit tips to cool

before storing.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATIONS

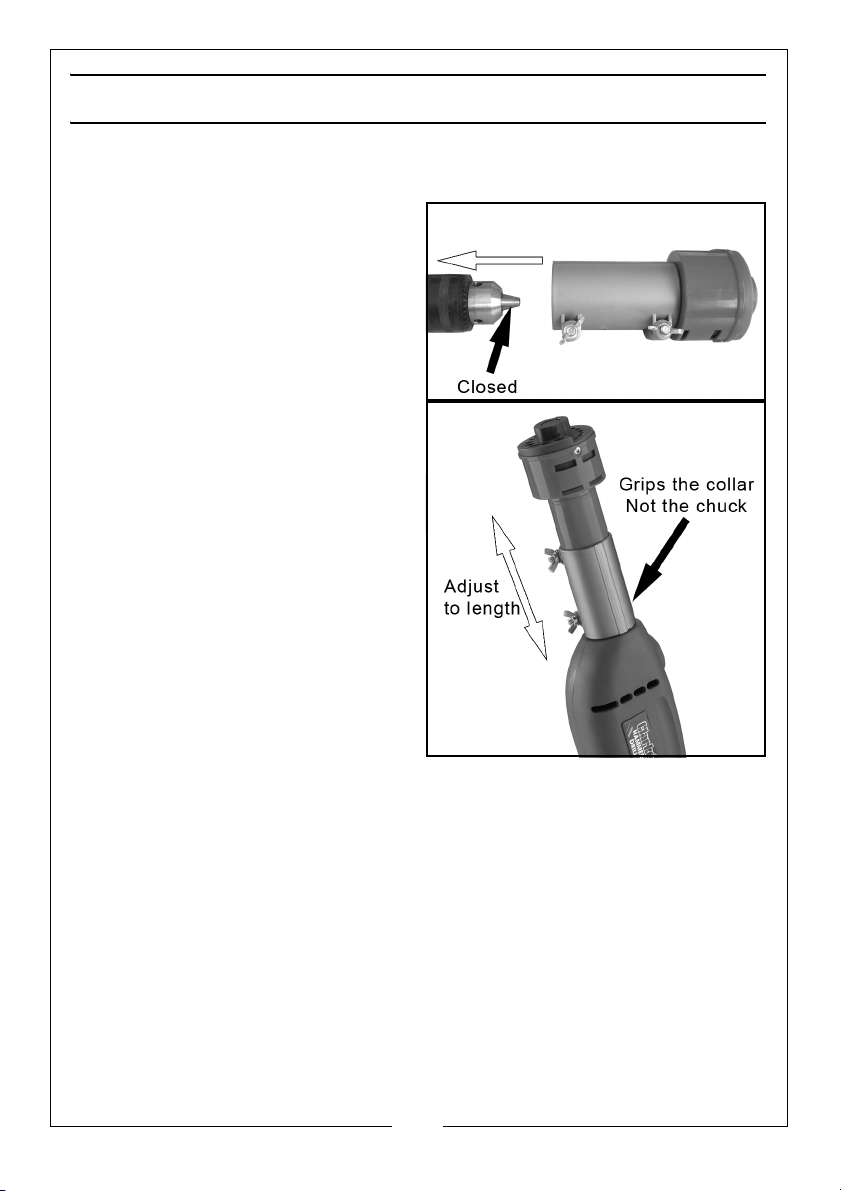

CONNECTING TO A DRILL

1. Make sure the jaws on the drill

chuck are fully closed.

• The drill used must have a 43

mm collar and a 13mm (½

inch) chuck.

2. Push the drill bit sharpener onto

the drill as shown.

3. If required loosen the wing nuts to

slide the outer tube over the

chuck.

4. When in place, the outer tube

should grip the collar of the drill

and not the chuck and onto the

collar of the drill.

• The drill is connected to the drill

bit sharpener by friction only

PROPERLY SHARPENED BITS

Your bit is properly sharpened when it

has the following characteristics.

• A sharp point in the center of the bit.

• Two sharp and equal cutting edges

• Two trailing edges that are slightly lower than the cutting edges.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

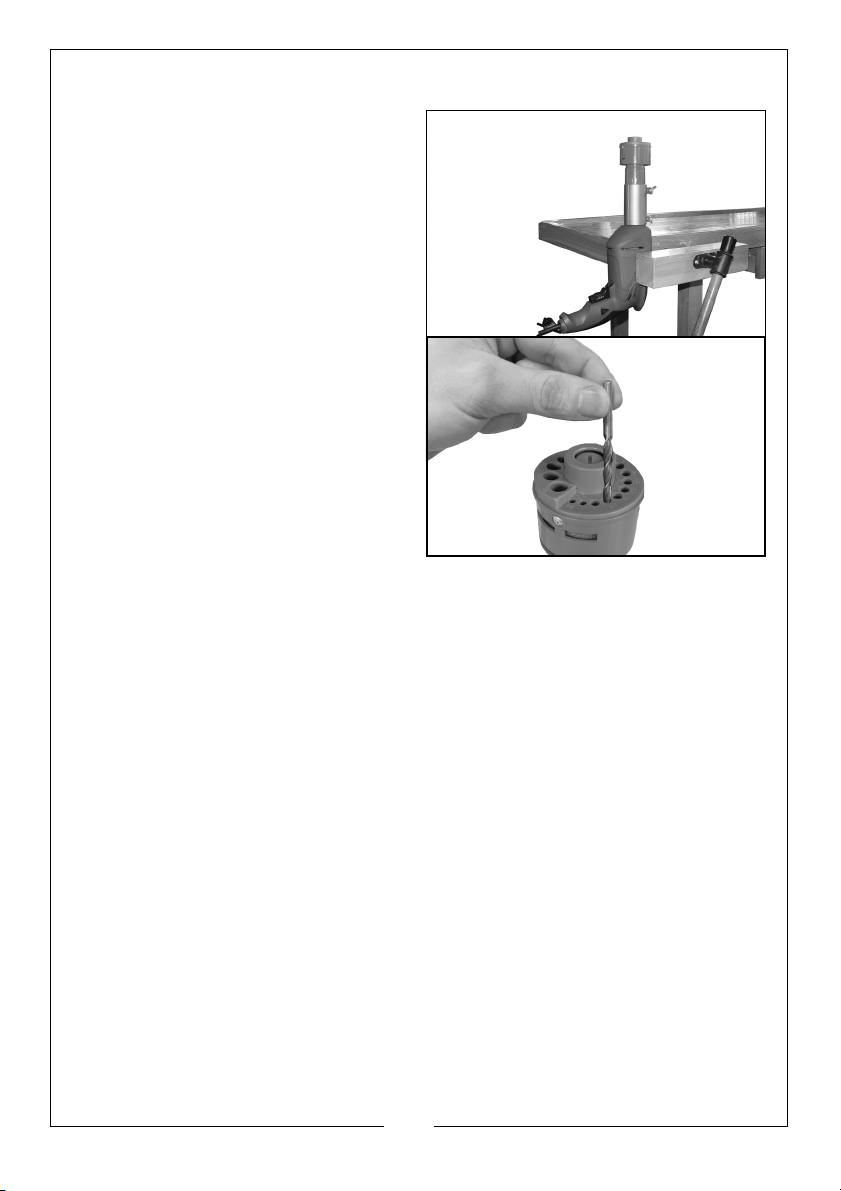

SHARPENING PROCEDURE

1. Connet the drill to the drill bit

sharpener and clamp the drill into

a vice to hold the sharpener

upright.

2. Connect the drill to the mains

supply.

3. Put a single drill bit (HSS only) into

the appropriate hole.

• Please note that this drill bit

sharpener is not suitable for

sharpening masonry bits

4. Pull the trigger on your drill.

• Exert a slight downward

pressure onto the bit and rotate

the bit back and forth about 20

degrees while sharpening.

• The bit must be kept in motion whilst in the drill bit sharpener.

5. Remove the drill bit after approximatley 5-10 seconds of sharpening.

SHARPENING HINTS

• If the tip of bit starts to turn blue, it is overheating. Reduce the

amount of pressure and sharpening time. Cool the bit in water

between sharpening cycles.

• If one edge is longer than the other, sharpen the shorter side a little

more.

• If you are sharpening a broken (rather than blunt) bit and the time

required to restore the shape is too long, rough the bit into shape first

using a bench grinder.

• Ensure both sides of the drill bit are sharpened using the same

amount of time and pressure.

6. Repeat the above steps as necessary.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

CHANGING THE GRINDING WHEEL

• Replacement grinding stones are available from the Clarke Spares

department. Part number: CBS4301

1. Remove the drill bit sharpener from the drill.

2. Remove the two screws that hold

the head assembly in place and

remove the head assembly.

3. Remove the wheel assembly.

• Make sure the spring

underneath stays in place.

4. Unscrew the adjustment cylinder

from the wheel base by turning

clockwise.

5. Prise out the washer.

6. Pop out the wheel base and

remove the worn grinding wheel.

7. Press new grinding wheel onto the

wheel base, replace the washer,

and screw the adjustment

cylinder back in.

8. Replace wheel assembly onto the

drill bit sharpener.

• Make sure that the inner flats of

the adjustment cylinder line up

with the outer flats of the drive

spindle.

9. Replace the head assembly and

screws.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

CLEANING

Keep the surface of your drill bit sharpener free of grit, dirt, and grease. Use

soapy water or non-toxic solvents. Do not use petroleum based solvents.

TROUBLESHOOTING

If the drill motor runs but the grinding wheel does not rotate, make sure the

adjustment cylinder's inner flats line up with the outer flats of the spindle as

described in “Changing The grinding Wheel” on page 6.

SPECIFICATION

Model Number CBS43

Drill Bit Sizes And Type 3.5 mm to 10 mm HSS

Dimensions (W x H x D) 71 x 146 x 74 mm

Weight 264 g
