Cisco Linksys WAP610N Manual de usuario

QUICK INSTALLATION GUIDE

Wireless-N Access Point

with Dual-Band

Model: WAP610N

Package Contents

• Wireless-NAccessPoint

withDual-Band

• SetupSoftwareandUserGuide

onCD-ROM

• QuickInstallationGuide

• NetworkCable

• PowerAdapter

Installation

RuntheSetupWizardontheenclosedCDtoinstallandsetuptheAccess

Point.DonotinstalltheAccessPointinyourcomputeruntilinstructedtodo

sobytheSetupWizard,ortheAccessPointwillnotinstallcorrectly.

A. InserttheSetupWizardCDinto

yourCD-ROMdrive.

NOTE:Windowsorother

personalfirewallsmay

askforpermissiontorun

thesoftwareorprogram.

Youwillneedtoallow

thesoftwaretorunin

ordertocontinue.

B. TheWelcomescreenappears.



ClickStart Setup



C. ThisWelcomescreenappears.



ClickNext.



InserttheCD-ROM

D. ReadtheLicenseAgreement.



Toacceptthetermsinthe

LicenseAgreement,selectI

accept this agreement.



ClickNext.



E. PleasewaitwhiletheSetup

Wizardpreparestosetupyour

AccessPoint.



F. Connectoneendofthe

suppliedEthernetnetwork

cabletotheEthernetporton

yourAccessPoint.



ClickNext.



G. Connecttheotherendofthe

Ethernetnetworkcabletoan

openEthernetportonyour

Router.



ClickNext.



H. Connectthesuppliedpower

cabletothepowerportonthe

AccessPoint.



ClickNext.



I. Plugtheotherendofthepower

adapterintoanelectricaloutlet.



ClickNext.



J. Pleasewaituntilthepowerlight

iscontinuouslylit



ClickNext.



K. PleasewaitwhiletheSetup

WizardsearchesforyourAccess

Point.



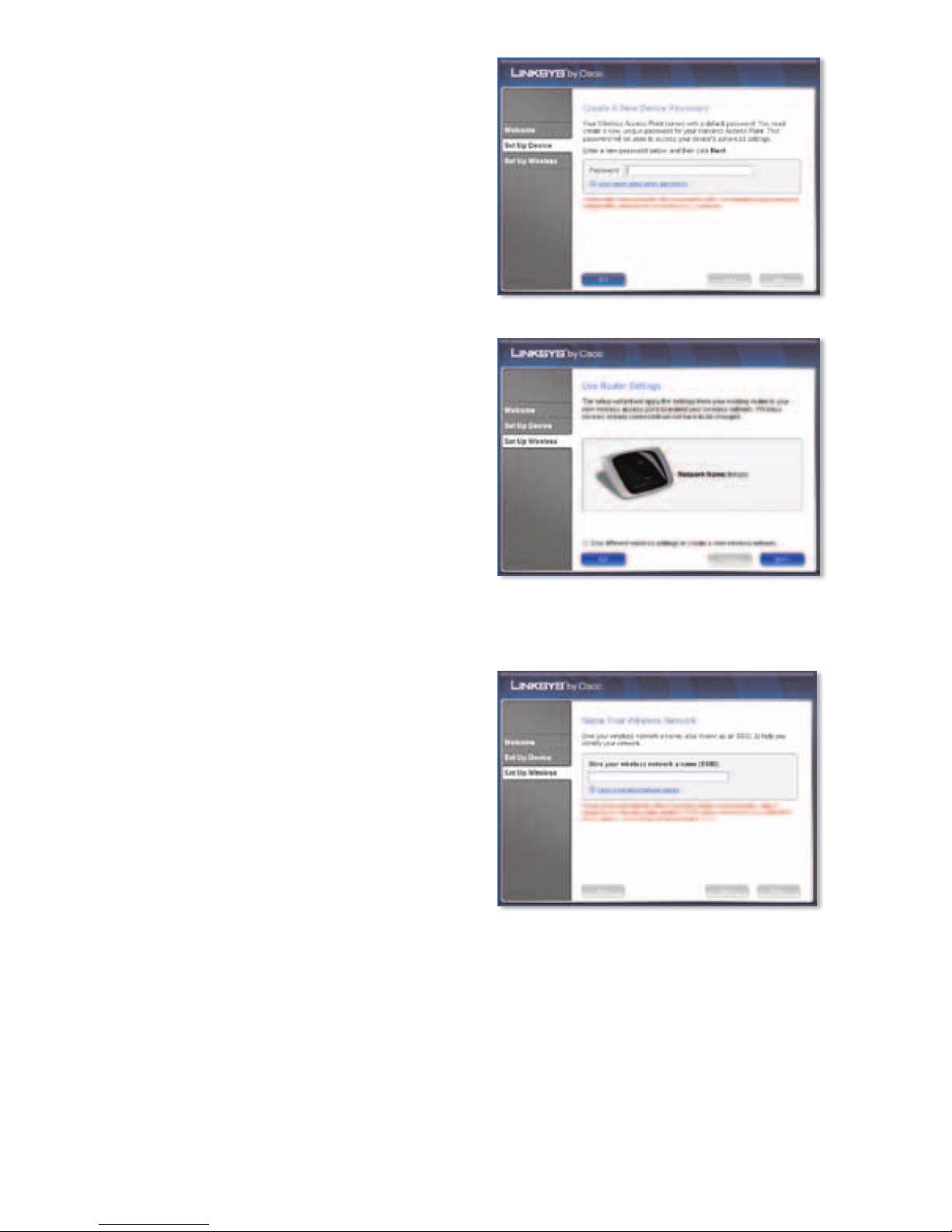

L. Enterapasswordtohelp

preventunauthorized

configurationofyourAccess

Point.



ClickNext.



M. TheSetupWizardwillapply

thesettingsfromyourexisting

routertoyourAccessPoint.

(Ifyoudon’tseethisscreen,

continuetostepN.)



Ifyoudon’tclickUse different

settings to create a new wireless

network,continuetostepQ.



ClickNext.

N. Enteranameforyourwireless

network.



ClickNext.



O. Youwillneedtoselectthe

securitylevelforyournetwork.



IfyournetworkusesWPAor

WPA2wirelesssecurity,select

Higher Security, andclickNext.



IfyournetworkusesWEP

wirelesssecurity,selectBetter

Compatibility,andclickNext.



Ifyournetworkdoesnotuse

wirelesssecurity,selectNo

Security,andclickNext.You

willbeaskedtoverifythatyou

don’twantwirelesssecurity.If

youdon’twantwirelesssecurity,

clickYesandcontinuetostepQ.

NOTE:Werecommendthatyouusethestrongestavailable

wirelesssecurityforyournetwork.

P. Enterasecuritykeyforyour

wirelessnetwork.



ClickNext.



Q. Yournetworksettings

informationappearsforyouto

confirm.



Tosaveyoursettingsinatext

fileonyourdesktop,keepthe

default,Save these settings in a

text file on my desktop.



ClickNext.

R. Yoursettingshavebeensaved

toyourdesktopasWireless

AccessPointSettings.txt(atext

file).



ClickOK.

S. Wi-FiProtectedSetup

informationisavailableonthis

screen.



ClickNext.



T. TheAccessPointisconfigured

toyourwirelessnetwork.You

maynowconnectotherdevices,

ifdesired.



ClickFinish.



Congratulations! Setup is complete.

9052910A-BW

Foradditionalinformationortroubleshootinghelp,refertotheUserGuideontheCD-ROM.

Additionalsupportisalsoavailablebyphoneoronline.

Website

http://www.linksysbycisco.com

24-Hour Technical Support

800-326-7114

Support

http://www.linksysbycisco.com/support

Sales Information

800-546-5797 (800-LINKSYS)

Linksys, Cisco and the Cisco Logo are registered trademarks or trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other

Our packaging and documents are made from minimum 80% recycled content and

printed with vegetable-based ink.

3240-00553

NOTE:Youcanconfigurethisdeviceasa5GHzAccessPoint,If

youhaveother5GHzdevicestoconnecttoit.RefertotheUser

Guide,Chapter 3: Advanced Configurationforinformationonhow

toaccessthebrowser-basedutilityandtheSetup>BasicWireless

Settingsscreentochangethewirelessband.TheUserGuideis

availableontheCD-ROMandatwww. linksysbycisco.com.
