GETTING STARTED GUIDE

Cisco Aironet 3700 Series Access Points

1About this Guide

2Introduction to the Access Point

3Safety Instructions

4Unpacking

5Configurations

6Access Point Ports and Connectors

7Configuring the Access Point

8Mounting the Access Point

9Deploying the Access Point on the Wireless Network

10 Installing Modules

11 Troubleshooting

12 Declarations of Conformity and Regulatory Information

13 Configuring DHCP Option 43 and DHCP Option 60

14 Access Point Specifications

Created: November, 2013, 78-21474-01

1 About this Guide

This Guide provides instructions on how to install and configure your Cisco Aironet 3700 Series

Access Point and how to install available radio modules. This guide also provides mounting

instructions and limited troubleshooting procedures.

The 3700 Series Access Point is referred to as the access point in this document.

2 Introduction to the Access Point

The 3700 series supports high-performing Spectrum Intelligence which sustains three spatial stream

rates over a deployable distance with high reliability when serving clients. The 3700 series provides

high reliability and overall wireless performance.

The 3700 series offers dual-band radios (2.4 GHz and 5 GHz) with integrated and external antenna

options. The access points support full inter-operability with leading 802.11ac clients, and support a

mixed deployment with other access points and controllers.

The 3700 series access point is a controller-based (Unified) product and supports:

•Simultaneous dual-band (2.4-GHz and 5-GHz) radios

•Integrated antennas on the 3702I access point model (AIR-CAP3702I-x-K9)

•External antennas for rugged 3702E access point model (AIR-CAP3702E-x-K9)

Note The ‘x’ in the model numbers represents the regulatory domain. Refer to “Regulatory

Domains” section on page 7 for a list of supported regulatory domains.

The features of the 3700 series are:

•Processing sub-systems (including CPUs and memory) and radio hardware which supports:

–

Network management

–

CleanAir—Automatic detection, classification, location and mitigation of RF interference

–

ClientLink 3.0 —BeamForming to 802.11a/g/n/ac clients.

–

VideoStream

–

Location

–

WIDS/WIPS

–

Security

–

Radio Resource Management (RRM)

–

Rogue detection

–

Management Frame Protection (MFP)

–

Throughput, forwarding, and filtering performance scaled to meet 3 spatial stream, 1.3-Gbps

data-rates

•32 MB flash size

•802.11af/at

–

CDP (Cisco Discovery Protocol)

•2.4 GHz and 5 GHz 802.11n radios with the following features:

–

4TX x 4RX

–

3-spatial streams, 1.3-Gbps PHY rate

–

Spectrum intelligence

–

DPD (Digital Pre-Distortion) technology

–

Cisco Vector Beamforming

–

Radio hardware is capable of explicit compressed beamforming (ECBF) per 802.11n standard

3 Safety Instructions

Translated versions of the following safety warnings are provided in the translated safety warnings

document that is shipped with your access point. The translated warnings are also in the Translated

Safety Warnings for Cisco Aironet Access Points, which is available on Cisco.com.

Warning

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury.

Before you work on any equipment, be aware of the hazards involved with electrical

circuitry and be familiar with standard practices for preventing accidents. Use the

statement number provided at the end of each warning to locate its translation in the

translated safety warnings that accompanied this device.

Statement 1071

SAVE THESE INSTRUCTIONS

Warning

Read the installation instructions before you connect the system to its power source.

Statement 1004

Warning

Installation of the equipment must comply with local and national electrical codes.

Statement 1074

Warning

This product relies on the building’s installation for short-circuit (overcurrent)

protection. Ensure that the protective device is rated not greater than:

20A.

Statement 1005

Warning

Do not operate your wireless network device near unshielded blasting caps or in an

explosive environment unless the device has been modified to be especially qualified for

such use.

Statement 245B

Warning

In order to comply with FCC radio frequency (RF) exposure limits, antennas should be

located at a minimum of 7.9 inches (20 cm) or more from the body of all persons.

Statement 332

Caution The fasteners you use to mount an access point on a ceiling must be capable of

maintaining a minimum pullout force of 20 lbs (9 kg) and must use all 4 indented holes

on the mounting bracket.

Caution This product and all interconnected equipment must be installed indoors within the same

building, including the associated LAN connections as defined by Environment A of the

IEEE 802.af Standard.

Note The access point is suitable for use in environmental air space in accordance with section

300.22.C of the National Electrical Code and sections 2-128, 12-010(3), and 12-100 of the

Canadian Electrical Code, Part 1, C22.1. You should not install the power supply or power

injector in air handling spaces.

Note Use only with listed ITE equipment.

4 Unpacking

To unpack the access point, follow these steps:

Step 1 Unpack and remove the access point and the accessory kit from the shipping box.

Step 2 Return any packing material to the shipping container and save it for future use.

Step 3 Verify that you have received the items listed below. If any item is missing or damaged, contact

your Cisco representative or reseller for instructions.

–

The access point

–

Mounting bracket (selected when you ordered the access point)

–

Adjustable ceiling-rail clip (selected when you ordered the access point)

5 Configurations

The 3700 series access point contains two simultaneous dual-band radios, the 2.4-GHz MIMO radio

and the 5-GHz 802.11ac MIMO radio. The 3700 series access point configurations are:

•AIR-CAP3702E-x-K9—two 2.4-GHz/5-GHz dual-band radios, up to 4 external dual-band

diopole antennas

•AIR-CAP3702I-x-K9—two 2.4-GHz/5-GHz dual-band radios, with integrated dual-band

inverted-F antennas

For information on the regulatory domains (shown as “x” in the model numbers) see “Regulatory

Domains” section on page 7.

External Antennas

The 3702E model is configured with up to four external dual-band dipole antennas, and two 2.4-GHz/

5-GHz dual-band radios. The radio and antennas support frequency bands 2400–2500 MHz and

5180–5865 MHz through a common dual-band RF interface. Features of the external dual-band

dipole antennas are:

•Four RTNC antenna connectors on the top of the access point

•Four TX/RX antennas

These antennas are supported on the 3702E:

•AIR-ANT2524DB-R

•AIR-ANT2524DW-R

•AIR-ANT2524DG-R

•AIR-ANT2524V4C-R

•AIR-ANT2544V4M-R

•AIR-ANT2566P4W-R

Internal Antennas

The 3702I model access point is configured with four dual-band inverted-F antennas, and two

2.4-GHz/5-GHz dual-band radios.

There are four antennas deployed inside the access point with one deployed on each corner of the

3702I access point top housing. Each antenna covers both the 2.4 GHz and the 5 GHz bands with a

single feed line. The basic features are as follows:

•Dual-band inverted-F antenna for use in both the 2.4-GHz and 5-GHz bands.

•Antenna unit integrated into the 3702I model access point.

•Peak gain is approximately 4 dBi in both the 2.4-GHz and 5-GHz bands.

Regulatory Domains

The 3700 series supports the following regulatory domains (shown as “x” in the model numbers):

•-A, -C, -D, -E, -H, -I, -K, -N, -Q, -R, -S, -T, -Z

Countries Supported

Click this URL to browse to a list of countries and regulatory domains supported by the 3700:

www.cisco.com/go/aironet/compliance

6 Access Point Ports and Connectors

The 3702E model access point has external antenna connectors and the LED indictor on the top of the

model, as shown in Figure 1. The 3702I model access point has integrated antennas and does not have

external connectors on the top of the unit; however, it does have the LED indicator on top of the unit,

as shown in Figure 2.

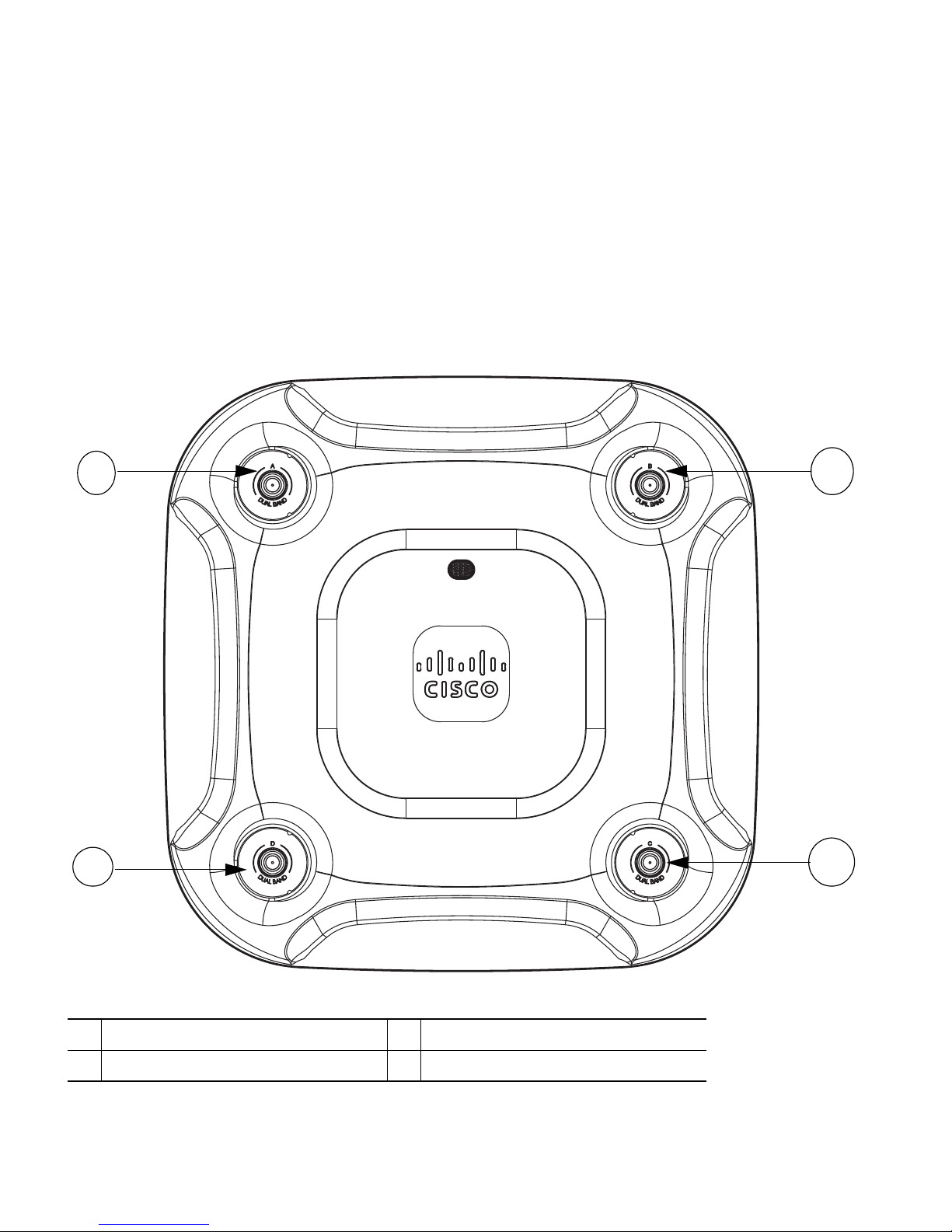

Figure 1 Access Point Ports and Connections (top)—3702E Model

1Dual-band antenna connector A 3Dual-band antenna connector C

2Dual-band antenna connector B 4Dual-band antenna connector D

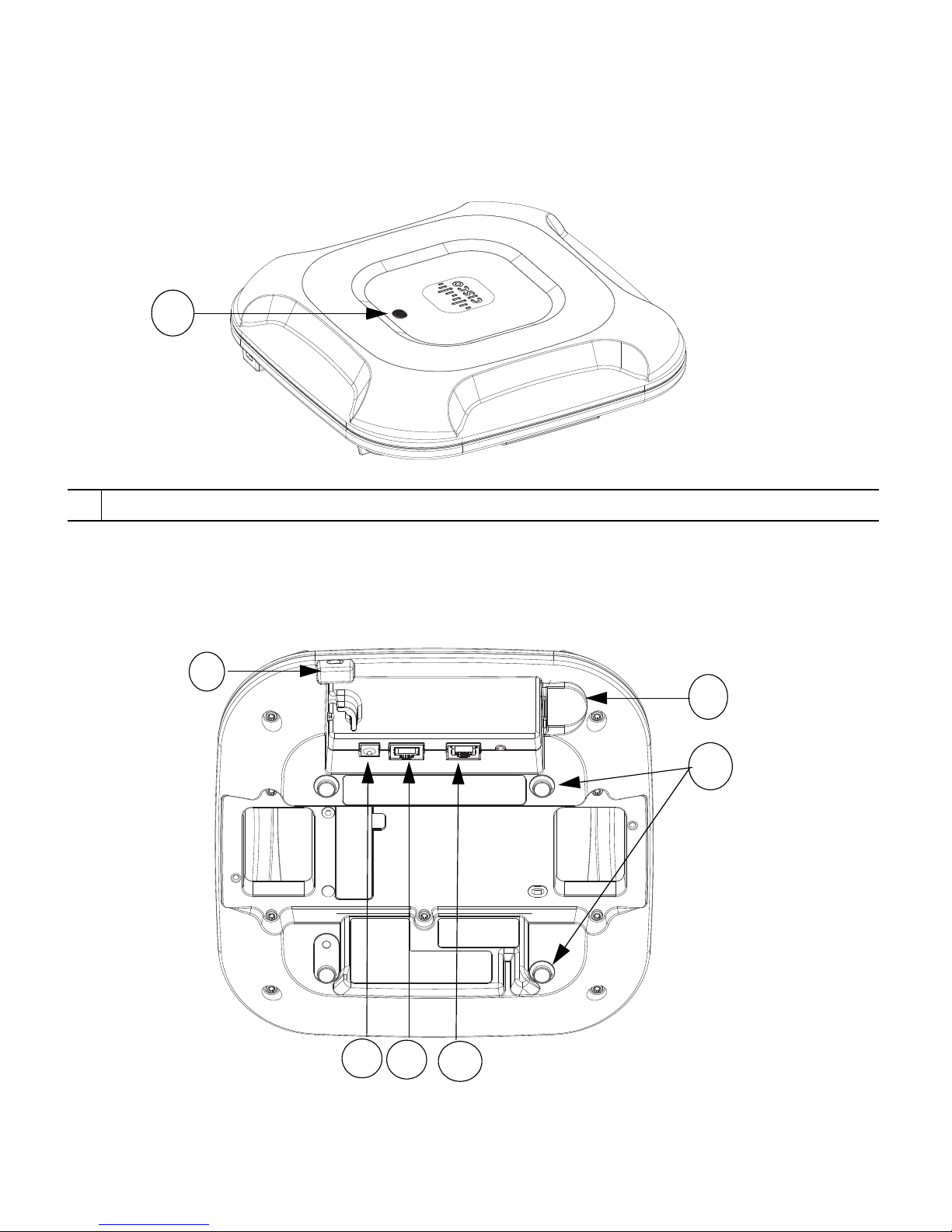

Figure 2 Access Point LED Indicator (top)—3702I Model

The ports and connections on the bottom of the access point are shown in Figure 3.

Figure 3 Access Point Ports and Connections (bottom)-AIR3702E and 3702I Models

1LED indicator

352029

234

7 Configuring the Access Point

This section describes how to connect the access point to a wireless LAN controller. Because the

configuration process takes place on the controller, see the Cisco Wireless LAN Controller

Configuration Guide for additional information. This guide is available on Cisco.com.

The Controller Discovery Process

The access point uses standard Control and Provisioning of Wireless Access Points Protocol

(CAPWAP) to communicate between the controller and other wireless access points on the network.

CAPWAP is a standard, interoperable protocol which enables an access controller to manage a

collection of wireless termination points. The discovery process using CAPWAP is identical to the

Lightweight Access Point Protocol (LWAPP) used with previous Cisco Aironet access points.

LWAPP-enabled access points are compatible with CAPWAP, and conversion to a CAPWAP controller

is seamless. Deployments can combine CAPWAP and LWAPP software on the controllers.

The functionality provided by the controller does not change except for customers who have Layer 2

deployments, which CAPWAP does not support.

In a CAPWAP environment, a wireless access point discovers a controller by using CAPWAP discovery

mechanisms and then sends it a CAPWAP join request. The controller sends the access point a

CAPWAP join response allowing the access point to join the controller. When the access point joins

the controller, the controller manages its configuration, firmware, control transactions, and data

transactions.

Note For additional information about the discovery process and CAPWAP, see the Cisco Wireless

LAN Controller Software Configuration Guide. This document is available on Cisco.com.

Note CAPWAP support is provided in controller software release 5.2 or later. However, your

controller must be running release 7.6.0.0 or later to support 3700 series access points.

1Kensington lock slot 4Console port

DC Power connection

Security padlock and hasp (padlock not

included)

3Gbit Ethernet port 6Mounting bracket pins (feet for desk or

table-top mount)
