Quick Start Guide

Cisco Aironet Access Points

1Take Out What You Need

2Connect and Power Up the Access Point

3Associate an IP Address with the Access Point

4Open the Access Point Management Pages

1Take Out What You Need

Additional Requirements

•A computer connected to the same network as the access point

•Category 5, straight-through Ethernet cable for connecting the access point to the network and an

inline power source

•The MAC address from the label on the bottom of the access point (for example: 00409625854c)

•The following information from your network system administrator:

–

The (case-sensitive) wireless service set identifier (SSID) for your radio network

–

A unique IP address for the access point (for example: 172.17.255.115) if not connected to a

DHCP server

–

A default gateway and subnet mask if the access point is not on the same subnet as your PC

Note Plan to configure the access point before mounting it on a ceiling. Some steps,

such as those requiring a serial cable, are easier to perform if the access point is

accessible.

CiscoAironet340or350SeriesAccessPoint(one

of the following):

•340 or 350 series with a plastic case

•350 series with a metal case

Cisco Aironet Access Point and Bridge CD with

documentation, online Help Files, and utilities

CISCOAIRONET350

SERIES

WIRELESSACCESSPOINT

ETHERNETACTIVITY

ASSOCIATIONSTATUS

RADIOACTIVITY

SERIAL PORT ONLINE POWER ETHERNET

LEFT RIGHT/PRIMARY

Plastic case model Metal case model

CISCO AIRONET 350

SERIES

WIRELESSACCESSPOINT

ETHERNET ACTIVITY

ASSOCIATIONSTATUS

RADIO ACTIVITY

SERIAL PORTONLINEPOWERETHERNET

LEFT RIGHT/PRIMARY

Plastic case model Metal case model

2Connect and Power Up the Access Point

340 Series Access Points

Step 1 Adjust the access point antennas.

Note Antenna configurations vary depending upon the access point model.

For maximum range, make sure the access point antennas are perpendicular to the ground, no

matter where the access point will be mounted.

If on a table or desk, point the antennas straight up.

If mounted on a wall, point the antennas straight up, even though if the access point is on its

side.

If mounted on the ceiling, point the antennas straight down.

Step 2 Connect the Ethernet cable from the wired 10/100 Ethernet LAN to the Ethernet connector

on the back of the access point.

Step 3 Plug the power pack connector into the power receptacle on the back of the access point.

Step 4 Plug the power pack into a wall outlet or power strip.

Note At start-up, all three LEDs on the top of the access point slowly blink amber,

red, and green in sequence; the sequence takes a couple of minutes to complete.

Refer to the software configuration guide on the CD for LED descriptions.

ETHERNET

SERIAL

5VDC

ETHERNET

5VDC

To 10/100 Ethernet LAN

To wall outlet

2 Connect and Power Up the Access Point (continued)

350 Series Access Points

Note The following steps apply to 350 Series access points with metal or plastic cases.

Step 1 Adjust the access point antennas. Step 1 on page 3 of this guide provides guidelines for

positioning the antennas.

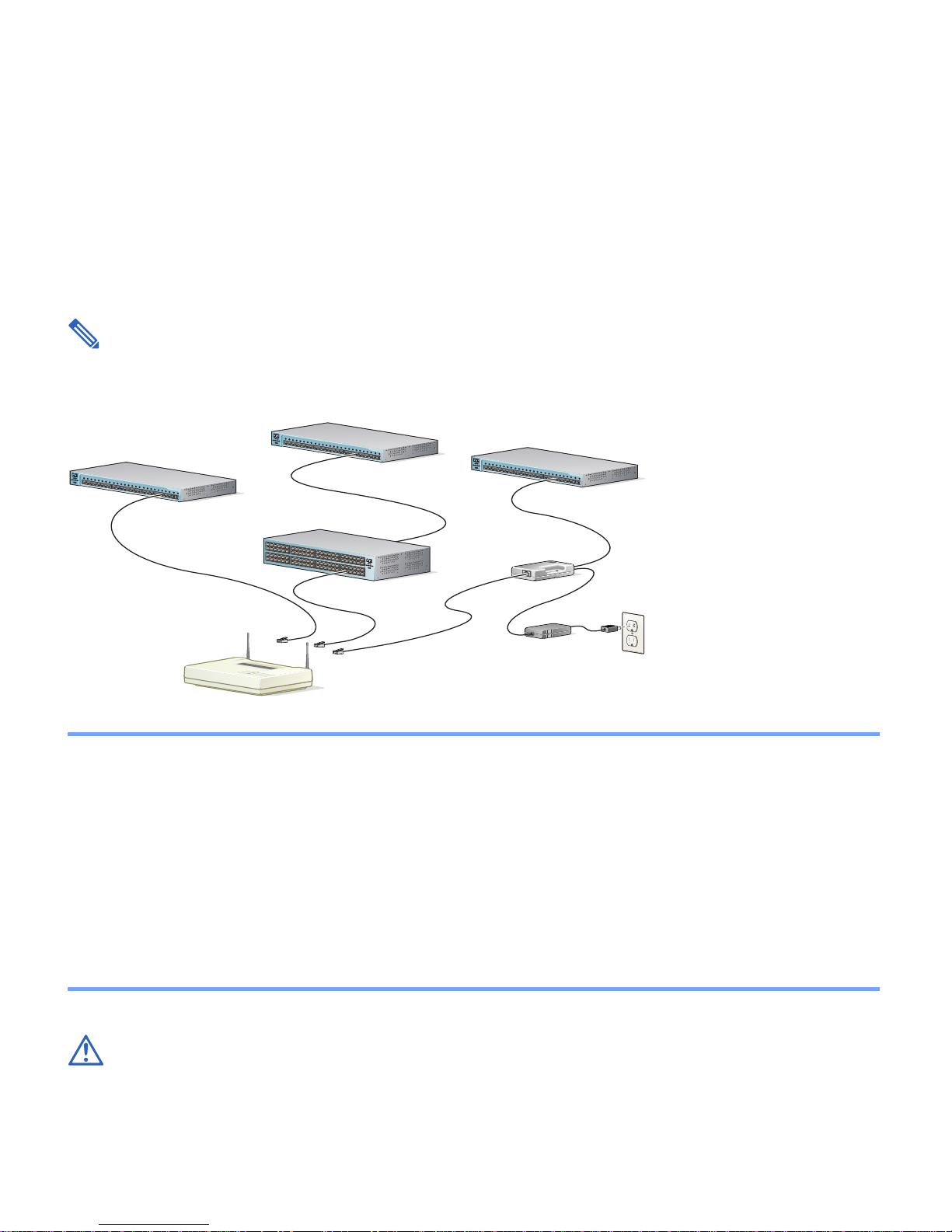

Step 2 Consult the drawing above and choose the power supply option you will use.

Step 3 Connect the Ethernet cable to the Ethernet connector on the back of the access point.

Connect the other end of the Ethernet cable to one of the following:

•A switch with inline power, such as a Cisco Catalyst 3524-PWR-XL

•An inline power switch power panel, such as a Cisco Catalyst Inline Power Patch Panel

•The end of a Cisco Aironet power injector labeled To AP/Bridge and the end labeled To

Network to the 10/100 Ethernet LAN.

Caution The power injector is designed for 350 series access points only. Using the power

injector with other Ethernet devices can damage the equipment.

Power

cord

Universal

power supply

SYSTRPS

DUPLX

MODE

SPEED

UTIL

STAT

1234567891011121314151617181920212223242324

10Base-T/100Base-TX100Base-FX

Catalyst2950

SERIES

SYSTRPS

DUPLX

MODE

SPEED

UTIL

STAT

1234567891011121314151617181920212223242324

10Base-T/100Base-TX100Base-FX

Catalyst2950

SERIES

SYSTRPS

DUPLX

MODE

SPEED

UTIL

STAT

1234567891011121314151617181920212223242324

10Base-T/100Base-TX100Base-FX

Catalyst2950

SERIES

SYSTRPS

DUPLX

MODE

SPEED

UTIL

STAT

AP/BRIDGE

NETWORK

Switch with

inline power

Power injector

Access Point

Switch

(without inline power) Switch

(without inline power)

Inline Power

Patch Panel

Option 1 Option 2 Option 3

3Associate an IP Address with the Access Point

To open the access point management pages, you need the access point’s IP address, which can be

obtained in one of two ways:

•If your network uses a DHCP server, the server automatically assigns an IP address to the access

point. Use the IP Setup Utility (IPSU) to identify the assigned address.

•If you are not connected to a DHCP server and the access point is on the same subnet as your PC,

use IPSU to assign an IP address to the access point.

Note You can also identify or set the access point’s IP address by using the straight-through

9-pin serial extension cable in your access point package to connect the COM1 or COM2

port onyour computer to the RS-232 serial port onthe access point.Use a terminal emulator

to view the access point’sexpress setup screenand write down the IP address.Use these port

settings for the terminal emulator session: 9600 baud, 8 data bits, no parity, 1 stop bit, and

Xon/Xoff flow control.

Using a DHCP Server

When you connect the access point to your network, it receives an IP address from the DHCP server.

If you have access to the DHCP server, you can use the management console to identify the IP address

for the access point. If not, you need to identify the assigned IP address using IPSU. Follow the

instructions in the “Finding the DHCP-Assigned IP Address” section on page 7 to determine the IP

address.

Using the IP Setup Utility

Note You must run IPSU from a computer on the same subnet as the access point.

Installing IPSU

Step 1 Put the Cisco Aironet Access Point CD in the CD-ROM drive of the computer you are using

to configure the access point.

Step 2 Use Windows Explorer to view the contents of the CD. Double-click on the IPSU folder;

double-click the setup.exe file.

Step 3 Follow the steps provided by the installation wizard.

3 Associate an IP Address with the Access Point (continued)

Setting the Access Point’s IP Address and SSID

If your access point does not receive an IP address from a DHCP server, use IPSU to assign an IP

address. You can set the access point’s SSID at the same time.

Note The computer you use to assign an IP address to the access point must have an IP

address of its own.

Note IPSU can only change the IP address and SSID from their default settings. After these

values have been changed, the utility cannot change them again unless you reset the

configuration to factory defaults. To do so, click Reset All System Factory Defaults on the

System Configuration Setup page in the access point management system.

Step 1 Double-click the IPSU icon on your computer desktop to start IPSU. The following screen

appears:

Step 2 Make sure Set Parameters is selected in the Function box.

Step 3 In the Device MAC ID field, enter the MAC address as it appears on the label on the bottom

of the access point. It should containsix pairs of hexadecimal digits. For example, your access

point’s MAC address might look like this: 00409625854c.

3 Associate an IP Address with the Access Point (continued)

Step 4 In the IP address field, enter the IP address you want to assign to the access point. The IP

address should be on the same subnet as the device to which you connect the access point.

Step 5 In the SSID field, enter the SSID you want to assign to the access point.

Note You cannotset the SSID without also setting the IP address. However, youcan

set the IP address without setting the SSID.

Step 6 Click Set Parameters.

Finding the DHCP-Assigned IP Address

If your access point receives an IP address from a DHCP server, use IPSU to determine the IP address.

Step 1 Double-click the IPSU icon on your computer desktop to start IPSU. The following screen

appears:

Step 2 In the Device MAC ID field, enter the MAC address as it appears on the label on the bottom

of the access point. It should containsix pairs of hexadecimal digits. For example, your access

point’s MAC address might look like this: 00409625854c.

Step 3 Make sure the Get IP addr is selected in the Function box; click Get IP Address.

Step 4 Write down the number that is displayed in the IP Address field.

Note If IPSU reports that the IP address is 10.0.0.1, the default IP address, the

access point did not receive a DHCP-assigned IP address. Follow the instructions in

the “Setting the Access Point’s IP Address and SSID”section on page 6 to set the IP

address.

4Open the Access Point Management Pages

After you have determined or assigned the access point’s IP address, you can open the Access Point

Management Pages.

Step 1 Open your Internet browser. You must use Microsoft Internet Explorer or Netscape

Navigator/Communicator, versions 4.0 or later.

Step 2 Enter the access point’s IP address in the browser address line and press Enter. Depending on

the method used to assign the IP address, either the Summary Status screen or the Express

Setup screen opens. From the Summary Status (Home) screen, click Setup and Express Setup

to open the Express Setup screen shown below:

Step 3 Enter the case-sensitive SSID provided by your system administrator. Click Apply.

Your access point is now up and running. Consult the software configuration guide on the CD for a

description of the access point system management functions and instructions for accessing the Help

files.

Safety Information for the Cisco Aironet Access Point

The FCCwith its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio

frequency (RF) electromagnetic energy emitted by FCC certified equipment. Cisco Aironet wireless

LAN products meet the uncontrolled environmental limits found in OET-65 and ANSI C95.1, 1991.

Proper operation of this radio according to the instructions found in this manual and the hardware

installation guide on the Cisco Aironet Access Point and Bridge CD will result in user exposure that is

substantially below the FCC recommended limits.

•Do not touch or move antenna(s) while the unit is transmitting or receiving.

•Do not hold any component containing a radio such that the antenna is very close to or touching

any exposed parts of the body, especially the face or eyes, while transmitting.

•Do not operate a portable transmitter near unshielded blasting caps or in an explosive

environment unless it is a type especially qualified for such use.

•Do not operate the radio or attempt to transmit data unless the antenna is connected; otherwise,

the radio may be damaged.

•Antenna use:

–

Always orient the antenna so that it is at least 8 in. (20 cm) away from your body.

This equipment has been tested and found to comply with the European Telecommunications Standard

ETS 300.328. This standard covers Wideband Data Transmission Systems referred to in CEPT

recommendation T/R 10.01.

This type-accepted equipment is designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Otros manuales para Cisco Aironet Wireless LAN Client

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Cisco

Cisco

Cisco Meraki MR55 Manual de usuario

Cisco

Cisco MR74 Manual

Cisco

Cisco 3310 Mobility Services Engine Manual de usuario

Cisco

Cisco Small Business WAP551 Manual de instrucciones

Cisco

Cisco 1242AG - Aironet - Wireless Access Point Manual

Cisco

Cisco aironet 1524SB Instrucciones de instalación y funcionamiento

Cisco

Cisco MERAKI MR44 Manual de usuario

Cisco

Cisco Linksys WAP610N Manual de usuario

Cisco

Cisco WUMC710 Manual de usuario

Cisco

Cisco NCS 4201 Manual de instrucciones

Cisco

Cisco Meraki MR55-HW Manual

Cisco

Cisco Meraki GR10 Manual de usuario

Cisco

Cisco AIR-BR1310G-A-K9-R - Aironet 1310 Outdoor Access... Manual de usuario

Cisco

Cisco Aironet 1815w Manual de usuario

Cisco

Cisco AIR-LMC352 Manual de usuario

Cisco

Cisco WAP131 Manual de usuario

Cisco

Cisco 1522AG - Aironet Lightweight Outdoor Mesh Access... Manual de usuario

Cisco

Cisco Meraki MR42 Manual de usuario

Cisco

Cisco aironet 2800 series Guía de referencia rápida

Cisco

Cisco WAP4410N - Small Business Wireless-N Access... Manual de usuario

Cisco

Cisco Catalyst IW9167I Manual

Cisco

Cisco AIR-LAP1310G Manual de usuario

Cisco

Cisco Aironet 600 Series Manual de usuario

Cisco

Cisco 1130AG - Aironet - Wireless Access Point Manual

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario

Draytek

Draytek VIGORAP 902 Manual de usuario
