Cisco NCS 1004 Manual de usuario

Install Cisco NCS 1004

This chapter contains procedures to install Cisco NCS 1004.

•Rack Compatibility, on page 1

•Install NCS 1004 on an EIA/ANSI/ ETSI Rack, on page 3

•Stacking NCS 1004, on page 16

•General Power and Grounding Requirements, on page 17

•Power Supply, on page 19

Rack Compatibility

This section provides rack compatibility details for the Cisco NCS 1004.

Figure 1: Four Post Rack Type

Install Cisco NCS 1004

Figure 2: Four Post Rack Type

Figure 3: Two Post Rack Type

Install Cisco NCS 1004

Rack Compatibility

Figure 4: Rack Specification

Mounting Flange

Dimension Z

Rack Mounting Hole

Center-Center Y

Rack Front Opening XRack Type

482.6mm (19")465mm (18.312")450.8mm (17.75")19" racks

584.2mm (23")566.7mm (22.312")552.45mm (21.75")23" racks

533.4mm(21")515.0mm(20.276")500.0mm(19.68")ETSI racks

The distance between the front and the rear post in a four post rack is 427 mm (closed position) and 707 mm

(open position).

Note

Install NCS 1004 on an EIA/ANSI/ ETSI Rack

It is mandatory to fix the fiber management brackets for all the cards in the chassis before installing the Cisco

NCS 1004 chassis onto the rack. See Attach Fiber Management Bracket section for the detailed procedure.

Install Cisco NCS 1004

Install NCS 1004 on an EIA/ANSI/ ETSI Rack

Figure 5: Line Cards fitted with Fiber Management Bracket

Figure 6: Filler Cards fitted with Fiber Management Bracket

In ETSI racks, to maintain a footprint of 600 mm, the cabinet door cannot be installed and the horizontal bar

of the fiber management bracket should be maintained at the shortest length. See Adjusting the Fiber

Management Bracket.

Note

Install Cisco NCS 1004

Install NCS 1004 on an EIA/ANSI/ ETSI Rack

The sliding rail must be used only for first chassis positioning. The chassis must be fixed with screws on the

front side.

Caution

Use only the fastening hardware provided with Cisco NCS 1004 to prevent loosening, deterioration, and

electromechanical corrosion of the hardware and joined material.

Caution

Before you begin

Ensure the rack is compatible. See the Rack Compatibility section.

Step 1 Attach the left and right mounting brackets to the chassis using the screws (48-2029-01) and tighten them to a torque

value of 1.5 N-m.

The left and right brackets have been marked accordingly.

Figure 7: Fixing the Brackets

Right Bracket (700-116388-01)1

Screws used for brackets2

Left Bracket (700-116386-01)3

Step 2 Install the four post slider or two post slider on the rack.

a) Install Two Post Slider into an EIA/ANSI Rack

b) Install Four Post Slider into an EIA/ ANSI Rack

Install Cisco NCS 1004

Install NCS 1004 on an EIA/ANSI/ ETSI Rack

c) Install Two Post Slider into an ETSI Rack

d) Install Four Post Slider into an ETSI rack

Step 3 Insert the chassis (with brackets) onto the sliders assembled on the rack.

Step 4 After the chassis is completely inserted, fasten the chassis with four screws (48-101524-01) on each side of the bracket,

and using a number-2 Phillps screwdriver, tighten them to a torque value of 4.65 N-m.

See Install Air Filter for the air filter installation procedure, before you fasten the chassis to the rack.

Install Two Post Slider into an EIA/ANSI Rack

This procedure has details about installing the two post slider into an EIA/ ANSI rack.

Step 1 Identify the two post slider and adjust the length of the slider (3" to 5").

Slide the inner sliders and adjust the length to mate with the rack surface.

Figure 8: Two Post Slider Identification

Check for marking on the sliders; the right and the left sliders are indicated.1

Step 2 Integrate the two post slider with the rack. The procedure for 23" and 19" rack is discussed here:

• 19" rack - the slider can be directly fitted on to a 19" rack. On the front side, insert only the top most screw of the

slider (48-101524-01) and tighten it to a torque value of 4.65 N-m. On the rear side, insert three screws (48-101524-01)

and tighten to a torque value of 4.65 N-m.

• 23" rack - the slider is fitted on to a 23" rack using an adapter (refer the following image). The formed surface must

always face the inner side of the rack post. On the front side of the adapter (towards the chassis), insert only the top

most screw of the slider (48-101524-01) and tighten it to a torque value of 4.65 N-m. On the rear side (towards the

chassis), insert three screws (48-101524-01) and tighten them to a torque value of 4.65 N-m. For the adapter portion

which is towards the rack, all the six screws are fitted on the front and rear side.

Install Cisco NCS 1004

Install Two Post Slider into an EIA/ANSI Rack

Figure 9: Two Post Slider Integration - 19" Rack

Inner surface of the sliding bracket.1

Slider fixing screws (48-101524-01)2

Install Cisco NCS 1004

Install Two Post Slider into an EIA/ANSI Rack

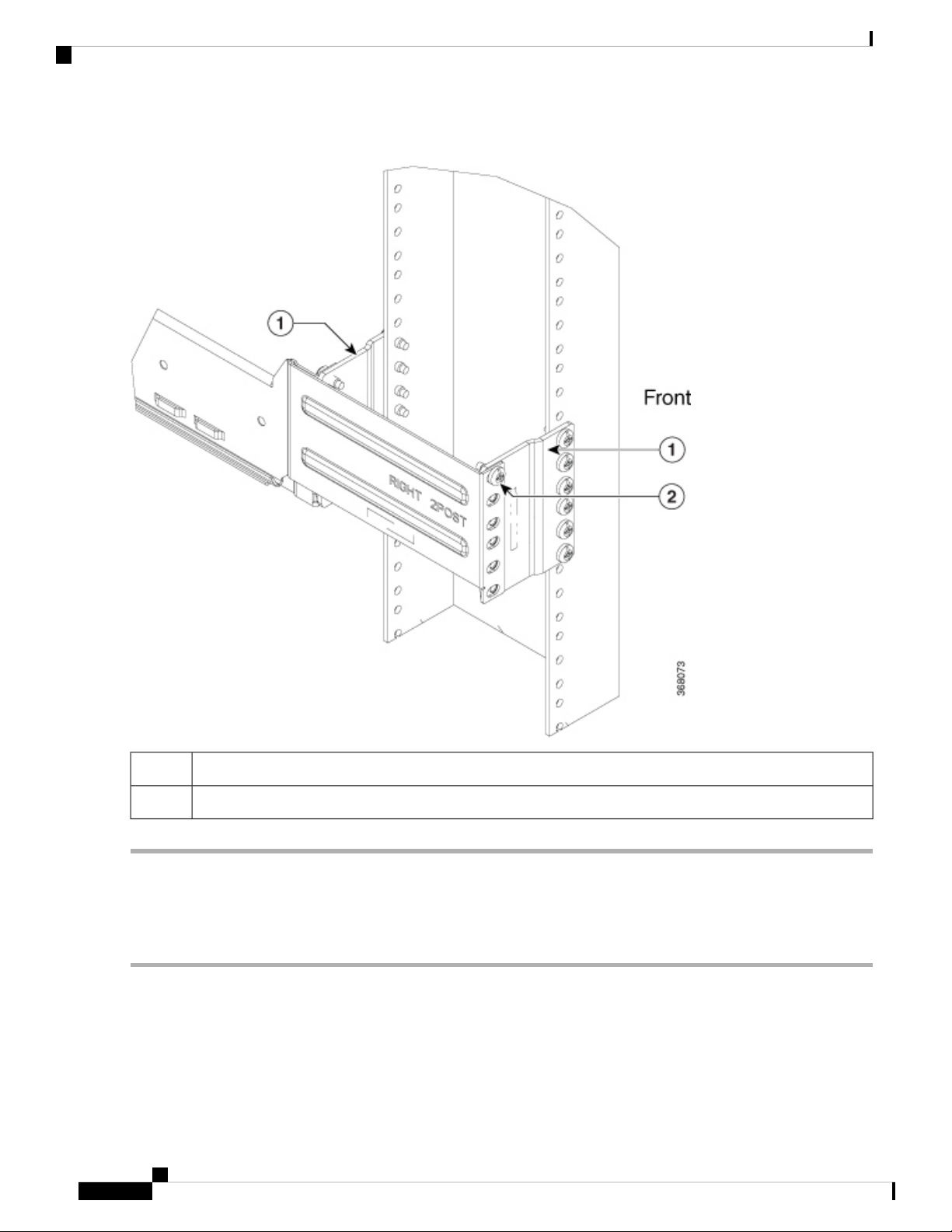

Figure 10: Two Post Slider Integration - 23" Rack

Adapter1

Slider fixing screws (48-101524-01)2

Install Four Post Slider into an EIA/ ANSI Rack

This procedure has details about installing the four post slider into an EIA/ ANSI rack.

Step 1 Identify the four post slider and adjust the length of the slider.

Slide the inner slider arm and adjust the length to mate with the rack surface.

Install Cisco NCS 1004

Install Four Post Slider into an EIA/ ANSI Rack

Figure 11: Four Post Slider Identification

Slide and adjust the length of the slider arm.1

Step 2 Integrate the four post slider with the rack. The procedure for the 23" and 19" rack is discussed here:

• 19" rack - the slider can be directly fitted on to a 19" rack. On the front side, insert only the top most screw of the

slider (48-101524-01) and tighten it to a torque value of 4.65 N-m. On the rear side, insert five screws (48-101524-01)

and tighten them to a torque value of 4.65 N-m.

• 23" rack - the slider is fitted on to a 23" rack using an adapter (refer the following image). The formed surface must

always face the inner side of the rack post. On the front side (towards the chassis), insert only the top most screw

of the slider (48-101524-01) and tighten it to a torque value of 4.65 N-m. On the rear side (towards the chassis),

insert five screws (48-101524-01) and tighten them to a torque value of 4.65 N-m. For the adapter portion which is

towards the rack, all the six screws are fitted on the front and rear side.

Install Cisco NCS 1004

Install Four Post Slider into an EIA/ ANSI Rack

Figure 12: Four Post Slider Integration - 19" Rack

Edge surface of the slider1

Slider fixing screws (48-101524-01)2

Install Cisco NCS 1004

Install Four Post Slider into an EIA/ ANSI Rack
