Cisco EXPLORER 3100 Manual de usuario

Overview

•Features, on page 1

•Deployment Options, on page 4

•Package Contents, on page 5

•Serial Number and Digital Documentation Portal QR Code, on page 6

•Front Panel, on page 8

•Front Panel LEDs, on page 11

•Rear Panel, on page 13

•8-Port 1/10/25-Gb Network Module, on page 15

•4-Port 40-Gb Network Module, on page 17

•8-Port 10/100/1000Base-T Network Module with Hardware Bypass, on page 19

•6-Port 1-Gb SX/10-Gb SR/10-Gb LR/25-Gb SR/25-Gb LR Network Module with Hardware Bypass ,

on page 21

•Power Supply Module, on page 24

•Dual Fan Modules, on page 26

•SSDs, on page 27

•Supported SFP/SFP+/QSFP+ Transceivers , on page 29

•Hardware Specifications, on page 32

•Product ID Numbers, on page 33

•Power Cord Specifications, on page 35

Features

The Cisco Secure Firewall 3100 is a standalone modular security services platform that includes the Secure

Firewall 3105, 3110, 3120, 3130, and 3140.

See Product ID Numbers, on page 33 for a list of the product IDs (PIDs) associated with the 3100 series.

The Secure Firewall 3100 supports Cisco Firepower Threat Defense and Cisco ASA software. See the Cisco

Secure Firewall Threat Defense Compatibility Guide and the Cisco Secure Firewall ASA Compatibility guide,

which provide Cisco software and hardware compatibility, including operating system and hosting environment

requirements, for each supported version.

Overview

The Secure Firewall 3105 is first supported in Cisco Firepower Threat Defense 7.3 and Cisco ASA 9.19 and

later.

Note

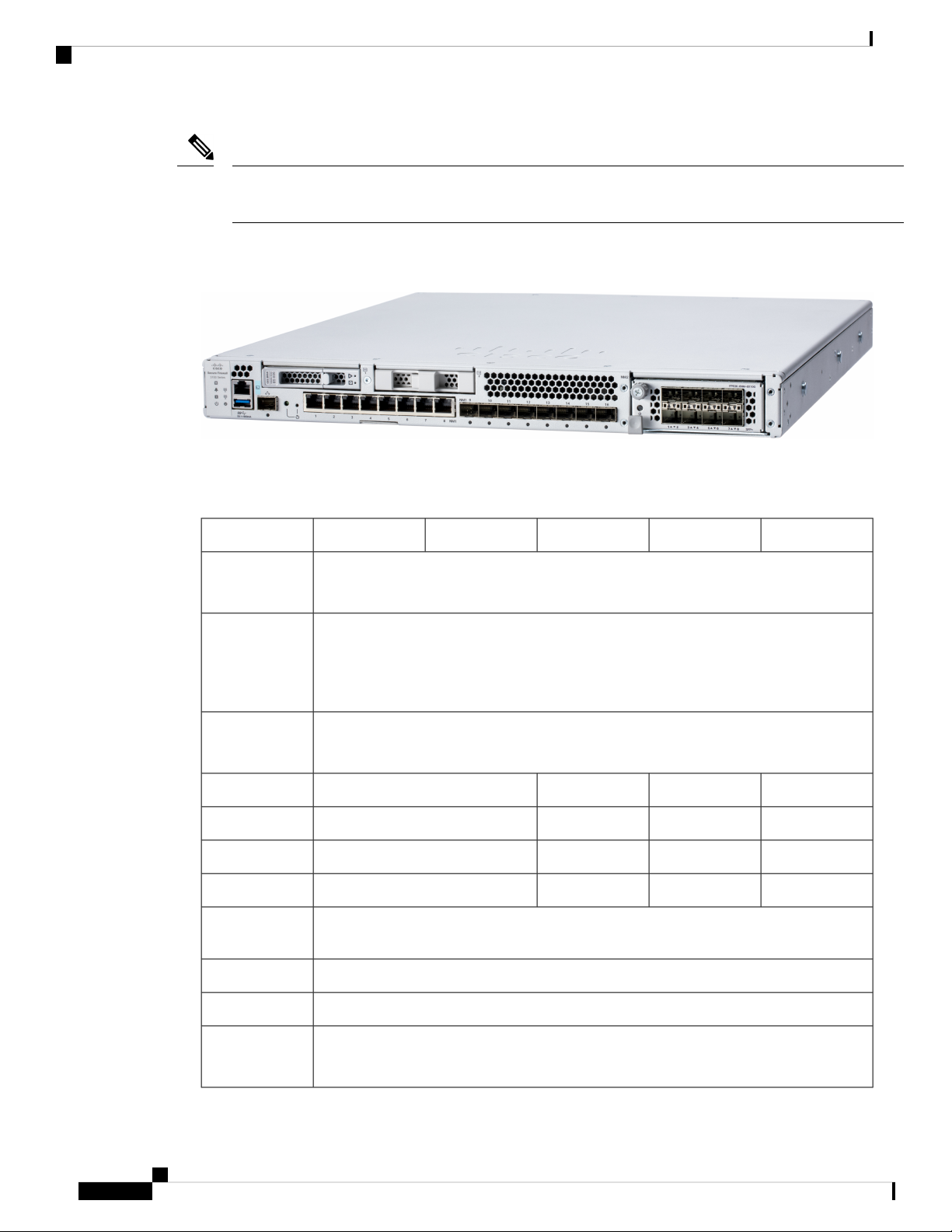

The following figure shows the Secure Firewall 3100.

Figure 1: Secure Firewall 3100

The following table lists the features for the Secure Firewall 3100.

Table 1: Secure Firewall 3100 Features

31403130312031103105Feature

1 RU

Fits a standard 19-inch (48.3-cm) square-hole rack

Form factor

(Optional) Two 2-post mount brackets and/or two slide rails

4-post Electronic Industries Association (EIA)-310-D rack

We recommend that you order the slide rails for your Secure Firewall 3100.

Note

Rack mount

Front to rear (I/O side to non-I/O side)

Cold aisle to hot aisle

Airflow

AMD 7452AMD 7352AMD 7282

AMD 7272Processor

32241612Core count

2.35 GHz2.3 GHz2.8 GHz2.9 GHzCore clock

4 x 64 GB4 x 32 GB2 x 64 GB2 x 32 GBSystem memory

One 1/10-Gb small form-factor pluggable (SFP) portManagement

port

One RJ-45 serial portConsole port

USB 3.1 Type A (900 mA) portUSB port

8 SFP+ fixed ports and 8 copper RJ-45 ports

Named Ethernet 1/1 through 1/16

Network ports

Overview

Features

31403130312031103105Feature

Eight 1/10/25-Gb SFP ports

Four 40-Gb QSFP ports

Network module

ports

One

Hot-swapping of identical modules is supported, but if you replace a network

module with another type, you must reboot the system so that the new network

module is recognized.

Note

Network module

slots

• 8-port 1Gb/10Gb/25Gb SFP+

(FPR3K-XNM-8X25G)

• 8-port 1Gb/10Gb SFP+

(FPR3K-XNM-8X10G)

• 4-port 40-Gb QSFP+

(FPR3K-XNM-4X40G)

• 6-port 1-Gb SFP SX

multimode hardware

bypass(FPR3K-XNM-6X1SXF)

• 6-port 10-Gb SFP SR

multimode hardware bypass

(FPR3K-XNM-6X10SRF)

• 6-port 10-Gb SFP LR single

mode hardware bypass

(FPR3K-XNM-6X10LRF)

• 6-port 25-Gb SFP SR

multimode hardware bypass

(FPR3K-XNM-6X25SRF)

• 6-port 25-Gb SFP LR single

mode hardware bypass

(FPR3K-XNM-6X25LRF)

• 8-port 10/100/1000Base-T

hardware bypass

(FPR3K-XNM-8X1GF)

•8-port 1Gb/10Gb SFP+ (FPR3K-XNM-8X10G)

•6-port 1-Gb SFP SX multimode hardware bypass

(FPR3K-XNM-6X1SXF)

• 6-port 10-Gb SFP SR multimode hardware

bypass (FPR3K-XNM-6X10SRF)

• 6-port 10-Gb SFP LR single mode hardware

bypass (FPR3K-XNM-6X10LRF)

• 8-port 10/100/1000Base-T hardware bypass

(FPR3K-XNM-8X1GF)

Network

modules

Two power supply slots

Ships with two 400-W AC power

supply modules

Hot-swappable

Two power supply slots

Ships with one 400-W AC power supply module

Hot-swappable

AC power

supply

Yes (optional)

Hot-swappable

DC power

supply

Overview

Features

31403130312031103105Feature

Yes

Ships with two power

supplies.

Note

Yes, if you order an extra power supply.

Note

Redundant

power

Two dual fan module slots (3 + 1)

The dual fan modules are hot-swappable.

Note

Fans

Two Nonvolatile Memory Express (NVMe) SSD slots

Ships with one 900-GB SSD installed in slot 1. You can order a second RAID1 SSD for

slot 2. The RAID1 SSD is preconfigured for RAID1.

Slot 2 is reserved for the optional software RAID1 configuration.

Note

Hot-swapping is supported with 2 SSDs. However, you must enter a CLI

command to remove one disk from the RAID before hot swapping. See the

CLI configuration guide for your software for the procedure.

Note

Storage

Displays the serial number and a QR code that points to the low touch provisioning (LTP)

guide.

Pullout asset

card

On rear panelGrounding lug

On rear panelPower switch

Resets the system to factory default without requiring serial console access

The reset button is recessed. Press with a pin and hold longer than 5 seconds

to set the system back to the factory default.

Note

Reset button

Deployment Options

Here are some examples of how you can deploy the Secure Firewall 3100:

• As a firewall:

• At the enterprise internet edge in a redundant configuration

• At branch offices in either a high availability pair or standalone

• At data centers in a high availability pair or clustered, which serves the needs of smaller enterprises

•As a device that provides additional application control, URL filtering, or IPS/threat-centered capabilities:

• Behind an enterprise internet edge firewall in an inline configuration or as a standalone (requires

hardware fail-open network module support)

• Deployed passively off a SPAN port on a switch or a tap on a network, or standalone

Overview

Deployment Options

• As a branch native SD-WAN solution that offers remote deployment and is managed over a 4G LTE

• As a VPN device:

• For remote access VPN

• For site-to-site VPN

Package Contents

The following figure shows the package contents for the Secure Firewall 3100. The contents are subject to

change and your exact contents contain additional or fewer items depending on whether you order the optional

parts. See Product ID Numbers for a list of PIDs associated with the package contents.

There are two sets of four screws that you can use to secure the chassis to your rack. Chose the screws that

fit your rack.

Note

Figure 2: Secure Firewall 3100 Package Contents

Console cable RJ-45 to DB-9 (part number

72-3383-01)

2Secure Firewall 3100 chassis1

Overview

Package Contents

SFP transceiver

(Optional; in package if ordered)

4One or two power cords (country-specific)

See Power Cord Specifications, on page 35 for

a list of supported power cords.

Cable management bracket kit (part number

69-100376-01)

• Two cable management brackets (part

number 700-128334-01)

• Four 8-32 x 0.375-inch Phillips screws (part

number 48-2696-01)

(Optional; in package if ordered)

6One ground lug kit (part number 69-100359-01)

• One #6 AWG, 90 degree, #10 post ground

lug (part number 32-0608-01)

• Two 10-32 x 0.38-inch Phillips screws (part

number 48-0700-01)

Rack-mount bracket kit (53-101510-02):

• Two rack-mount brackets (700-127244-01)

• Six 8-32 x 0.375-inch Phillips screws (part

number 48-2286) for securing the brackets

to the chassis

• Four 10-32 x 0.75-inch Phillips screws (part

number 48-0441-01) for securing the chassis

to your rack

• Four 12-24 x 0.75-inch Phillips screws (part

number 48-0440-01) for securing the chassis

to your rack

(Optional; in package if ordered)

8Two slide rails (800-110033-01)

Slide rail accessories kit (53-101509-02):

•Two slide rail locking brackets (part number

700-121935-01)

• Six 8-32 x 0.302-inch slide rail locking

bracket Phillips screws (part number

48-102184-01)

• Two M3 x 0.5 x 6-mm Phillips screws (part

number 48-101144-01)

(Optional; in package if ordered)

Two power supply module tie wraps and clamps

(part number 52-100162-01)

10Cisco Secure Firewall 3100

This document has a URL and QR code that point

to the Digital Documentation Portal. The portal

contains links to the Product Information page,

the Hardware Installation Guide, the Regulatory

and Safety Information Guide, the Getting Started

Guide, and the Easy Deployment Guide.

Serial Number and Digital Documentation Portal QR Code

The pullout asset card on the front panel of your Secure Firewall 3100 chassis contains the chassis serial

number and the Digital Documentation Portal QR code, which points to the getting started guide, the regulatory

and compliance guide, the easy deployment guide, and the hardware installation guide.

Overview

Serial Number and Digital Documentation Portal QR Code

Figure 3: Pullout Asset Card

Documentation Portal QR code2Pullout asset tag1

—Chassis serial number3

The compliance label on the bottom of the chassis contains the chassis serial number, regulatory compliance

marks, and the Digital Documentation Portal QR code that points to the guides listed above. The following

figure shows an example compliance label found on the bottom of the chassis.

Overview

Serial Number and Digital Documentation Portal QR Code

Figure 4: Example Compliance Label

Chassis serial number2Chassis model number1

—Documentation Portal QR code3

Front Panel

The following figure shows the front panel of the Secure Firewall 3100. See Front Panel LEDs, on page 11

for a description of the LEDs.

Overview

Front Panel

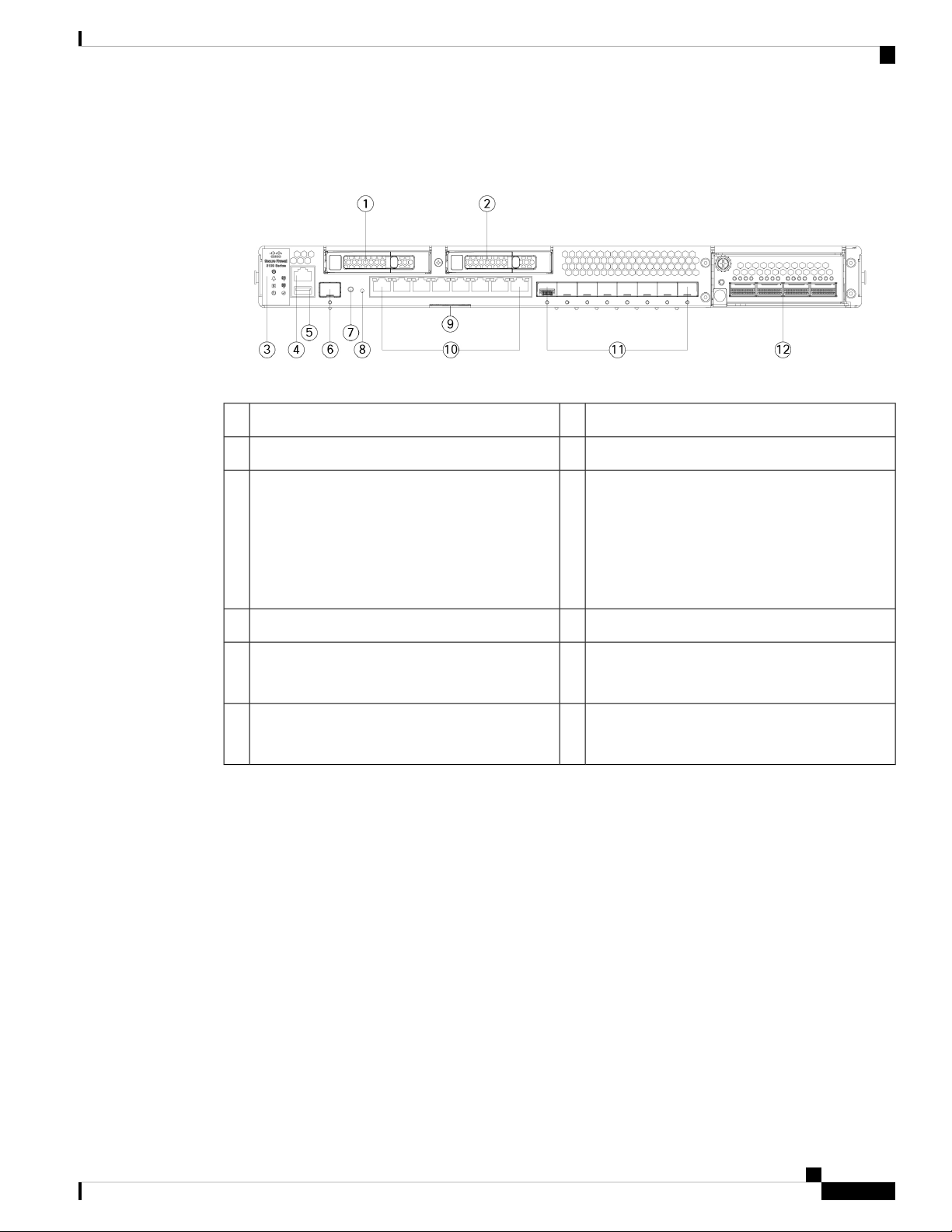

Figure 5: Secure Firewall 3100 Front Panel

SSD-22SSD-11

RJ-45 console port4System LEDs3

Gigabit Ethernet management port:

• Secure Firewall Threat

Defense—Management 0 (also referred to

as Management 1/1 and Diagnostic 1/1)

• ASA—Management 1/1

6Type A USB 3.1 port5

Recessed factory reset button8Reset button LED7

Fixed copper ports (NM-1)

Copper ports named 1/1 through 1/8 left to right

10Pullout asset card with chassis serial number,

getting started guide QR code, and LTP QR code

Network module (NM-2)12Fixed fiber ports (NM-1)

Fiber ports named 1/9 through 1/16 left to right

Management Port

The Secure Firewall 3100 chassis management port is a 1/10-Gb fiber SFP port.

RJ-45 Console Port

The Secure Firewall 3100 chassis has a standard RJ-45 console port. You can use the CLI to configure

your 3100 through the RJ-45 serial console port by using a terminal server or a terminal emulation

program on a computer.

The RJ-45 (8P8C) port supports RS-232 signaling to an internal UART controller. The console port does

not have any hardware flow control, and does not support a remote dial-in modem. The baud rate is 9600.

You can use the standard cable found in your accessory kit to convert the RJ-45 to DB-9 if necessary.

Type A USB 3.1 Port

You can use the external Type A USB port to attach a data-storage device. The external USB drive

identifier is usb:. The Type A USB port supports the following:

• Hot swapping

Overview

Front Panel

• USB drive formatted with FAT32

• Boot kickstart image from ROMMON for discovery recovery purposes

• Copy files to and from workspace:/ and volatile:/ within local-mgmt. The most relevant files are:

• Core files

• Ethanalyzer packet captures

• Tech-support files

• Security module log files

• Platform bundle image upload using download image usbA:

The Type A USB port does not support Cisco Secure Package (CSP) image upload support.

Network Ports

The Secure Firewall 3100 chassis has a network module slot that supports the following network modules:

• 8-port 1/10-Gb SFP

• 8-port 1/10/25-Gb SFP

• 6-port 1-Gb SFP SX multimode hardware bypass

• 6-port 10-Gb SFP SR multimode hardware bypass

• 6-port 10-Gb SFP LR single mode hardware bypass

• 6-port 25-Gb SFP SR multimode hardware bypass

• 6-port 25-Gb SFP LR single mode hardware bypass

• 8-port 10/100/1000Base-T hardware bypass

First supported on FTD 7.2.1 and ASA 9.18.2.

Note

• 4-port 40-Gb QSFP

First supported on FTD 7.2.1 and ASA 9.18.2.

Note

The 4-port 40-Gb and 8-port 25-Gb network modules are supported only on the 3130 and 3140.

Note

Factory Reset Button

The Secure Firewall 3100 chassis has a recessed reset button that resets the system to the factory default.

All previous configuration is erased after pressing the button down for five seconds. The following

occurs:

Overview

Front Panel

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de Cisco

Cisco

Cisco CE-507 - Content Engine 507 Manual de usuario

Cisco

Cisco CTM GateWay Guía de instalación

Cisco

Cisco Linksys Business Series Network Storage System... Manual de usuario

Cisco

Cisco WEC600N Manual de usuario

Cisco

Cisco IPS-4240-K9 - Intrusion Protection Sys 4240 Manual de usuario

Cisco

Cisco LightStream 1010 Manual de usuario

Cisco

Cisco MultiRIP Ethernet Card Manual de usuario

Cisco

Cisco RSP4+ Bootflash Memory Upgrade to 16MB... Manual del operador

Cisco

Cisco ONS 15327 Manual

Cisco

Cisco NSS2000 - Gigabit Storage System Chassis Cómo utilizar

Cisco

Cisco Firepower 9300 Manual

Cisco

Cisco 2650XM Manual de usuario

Cisco

Cisco NCS 4201 Manual

Cisco

Cisco ASR 5000 Series Manual de usuario

Cisco

Cisco 5500 Series Manual de usuario

Cisco

Cisco 7246 - uBR Router Manual de usuario

Cisco

Cisco Firepower 1010 FPR1010-NGFW-K9 Manual

Cisco

Cisco ONS 15454 Manual de instrucciones

Cisco

Cisco NCS 1004 Manual de usuario

Cisco

Cisco C8510MSR-SKIT-DC - Catalyst 8510 Multiservice Switch... Manual de usuario

Cisco

Cisco ASR 5000 Manual de usuario

Cisco

Cisco 3600 Series Instrucciones de funcionamiento y seguridad

Cisco

Cisco SCE 1000 and Manual del operador

Cisco

Cisco Firepower 1010 Series Manual

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
