Overview

•Features, on page 1

•Package Contents, on page 4

•Serial Number Locations, on page 5

•Front Panel, on page 5

•Front Panel LEDs, on page 9

•Rear Panel, on page 11

•Rear Panel LEDs, on page 14

•Power Supply, on page 15

•Hardware Specifications, on page 16

•Product ID Numbers, on page 17

•Power Cord Specifications, on page 17

Features

The Cisco Web Security Appliances (WSA) S195, S395, S695, and S695F help organizations secure and

control web traffic.

The WSA S195, S395, S695, and S695F support Cisco AsyncOS version 11.8 and later. See Product ID

Numbers, on page 17 for a list of field-replaceable product IDs (PIDs) associated with the WSA security

appliances.

The following figures show the Cisco Web Security appliances.

Figure 1: Cisco Web Security S195 and S395

Overview

Figure 2: Cisco Web Security S695 and S695F

The following table lists the features of the WSA S195, S395, S695, and S695F.

Table 1: WSA S195, S395, S695, and S695F Features

S695FS695S395S195Feature

2 RU1 RUForm factor

Standard 19-in. (48.3 cm) 4-post EIA rackRack mount

Front to rear

Cold aisle to hot aisle

Airflow

Displays the serial number.Pullout asset card

Two threaded holes for dual-hole grounding lug

Use is optional; the supported AC power supplies have internal grounding, so no

additional chassis grounding is required.

Grounding holes

OptionalLocking faceplate

On front panelUnit identification

button

On rear panelPower button

64-GB RAM32-GB RAM

16-GB RAMMemory

Four 16-GBTwo 16-GBOne 16-GBRDIMMs

Internal component

only; not

field-replaceable

One (M1)

M2 is not supported.

Management ports

Two (P1 and P2)Proxy ports

Two (T1 and T2)Traffic ports

Accessed through the 1-Gb dedicated portRemote power

cycling (RPC)

Two USB 3.0 Type AUSB ports

Overview

Features

S695FS695S395S195Feature

Six fiber optic

NoSFP+ ports

GLX-SX-MMD (1

Gb) (optional)

SFP-10G-SR

(10-Gb) (optional)

—Supported SFP+

One 1-Gb RJ45 serial port running RS-232 (RS-232D TIA-561)Serial console port

Two

1050 W AC

Hot-swappable and redundant as 1+1

Two

770 W AC

Hot-swappable and

redundant as 1+1

One

770 W AC

You can order a

second power

supply for

redundancy as 1+1.

AC power supply

Do not

mix

power

supply

type or

wattage

between

models.

Note

Six fans for front-to-rear cooling

Internal component only; not field-replaceable. If one fan fails, you must send your

chassis for RMA.

Fans

Sixteen 600-GB SAS HDDs

RAID 10, hot-swappable

Four 600-GB SAS

HDDs

RAID 10,

hot-swappable

Two 600-GB SAS

HDDs

RAID 1,

hot-swappable

Storage

Overview

Features

Package Contents

Figure 3: Package Contents

RJ-45 to DB9-RS232 console cable (Cisco part

number 72-3383-XX)

2Chassis1

RJ-45 to RJ-45 Cat 5 Ethernet cable, yellow six

feet long (Cisco part number 72-1482-XX)

4Cisco rail kit (Cisco part number 800-43376-02)3

Two 1-Gb or 10-Gb SFP+ fiber optic transceivers

with cables

Supported on the You cannot mix SFP

transceiver types in the same chassis.

You can either have two 1-Gb or two

10-Gb SFPs in the same chassis.

Note

6Useful Links document

The steps in the Useful Links document send you

to the documentation you need to install, set up,

and configure your appliance.

Overview

Package Contents

Serial Number Locations

Figure 4: Serial Number on Pullout Asset Card

The serial number is also on the label on the cover of the chassis as shown in the following figure.

Figure 5: Serial Number Location on Cover

Cover latch

Not supported

2Serial number label1

Front Panel

The following figure shows the front panel features and disk-drive configuration for the WSA S195. See Front

Panel LEDs, on page 9 for a description of the LEDs.

Overview

Serial Number Locations

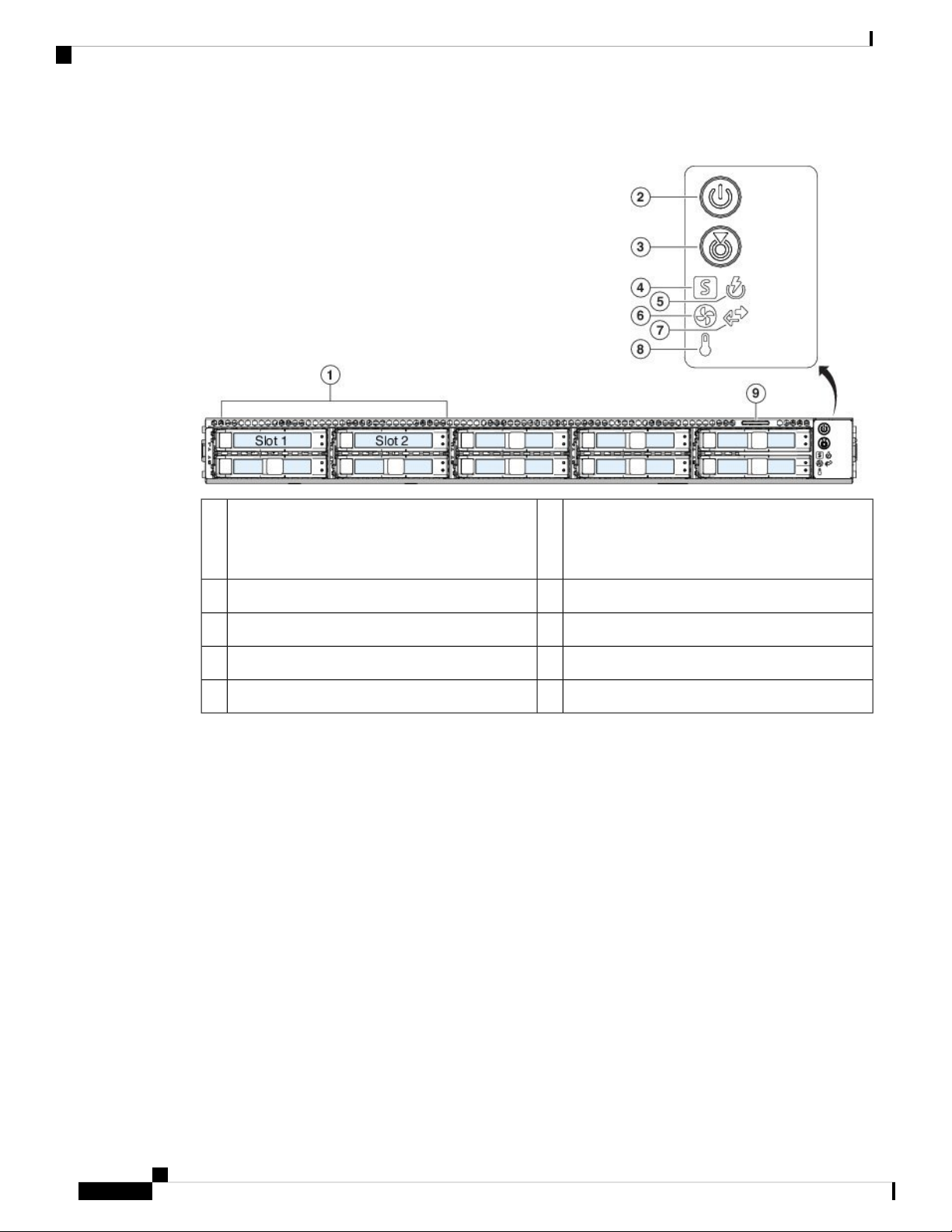

Figure 6: S195 Front Panel

Power button/power status LED2Drive bays

Supports two 600-GB SAS HDDs in slots 1 and

System status LED4Unit identification button/LED3

Fan status LED6Power supply status LED5

Temperature status LED8Network link activity LED7

Pullout asset card9

The following figure shows the front panel features and disk-drive configuration for the WSA S395. See Front

Panel LEDs, on page 9 for a description of the LEDs.

Overview

Front Panel

Figure 7: S395 Front Panel

Power button/power status LED2Drive bays

Supports four 600-GB SAS HDDs in slots 1

through 4

System status LED4Unit identification button/LED3

Fan status LED6Power supply status LED5

Temperature status LED8Network link activity LED7

Pullout asset card9

The following figure shows the front panel features and disk-drive configuration for the WSA S695 and

S695F. See Front Panel LEDs, on page 9 for a description of the LEDs.

Overview

Front Panel

Figure 8: S695 and S695F Front Panel Features

Power button/power status LED2Drive bays

Supports sixteen 600-GB SAS HDDs in slots 1

through 16

System status LED4Unit identification button/LED3

Temperature status LED6Fan status LED5

Network link activity LED8Power supply status LED7

Pullout asset card9

Overview

Front Panel

Front Panel LEDs

Figure 9: Front Panel LEDs and Their States

Drive activity LED:

• Off—There is no drive in the drive tray (no

access, no fault).

• Green—The drive is ready.

• Green, flashing—The drive is reading or

writing data.

2Drive fault LED:

• Off—The drive is operating properly.

• Amber—Drive fault detected.

• Amber, flashing—The drive is rebuilding.

• Amber, flashing with 1-second

interval—Drive locate function activated in

the software.

Unit identification LED:

• Off—The unit identification function is not

in use.

• Blue, flashing—The unit identification

function is activated.

4Power LED:

• Off—There is no AC power to the chassis.

• Amber—The chassis is in standby mode.

• Green—The chassis is in main power mode.

Power is supplied to all components.

Overview

Front Panel LEDs

Power supply status LED:

• Green—All power supplies are operating

normally.

• Amber—One or more power supplies are in

a degraded operational state.

• Amber, flashing—One or more power

supplies are in a critical fault state.

6System status LED:

• Green—The chassis is running in normal

operating condition.

• Green, flashing—The chassis is performing

system initialization and memory check.

• Amber—The chassis is in a degraded

operational state (minor fault).

• Power supply redundancy is lost.

• CPUs are mismatched.

• At least one CPU is faulty.

• At least one DIMM is faulty.

• At least one drive in a RAID

configuration failed.

• Amber, 2 flashes—There is a major fault

with the system board.

• Amber, 3 flashes—There is a major fault

with the DIMMs.

• Amber, 4 flashes—There is a major fault

with the CPUs.

Network link activity LED:

• Off—The Ethernet port link is idle.

• Green—One or more Ethernet ports are

link-active, but there is no activity.

•Green, flashing—One or more Ethernet ports

are link-active with activity.

8Fan status LED:

• Green—All fans are operating properly.

• Amber, flashing—One or more fans

breached the nonrecoverable threshold.

Temperature status LED:

• Green—The chassis is operating at normal

temperature.

• Amber—One or more temperature sensors

breached the critical threshold.

• Amber, flashing—One or more temperature

sensors breached the nonrecoverable

threshold.

Overview

Front Panel LEDs
