Cisco 2621 Gateway-PBX Interoperability:

Lucent/Avaya Definity G3si with E1 PRI NET5

Signaling

This document describes the interoperability and configuration of a Cisco 2621 voice gateway with a

Lucent/Avaya Definity G3si PBX using E1 PRI NET5 signaling.It includes the following sections:

•System Components

•Configuration Tasks

•Caveats

System Components

PBX Model Lucent/Avaya Definity G3si

PBX Release 7.0

Telephony Signaling E1 PRI

Voice Gateway Cisco 2621 with 2MFT E1 Port

Gateway Release Cisco IOS Release 12.2(3.5)T

Call Manager Release 3.1

VoX Protocol H.323

Configuration Tasks

See the following sections for configuration tasks for this feature:

•Set Up command.

•Lucent/Avaya PBX Configuration

•Call Manager Configuration

Cisco2621Gateway-PBXInteroperability:Lucent/AvayaDefinityG3siwithE1PRINET5Signaling

Page2

Set Up This section includes the following information:

•Connectivity Diagrams

•Set Up Notes

Connectivity Diagrams

Figure 1: Test Configuration

Figure 1 represents the configuration used for testing: an Lucent/Avaya Definity G3si PBX connected to a

Cisco 2621 voice gateway via an E1 PRI connection.

Set Up Notes

The Cisco 2621 Gateway with ISDN protocol type setting of primary-net5 supports both protocol sides by

using the isdn protocol-emulate network/user command.

The Lucent/Avaya Definity G3si PBX supports both “USER” and “NETWORK” protocol sides by using

change ds1 a12 command.

Phone C

x4001

Basic Call Setup End-to-End Configuration

VoIP

Cisco Call Manager

Release 3.1

Phone B

x2002

Phone D

x4002

Phone A

x2001

PBX #1

Phone E

x N/A

PBX1: Lucent/Avaya

Definity G3si (Rel. 7)

ISDN Type:

E1-PRI

2621_B

Cat 6K

Ethernet

Switch

Cisco 7960 IP phones

Cisco2621Gateway-PBXInteroperability:Lucent/AvayaDefinityG3siwithE1PRINET5Signaling

Page3

Lucent/Avaya PBX Configuration

Lucent/Avaya PBX Version Information

•Software: Version 7.0

•Hardware: TN464F, DS1 INTFC 24/32

Cisco2621Gateway-PBXInteroperability:Lucent/AvayaDefinityG3siwithE1PRINET5Signaling

Page4

Lucent/Avaya PBX Sample Configuration

DS1 CIRCUIT PACK

Cisco2621Gateway-PBXInteroperability:Lucent/AvayaDefinityG3siwithE1PRINET5Signaling

Page5

Signaling Group

Cisco2621Gateway-PBXInteroperability:Lucent/AvayaDefinityG3siwithE1PRINET5Signaling

Page6

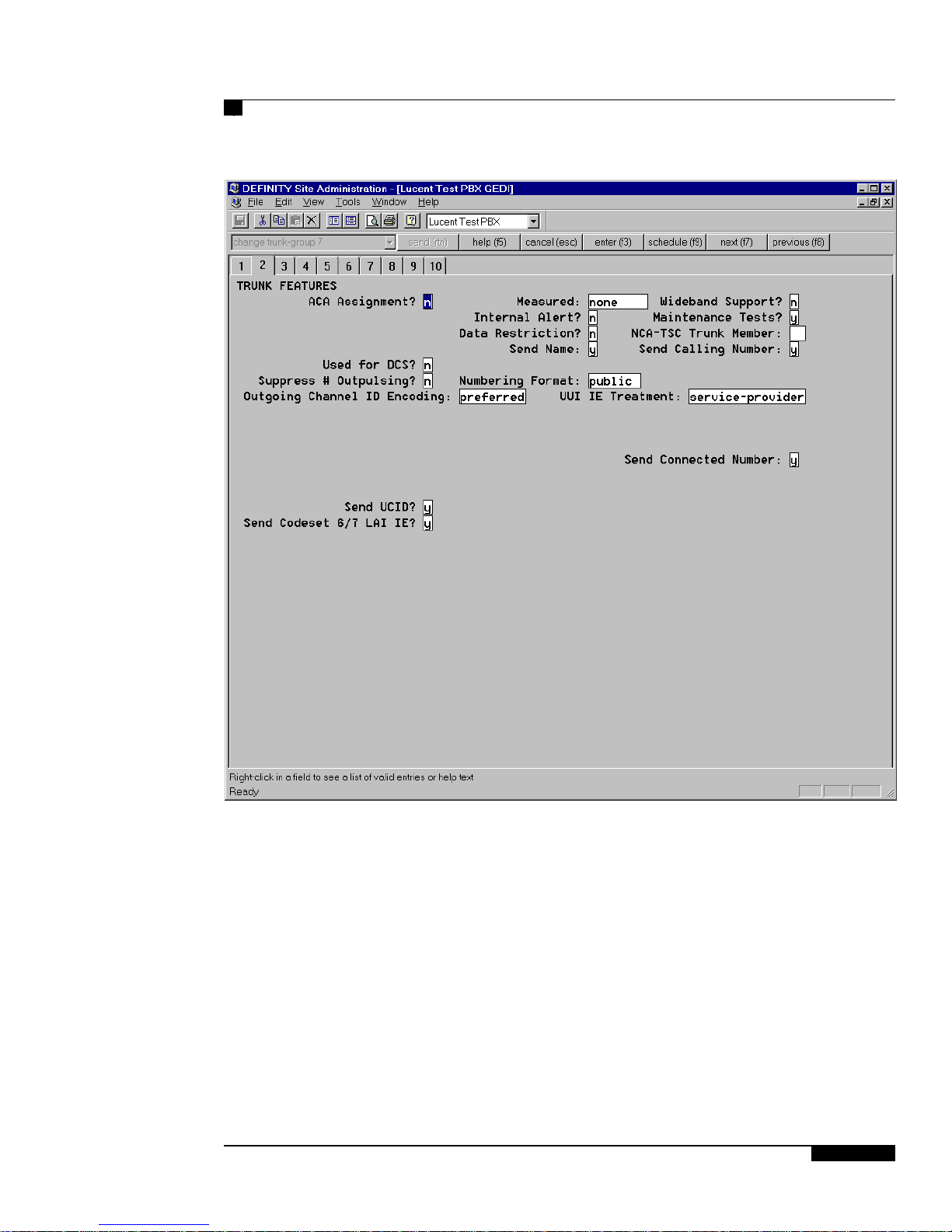

Trunk Group

Cisco2621Gateway-PBXInteroperability:Lucent/AvayaDefinityG3siwithE1PRINET5Signaling

Page7

Cisco2621Gateway-PBXInteroperability:Lucent/AvayaDefinityG3siwithE1PRINET5Signaling

Page8

Cisco2621Gateway-PBXInteroperability:Lucent/AvayaDefinityG3siwithE1PRINET5Signaling

Page9

Cisco2621Gateway-PBXInteroperability:Lucent/AvayaDefinityG3siwithE1PRINET5Signaling

Page10

Uniform Dialing Plan
