Rack-Mount the Chassis
•Unpack and Inspect the Chassis, on page 1
•Rack-Mount the Chassis, on page 1
•Ground the Chassis, on page 6
Unpack and Inspect the Chassis
The chassis is thoroughly inspected before shipment. If any damage occurred during transportation or any
items are missing, contact your customer service representative immediately. Keep the shipping container in
case you need to send the chassis back due to damage.
Note
See Package Contents for a list of what shipped with the chassis.
Step 1 Remove the chassis from its cardboard container and save all packaging material.
Step 2 Compare the shipment to the equipment list provided by your customer service representative. Verify that you have all
items.
Step 3 Check for damage and report any discrepancies or damage to your customer service representative. Have the following
information ready:
• Invoice number of shipper (see the packing slip)
• Model and serial number of the damaged unit
• Description of damage
• Effect of damage on the installation
Rack-Mount the Chassis
Take note of the following warnings:
Rack-Mount the Chassis
1
Statement 1006—Chassis Warning for Rack-Mounting and Servicing
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to
ensure that the system remains stable. The following guidelines are provided to ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the
heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the
unit in the rack.
Warning
Statement 1018—Supply Circuit
To reduce risk of electric shock and fire, take care when connecting units to the supply circuit so that wiring
is not overloaded.
Warning
Statement 1032—Lifting the Chassis
To prevent personal injury or damage to the chassis, never attempt to lift or tilt the chassis using the handles
on modules (such as power supplies, fans, or cards); these types of handles are not designed to support the
weight of the unit.
Warning
This procedure describes how to install the Firepower 4100 series security appliance in a rack using the rack
kit from the accessory kit that shipped with the chassis.
Before you begin
You need the following to install the chassis in a rack (4-post EIA-310-D rack):
• #1 Phillips head screwdriver
• Firepower 4100 accessory kit that contains the slide rails, mounting ears, and screws
Slide rail assemblies work with 4-post racks and cabinets with square slots, round 7.1 mm holes and 10-32-in.
threaded holes on the rack post front. The slide rail works with front to back spacing of rack posts from 24 to
36 inches. The rack-mounting posts need to be 2 to 3.5 mm thick to work with the slide rail rack mounting.
Internal obstructions between rails can make slide rail installation more complicated. Use racks that do not
have internal obstructions between rails for unhindered slide rail installation.
Note
Step 1 Attach a rack mount bracket to each side of the chassis using the six 8-32 x .375-in. countersink Phillips head screws
provided in the accessory kit.
Rack-Mount the Chassis
2
Rack-Mount the Chassis
Rack-Mount the Chassis
Figure 1: Attach the Rack Mount Bracket to the Side of the Chassis
Rack-mount bracket2Chassis1
8-32 x .375-in. countersink Phillips head screws (3 per
side)
3
Step 2 Attach the inner rails to the sides of the chassis:
a) Remove the inner rails from the slide rail assemblies.
b) Align an inner rail with 1 side of the chassis so that the 3 keyed slots in the rail align with the 3 pegs on the side of
the chassis.
c) Set the keyed slots over the pegs, and then slide the rail toward the front to lock it in place on the pegs. The rear key
slot has a metal clip that locks over the peg.
d) Secure the inner rail to the side of the chassis using 1 M3X6mm screw.
e) Install the second inner rail to the opposite side of the chassis and secure with the other M3X6mm screw.
Rack-Mount the Chassis
3
Rack-Mount the Chassis
Rack-Mount the Chassis
Figure 2: Attach the Inner Rail to the Side of the Chassis
Inner rail2Front of chassis1
M3X6mm screw (one per side)3
Step 3 Open the front securing plate on both slide-rail assemblies. The front end of the slide-rail assembly has a spring-loaded
securing plate that must be open before you can insert the mounting pegs into the rack-post holes.
On the outside of the assembly, push the green arrow button toward the rear to open the securing plate.
Figure 3: Front Securing Mechanism Inside the Front End
Securing plate shown pulled back to open position2Front mounting pegs
Works with square slots, 7.1 mm holes, and
10-32 threaded holes
Note
1
Rack post3
Step 4 Install the slide rails into the rack:
a) Align one slide-rail assembly front end with the front rack-post holes that you want to use.
Rack-Mount the Chassis
4
Rack-Mount the Chassis
Rack-Mount the Chassis
The slide rail front end wraps around the outside of the rack post and the mounting pegs enter the rack-post holes
from the outside front.
The rack post must be between the mounting pegs and the open securing plate.
Note
b) Push the mounting pegs into the rack-post holes from the outside front.
c) Press the securing plate release button marked PUSH. The spring-loaded securing plate closes to lock the pegs in
place.
d) Adjust the slide-rail length, and then push the rear mounting pegs into the corresponding rear rack-post holes. The
slide rail must be level front-to-rear.
The rear mounting pegs enter the rear rack-post holes from the inside of the rack post.
e) Attach the second slide-rail assembly to the opposite side of the rack. Make sure that the two slide-rail assemblies
are at the same height with each other and are level front-to-back.
f) Pull the inner slide rails on each assembly out toward the rack front until they hit the internal stops and lock in place.
Step 5 Insert the chassis into the slide rails.
a) Align the rear of the inner rails that are attached to the chassis sides with the front ends of the empty slide rails on
the rack.
b) Push the inner rails into the slide rails on the rack until they stop at the internal stops.
c) Slide the release clip toward the rear on both inner rails, and then continue pushing the chassis into the rack until the
mounting brackets meet the front of the slide rail.

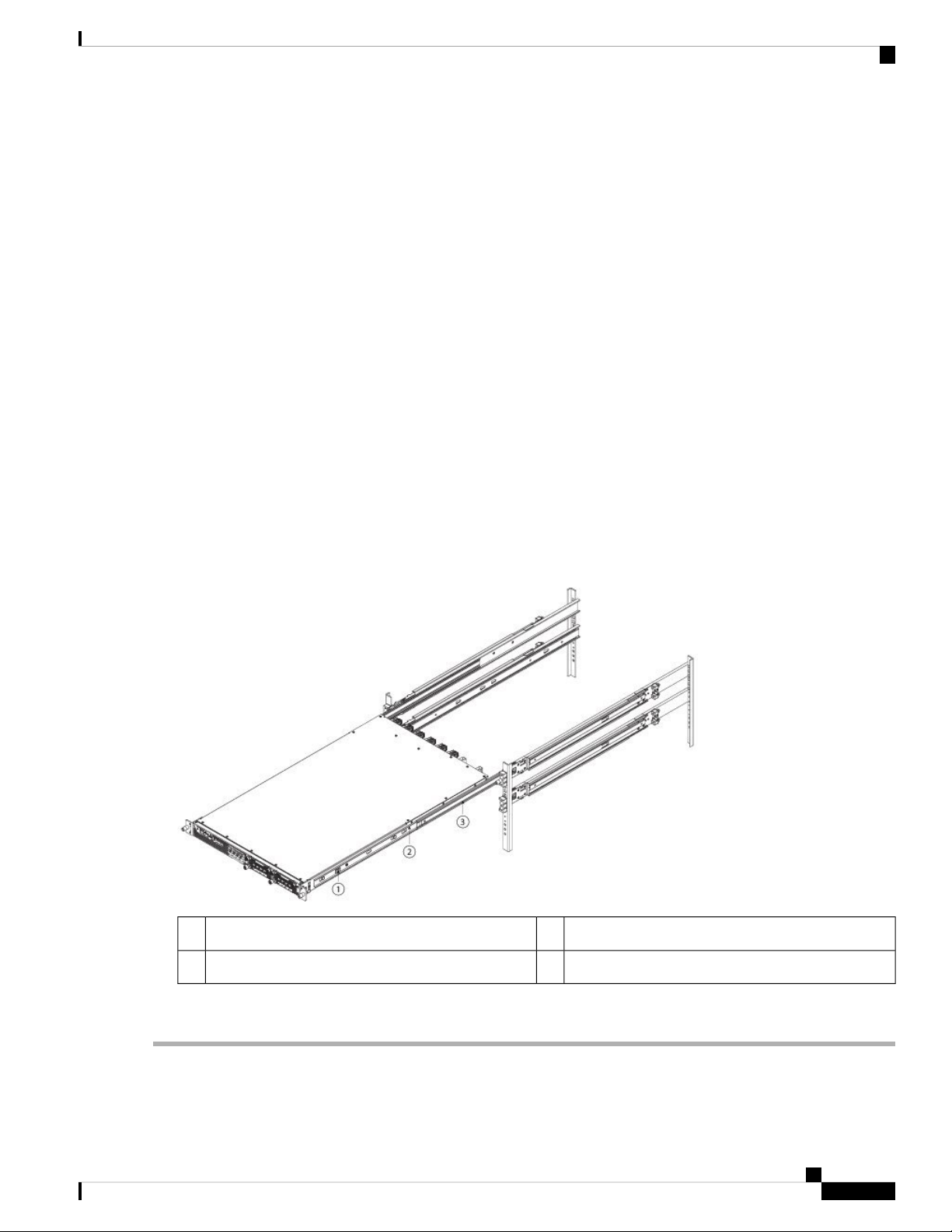

Figure 4: Inner Rail Release Clip
Inner rail attached to chassis2Inner rail release clip1
Outer rail attached to rack post3
Step 6 Use the captive screws on the front of the mounting brackets to fully secure the chassis to the rack.
Rack-Mount the Chassis
5
Rack-Mount the Chassis
Rack-Mount the Chassis
What to do next
Ground the chassis. See Ground the Chassis, on page 6 for the procedure.
Install the cables according to your default software configuration as described in the Getting Started Guide
for your version.
Ground the Chassis
Take note of the following warnings:
Statement 1024—Ground Conductor
This equipment must be grounded. To reduce the risk of electric shock, never defeat the ground conductor or
operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical
inspection authority or an electrician if you are uncertain that suitable grounding is available.
Warning
Statement 1046—Installing or Replacing the Unit
To reduce risk of electric shock, when installing or replacing the unit, the ground connection must always be
made first and disconnected last.
Warning
Statement 1025—Use Copper Conductors Only
To reduce risk of fire, use copper conductors only.
Warning
Grounding the chassis is required, even if the rack is already grounded. A grounding pad with 2 threaded M4
holes is provided on the chassis for attaching a grounding lug. The ground lug must be NRTL-listed. In
addition, a copper conductor (wires) must be used and the copper conductor must comply with NEC code for
ampacity.
Caution
Before you begin
• You need the following items that you provide:
• Wire-striping tool
• Crimping tool
• Grounding cable
• Two star lock washers for the 10-32 x .375-in. screws used to secure the ground lug
• You need the following items from the accessory kit:
• Ground lug #6 AWG, 90 degree, #10 post
Rack-Mount the Chassis
6
Rack-Mount the Chassis
Ground the Chassis
• Two 10-32 x .375-in. screws used to secure the ground lug
Step 1 Use a wire-stripping tool to remove approximately 0.75 in. (19 mm) of the covering from the end of the grounding cable.
Step 2 Insert the stripped end of the grounding cable into the open end of the grounding lug.
Figure 5: Insert the Cable into the Grounding Lug
Step 3 Use the crimping tool to secure the grounding cable in the grounding lug.
Step 4 Remove the adhesive label from the grounding pad on the chassis.
Step 5 Place the grounding lug against the grounding pad so that there is solid metal-to-metal contact, and insert the 2 screws
with washers through the holes in the grounding lug and into the grounding pad.
Step 6 Make sure that the lug and cable do not interfere with other equipment.
Step 7 Prepare the other end of the grounding cable and connect it to an appropriate grounding point in your site to ensure
adequate earth ground.
What to do next
Install the cables according to your default software configuration as described in the Getting Started Guide
for your version.
Rack-Mount the Chassis
7
Rack-Mount the Chassis
Ground the Chassis
Rack-Mount the Chassis
8
Rack-Mount the Chassis
Ground the Chassis
