INSTALLING and ACTIVATING the

CISCO 881W MEETINGHOUSE FIREWALL

Contents

Preparation………………………………………………….….

Overview ……………………..…….……………….…..…..…

Verify Box Contents…………………….……….………....

Placement…………………………………………….…………

Set-up and Activation Steps …….………….………..…

Troubleshooting …………………….……………………....

Post-Activation……………………….………….…..…….…

Preparation

Before setting up the Cisco 881W meetinghouse

firewall, you should have the following:

1. A working Internet connection in the

meetinghouse that you can connect to using

an Ethernet cable

2. A computer (preferably a laptop) with

a network port, a contemporary web

browser, and a minimum screen resolution

of 1024 x 768

3. The Internet Service Provider (ISP) support

phone number and account information.

Plan to activate the firewall during a time

when support may be contacted.

4. Your LDS Account (to set up an LDS account,

go to ldsaccount.lds.org)

5. A unit number or property number

associated with the building where you’re

installing the firewall

6. Confirmation that you will be able to find

and select the correct building using the

Building Validation Tool:

mtm.lds.org/firewall/buildings/validation

7. The box containing the meetinghouse

firewall

8. An extra network cable

Overview

The meetinghouse firewall is like a bridge that will

connect all of the computers in the meetinghouse

to an Internet Service Provider (ISP).

You should install the firewall in the same general

location as the ISP modem. The location should be

secure, private, and convenient to an electrical

outlet.

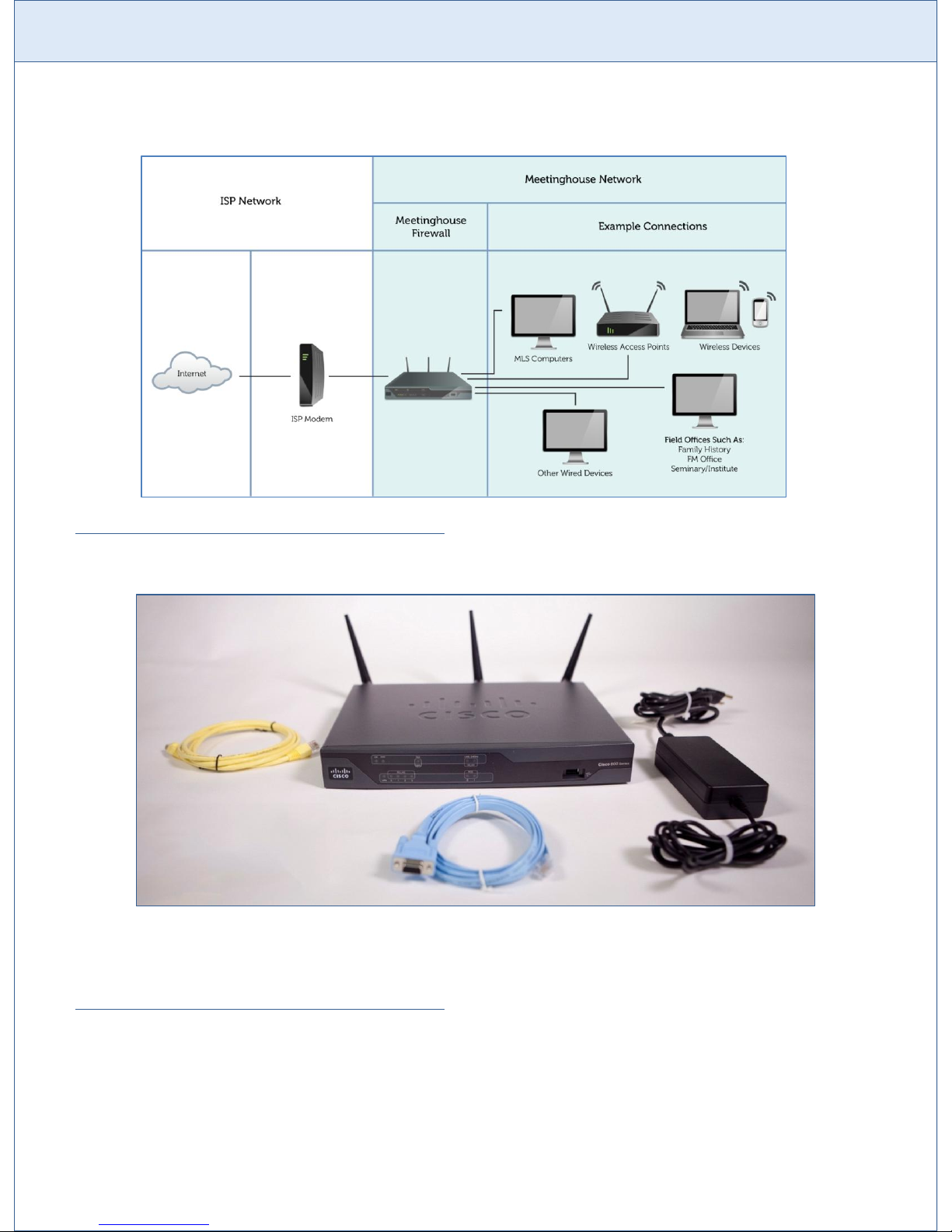

As shown in the diagram on the following page,

the firewall must be positioned between the ISP

and all devices on the meetinghouse network.

Verify Box Contents

INSTALLING and ACTIVATING the CISCO 881W MEETINGHOUSE FIREWALL

Unpack the equipment and confirm that you have each part. Label the blue console cable

and set it aside in a safe place. You may need it in the future.

No devices except for the firewall should ever be connected directly to the ISP modem.

Placement

Firewalls and ISP modems should be placed in secure areas that don’t get a lot of traffic.

Attics, drop ceilings, and lockable closets are preferred. Avoid offices with easy access,

cabinets that restrict airflow, and environments outside of the firewall operational range.

You will also need to occasionally troubleshoot problems, so ensure that the ports and the

status lights are easy to access and view. Do not place the firewall near a lot of metal.

INSTALLING and ACTIVATING the CISCO 881W MEETINGHOUSE FIREWALL

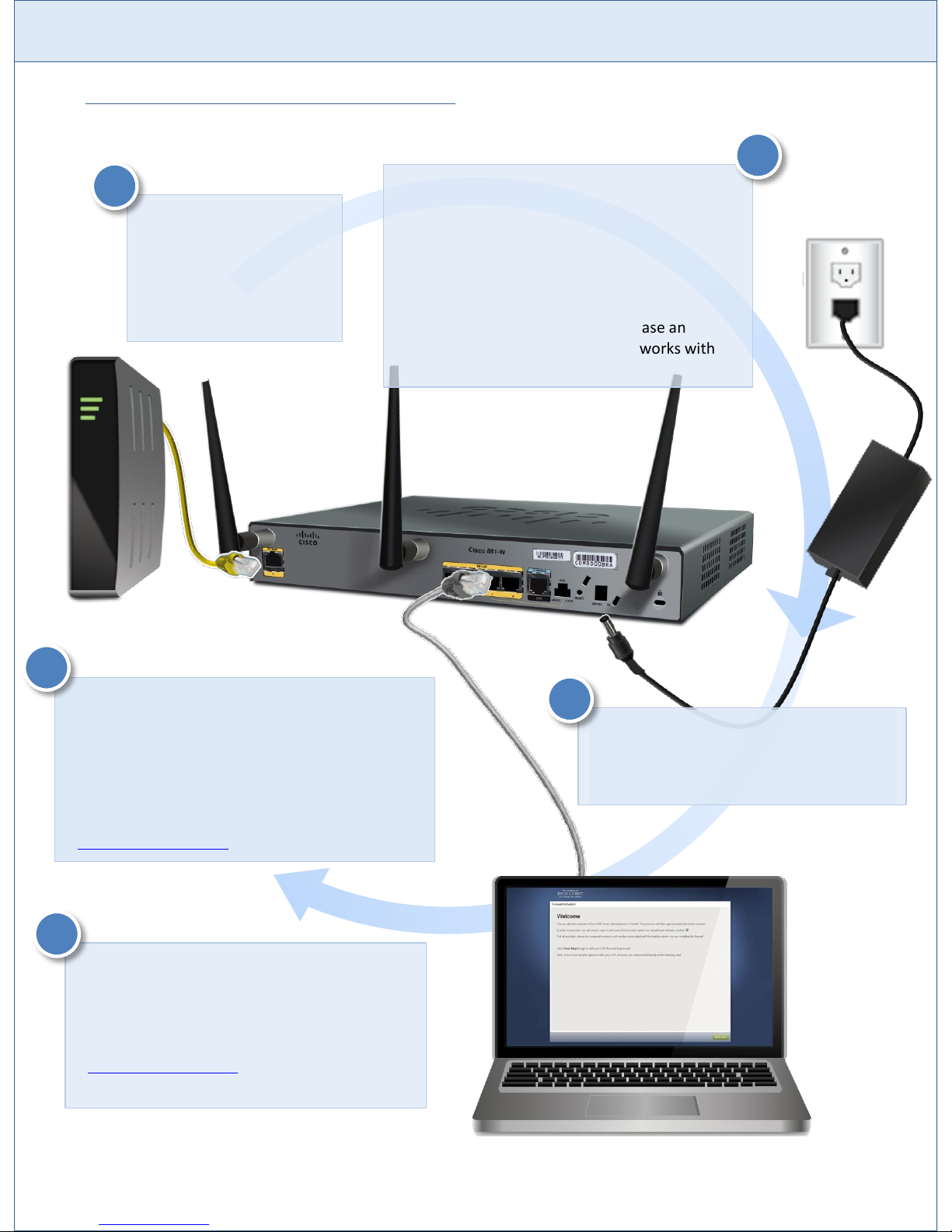

Setup & Activation Steps

After the firewall has been powered for at

least 90 seconds, open a web browser on the

computer connected to the firewall. You

should be automatically taken to the Firewall

Activation Welcome page. If not, go to

http://firewall.lds.org. Follow the on-screen

instructions to complete the activation.

Screw in the three antennas to the back of the

unit. Upon successful activation, the wireless

should automatically configure itself. It may take

up to two hours for it to begin working properly.

Information on how to connect to the integrated

wireless or how to procure and set up additional

wireless access points can be found at

http://mhtech.lds.org.

Connect the yellow

network cable to the FE

WAN Port on the back of

the firewall and to the

appropriate port on the

modem.

Connect the power supply to the firewall and to

an electrical outlet. Proceed with the activation

immediately upon plugging it in or power cycle

it before you begin. If your location uses a

different power outlet than the North American

standard, you will need to replace the included

power cable (the segment from the power

supply to the wall outlet) or purchase an

appropriate adapter. The firewall works with

any standard voltage.

1 2

Connect a separate network cable to a

computer and to port 0 on the firewall.

Make sure that the computer is set to

obtain an IP address automatically.

INSTALLING and ACTIVATING the CISCO 881W MEETINGHOUSE FIREWALL

Troubleshooting

If you experience problems with activation,

here are some things to try:

1. Make sure your firewall is connected to a

computer and the ISP modem correctly.

2. Verify the computer is set to obtain an IP

address automatically.

3. Go to http://firewall.lds.org on the computer

connected to the firewall.

4. Check that you have Internet access at the

ISP modem. If not, you will need to contact

the ISP support to figure out why. Power

cycle your ISP modem.

5. Power cycle your meetinghouse firewall.

If for some reason you have to restart

activation, go to http://firewall.lds.org on the

computer connected to the firewall.

If activation was successful, but the filtering

does not work immediately, close all browser

windows and then check again. Use

http://filteraudit.cjclds.net to test the filter.

Test your connection through the firewall and

directly to the ISP using an online test such

as http://speedtest.lds.org. This will help you get

a feel for your connection and ensure the

firewall is functioning correctly.

Where can I go for additional help?

If you need additional assistance,

please contact the Global Service Center at

+1 801-240-HELP (4357) or the respective toll-

free number for your area, if available.

Post-Activation

Connect Computers and Access Points

Once the firewall is set up properly, connect

computers and access points through any of the

available LAN ports. Use a network switch if you

need more ports.

Wired Connections

Wired connections should be installed,

organized, and labeled in accordance with

standards posted at http://lds.org/aec and

http://mhtech.lds.org.

Wireless Connections

The 881W includes integrated wireless 802.11

(Wi-Fi). Screw in the three antennas to the back

of the unit and place them in an upright position.

Upon successful activation, the wireless should

configure itself automatically. It may take up to

two hours for it to begin working properly.

Information on how to connect to the integrated

wireless or how to procure and set-up additional

wireless access points can be found at

http://mhtech.lds.org.

Protect Church-managed Computers

Church-managed computers must be set up and

kept up-to-date with the latest security patches

and software necessary for secure Internet use.

For more information on installing and

activating the meetinghouse firewall or to learn

more about other meetinghouse technologies,

please visit http://mhtech.lds.org.
