Cisco TelePresence Conductor Manual de usuario

Cisco TelePresence

Conductor

Getting started

D14829.02

December 2012

Contents

Contents 2

General information 3

About the Cisco TelePresence Conductor 3

Installing the Cisco TelePresence Conductor 4

Package contents 4

Before you start 4

Preparing the installation site 4

Preparing the unit 5

Connecting the cables 5

Powering on the Cisco TelePresence Conductor 5

Initial configuration 6

Configuration using a serial cable 6

Configuration using the front panel 8

Using the Cisco TelePresence Conductor 9

Changing the admin account password 9

Changing the root account password 9

Other recommended configuration 9

Using the web interface 9

Documentation and training 11

Disclaimers and notices 12

Cisco TelePresence Conductor Getting Started Guide Page 2 of 12

General information

About the Cisco TelePresence Conductor

The Cisco TelePresence Conductor simplifies multiparty video communications. It lies within a video

communications network, working in conjunction with one or more conference bridge(s) and one or

more call control device(s) (either Cisco TelePresence Video Communication Servers (VCSs) or

Cisco Unified Communications Managers (Unified CMs)). It allows the video network to be configured

such that spontaneous or rendezvous* conferences may be easily provisioned, initiated, accessed

and managed.

* personal conferences with a unique conference ID that are often referred to as “MeetMe” conferences

Cisco TelePresence Conductor Getting Started Guide Page 3 of 12

Installing the Cisco TelePresence Conductor

Package contents

To avoid damage to the unit during transportation the Cisco TelePresence Conductor is delivered in a

special shipping box, which should contain the following components:

nCisco TelePresence Conductor unit

nrack ears, screws and Torx driver

nrubber feet

ncables:

lpower cables

lEthernet cable

lshielded serial cable

Report any discrepancies to your Cisco representative immediately.

We recommend that the shipping box is kept in case the Cisco TelePresence Conductor needs to be

returned.

Before you start

IMPORTANT: Before installing the Cisco TelePresence Conductor, you must read the safety

information at www.cisco.com/go/telepresence/safety.

Preparing the installation site

Before installing the Cisco TelePresence Conductor:

nEnsure that the Cisco TelePresence Conductor is accessible and that all cables can be easily

connected.

nEnsure that the power outlet is near to the Cisco TelePresence Conductor and is easily accessible.

nTo ensure adequate ventilation, leave a space of at least 10cm (4 inches) behind the unit’s rear

panel and 10cm (4 inches) in front of the front panel.

lThe Cisco TelePresence Conductor has side air intakes and rear air exhaust. A check should

be made to ensure there is sufficient ventilation, particularly at the sides.

lEnsure that other devices are not exhausting directly into the air intake on the Cisco

TelePresence Conductor. Note that Codian MCU airflow is from right to left, so be especially

careful if racking them to the right of Cisco TelePresence Conductor.

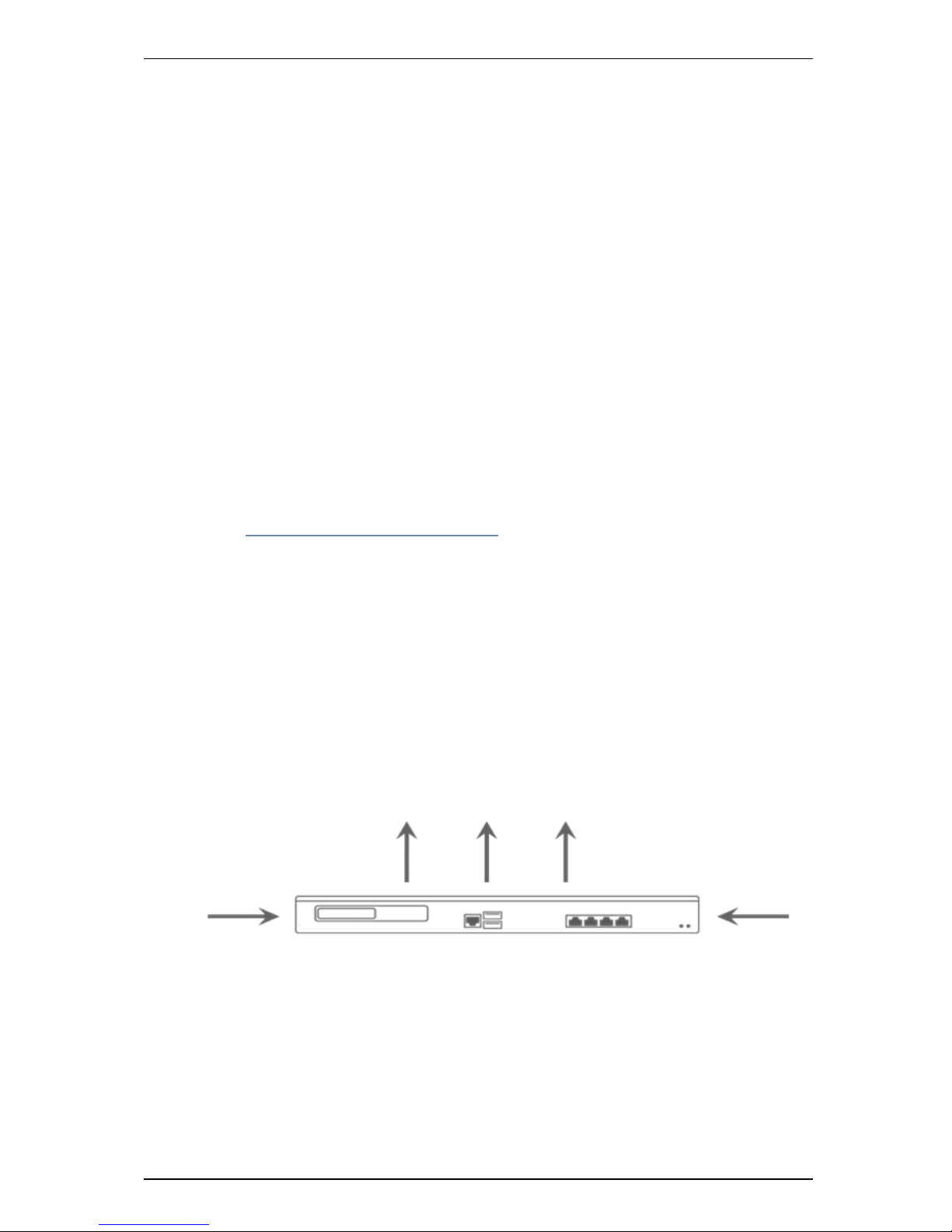

Figure 1: Cisco TelePresence Conductor ventilation

nThe room in which you install the Cisco TelePresence Conductor should have an ambient

temperature between 0ºC and 35ºC (32ºF and 95ºF) and between 10% and 90% non-condensing

relative humidity.

nUse a grounded AC power outlet for the Cisco TelePresence Conductor.

Cisco TelePresence Conductor Getting Started Guide Page 4 of 12

Installing the Cisco TelePresence Conductor

Preparing the unit

1. Unpack the unit.

2. Mount the rack ears (using a Torx T10 driver) or rubber feet.

3. Turn the unit back on its feet or mount it in the rack.

If this product is mounted in a rack you are recommended to use additional support

accessories such as rack side support angles (rack angle brackets) or rack shelves, due

to the unit’s weight and depth. Ensure that units in the rack do not touch each other.

Contact your rack supplier to request the accessories best suited for your rack.

Connecting the cables

1. Connect the power cable to the back of the Cisco TelePresence Conductor (see Figure 2).

2. Connect the Ethernet LAN cable from the LAN1 port on the front of the Cisco TelePresence

Conductor to your network (see Figure 3).

Powering on the Cisco TelePresence Conductor

1. Turn on the power switch on the back right of the unit (adjacent to the power cable). The system

will power up. If the unit does not start after 3 seconds, press the soft power button.

Wait until:

lthe green PWR LED on the front of the unit is a steady green color (it may flash briefly during

power up)

lthe red ALM LED on the front of the unit has gone out

lthe IP address is showing in the display panel on the front of the unit

If the red ALM LED flashes rapidly it indicates a hardware fault. Contact your local Cisco

representative. The yellow HDD LED indicates disk activity and may flicker during

normal operation, more so on a busy system.

Figure 2: Cisco TelePresence Conductor back view

Cisco TelePresence Conductor Getting Started Guide Page 5 of 12

Initial configuration

Before you can use the Cisco TelePresence Conductor, you must configure its IPv4 address, subnet

mask and default gateway. Consult your network administrator for information on which addresses to

use. Note that the Cisco TelePresence Conductor must use a static IP address.

This initial configuration can be done:

nby connecting from a PC to the Cisco TelePresence Conductor using a serial cable. This is the

recommended process, and is described in the following section

nby using the buttons on the front panel (see "Configuration using the front panel" on page 8)

nif your network is set up to allow it, by connecting using a web browser to the default IP address of

192.168.0.100 (see "Using the web interface" on page 9)

Figure 3: Cisco TelePresence Conductor front view

Configuration using a serial cable

To set the initial configuration using a PC connected to the Cisco TelePresence Conductor DATA

port via a serial cable:

1. Connect the Ethernet LAN cable from the LAN1 port on the front of the unit to your network.

2. Connect the supplied serial cable from the DATA port on the front of the unit to the serial port on a

PC.

3. Start a terminal emulator program on the PC and configure it to use the PC’s serial port as follows:

lbaud rate: 115200 bits per second

ldata bits: 8

lparity: none

lstop bits: 1

lflow control (hardware and software): none

Do not leave a terminal emulator session open after it is no longer in use. An open

session may cause issues during a system restart.

4. Turn on the power switch on the back right of the unit (adjacent to the power cable). The system

will power up. If the unit does not start after 3 seconds, press the soft power button on the back left

of the unit.

5. Wait until:

lthe green PWR LED on the front of the unit is a steady green color (it may flash briefly during

power up)

lthe red ALM LED on the front of the unit has gone out

lthe default IP address (192.168.0.100) is showing in the display panel on the front of the unit

The terminal emulator program on the PC will display the Cisco TelePresence Conductor’s startup

information. After approximately four minutes you will get the login prompt (if the Cisco

TelePresence Conductor was already on when you connected the serial cable, press Enter to

get the login prompt):

cisco login:

Cisco TelePresence Conductor Getting Started Guide Page 6 of 12

Initial configuration

6. Enter the username admin and press Enter.

You will get the password prompt:

Password:

7. Enter the default password of TANDBERG and press Enter.

You will get the install wizard prompt:

Run install wizard [n]:

8. Type yand press Enter.

9. Follow the prompts given by the install wizard to specify the following:

lthe password you want to use for your admin account

For security reasons you are advised to change the password from the default of

TANDBERG. The Cisco TelePresence Conductor's conference functionality will be

disabled until this password has been changed.

lwhether you want to use IPv4, IPv6 or Both — choose IPv4

lthe LAN 1 IP address of the Cisco TelePresence Conductor

lthe LAN 1 IPv4 subnet mask of the Cisco TelePresence Conductor

lthe IP default gateway of the Cisco TelePresence Conductor

lthe Ethernet speed

Use the default value of Auto unless the switch to which you are connecting is unable to

auto-negotiate.

lwhether you want to use SSH to administer the Cisco TelePresence Conductor

After the wizard is finished the following message will appear:

Setting other settings...

OK. The system must be restarted for new

settings to take effect..

And you will get a restart prompt:

Restart Now?

10. Type yand press Enter.

11. Disconnect the serial cable and store it in a safe place.

After it has rebooted, the Cisco TelePresence Conductor is ready to use. For security reasons you are

advised to change the password for the default admin account (if you have not already done so) and

the root account from the default of TANDBERG. See the sections "Changing the admin account

password" on page 9 and "Changing the root account password" on page 9 for details.

Cisco TelePresence Conductor Getting Started Guide Page 7 of 12

Initial configuration

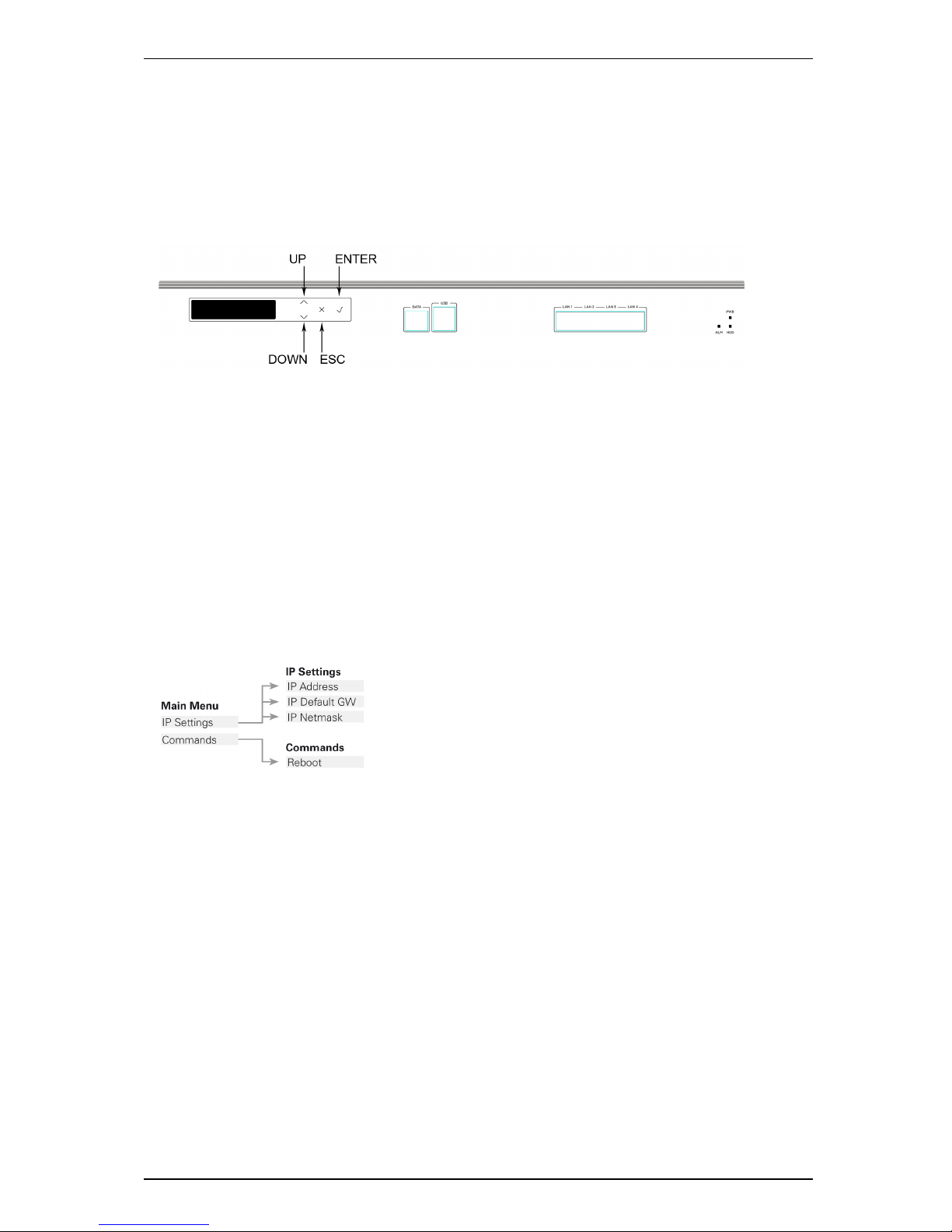

Configuration using the front panel

The LCD panel and buttons at the front of the Cisco TelePresence Conductor allow you to configure

and check the IP settings as well as to reboot the system (see Figure 3). You are not recommended to

perform the initial configuration using the front panel, but you may need to use this method if you do not

have access to a PC and serial cable.

Figure 3: Cisco TelePresence Conductor LCD panel

By default, during normal operation the front panel of the TelePresence Conductor unit shows Cisco

TelePresence Conductor, the Local host name (if configured), the LAN 1 IPv4 address and any

alarms that may apply to the unit.

To control the display of status items:

nENTER stops the display from automatically rotating through the status items. This is useful if you

need to review all of the warning messages. Press ENTER again to resume the rotating display.

nUP/DOWN displays the previous or next status item.

To access the front panel menu options, press ESC. The menu options are as follows:

nUP/DOWN navigates to the next menu or submenu item.

nENTER selects a menu or submenu item.

nWhen you have selected an IP setting from the menu:

lUP/DOWN increases or decreases the value of the currently selected digit.

lENTER moves the cursor on to the next digit and saves your changes when you move off the

final digit.

lESC cancels any changes; returns to the menu.

nWhen you are on the Commands submenu:

lENTER performs the command.

lESC returns to the main menu.

nTo leave the menu options and return to the rotating display, press ESC.

Cisco TelePresence Conductor Getting Started Guide Page 8 of 12

Using the Cisco TelePresence Conductor

After you have set the initial configuration of the Cisco TelePresence Conductor, the system is ready

to use. You can continue to use the serial connection to access and manage the Cisco TelePresence

Conductor, or you can connect to the system remotely over IP using either or both:

nHTTPS (see "Using the web interface" below)

na command line interface via SSH (there is no tsh support on Cisco TelePresence Conductor)

For security reasons, you should change the passwords for the admin account and the

root account from the default of TANDBERG as soon as initial configuration of the Cisco

TelePresence Conductor has been completed. The Cisco TelePresence Conductor's

conference functionality will be disabled until this password has been changed.

Changing the admin account password

To change the password for the admin account using the web interface:

1. Navigate to Users > Administrator accounts.

You will be taken to the Administrator accounts page.

2. Click on View/Edit for the admin name.

3. In the Password and Confirm password fields, enter the new password, and click Save.

The Password strength box will indicate how secure your chosen password is.

Changing the root account password

To change the password for the root account:

1. Using the CLI, log in as root using the existing password.

2. Type the command passwd.

You will be asked for the new password.

3. Enter the new password and when prompted, retype the password.

4. Type exit to log out of the root account.

Other recommended configuration

You are now recommended to configure the following:

nThe system name of the Cisco TelePresence Conductor. This is used by the Cisco TelePresence

Management Suite (Cisco TMS) to identify the system. This can be set from the DNS page on the

web interface (navigate to System > DNS).

nThe DNS server address(es), if Fully Qualified Domain Names (FQDNs) are to be used. This can

be set from the DNS page on the web interface (navigate to System > DNS).

Refer to the Cisco TelePresence Conductor Administrator Guide, deployment guides and release

notes (available for download from www.cisco.com) or the online help for complete information on

configuring these and all other options available on your Cisco TelePresence Conductor.

Using the web interface

To use the web interface:

1. Open a browser window and in the address line type either:

lthe IP address of the Cisco TelePresence Conductor

lthe FQDN of the Cisco TelePresence Conductor

The Login page will appear.

Cisco TelePresence Conductor Getting Started Guide Page 9 of 12

Using the Cisco TelePresence Conductor

2. Enter a valid administrator username and password and select Login.

You will be presented with the Overview page.

Refer to the online help or the Cisco TelePresence Conductor Administrator Guide for further

information on the configuration options available for each page of the Cisco TelePresence Conductor

web interface.

Cisco TelePresence Conductor Getting Started Guide Page 10 of 12

Tabla de contenidos

Otros manuales de Sistema de conferencias de Cisco

Cisco

Cisco TelePresence MCU 4505 Manual de usuario

Cisco

Cisco TelePresence MX200G2 Manual de usuario

Cisco

Cisco MX300 G2 Manual de usuario

Cisco

Cisco TelePresence SX20 Manual de servicio

Cisco

Cisco EX90 Manual de usuario

Cisco

Cisco Webex Share Manual de usuario

Cisco

Cisco Webex Share Manual de usuario

Cisco

Cisco SX80 Manual de servicio

Cisco

Cisco TelePresence System Codec C60 Manual de servicio

Cisco

Cisco TelePresence SX20 Manual de usuario

Cisco

Cisco Webex Codec Pro Manual de usuario

Cisco

Cisco TelePresence DX70 Instrucciones de uso

Cisco

Cisco TelePresence DX80 Manual de usuario

Cisco

Cisco EX Series Manual de usuario

Cisco

Cisco Webex Room Kit Manual de usuario

Cisco

Cisco Spark Board 55 Manual de usuario

Cisco

Cisco SX80 Manual de usuario

Cisco

Cisco Telepresence MX200 Manual de usuario

Cisco

Cisco EX60 Manual de usuario

Cisco

Cisco TelePresence SX20 Manual de usuario

Cisco

Cisco Webex Room Kit Mini Manual de usuario

Cisco

Cisco Quick Set C20 Manual de usuario

Cisco

Cisco Telepresence MX200 Manual de servicio

Cisco

Cisco 7936 - IP Conference Station VoIP Phone Manual de usuario

Manuales populares de Sistema de conferencias de otras marcas

Kramer

Kramer VIA GO Manual de usuario

AVT

AVT MAGIC AC1 Go Manual de usuario

ProSoft Technology

ProSoft Technology AN-X4-AB-DHRIO Manual de usuario

Sony

Sony PCS-I150 Manual de usuario

Middle Atlantic Products

Middle Atlantic Products VTC Series Manual de usuario

Prentke Romich Company

Prentke Romich Company Vanguard Plus Guía

Speakerbus

Speakerbus iD 712 Manual de usuario

Trelleborg

Trelleborg SafePilot CAT PRO Manual de usuario

Sennheiser

Sennheiser ADN Manual de usuario

ADTRAN

ADTRAN NetVanta 7100 Manual de usuario

AINA

AINA PTT Voice Responder Manual de usuario

Yamaha

Yamaha ProjectPhone PJP-100H Manual de usuario

vissonic

vissonic VLI Series Manual de usuario

Panasonic

Panasonic KX-VC500 Manual de usuario

Poly

Poly Trio 8300 Manual de usuario

Crestron

Crestron Mercury CCS-UCA-SMK Dibujo dimensional

Inmarsat

Inmarsat mini M Manual de usuario

Tenveo

Tenveo ALL-IN-ONE Manual de usuario
